Description
Add a 1-inch camlock outlet

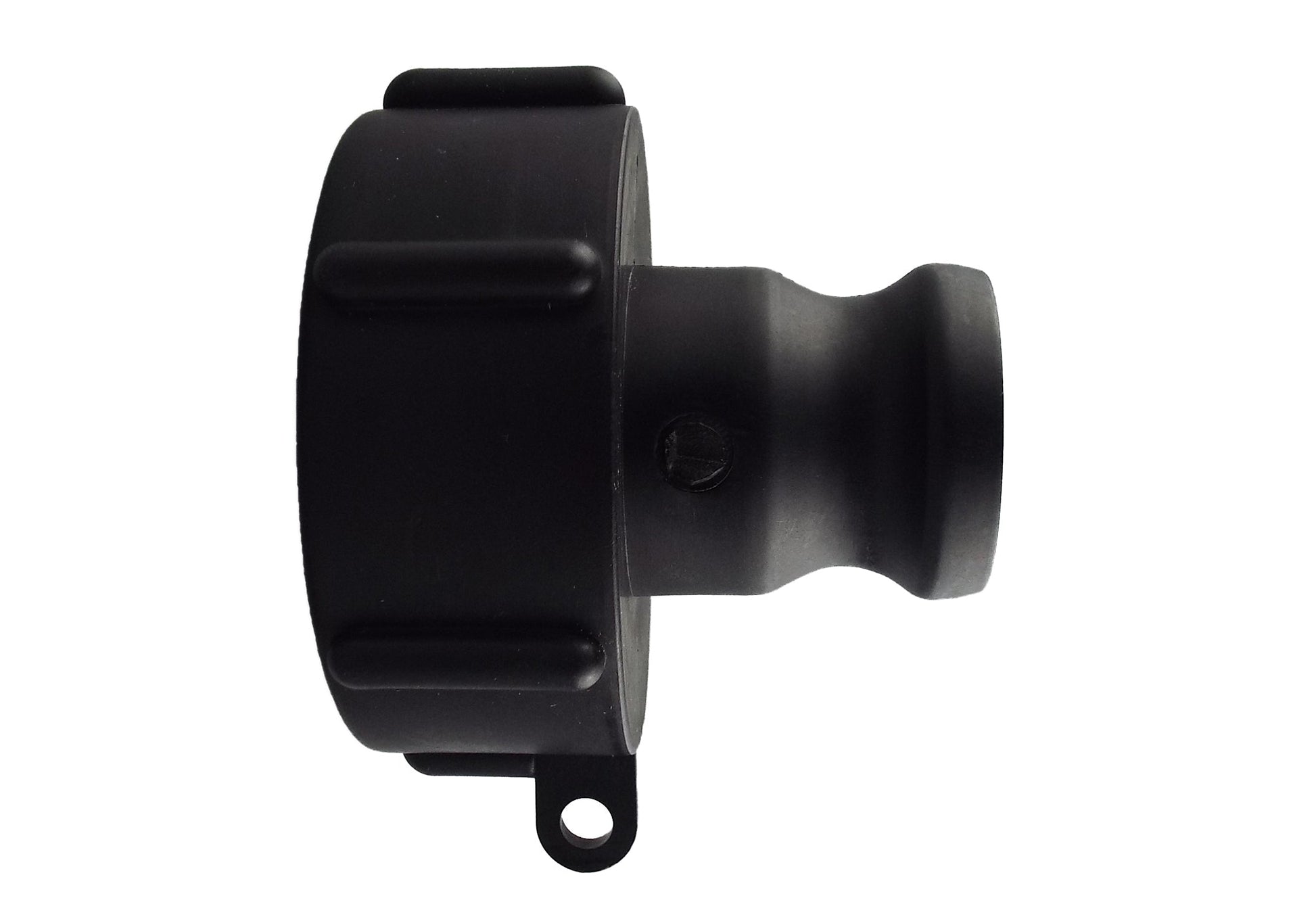

Make a matching S60x6 tank outlet ready for a removable hose assembly. This compact black plastic adapter screws onto the male S60x6 outlet and provides a 1-inch male camlock at the front.
The threaded end can stay on the tank while a separate female camlock coupler lets you connect and remove the hose. Choose the coupler by its camlock size, then match its hose tail to your hose.
One adapter with a tank-side sealing washer supplied. IBC, original valve, female coupler, hose and clips are not included.
The right fit starts at the tank

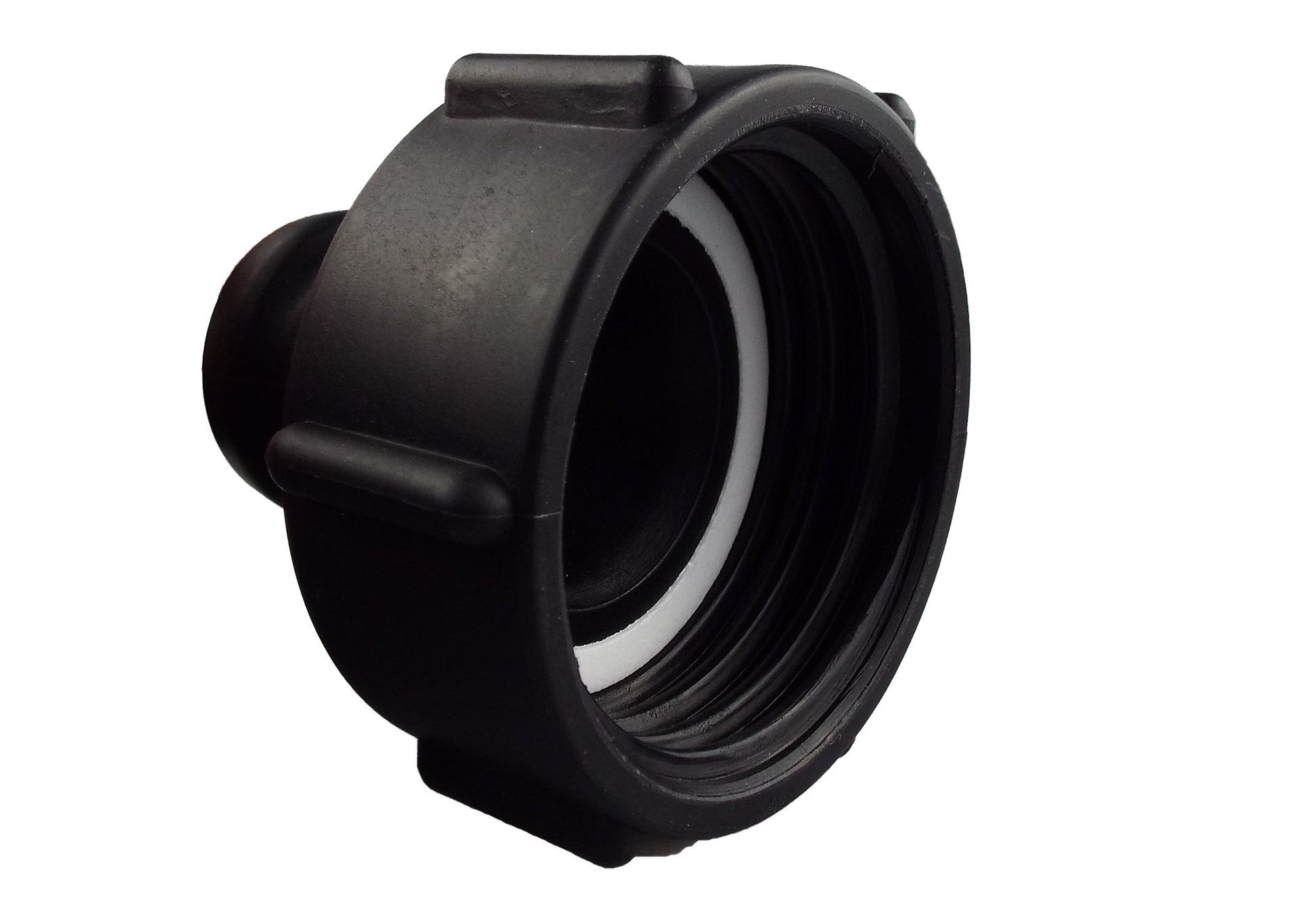

Check the exposed outlet. The recessed female thread and sealing washer shown here fit a matching male S60x6 IBC outlet. S60x6 is a nominal 60mm coarse thread with a 6mm pitch. A tank's capacity does not identify its valve thread, and S60x6 is different from BSP.
Use a 1-inch female camlock coupler. The front has a smooth male nose with a recessed groove, not a hose barb. A 1-inch Type C female coupler adds a hose tail for a matching hose. The arms and coupling gasket are on that separate female fitting.
With the supply closed and pressure released, open the female coupler's arms, insert the male nose fully against its gasket and close both arms completely by hand. Check any locking feature before use. The threaded tank connection stays in place when you disconnect at the camlock.
Keep the tank-side washer clean and seated, start the thread squarely and check the assembled joints before opening the supply. Close and depressurise the system before releasing the coupler: this adapter does not control the flow.
Before choosing your coupler
Does the S60x6 tank thread mean I need a 2-inch camlock?
No. The tank thread and camlock are separate interfaces. This adapter fits an S60x6 tank outlet but has a nominal 1-inch male camlock, so it needs a compatible 1-inch female camlock coupler. A 2-inch female camlock will not match this outlet.
Where are the locking arms?
They belong to the separate female coupler, not this male adapter. The female coupler's arms engage with the groove behind the male lip. Only the IBC adapter and its tank-side sealing washer are supplied here; no female coupler or hose is included.
Product information & technical details
| SKU | CAM-IBCS60X6-1-001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Camlock type | Type A |
| Camlock size | 1" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Plastic |
| Supplied quantity | 1 adapter with tank-side sealing washer |
| Separate items required | Matching female camlock coupler and suitable hose assembly |
