Description
Connect at the camlock

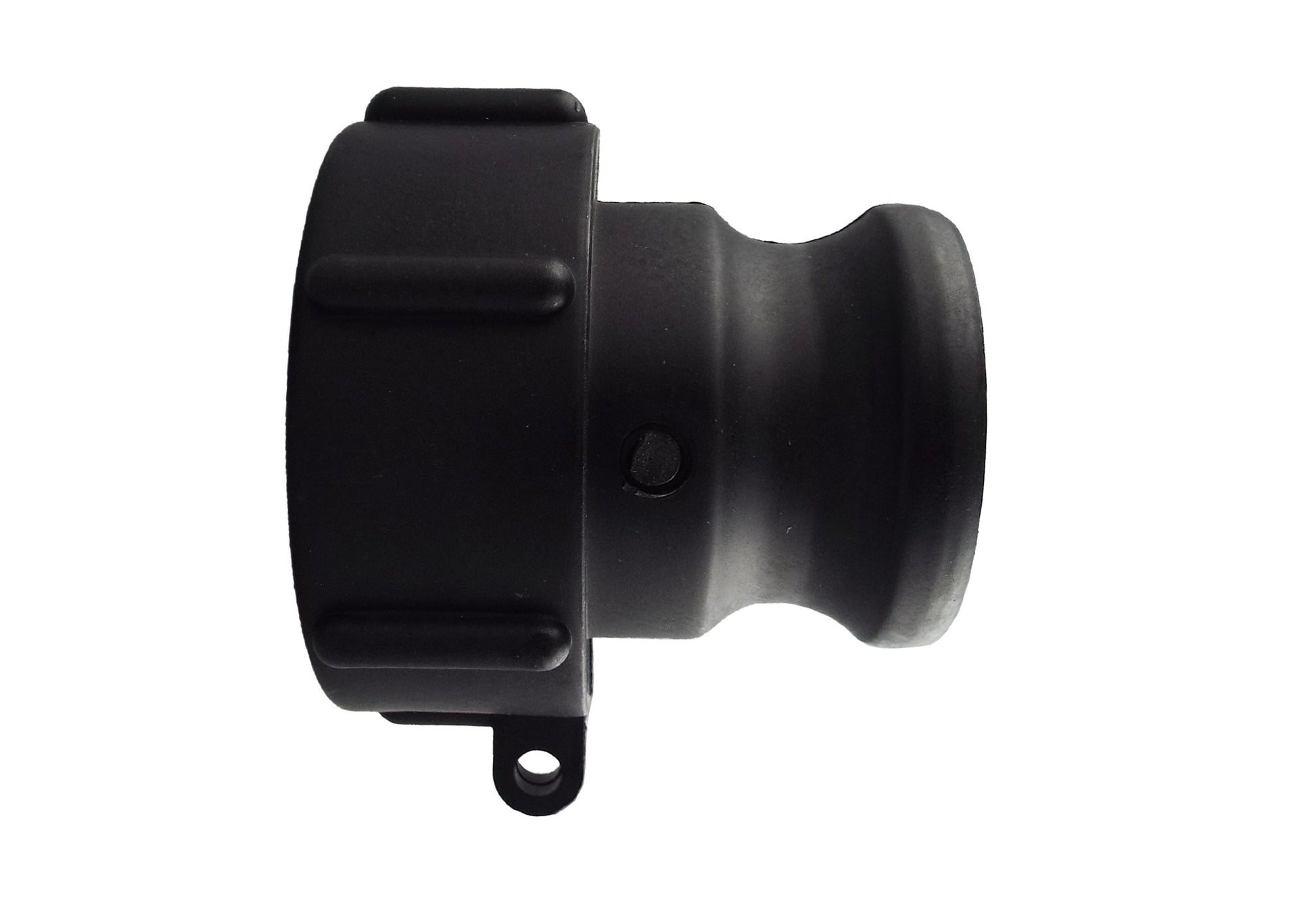

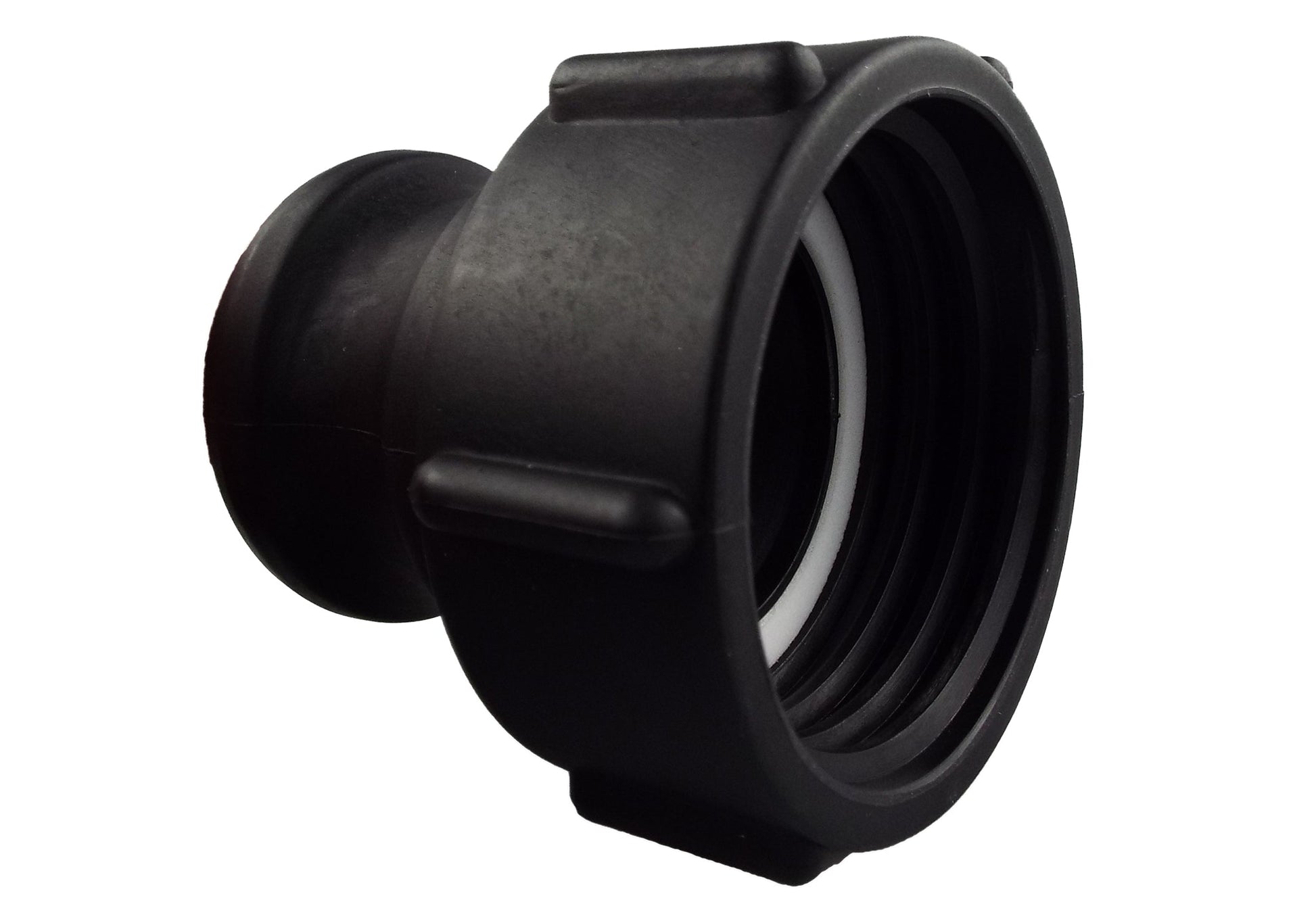

Give a matching S60x6 IBC outlet a 1½-inch male camlock connection. This black plastic adapter screws onto the tank or valve's male coarse thread, ready to accept a separate female camlock coupler.
Keep the threaded fitting on the tank between jobs. Your hose assembly connects and disconnects at the camlock, so you do not have to unscrew the adapter each time you remove the hose.
One adapter with a tank-side sealing washer supplied. The IBC, original valve, female coupler, hose and clips are separate items.
Two connections to match
Start with the tank outlet. The wide female connection and washer shown here fit a matching male S60x6 thread: nominally 60mm with a 6mm pitch. Check your valve's exposed thread; S60x6 is not BSP.
Then check your hose assembly. The front is a nominal 1½-inch male camlock, with a groove behind its lip. Use a compatible female camlock of the same size. It is not a hose tail, so a bare hose cannot be pushed straight onto it.
For a hose connection, the separate 1½-inch Type C female coupler provides a matching camlock socket and hose tail. Choose the hose and its fastening to suit that tail, and support the hose so it does not pull on the tank outlet.
Before connecting, close the supply and release pressure. Check the female coupler's gasket, open its arms, insert the male nose fully against the gasket and close both arms completely by hand. Check any locking feature before use. Close and depressurise again before releasing the coupler; the adapter itself has no shut-off function.
Check before ordering
Can I use a 1-inch or 2-inch female coupler?
No. This outlet is nominally 1½-inch, so choose a compatible 1½-inch female camlock coupler. The male groove and female arms must be the matching size. The S60x6 tank thread is a separate connection and does not determine the camlock size.
Does this fitting include a hose connection or tap?
It includes the threaded IBC-to-male-camlock adapter and its tank-side sealing washer. The female coupler, hose and clips are separate, and the adapter cannot turn the flow on or off. Keep and use a suitable valve on your tank.
Product information & technical details
| SKU | CAM-IBCS60X6-15-001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Camlock type | Type A |
| Camlock size | 1.5" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Plastic |
| Tank thread pitch | 6mm (S60x6) |
| Supplied quantity | 1 adapter with tank-side sealing washer |
