Description
Connect your 19mm hose at the tank

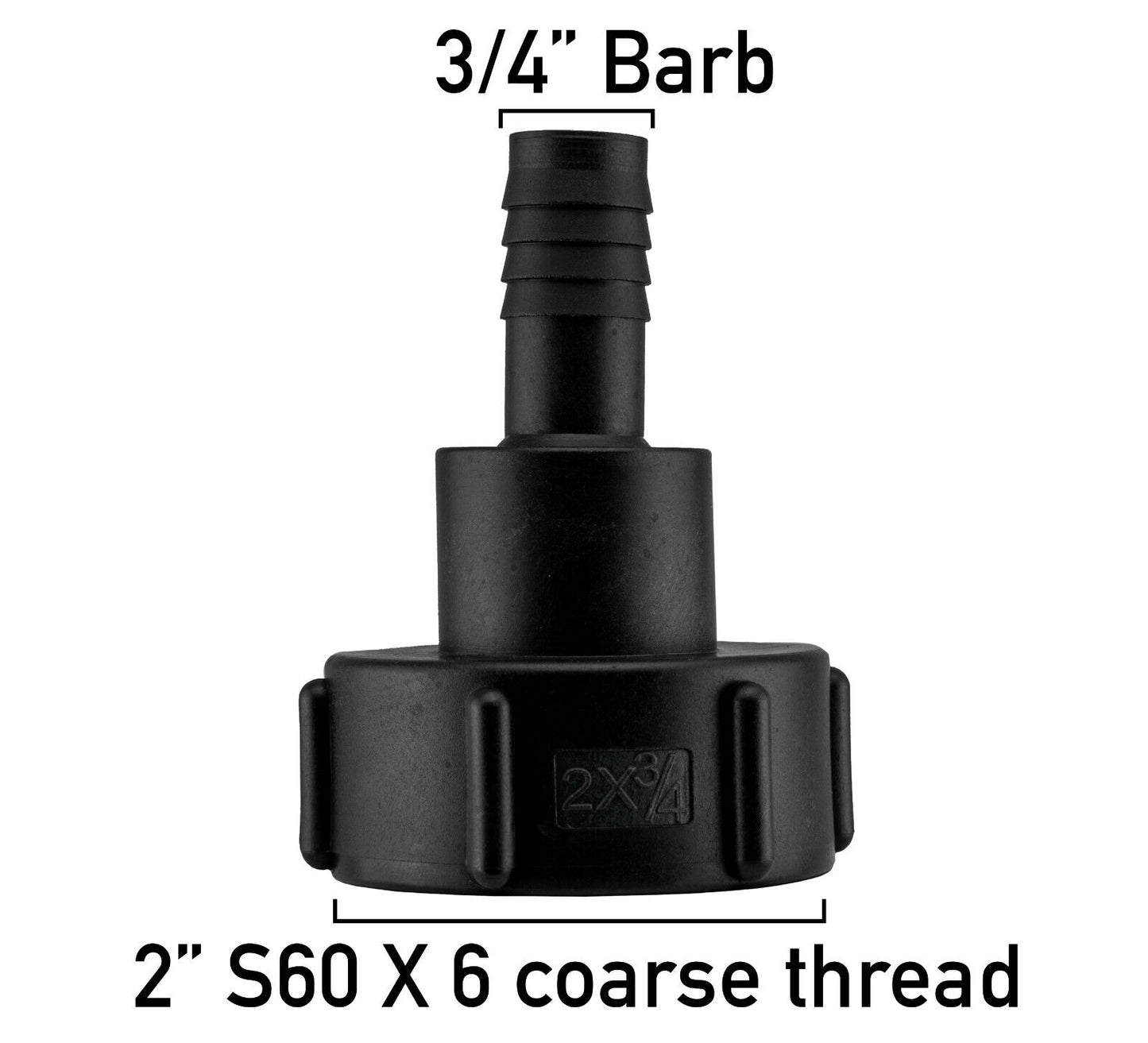

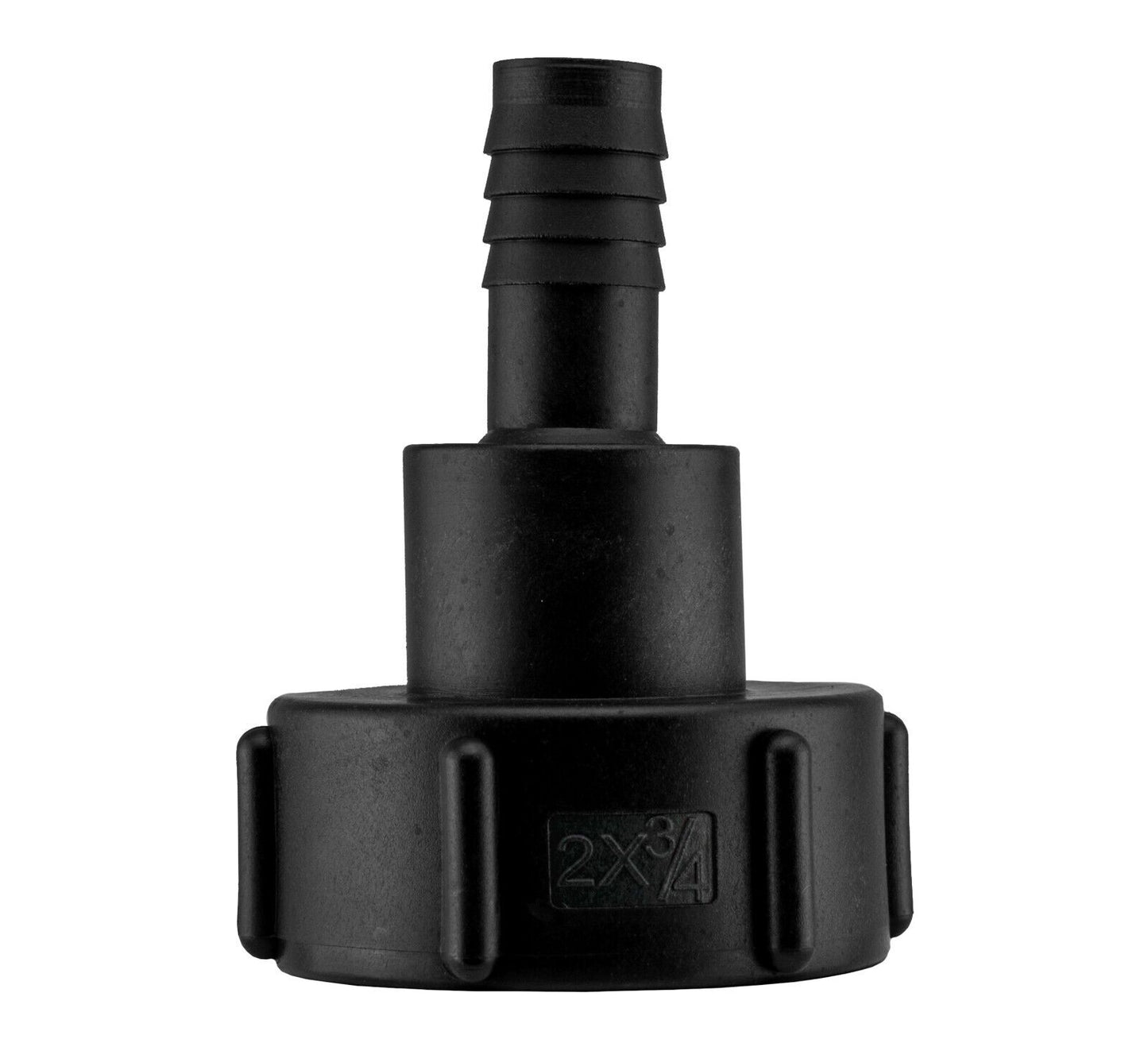

Give a matching S60x6 tank outlet a ¾-inch hose connection. This black plastic adapter has a large ribbed female collar at the tank end and a straight barbed tail for your hose.
It is a simple way to attach a suitable 19mm internal-bore water hose for a rainwater run. The collar screws onto the existing outlet; the hose slides over the barbs and is secured with an appropriate hose clip.
One adapter supplied. The tank, valve, hose and clip shown in the illustration are separate.
Match the hose and outlet independently
The 19mm size describes the hose's inside bore, commonly called ¾-inch. Measure a clean, round hose end rather than its outside diameter. The hose goes over the tail; a screw-on ¾-inch BSP fitting or snap-on hose connector does not attach directly to these barbs.
On the tank side, confirm a matching male S60x6 coarse thread and suitable sealing face. IBC outlets vary, so check the actual connection before ordering. A different thread cannot be made compatible simply by tightening the collar.

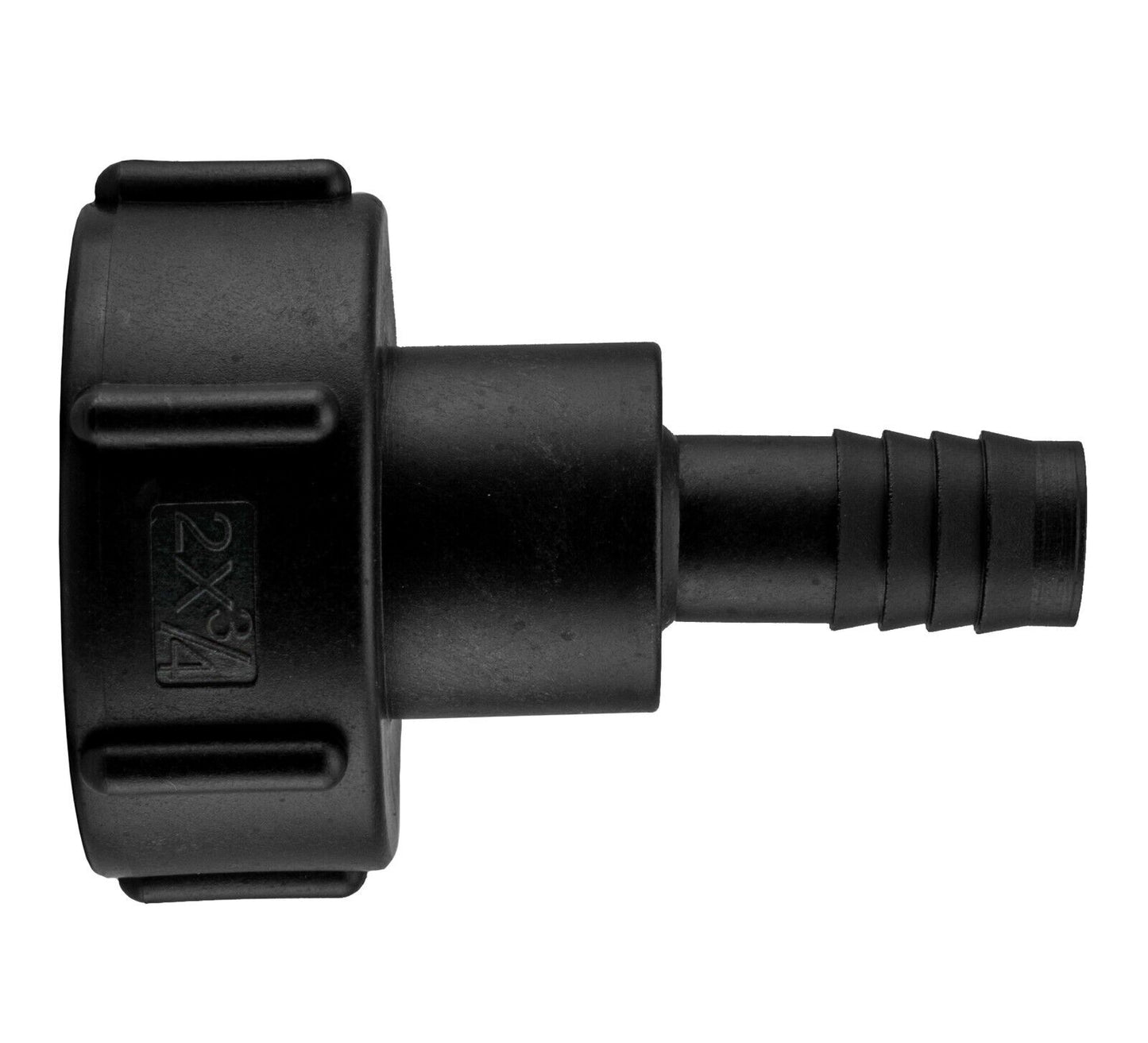

The genuine side-profile photo shows the stepped shoulder and narrow hose tail, with the 2x¾ marking on the collar. Use it to compare the bare fitting with your existing connection.
Seat the hose and keep the joint supported
Close the tank valve before fitting. Check the tank-side seal and start the collar squarely by hand. Slide a suitable hose clip onto the hose, push the hose fully over the barbed section and secure the clip over the inserted tail.
Clip size depends on the outside diameter of the hose once fitted, not just its 19mm bore. Support the hose close to the tank and leave a gentle bend so it does not kink or pull on the adapter. Check the finished joint before use.
Connection questions
Is this a ¾-inch threaded outlet?
No. The outlet is a barbed tail for 19mm internal-bore hose. The threaded part is the larger S60x6 female tank collar.
Can I disconnect the hose without closing the tank valve?
Close the supply first. This adapter has an open passage with no tap or water-stop mechanism, so it does not shut off the water when the hose is removed.
Product information & technical details
| SKU | IBCS60X6-34B001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Barb size | 19mm (3/4") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Outlet arrangement | Straight 19mm (¾-inch) barbed hose tail; no shut-off valve. |
| Supplied item | 1 adapter only. Tank, valve, hose and hose clip excluded. |
