Description
A direct outlet for your 32mm hose
Bring a 32mm internal-bore hose to a matching IBC outlet with this straight barbed adapter. Its large female S60x6 collar connects to the tank or existing valve, while the long ribbed tail sits inside your hose.
The black plastic fitting keeps the connection simple: one tank-side thread and one hose tail. Use it when your hose needs a 32mm barb, rather than choosing an adapter by the tank size alone.
One adapter supplied. Tank, valve, hose and hose clip are separate. The installed illustration shows the adapter's position on a compatible outlet.
Choose by the two connection sizes

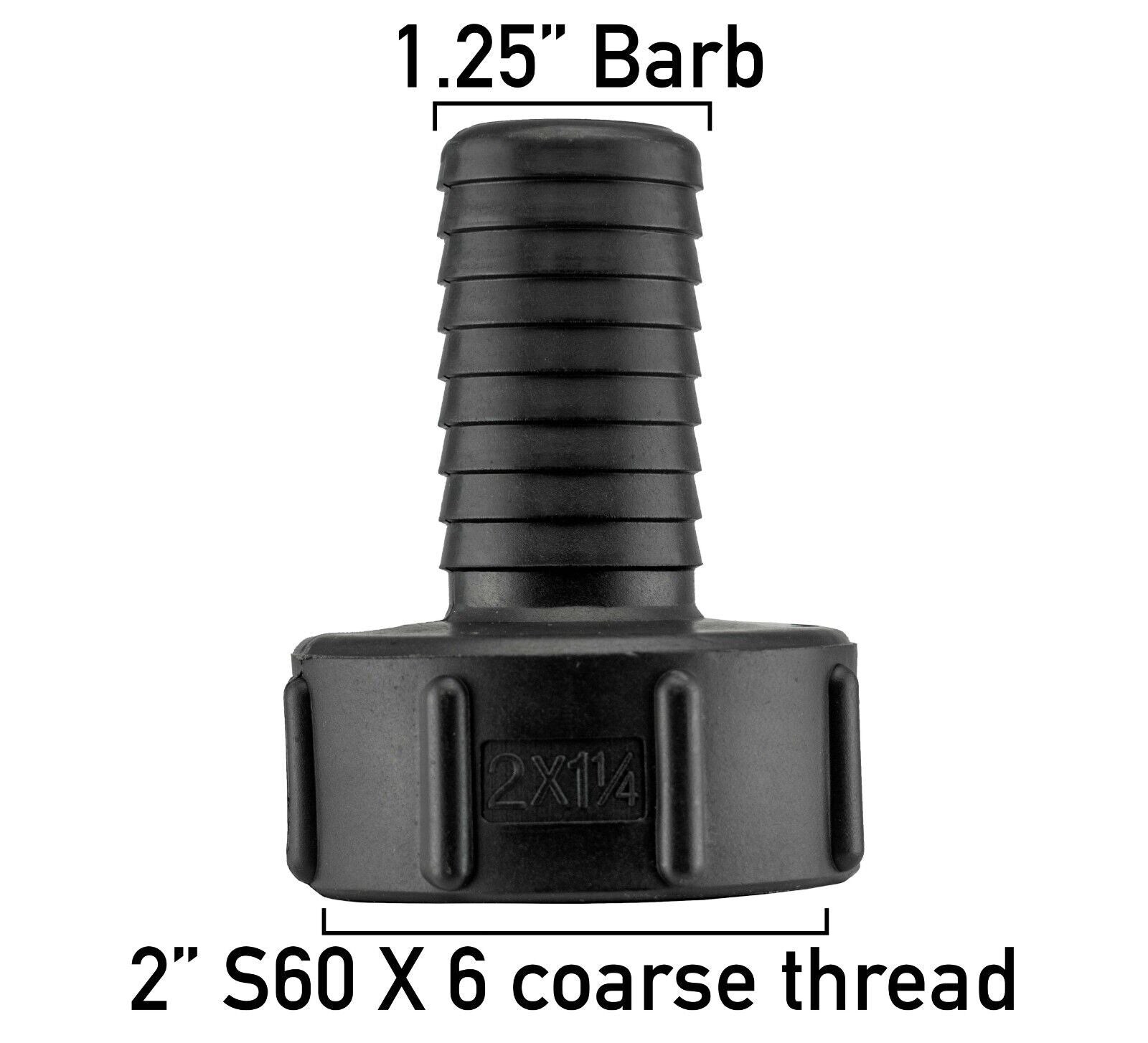

Check the IBC outlet: this adapter needs a matching male S60x6 coarse thread on the tank or valve. Confirm the thread and sealing face before ordering. A similar-looking tank fitting with another pitch or a fine BSP thread is not the same connection.
Check the hose: the tail suits a 32mm internal bore, commonly called 1¼-inch hose. The 32mm figure refers to the hose's clear inside opening, not its outside width and not the diameter of the tank thread.
The actual side-profile photograph shows this model's long, broad barbed outlet running directly from the ribbed collar. Compare it with the fitting and hose you are replacing.
Seat the hose, then support the run
Close the supply before fitting. Start the collar squarely by hand and check that the tank-side seal is seated correctly. Slide a suitable hose clip onto the hose before pushing the hose fully over the barbed section, then secure the clip over the inserted tail.
Clip size depends on the outside diameter of the fitted hose, so a 32mm hose bore does not mean a 32mm clip will fit. Route and support the hose so it does not pull down on the adapter or bend sharply at the outlet. Check the assembled joints before use.
Common fitting questions
Is 32mm the tank thread size?
No. The tank side is S60x6 female coarse thread. The 32mm size identifies the hose bore for the barbed outlet. Match both sides independently: the tank thread must suit the collar, and the hose must fit over the tail.
Does this adapter include a tap or valve?
No. This is an open hose connector. Use the existing tank valve or a suitable separate valve to control the supply, and close it before removing the hose or adapter.
Product information & technical details
| SKU | IBCS60X6-125B001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Barb size | 32mm (1.25") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Outlet arrangement | Straight 32mm hose tail; no shut-off valve. |
| Supplied item | 1 adapter only. Tank, valve, hose and hose clip excluded. |
