Description
A removable hose connection for your S100x8 outlet

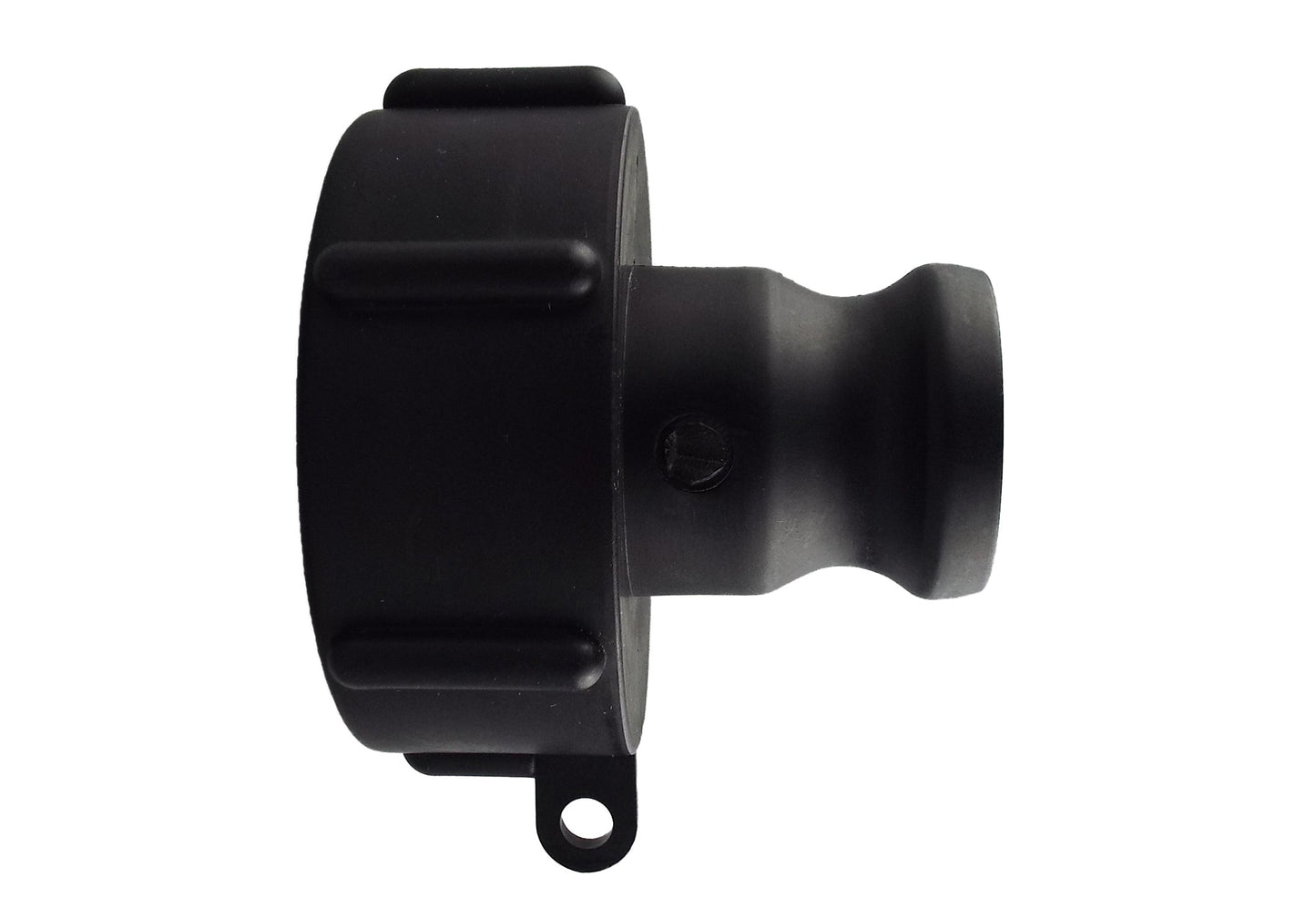

Convert a matching coarse-thread IBC outlet to a 2-inch male camlock. The wide female S100x8 collar screws onto the tank or valve outlet; the grooved nose accepts a compatible female camlock coupler.
Leave the threaded adapter in place when removing your hose assembly. The separate female coupler provides the opening and closing cam arms, so you can disconnect there rather than unscrewing the tank fitting each time.
One black plastic adapter supplied. Tank, original valve, female coupler, hose and hose clips are separate.
Check the thread. Match the coupler.
At the tank: S100x8 identifies a nominal 100mm coarse thread with an 8mm pitch. This adapter has the female connection, so the tank or valve must present the matching male thread. Check that exposed thread before ordering: S60x6 and BSP outlets need different fittings.
At the hose: the smaller nose is a nominal 2-inch male cam-and-groove connection. Its recessed groove engages with the arms on a matching female coupler. It is not a hose barb, a garden quick connector or a BSP male thread.
A 2-inch Type C female camlock coupler is one option for connecting a hose. Choose the coupler's hose tail to match your hose; a camlock size identifies the mating connection, rather than a measurement across the outside of the nose.
With the supply closed and pressure released, open both arms on the female coupler, insert the male adapter fully against its gasket and close both arms completely by hand. Check any locking feature before use. Isolate and depressurise again before disconnecting; this adapter has no shut-off function.
Choosing your IBC connection
Will it fit any IBC tank?
No. The adapter needs a matching male S100x8 outlet. IBC tanks can have different valve threads, so choose by the connection actually on your tank, not its capacity or appearance. S100x8 is not interchangeable with S60x6 or BSP.
Can I attach a hose directly to the male end?
No. Add a compatible 2-inch female camlock coupler with a hose tail suited to your hose, and secure the hose appropriately. The coupler's arms lock around the male groove. Only the threaded IBC-to-camlock adapter is supplied here.
Product information & technical details
| SKU | CAM-IBCS100X8-2-001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S100X8 (4") |
| Camlock type | Type A |
| Camlock size | 2" |
|---|---|
| Camlock gender | Male |
| Material / colour | Black plastic |
| Tank thread pitch | 8mm (S100x8) |
| Supplied quantity | 1 adapter; female coupler, hose, clips, tank and valve not included |
