Description
From bare hose to a BSP connection

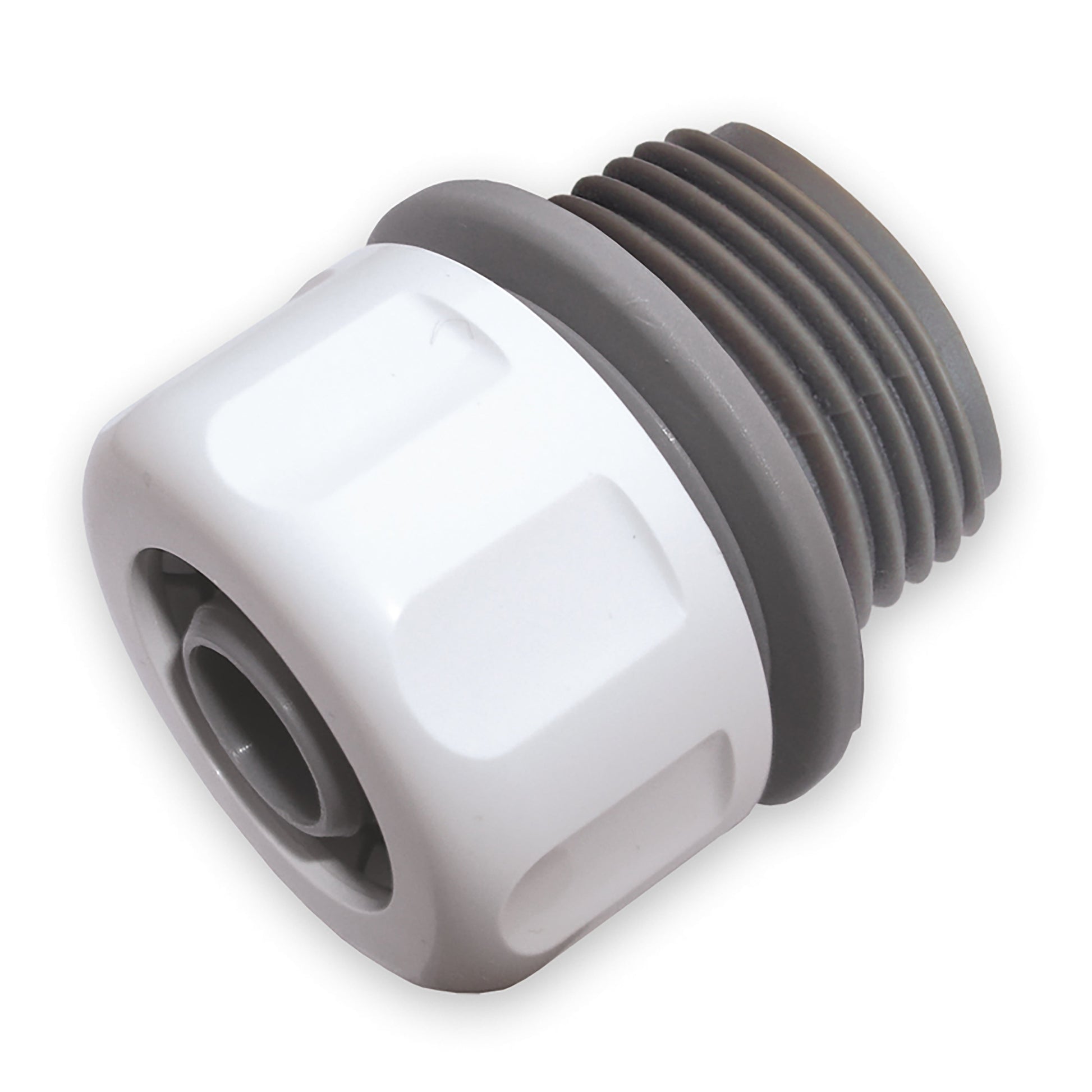

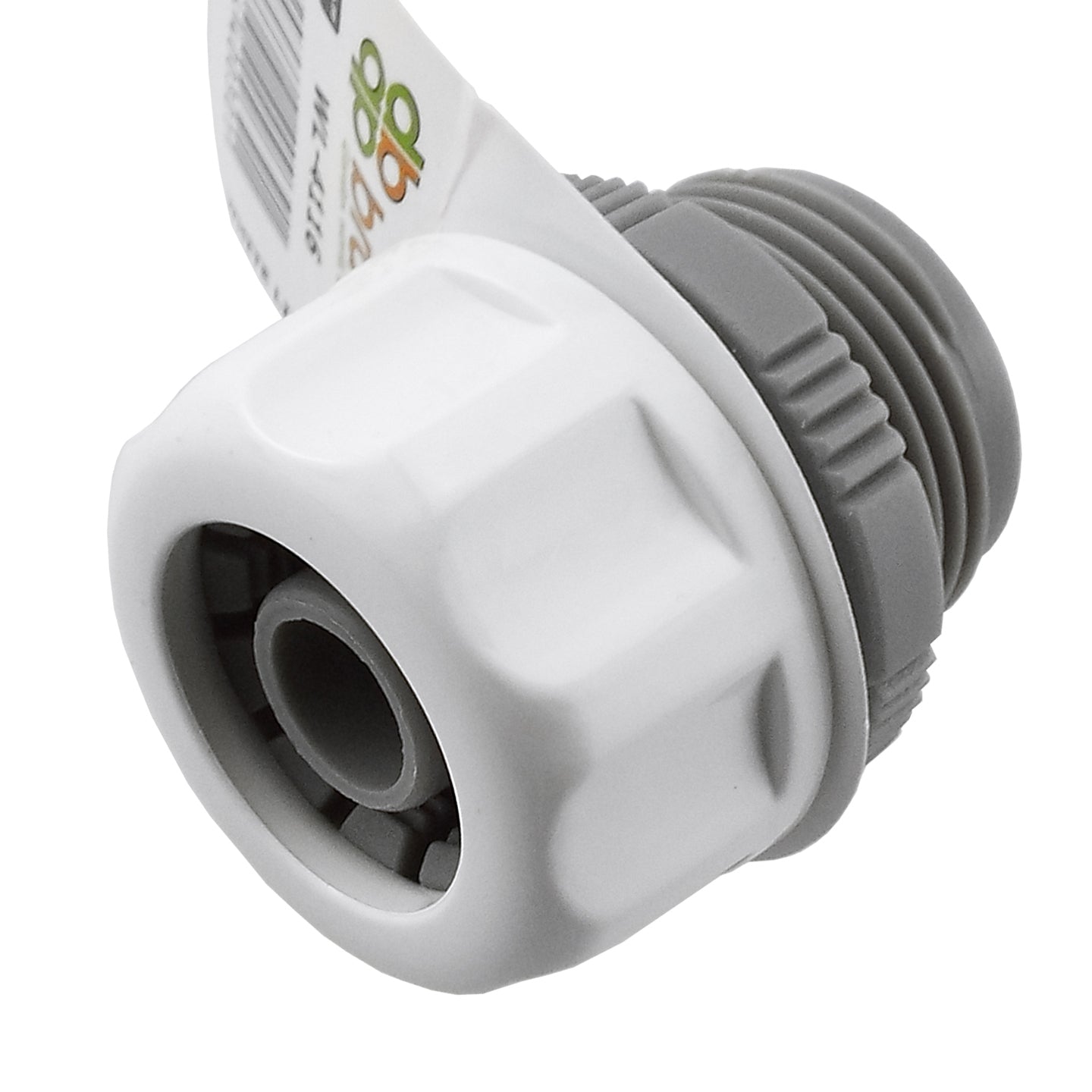

Connect a ½-inch garden hose directly to a matching threaded fitting with this white-and-grey Bradas WHITE LINE adapter. Its hose-gripping end uses a retaining nut; the opposite end has a ¾-inch BSP male thread.
Use it where you need a threaded connection at the end of a hose, rather than a detachable garden quick coupling. The two sizes describe different parts of the adapter: hose fit at one end and BSP thread at the other.
One adapter with its retaining nut supplied. Hose and the matching female fitting are not included.
See how the hose is held

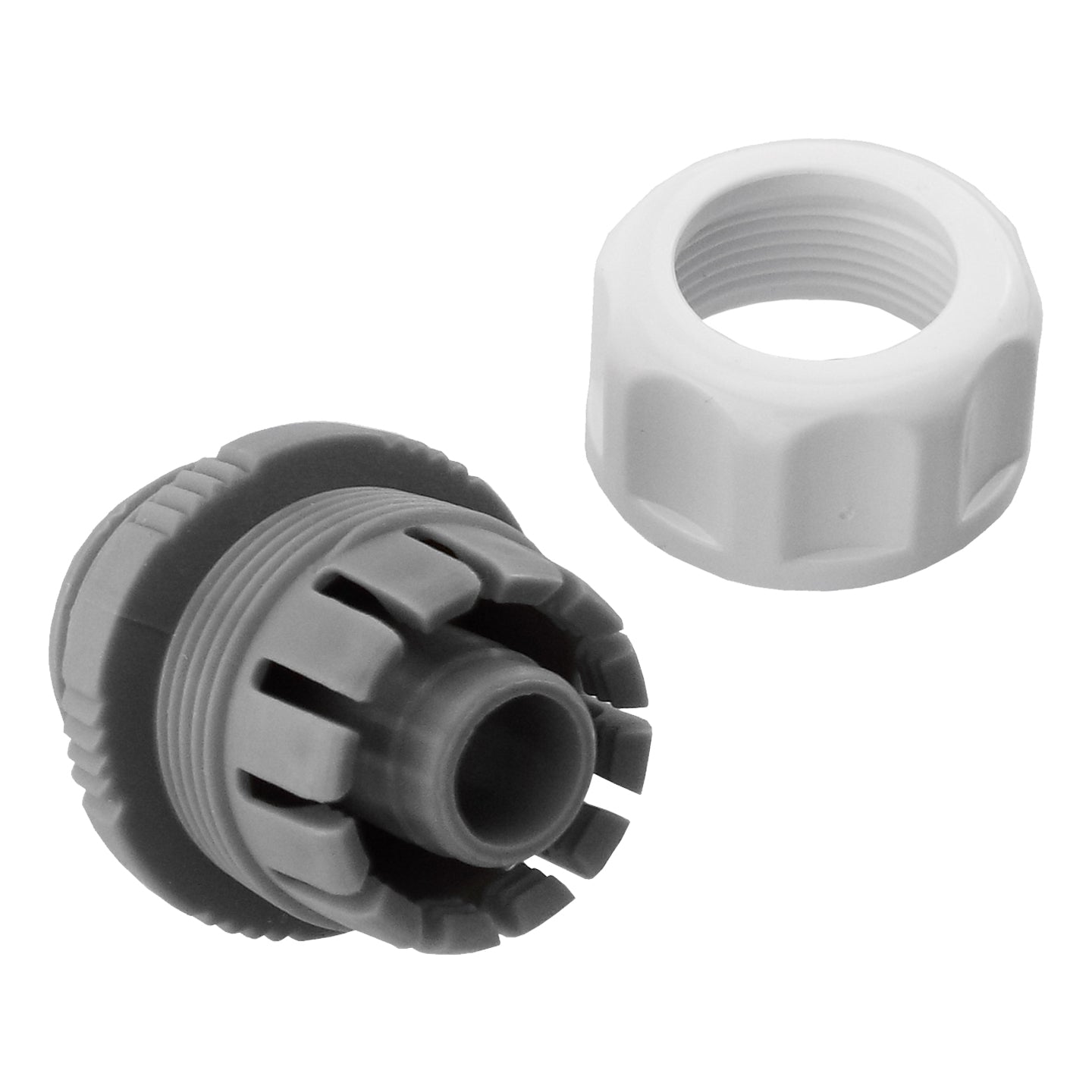

Removing the white nut exposes the grey body’s central hose support and surrounding gripping fingers. Slide the nut onto the hose first, seat the hose on the support, then tighten the nut by hand.
Use a sound ½-inch hose end. Remove a damaged, split or distorted section before fitting, and make sure the hose is seated properly rather than catching only at the entrance.

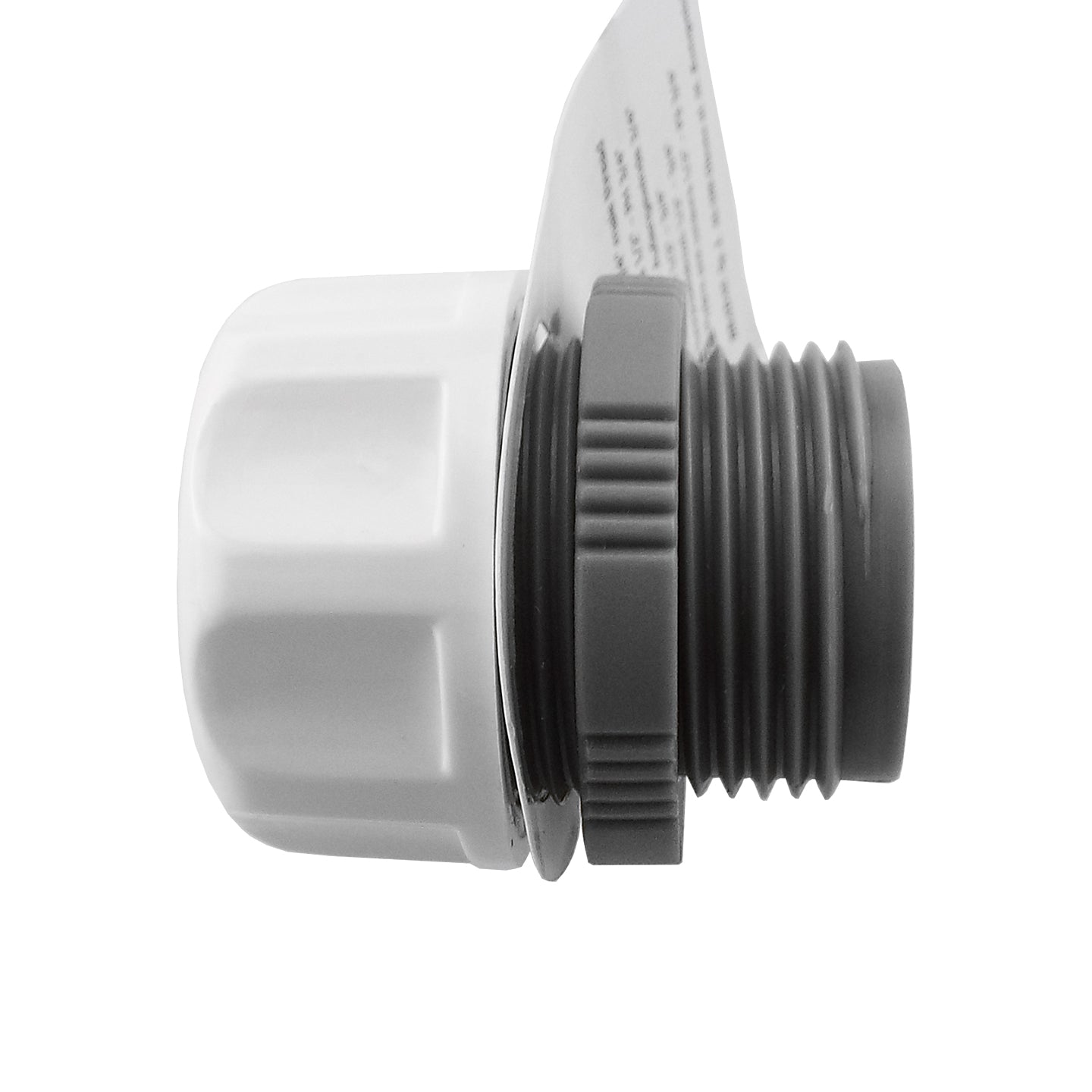

The thread beneath the retaining nut is part of the hose attachment. The separate external ¾-inch BSP thread at the other end connects to your equipment. It needs a matching female BSP fitting; two male threads will not connect directly.
This adapter is not a two-ended hose mender. To join two bare hose lengths directly, use a straight mender with a retaining nut at each end.
Make the hose and threaded joints separately
Check the mating thread
Confirm that your equipment has a ¾-inch BSP female connection and a suitable sealing arrangement. BSP nominal size is not the measured outside diameter of the thread.
Secure the hose

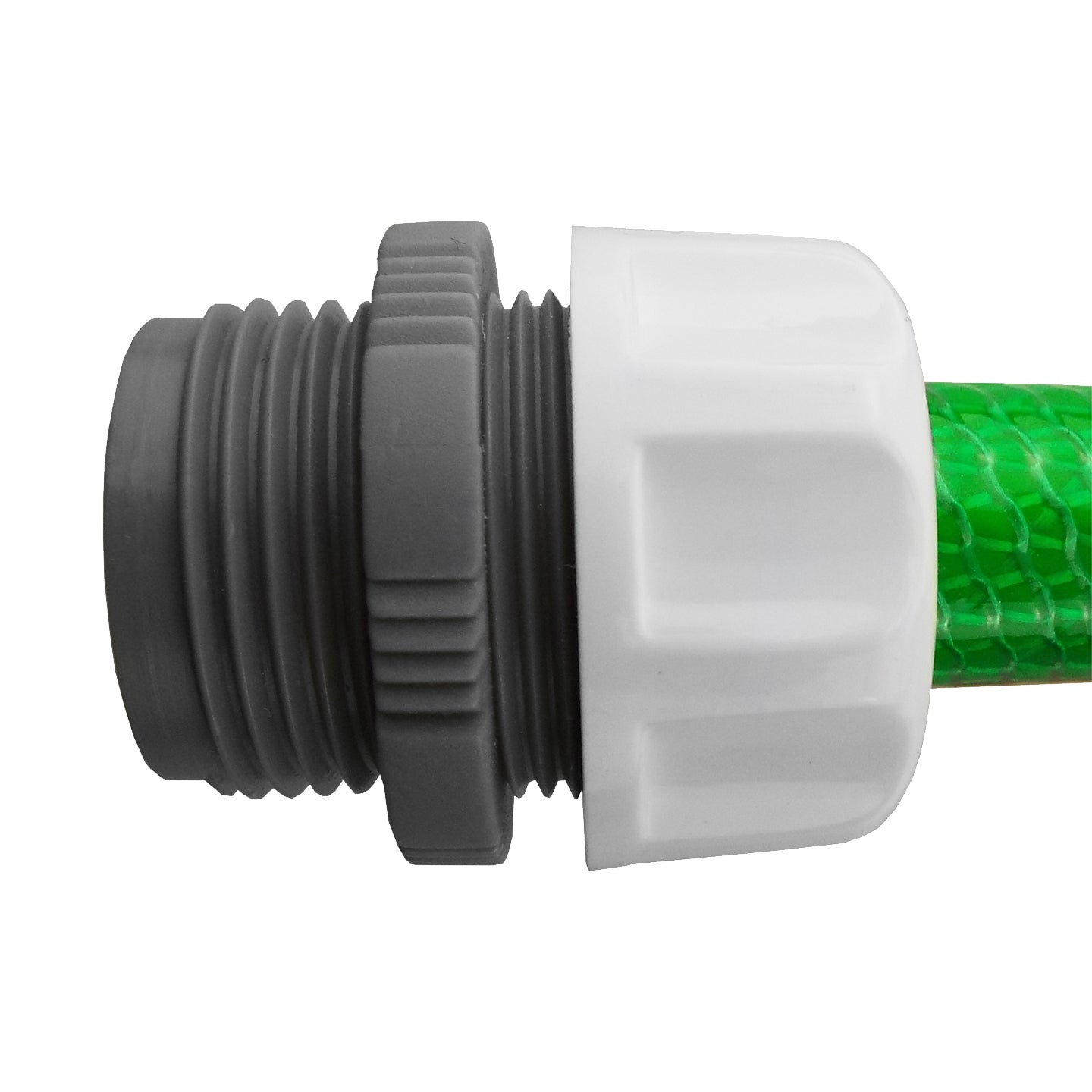

Turn off the supply and relieve pressure. Fit the white retaining nut over the hose, seat the hose fully on the grey support and tighten the nut by hand.
Check before watering
Connect the BSP end without cross-threading or forcing the plastic body. Open the water gradually and inspect both joints. Turn off and drain the system before disassembly.
Questions about the threaded hose mender
Is the ¾-inch thread male or female?
It is a male BSP thread on the outside of the grey body. It screws into a matching ¾-inch BSP female fitting. It cannot screw directly onto a male tap outlet.
Will this grip ¾-inch hose?
No. This version is specified for ½-inch garden hose. The ¾-inch measurement refers to the BSP screw thread, not the hose-gripping end.
Does it click into a Hozelock-style connector?
No. It has a bare-hose gripping end and a BSP male threaded end. A garden quick-connect plug and socket use a different connection. Choose an appropriate quick connector if you need a detachable clip-on joint.
What is included?
One white-and-grey plastic Bradas WHITE LINE adapter body with its white retaining nut. Hose, a matching female fitting and any separate seals needed for that connection are not included.
Product information & technical details
| SKU | HOCON12-TH-MENDERWL001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | White, Grey |
| Material | Plastic |
| Nominal hose size | ½-inch garden hose |
|---|---|
| Hose attachment | Screw-on retaining nut and internal gripping fingers |
| Connection form | Bare hose to BSP male thread |
| Matching threaded fitting | ¾-inch BSP female |
| Product range | Bradas WHITE LINE |
| Quantity supplied | One adapter body with one retaining nut |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
