Description
Give a plain hose a threaded end

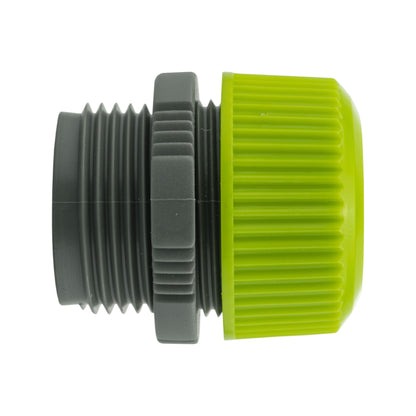

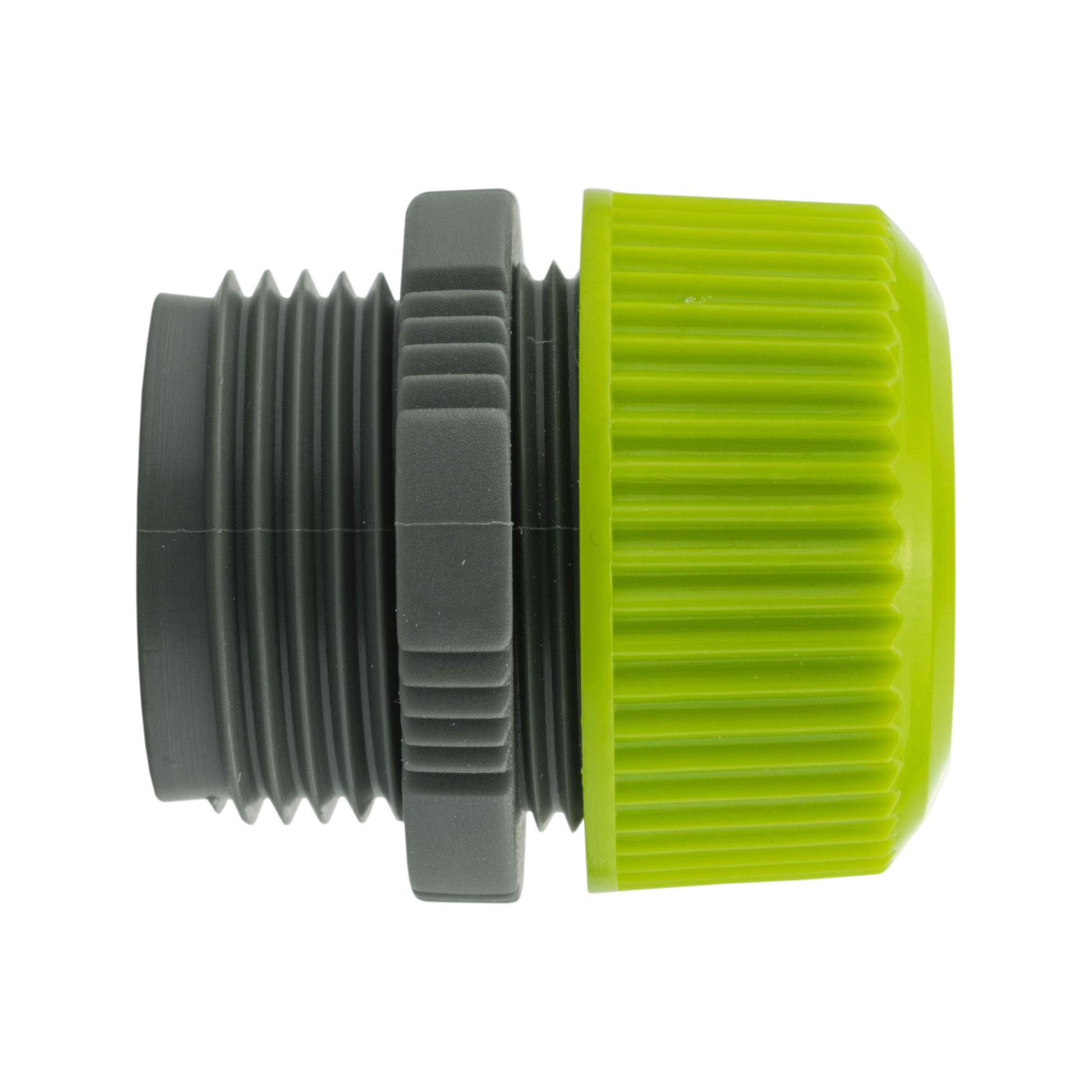

This lime and grey hose adapter connects bare ½-inch garden hose to equipment with a matching ¾-inch BSP female thread. A ribbed lime nut holds the hose on the grey body, leaving the male BSP thread ready for your connection.
It is a useful choice when the fitting at the other end needs a screw connection instead of a garden quick coupling. Check the hose size and equipment thread separately before ordering.
One adapter body and retaining nut supplied. Hose and other fittings are separate.
One body, two different connections

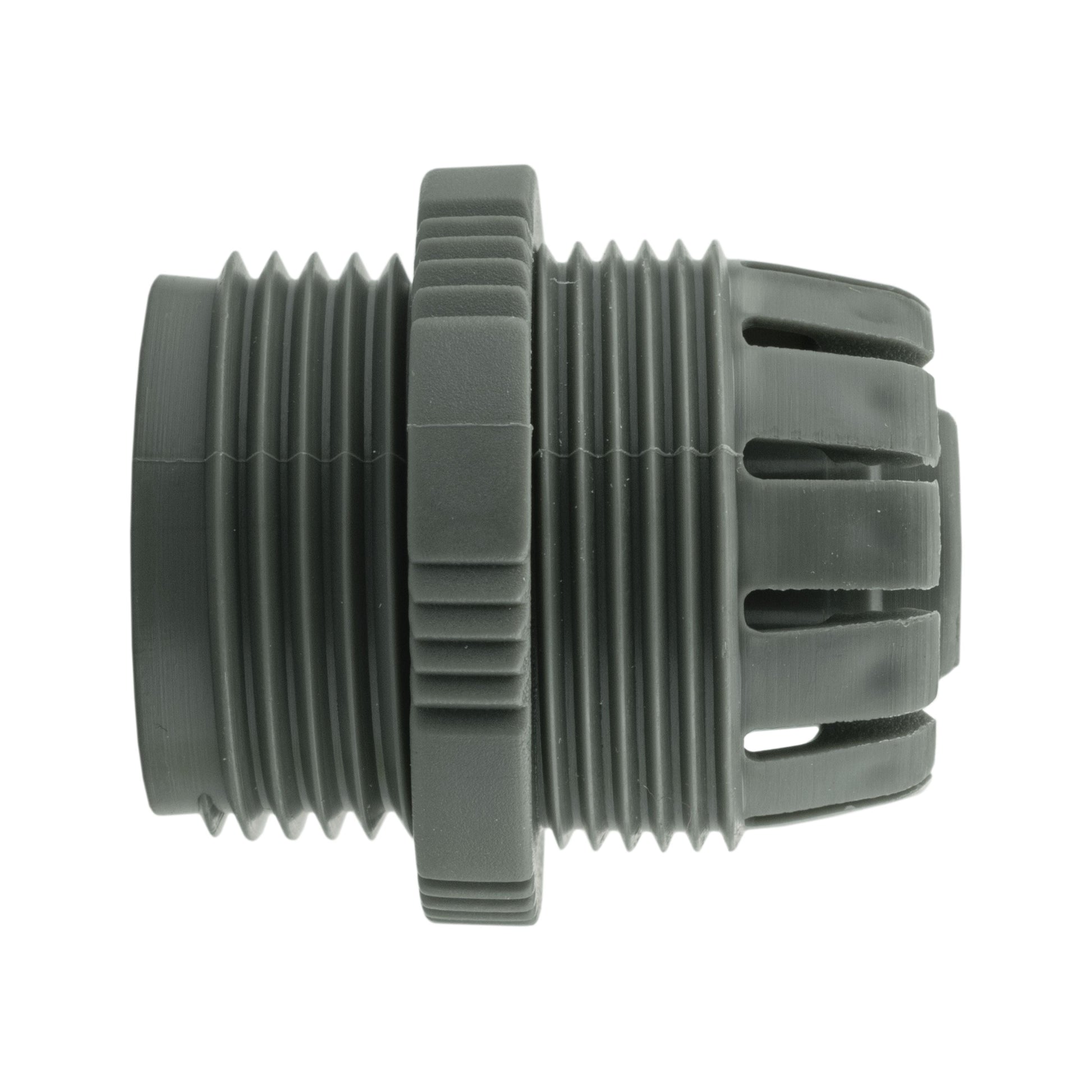

The close-up shows the adapter with its lime nut removed. The external BSP thread is on one side of the central shoulder; the slotted gripping fingers and hose support are on the other.

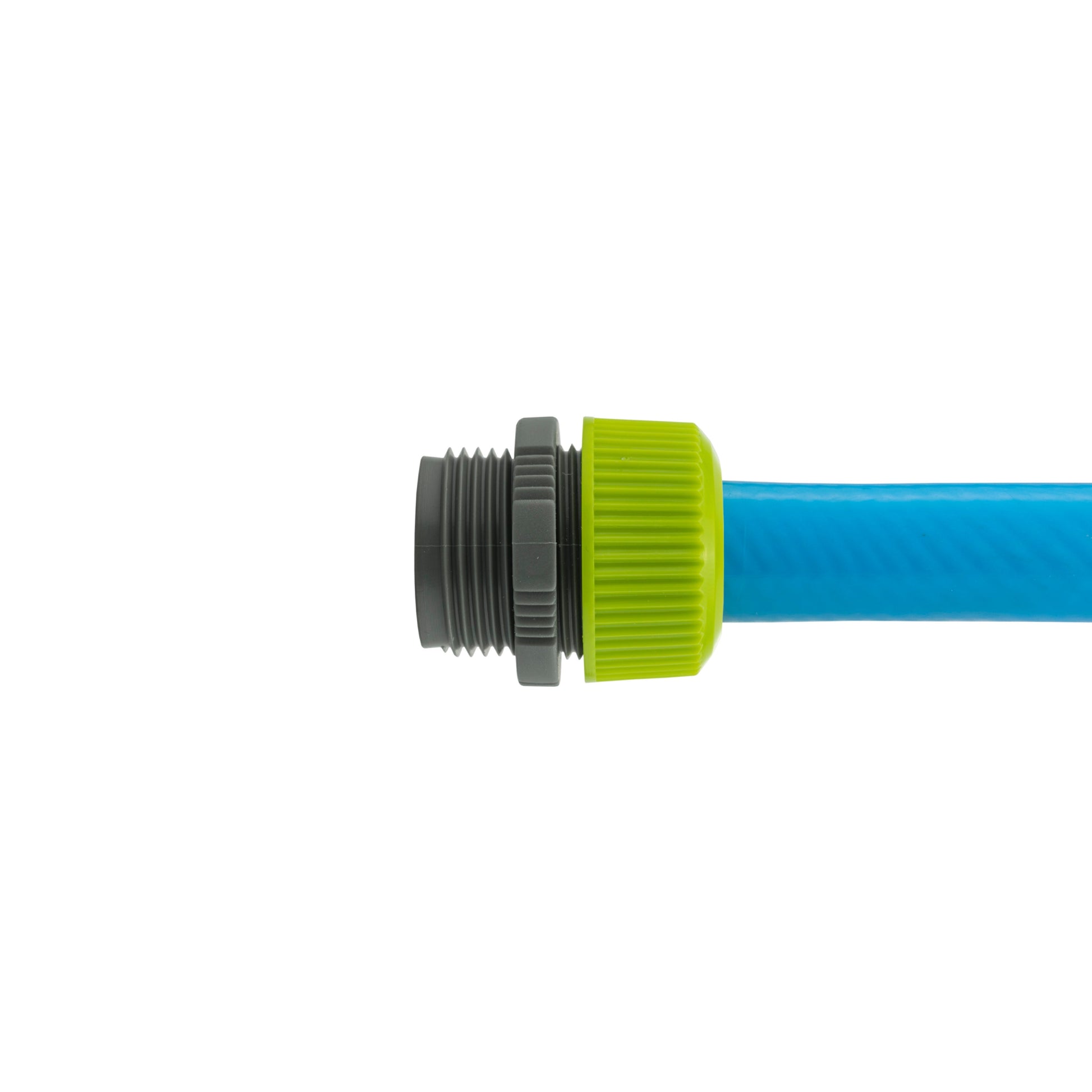

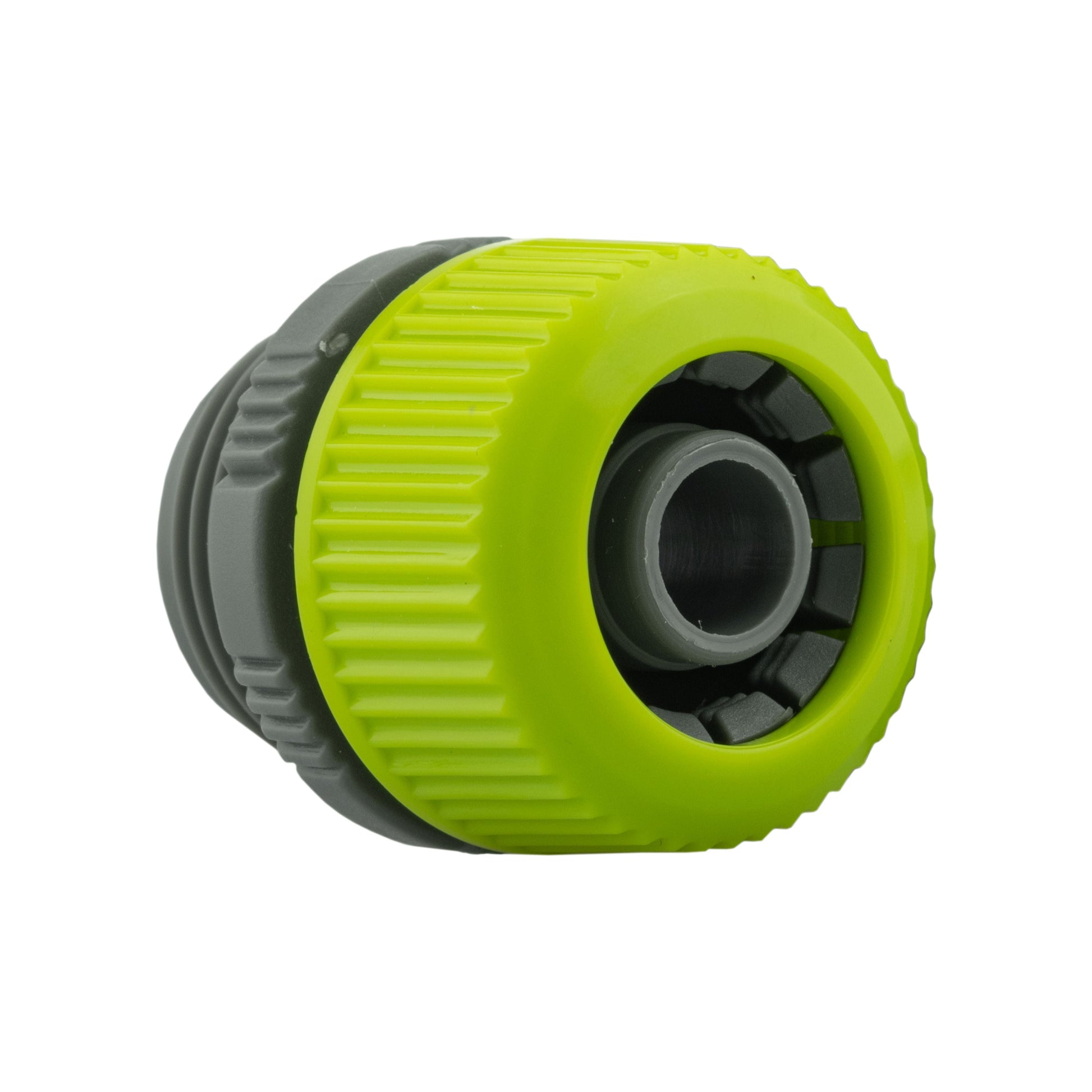

For the hose connection, slide the nut over a sound ½-inch hose end, seat the hose on the support and tighten the nut by hand. The nut secures the hose; it is not a release collar for a clip-on fitting.

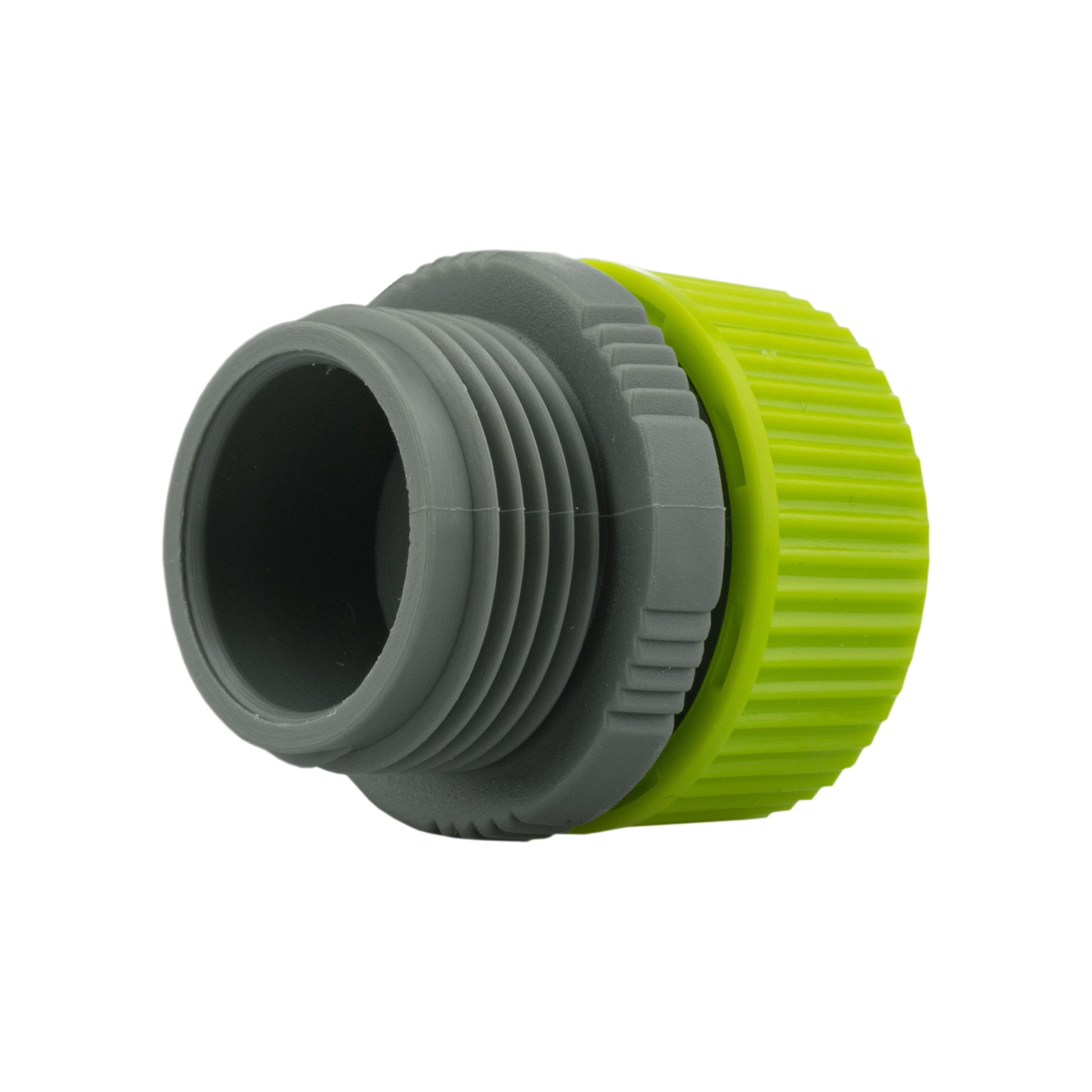

For the equipment connection, the ¾-inch BSP male thread needs a matching female thread. It will not screw directly onto another male thread, such as an externally threaded tap outlet.
BSP is a nominal thread size, so it should not be confused with the hose bore or the measured outside diameter of the thread. Use the What is BSP? guide beneath the specifications if you need help identifying it.
Before opening the tap
Check the hose end
Turn off the supply and relieve pressure. Use a clean, undamaged ½-inch hose end. Remove a split or distorted section so the fitting has sound material to grip.
Make both connections
Seat and secure the hose, then connect the BSP end using the mating fitting’s suitable sealing arrangement. Avoid cross-threading or overtightening the plastic body.
Inspect the joints
Open the water gradually and check the hose grip and threaded joint separately. Turn off and drain the system before loosening the retaining nut or disconnecting the fitting.
Choosing the lime threaded adapter
Does ¾-inch BSP mean it fits ¾-inch hose?
No. This version grips ½-inch garden hose. The ¾-inch BSP measurement describes its external equipment thread, which mates with a ¾-inch BSP female fitting.
Is this a detachable garden quick connector?
No. One side grips bare hose and the other screws into a matching BSP fitting. There is no male quick plug or female quick socket on this adapter.
Can it join two bare hose lengths?
Not on its own: it has only one hose-gripping end. For a direct repair between two bare hose ends, choose a straight mender with a hose attachment at each end.
What comes in the pack?
One Bradas LIME LINE plastic adapter with a grey body and lime retaining nut. The hose, a mating female BSP fitting and any separate seals required by your installation are not supplied.
Product information & technical details
| SKU | HC12-TH-MENDERLIME001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Green, Grey |
| Material | Plastic |
| Nominal hose size | ½-inch garden hose |
|---|---|
| Hose retention | Ribbed screw-on nut and gripping fingers |
| Mating equipment thread | ¾-inch BSP female |
| Connection style | Direct hose grip to male BSP thread; no quick coupling |
| Product range | Bradas LIME LINE |
| Pack contents | One adapter body and one lime retaining nut |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
