Description
Four fittings for your garden hose
Fit out a length of hose with this Bradas White Line connector and nozzle set. The white and grey parts provide a connection at the tap, a connection at the watering end and a straight nozzle with an adjustable spray.
Both hose connectors fit ½-inch or ⅝-inch nominal hose. The threaded tap adaptor suits ¾-inch or 1-inch BSP male outlets, using its removable reducer for the smaller thread.
Choose your hose separately. The four fittings are supplied without a hose or tap.
Keep the STOP connector with the nozzle
The two hose connectors look similar, but have different jobs. The standard connector belongs at the tap end. The connector marked STOP goes at the nozzle end, where its internal valve stops the flow when the nozzle is detached.
That makes it useful when changing the watering attachment. The hose stays connected to the tap, while the working-end fitting closes as you unplug the nozzle.
Turn off the tap when you finish watering. Release pressure before taking apart the hose fittings, then drain them for storage, especially before freezing weather.

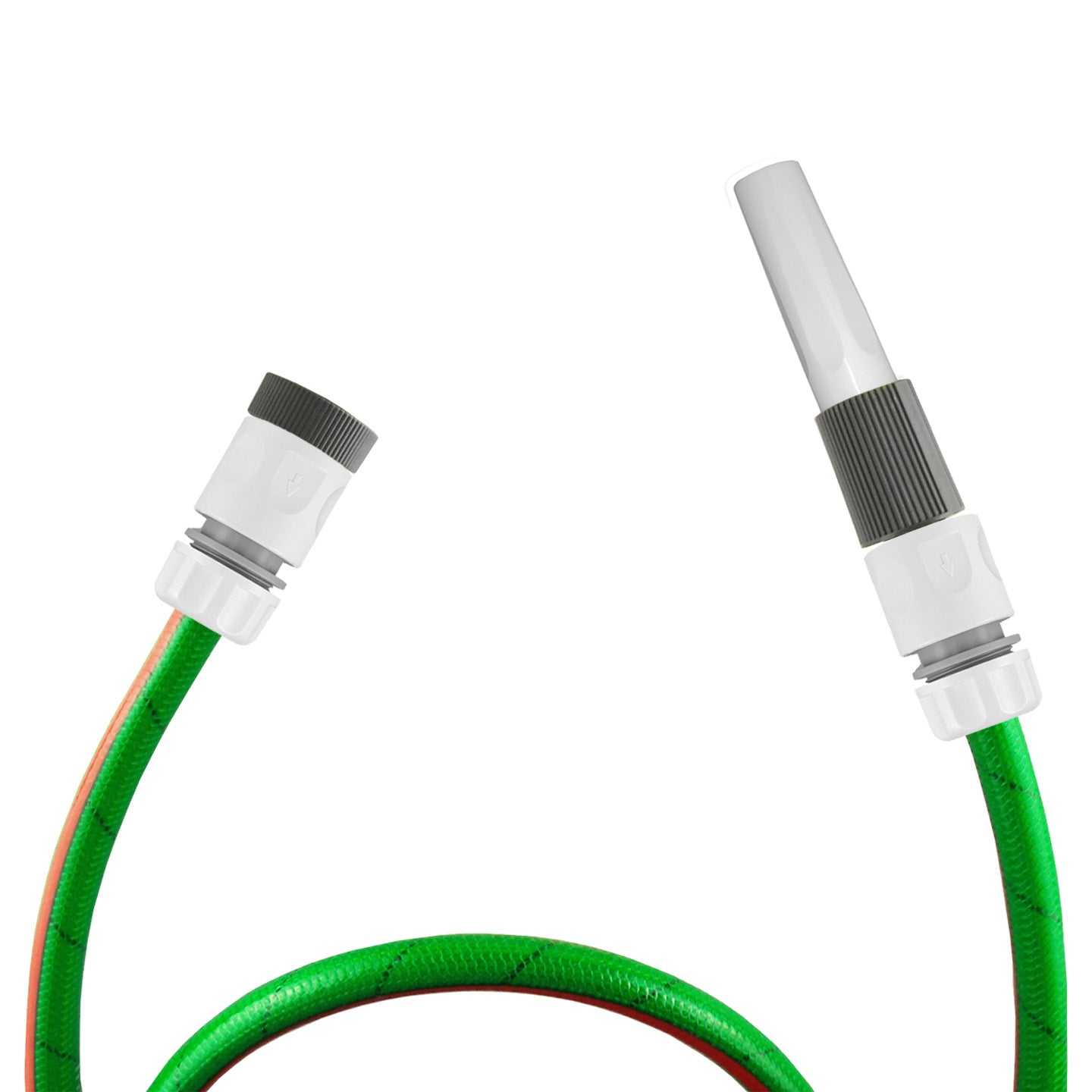

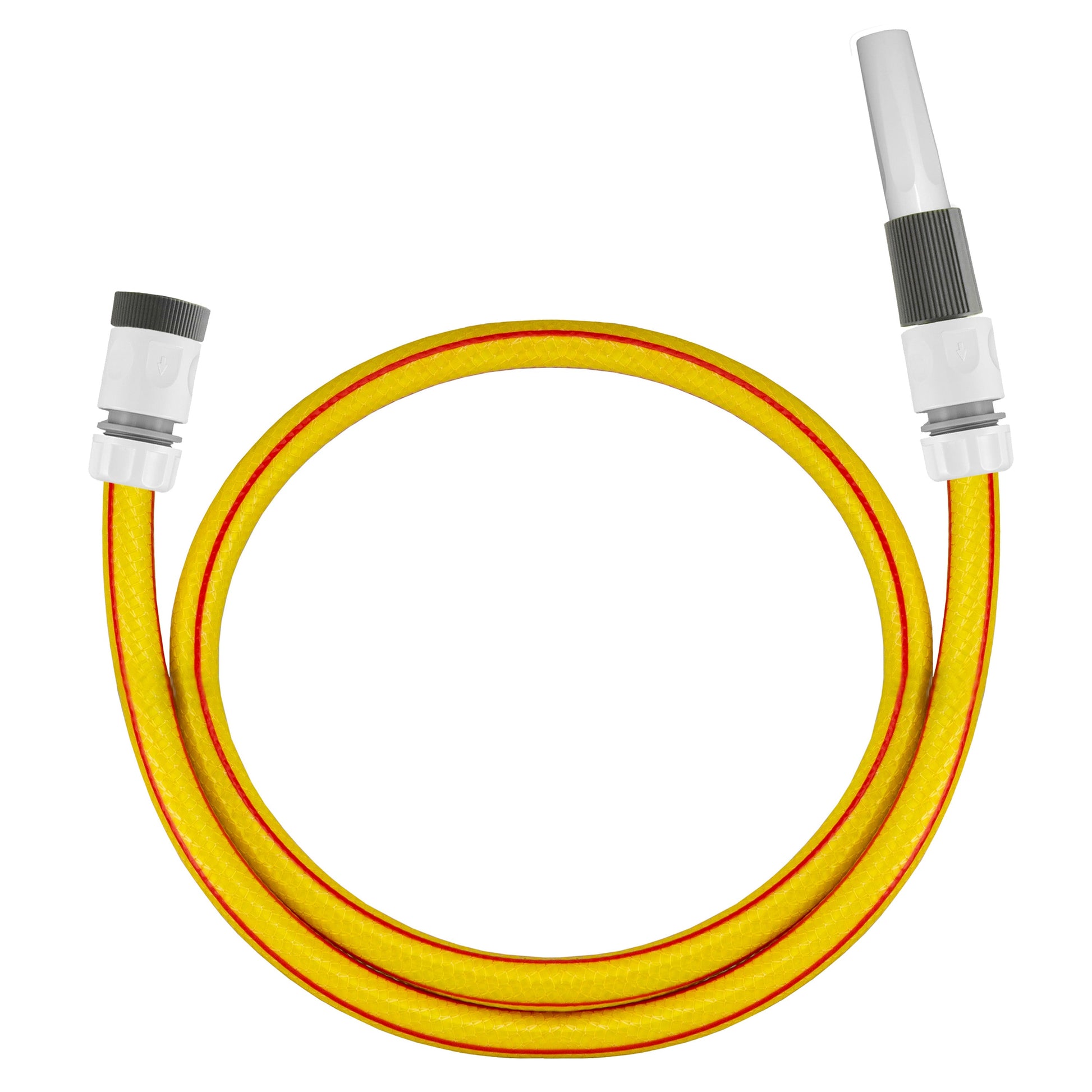

Set up the tap, hose and nozzle
Check sizes first, then connect with the tap off and test the joints gently.
Match the tap thread
Leave the adaptor’s reducer fitted for a ¾-inch BSP male outlet or remove it for 1-inch BSP. Check the seal, start the thread straight and hand-tighten. BSP sizes are nominal, not the measured outside diameter.
Secure both hose ends
Use a sound, square-cut hose end. Pass the securing nut over the hose, push the hose fully into the connector and tighten the nut. Check that it holds before clipping the standard connector onto the tap adaptor.
Clip in and adjust
Push the nozzle plug into the STOP connector until secure. Turn the tap on gradually and check for drips. Adjust the spray by turning the white nozzle tip to suit the watering or rinsing task.
Before you connect the set

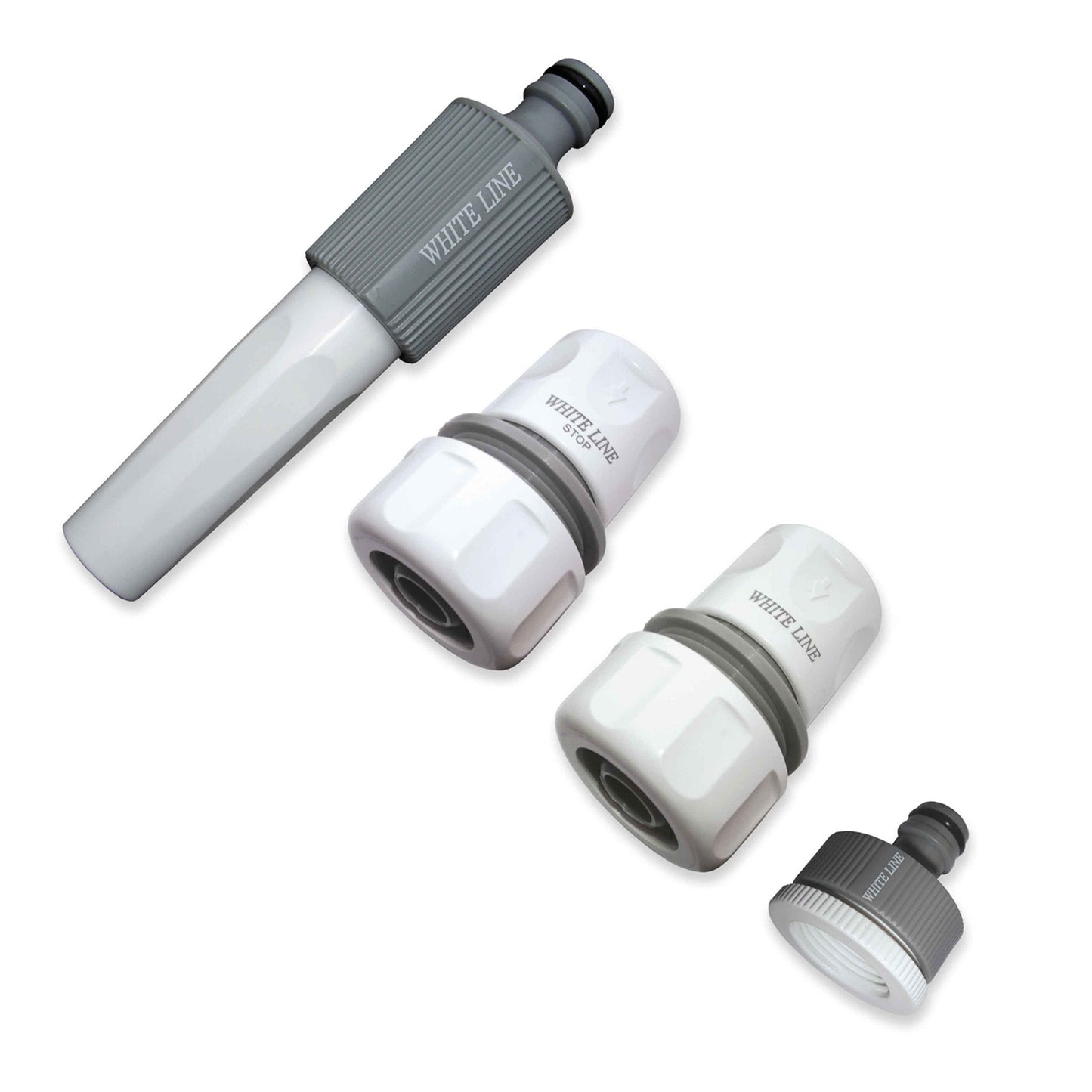

What comes in the pack?
One straight adjustable nozzle, one standard hose connector, one STOP hose connector and one threaded tap adaptor. A hose and tap are not included. Both hose connectors fit ½-inch or ⅝-inch nominal hose.
Can I put either connector at either end?
Use the standard connector at the tap and the STOP connector at the nozzle. The STOP valve closes when the watering attachment is removed, so placing it at the working end makes that function useful.
Will it fit a ½-inch BSP tap?
No. The included tap adaptor is for ¾-inch or 1-inch BSP male outlets. The ½-inch hose size describes the hose connection, not the tap thread. A different tap adaptor is needed for a ½-inch BSP outlet.
How do I change the spray?
Turn the white tip of the straight nozzle to adjust the spray. This is a twist-adjustable nozzle, not a trigger spray gun with a pattern-selector dial.
Product information & technical details
| SKU | HOCON12KIT001WL |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey |
| Material | Plastic |
| Range and model | Bradas White Line, WL-5500-12 |
| Pieces supplied | 1 straight adjustable nozzle, 1 standard connector, 1 STOP connector and 1 tap adaptor |
| Hose fit | ½-inch or ⅝-inch nominal hose |
|---|---|
| Tap adaptor configuration | ¾-inch BSP female with reducer; 1-inch BSP female without reducer |
| Tap outlet required | Matching BSP male thread |
| STOP connector position | Nozzle end of the hose |
| Nozzle control | Twist-adjustable straight nozzle |
| Hose supplied | None |
| Colour detail | White connector bodies and nozzle tip, with grey grips and tap adaptor |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
