Description
From the tap to the watering end

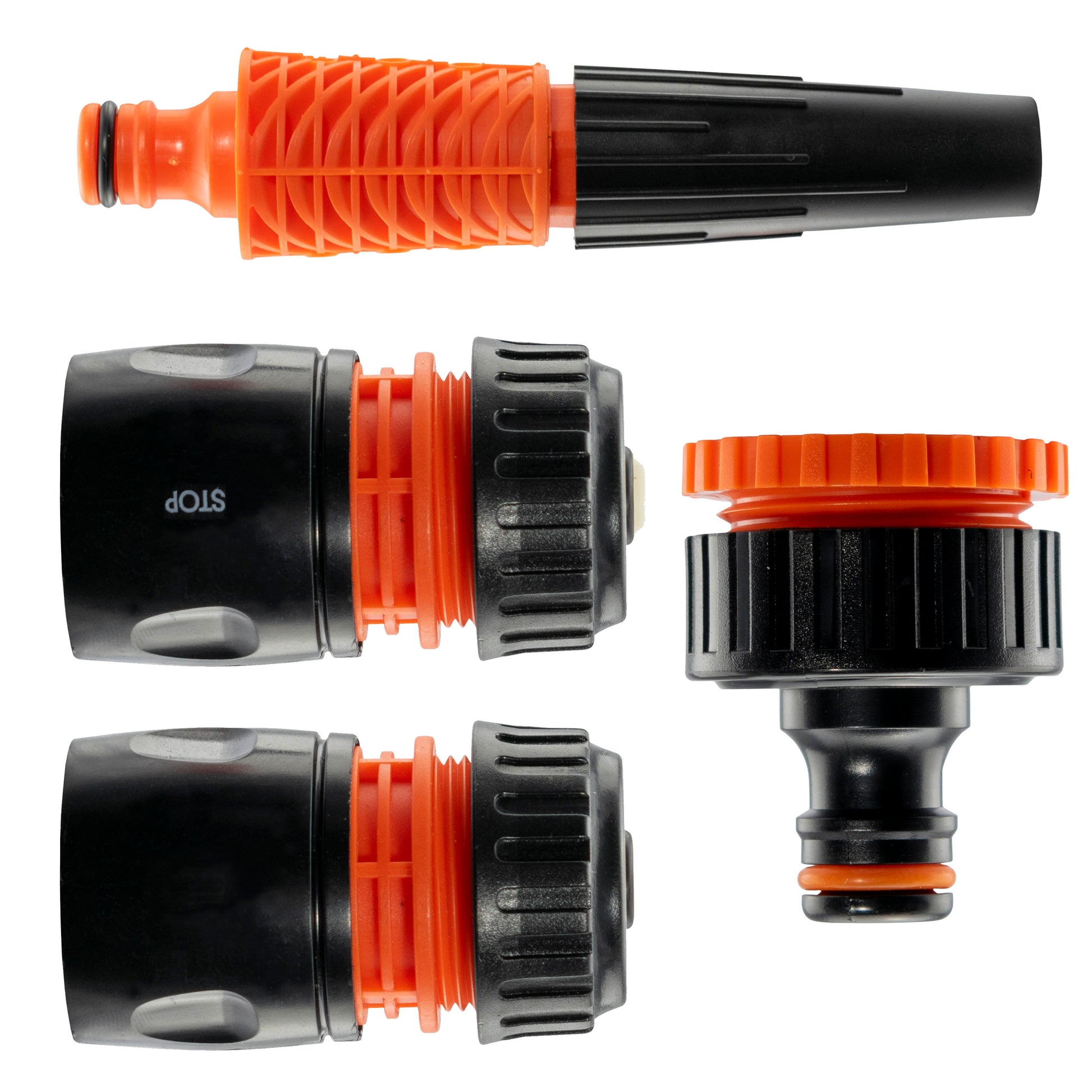

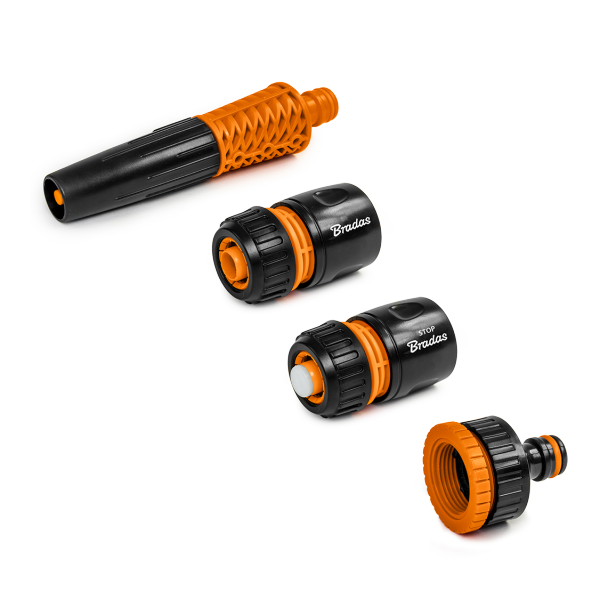

This four-piece black and orange hose connector set brings together the fittings for both ends of a garden hose, plus a nozzle for watering and rinsing.
Use the standard connector at the tap end and the STOP connector at the nozzle end. Both fit ½-inch or ⅝-inch nominal hose. The tap adaptor has a removable reducer for ¾-inch or 1-inch BSP male tap outlets.
Hose is sold separately. Check its size and your tap thread before choosing the set.
Choose the thread at the tap

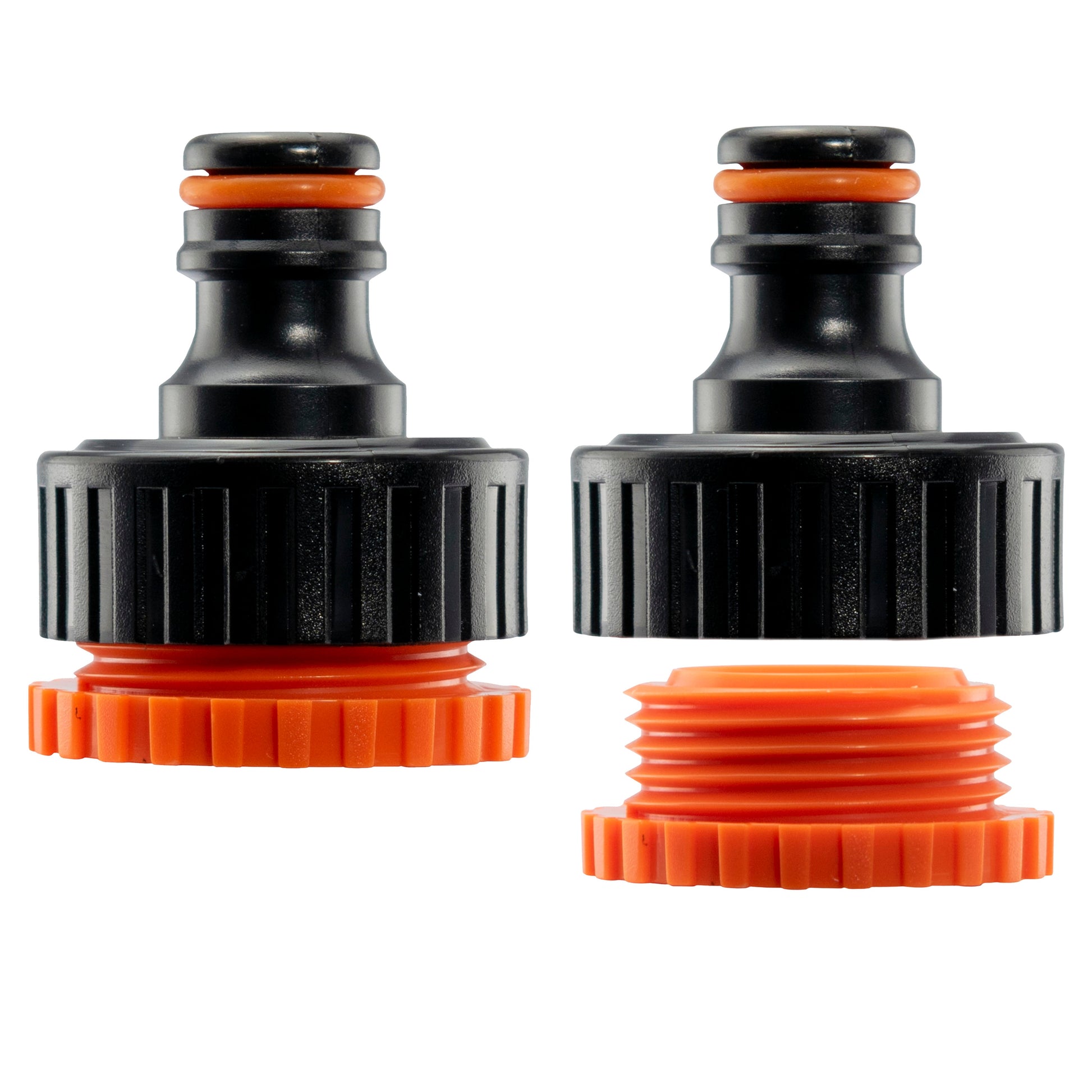

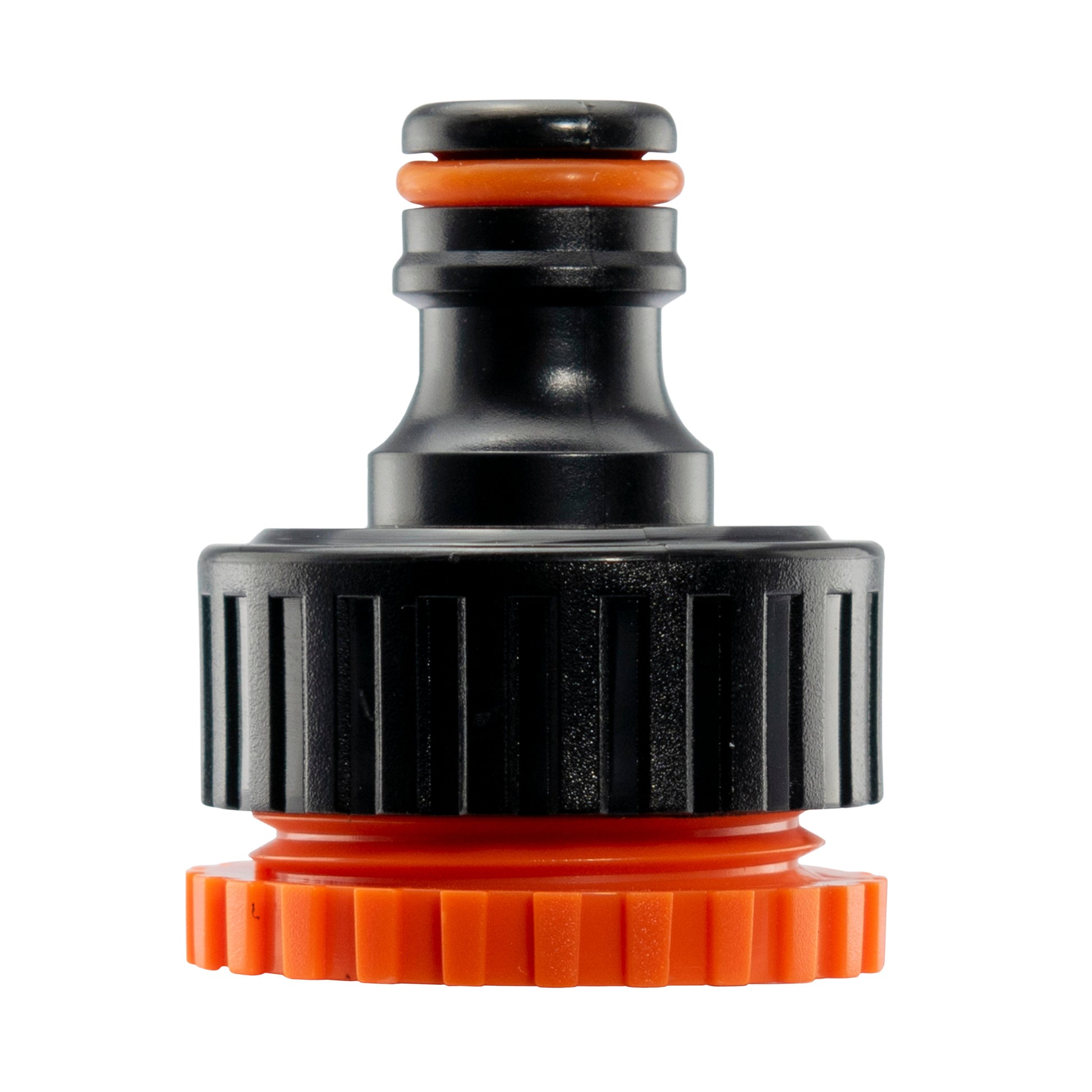

The black tap adaptor has a female BSP thread that screws onto a matching male tap outlet. The orange reducer stays in place for a ¾-inch BSP outlet and is removed for a 1-inch BSP outlet.
BSP sizes are nominal thread sizes, so a ruler measurement across the thread will not equal the inch name. Check the tap specification or compare it with an existing fitting rather than judging by appearance alone.
The quick-connect plug on the adaptor clips into the standard hose connector. Check the seal is present, screw the adaptor on straight and hand-tighten before turning on the water to check the joint.
Put each fitting in the right place

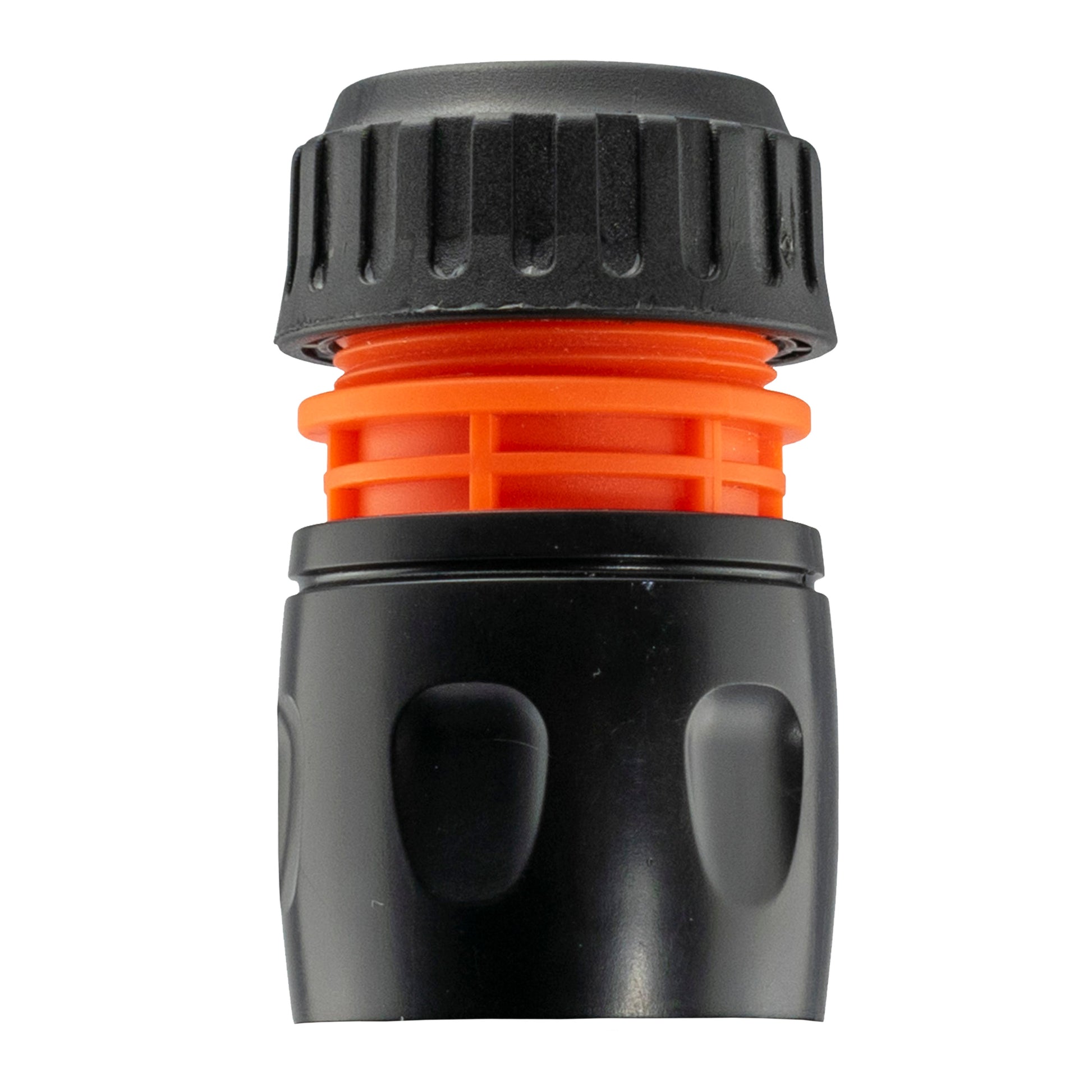

A standard connector feeds the hose; a STOP connector makes nozzle changes easier at the other end.
Fit the hose ends
With the tap off, cut damaged hose ends back square. Pass each securing nut over the hose, seat the hose fully in its connector and tighten the nut. Check the grip before pressurising.
Connect and adjust
Clip the standard connector onto the tap adaptor and the nozzle into the STOP connector. Turn on the tap gradually, check the joints and turn the nozzle tip to adjust the spray for the job.
Change and put away

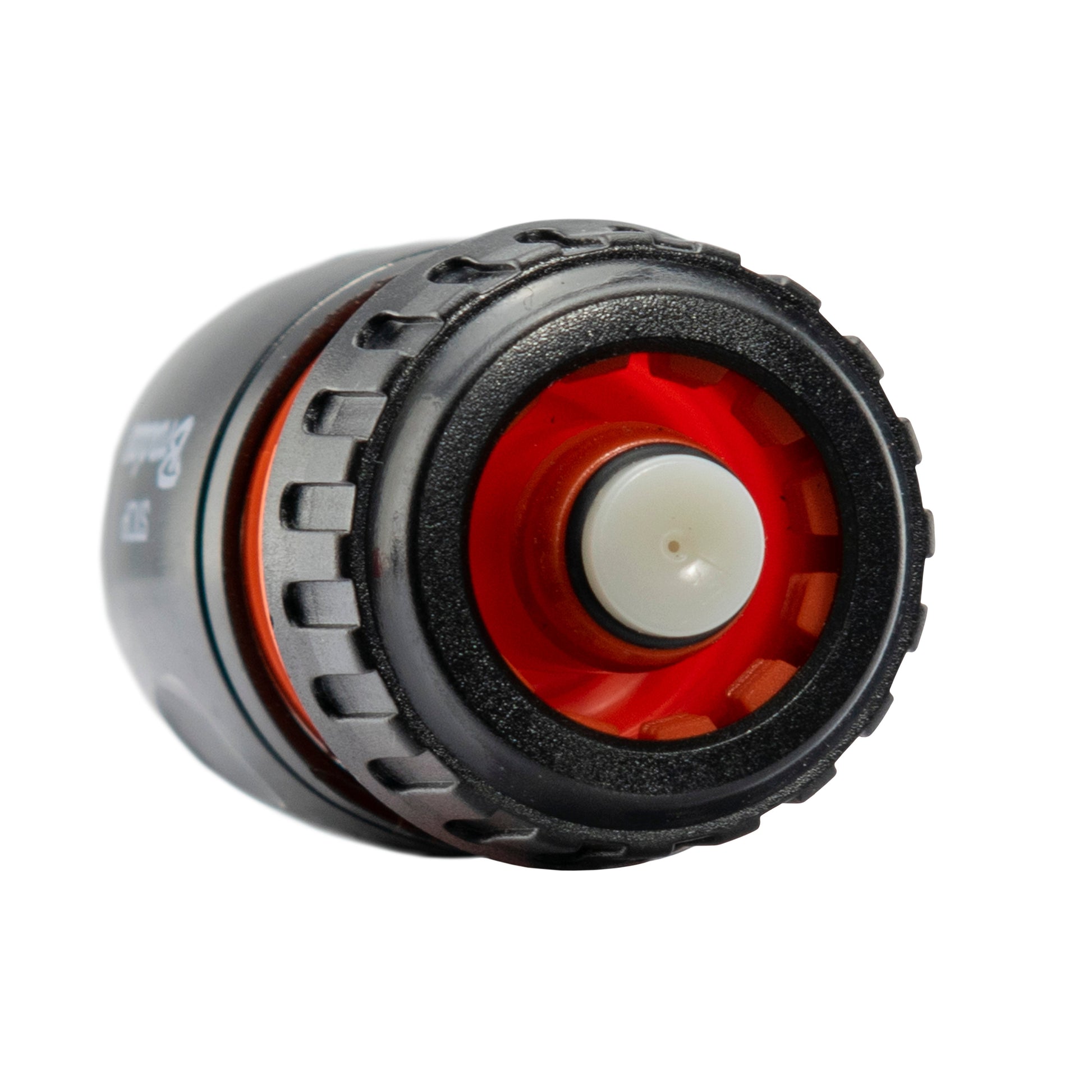

The STOP valve closes when the nozzle is removed. It is still good practice to turn off the tap after use, release pressure and drain the fittings before freezing weather.
Questions about this hose fitting set
Does the set include a hose?
No. It contains four fittings: an adjustable nozzle, a standard hose connector, a STOP hose connector and a tap adaptor. Supply your own ½-inch or ⅝-inch hose and a tap with a matching BSP male outlet.
Which connector goes at the nozzle end?

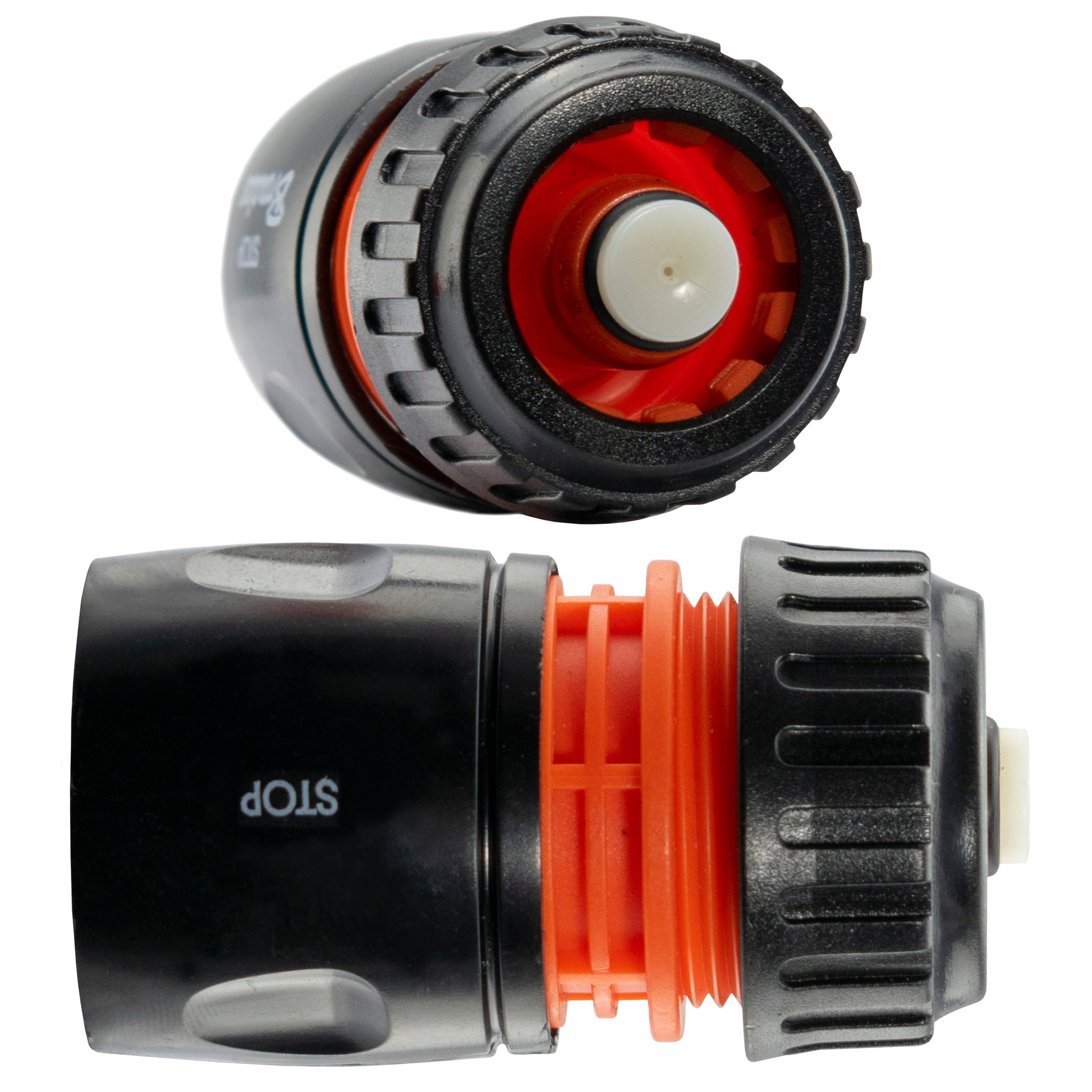

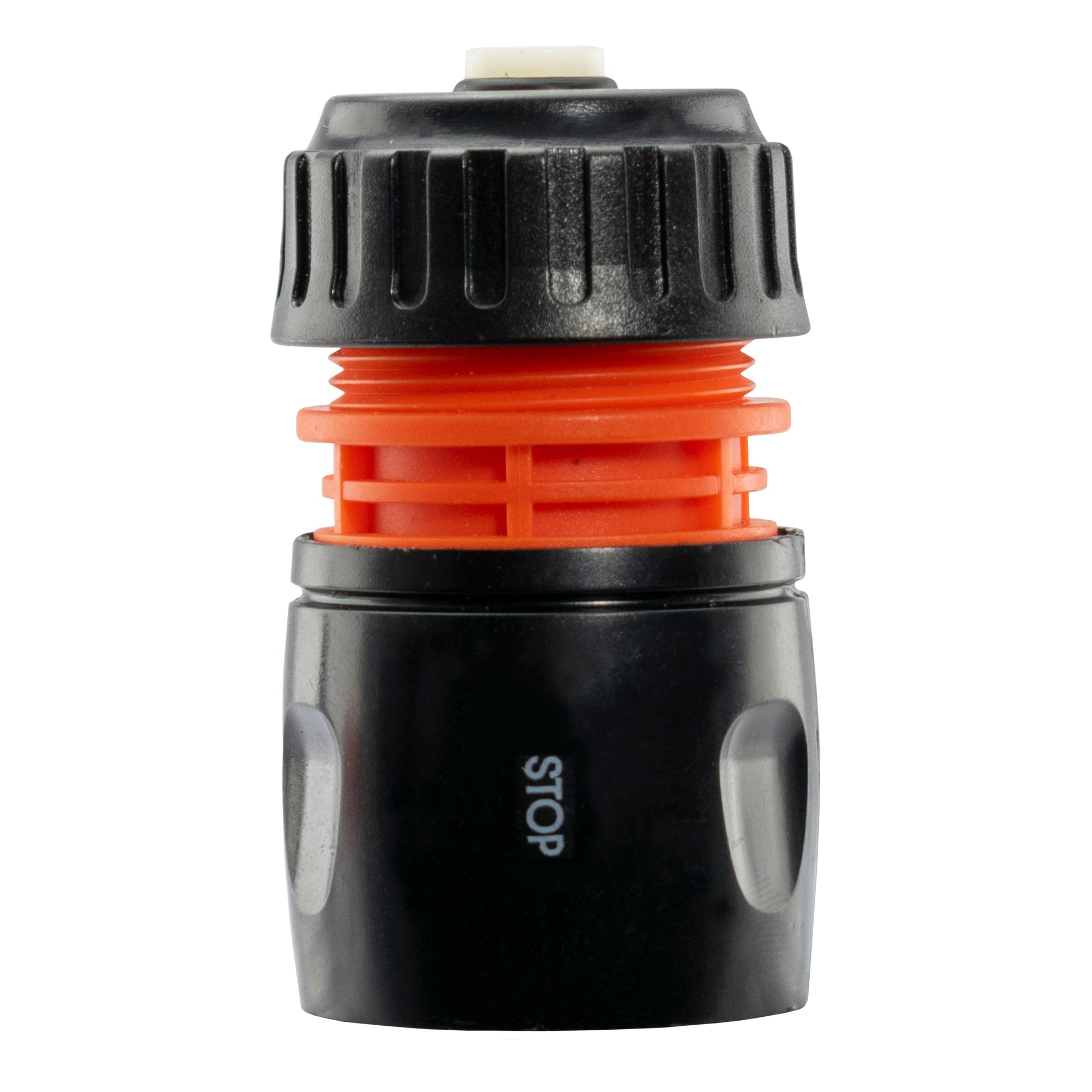

Use the connector marked STOP at the nozzle end. Its valve closes when you detach the nozzle. The standard connector goes at the tap end; both use a securing nut to grip the hose.
Will the adaptor fit an unthreaded tap?
No. The included adaptor screws onto a ¾-inch or 1-inch BSP male thread. An unthreaded tap needs a different adaptor. Leave the orange reducer fitted for ¾-inch BSP or remove it for 1-inch BSP.
Is the nozzle a spray gun with a trigger?

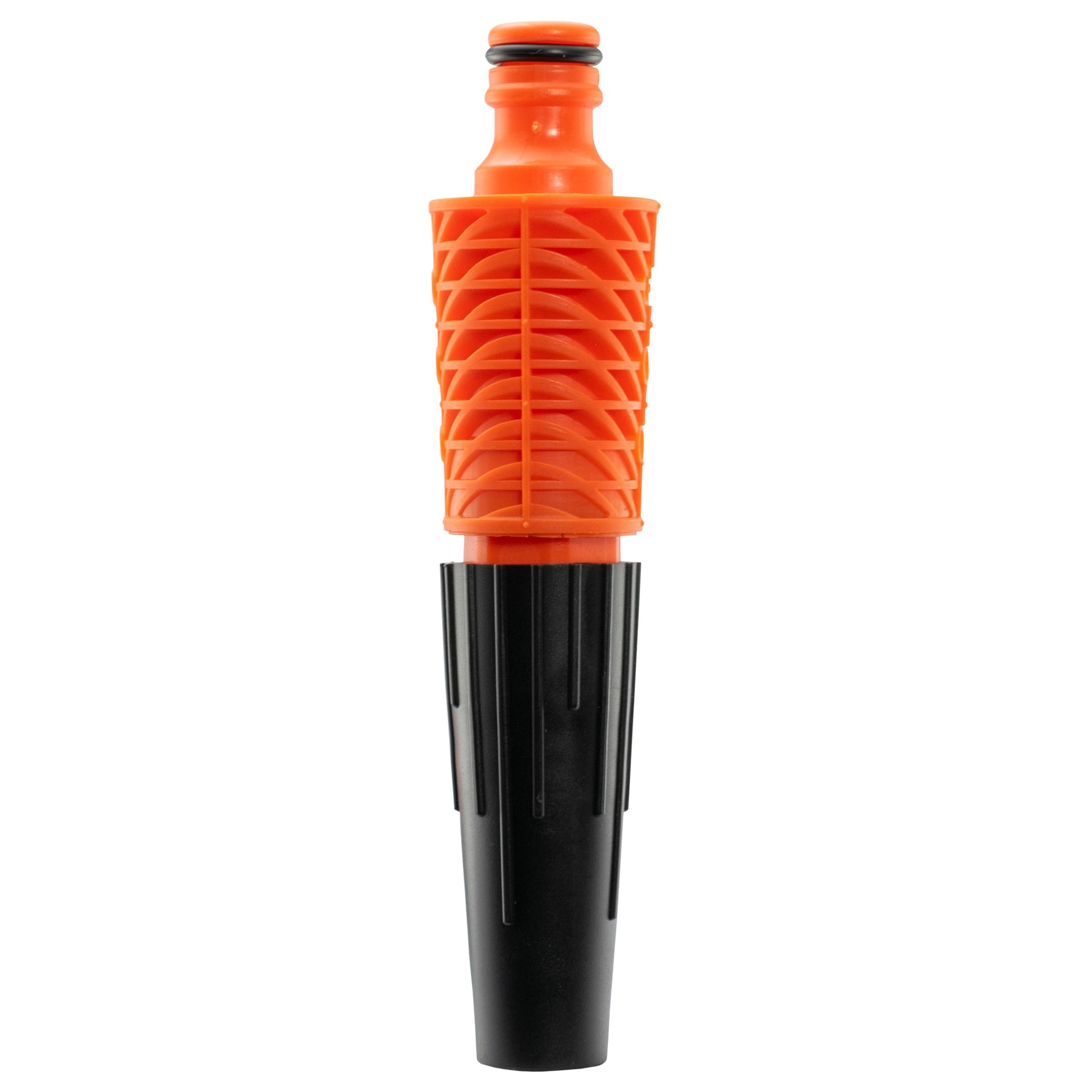

No. It is a straight adjustable nozzle: turn the tip to change the spray. The set does not include a trigger spray gun or a multi-position pattern dial.
Product information & technical details
| SKU | HOCON12KIT001BLACK |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Orange |
| Material | Plastic |
| Set contents | 1 adjustable nozzle, 1 standard hose connector, 1 STOP hose connector and 1 tap adaptor |
| Hose connector fit | ½-inch or ⅝-inch nominal hose |
|---|---|
| Tap adaptor fit | ¾-inch or 1-inch BSP female thread, with removable reducer |
| Tap outlet required | Matching BSP male thread |
| Nozzle adjustment | Twist the tip to adjust the spray |
| STOP function | Internal valve stops flow when the nozzle is disconnected |
| Hose attachment | Securing nut at each hose connector |
| Hose supplied | None |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
