Description
From a BSP thread to a garden quick connection

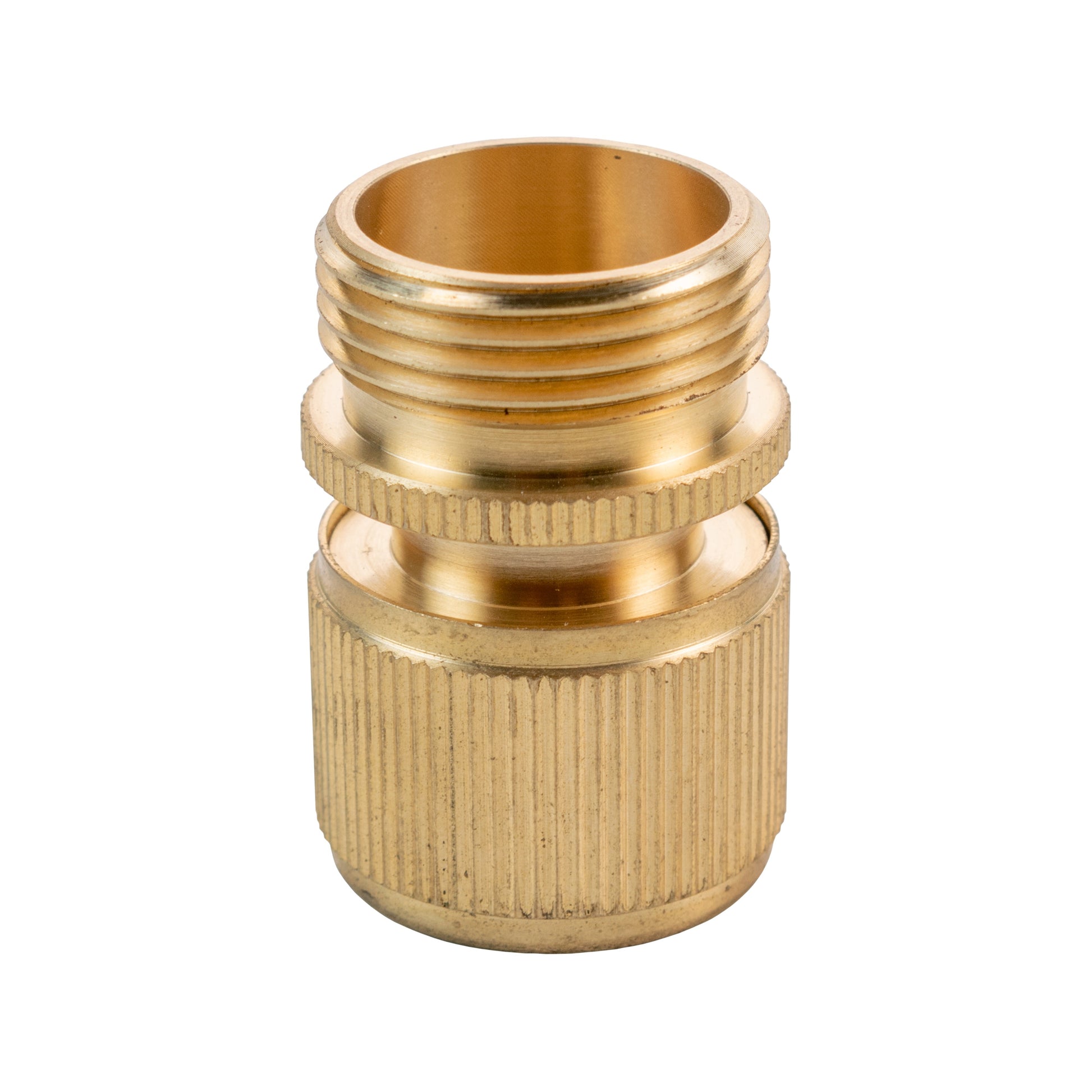

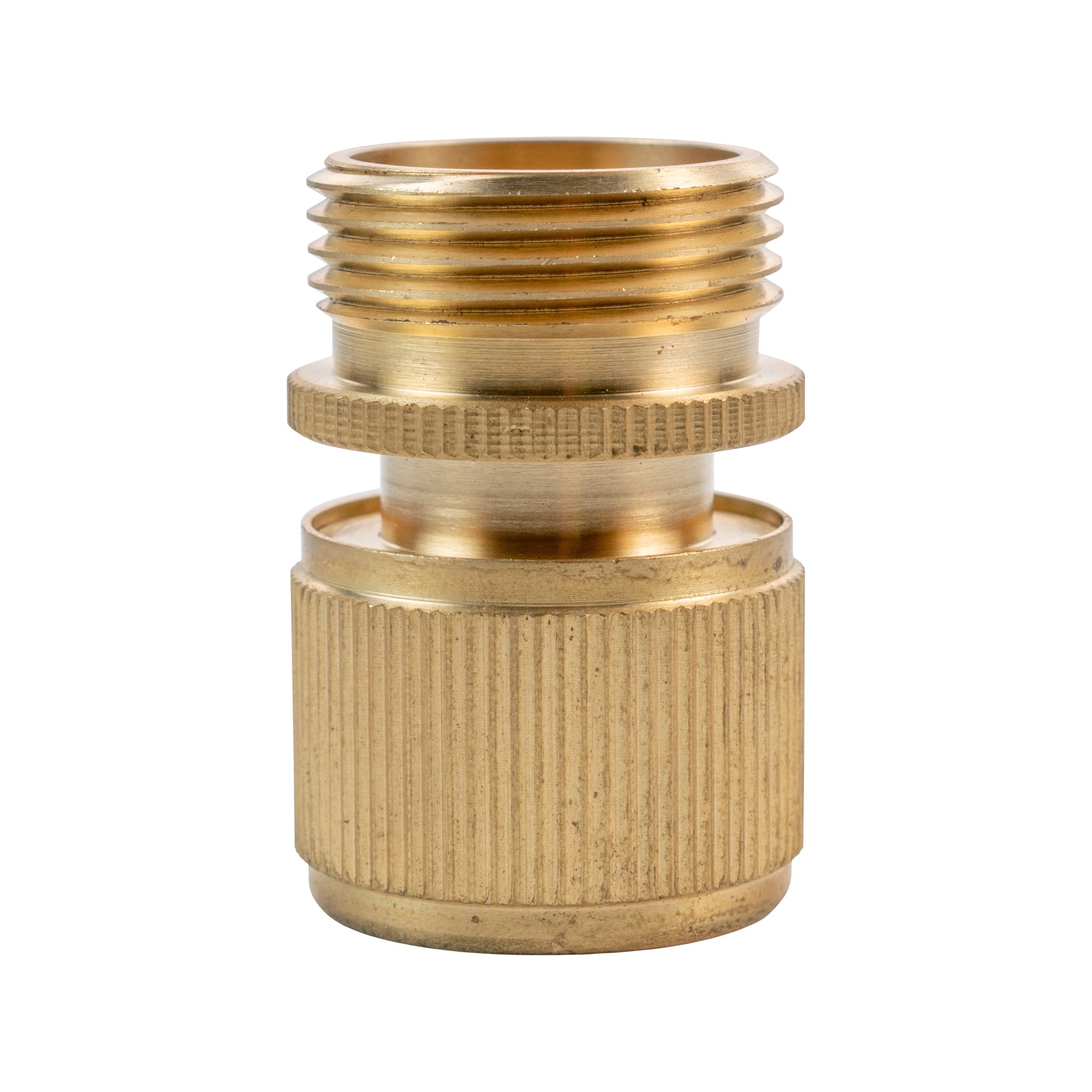

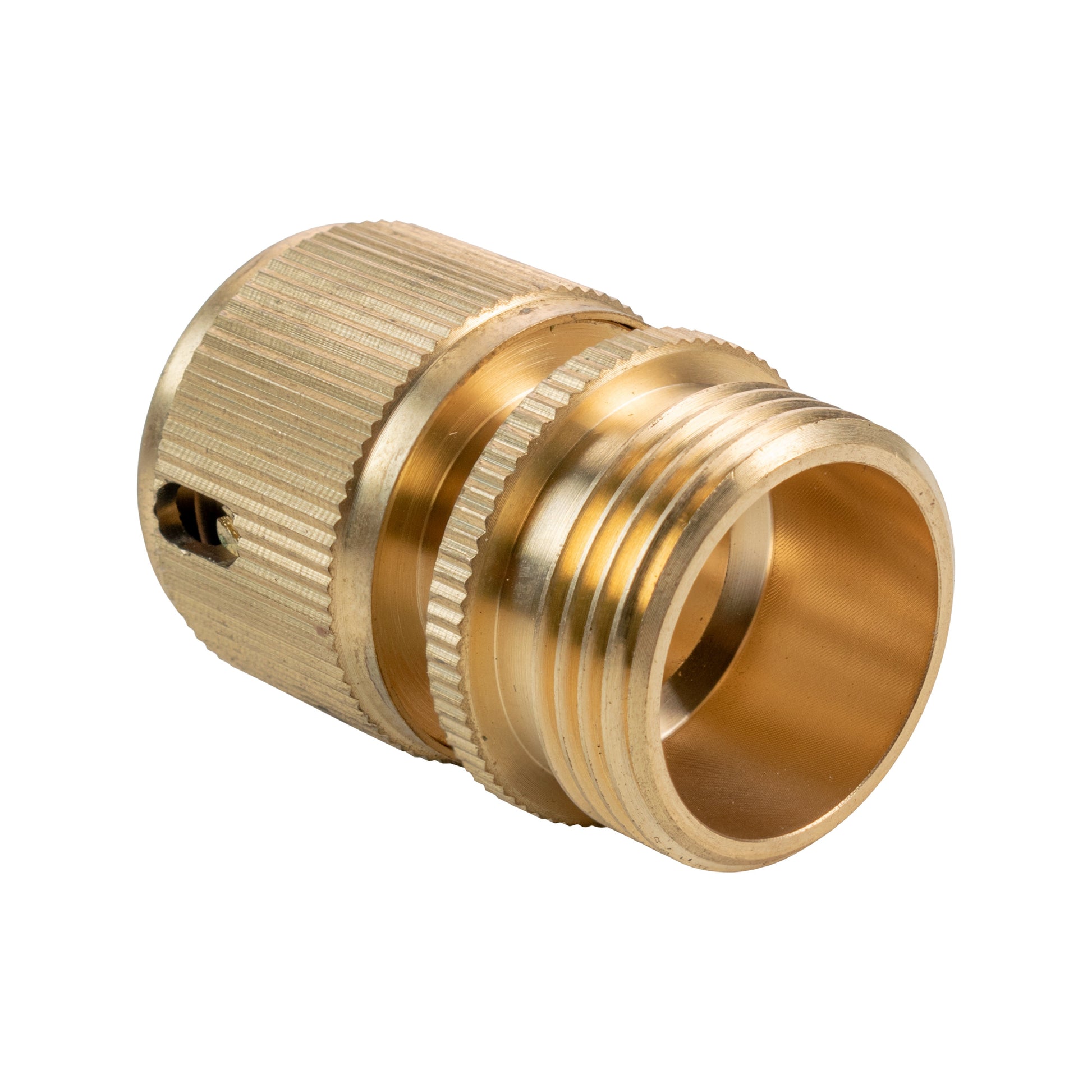

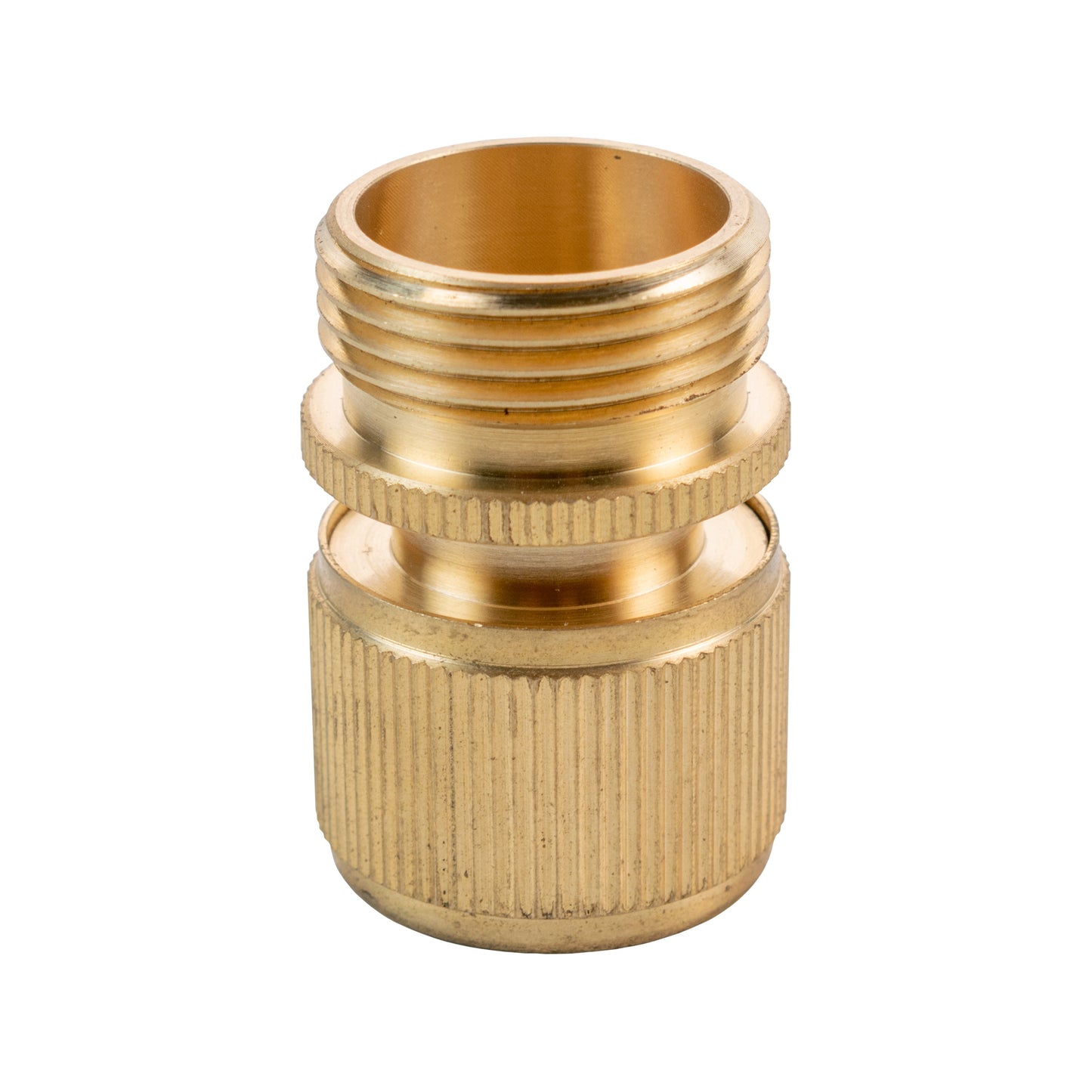

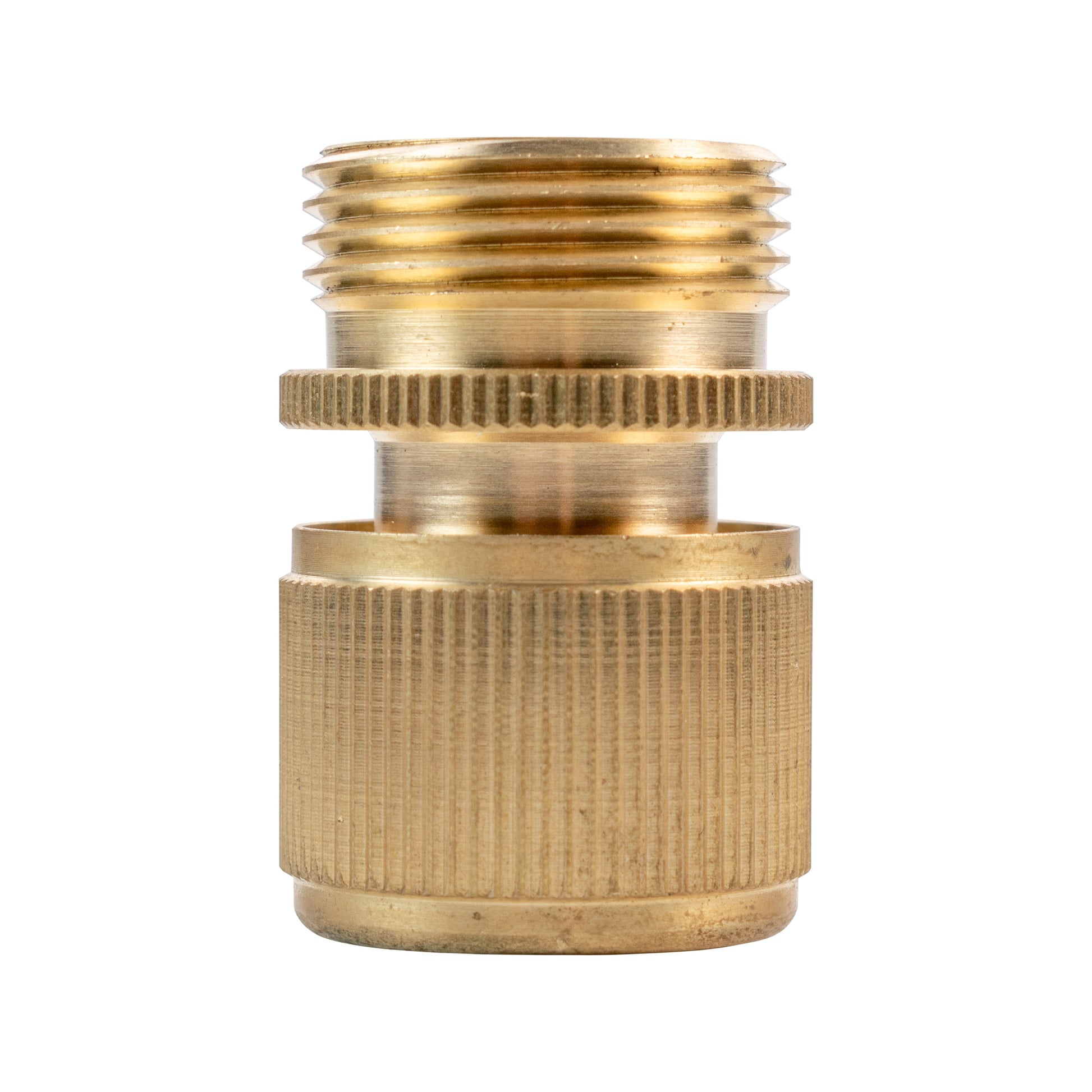

This brass adapter combines a ¾-inch BSP male thread with a female garden quick-connect socket. Use it where a suitable fitting has a matching female thread and needs a detachable garden coupling.
One adapter supplied. Hose and mating fittings are separate.
Check the threaded end first

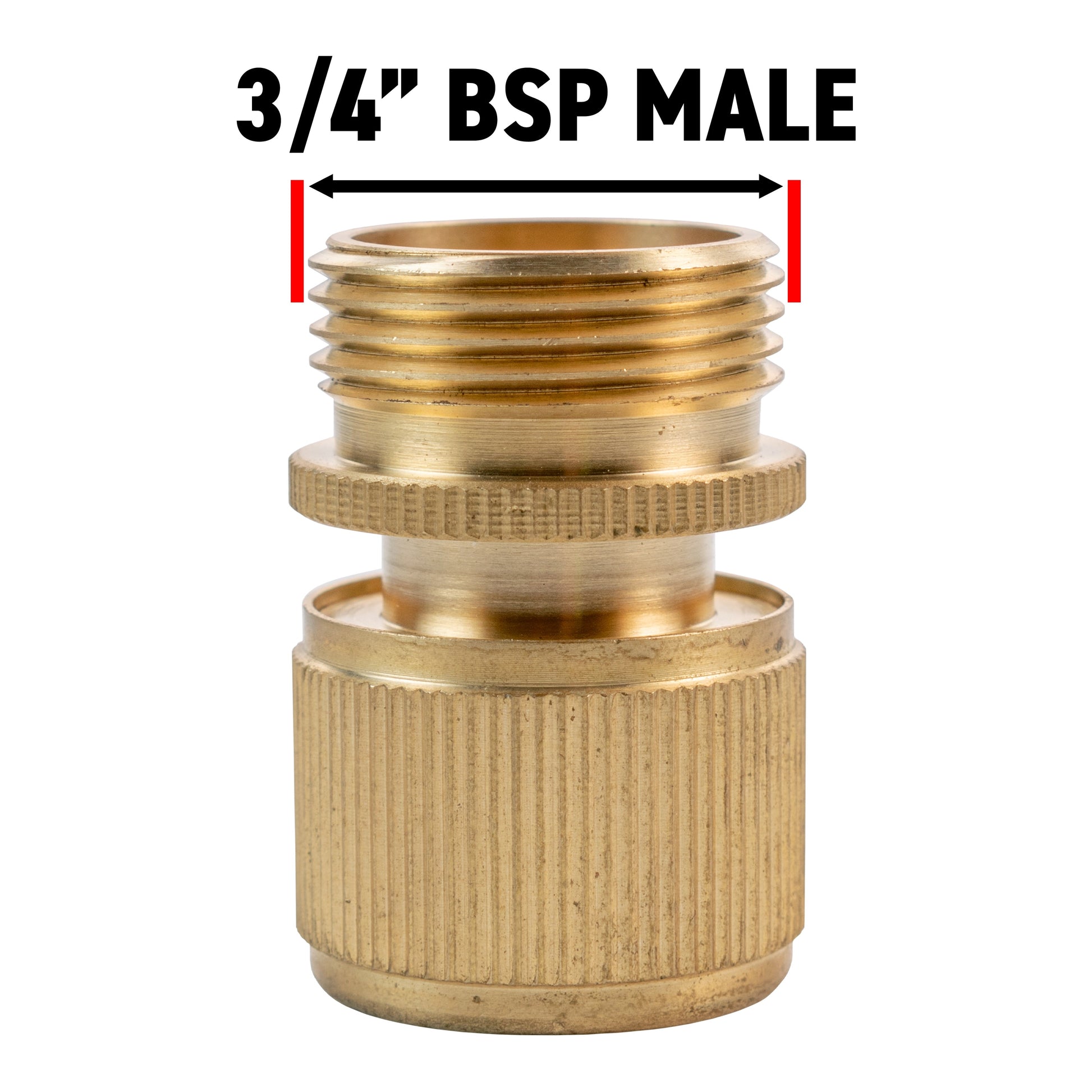

The exposed external thread is ¾-inch BSP male. It needs a matching ¾-inch BSP female connection on the component you are adapting.
A garden tap with an external male thread needs a different threaded adapter. Two male threads cannot screw together, even when their nominal size is the same.
BSP is a nominal thread designation, not the diameter of the quick-connect opening or a hose-bore measurement. Check the receiving connection and use the sealing arrangement appropriate to that fitting.
The socket receives a male garden plug

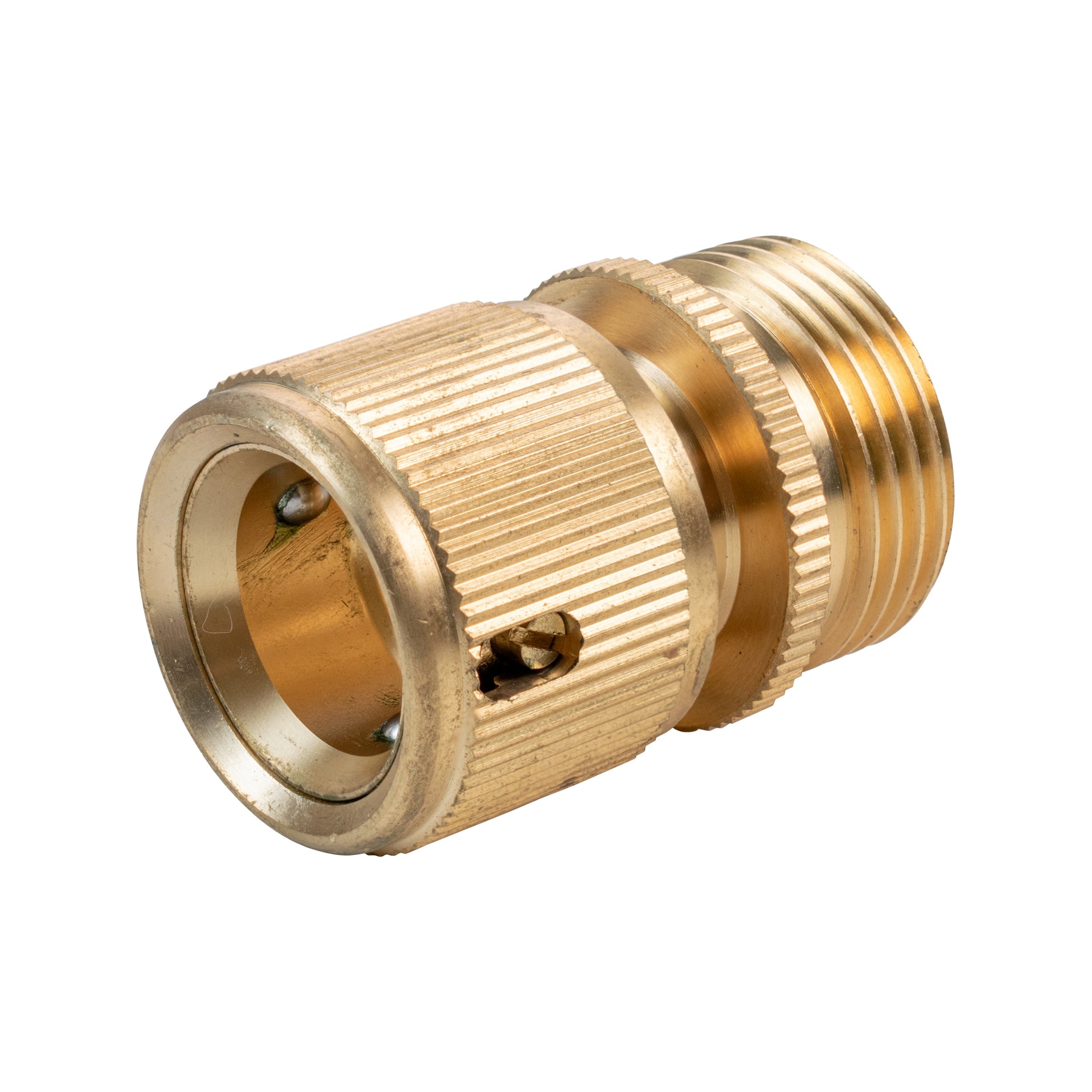

The wider end is the female garden quick-connect socket. Push a compatible male garden plug into it and check that the coupling has engaged before opening the supply.
The ribbed collar operates the release. Turn off the water and release pressure before pulling it back to disconnect the plug. Keep dirt out of the socket and check the mating plug and its seal for damage.
This is not a hose-tail connector: there is no retaining nut to grip bare hose. Any hose connection needs its own suitable hose-end fitting.
Questions about this brass adapter
Why is it described as both female and male?
Female describes the garden quick-connect socket. Male describes the separate ¾-inch BSP external thread. Match each end independently: the socket receives a compatible male garden plug, while the threaded end screws into a ¾-inch BSP female connection.
Will it screw onto a standard male-threaded garden tap?
No. This adapter also has a male thread. For a tap with an external thread, choose an adapter with the correct female thread instead. Check the actual tap connection rather than assuming every garden tap takes the same fitting.
Does it include a hose connector or grip bare hose?
One brass threaded-to-quick-connect adapter is supplied. It does not grip bare hose and does not include a hose, mating male quick-connect plug or separate threaded fitting.
Product information & technical details
| SKU | EXPAND34BSPM-FEM001BRASS |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Brass |
| Material | Brass |
| Quick-connect type | Female garden socket |
|---|---|
| Mating quick connection | Compatible male garden quick-connect plug |
| Mating threaded connection | ¾-inch BSP female |
| Release mechanism | Sliding ribbed collar |
| Quantity supplied | One adapter |
| Hose and mating fittings included | No |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
