Description
Set the spray to suit the patch

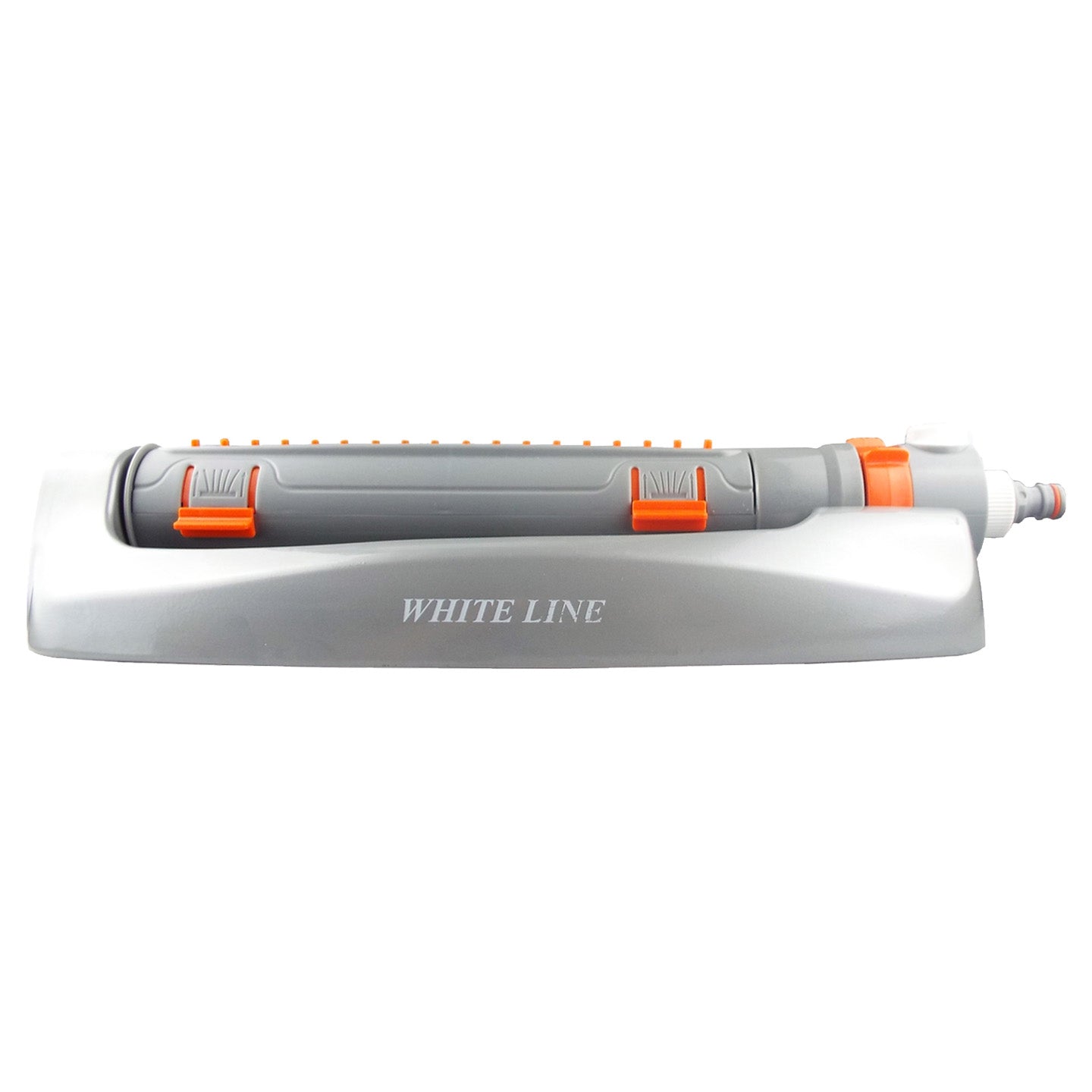

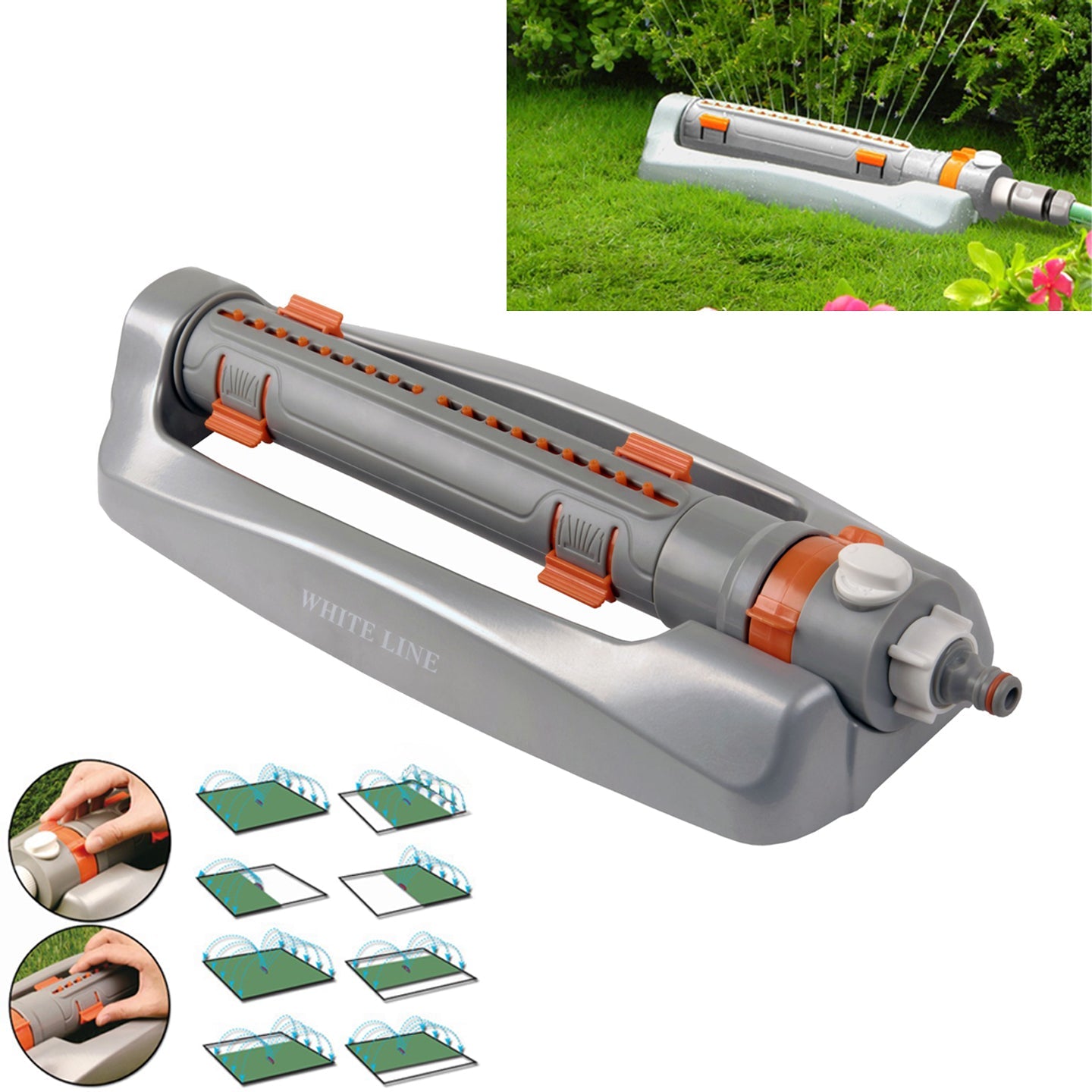

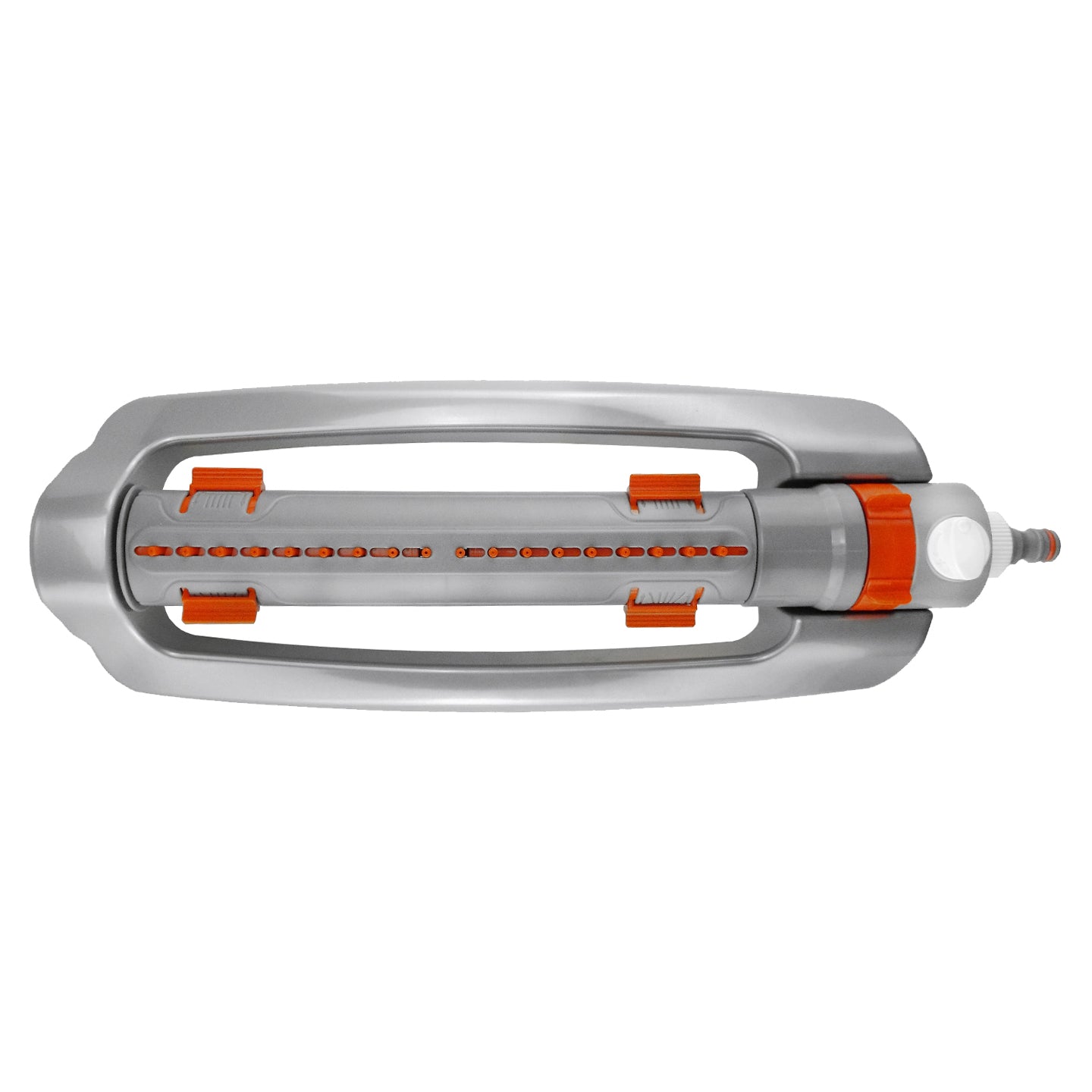

The Bradas WHITE LINE WL-Z22 gives you separate controls for width, sweep and water flow. Its 18 rubber nozzles move back and forth above a grey metal base, with orange tabs along the bar and a white flow dial beside the hose inlet.
Narrow the spread for a smaller patch, or open it out where there is more lawn to cover. The maximum coverage is up to 375m²; the area reached in use depends on your water supply, hose, settings and the wind.
One sprinkler supplied. Hose, connection fittings and timer are separate.
Width and sweep do different jobs

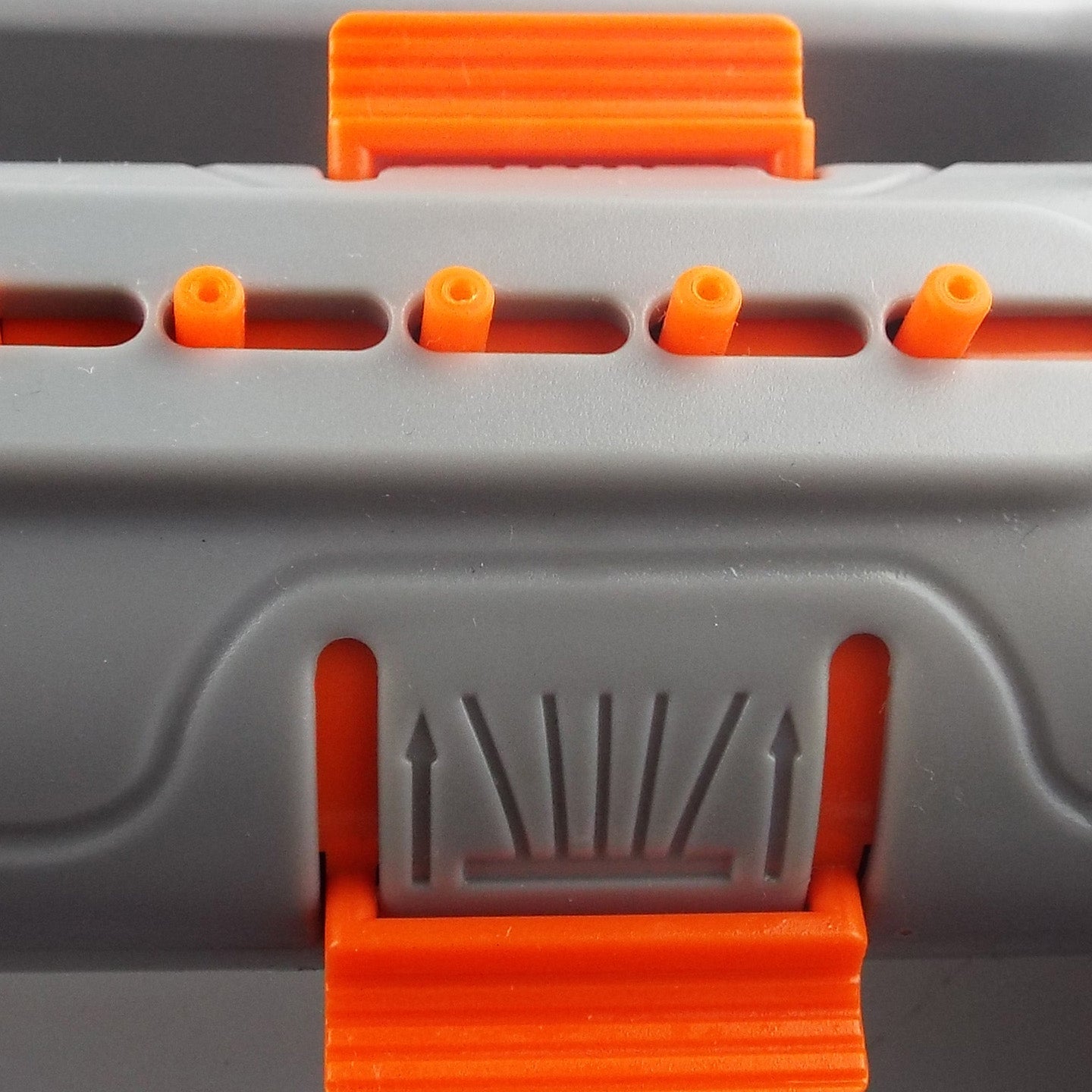

The close-up shows the orange width tabs and the moulded spray symbol. These change the spread of the jets across the bar, useful when the patch to be watered is narrower than the full pattern.
The sweep controls set the back-and-forth travel. Start with the base on level ground and enough space for the bar to move, choose your settings with the water off, then open the supply gradually and watch a complete pass.
Check both ends and both sides of the spray. Make one adjustment at a time, turning off before repositioning, until the water is landing on the intended ground rather than the path or fence.
Three checks before you leave it watering
Position the base
Rest it on level ground with the moving bar clear of plants and obstacles. Leave slack in the hose so the coupling is not pulling the sprinkler sideways.
Watch the full pattern
Check a complete sweep rather than a single moment. Width, travel and flow all affect where the water lands, and wind can carry the jets beyond the lawn.
Choose the watering time
The sprinkler has no included timer or automatic shut-off. Turn off the tap when finished, or use a suitable separate timer if you need timed control.

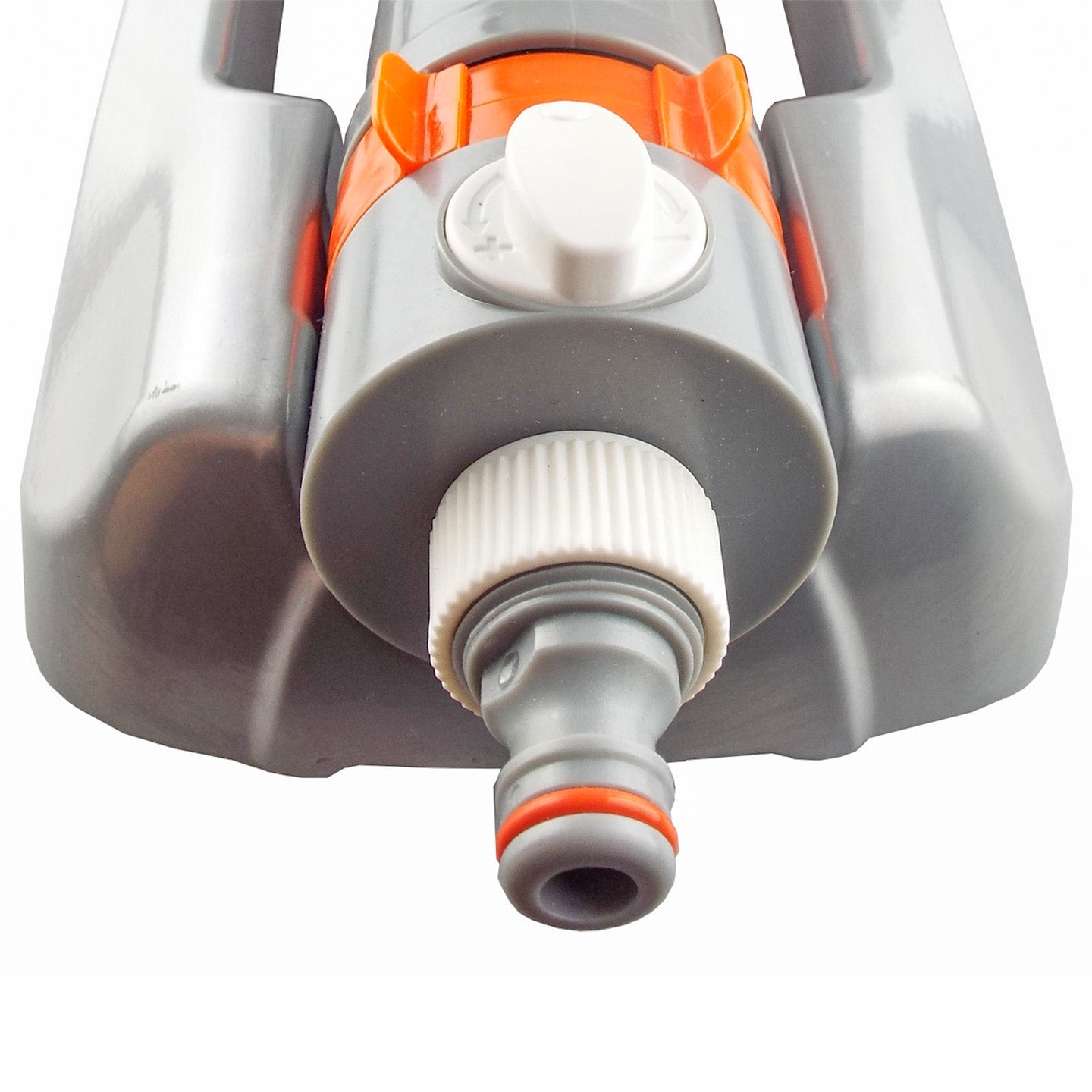

Flow adjustment where the hose connects

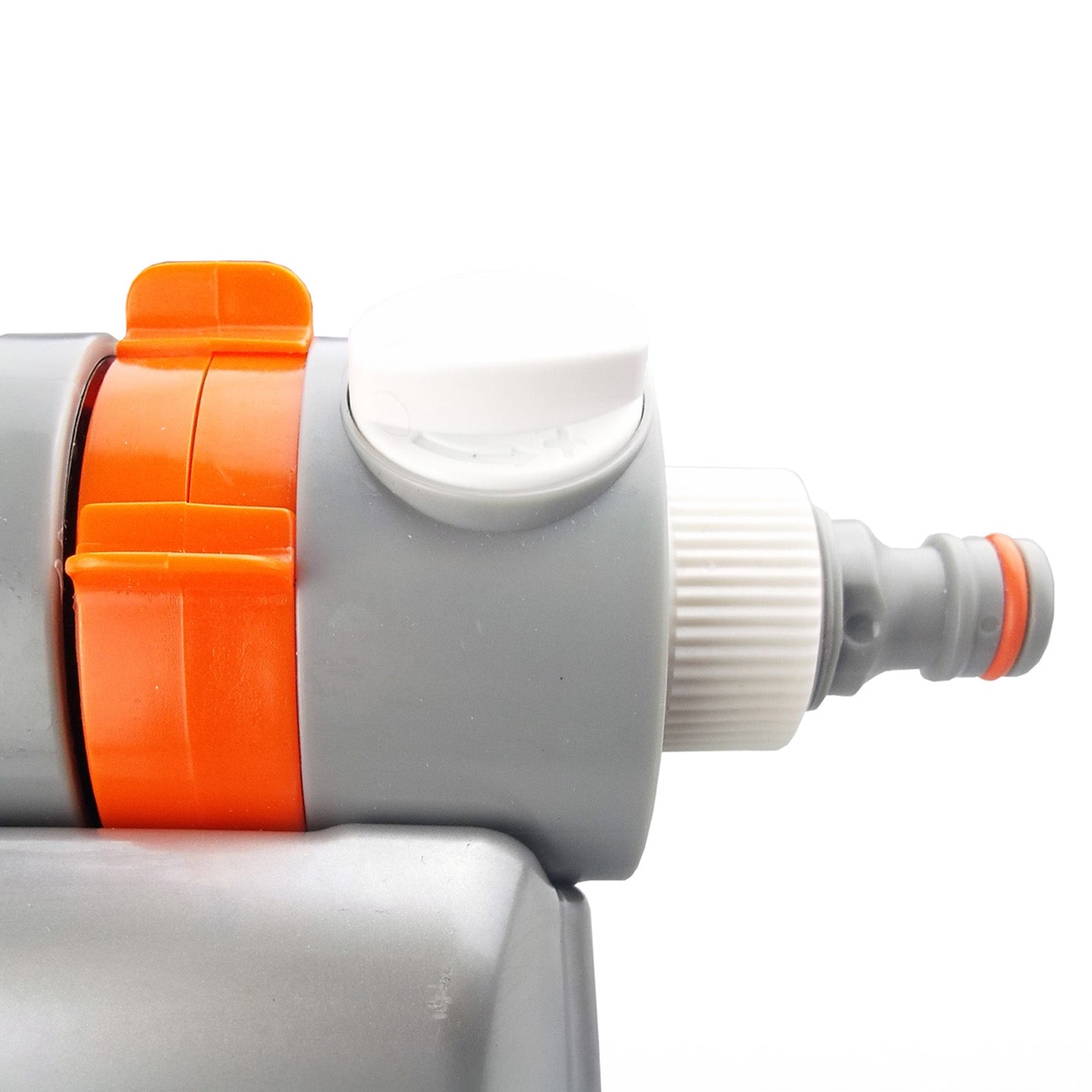

The white dial adjusts water flow at the sprinkler. It gives you another way to alter the pattern after choosing the width and sweep. It does not increase the pressure available from your supply.
The inlet has a male garden quick-connect plug. Fit a compatible female hose-end connector with a hose attachment suited to your own hose size, and check the joint before watering. The hose, female fitting and any adapter needed at the garden tap are not included.
If the jets do not reach as expected, check for a kinked hose, restricted fittings or a partly closed tap as well as the dial setting. Change the setup with the supply off and test the pattern again.
Keep the nozzles clear between uses
Use the stored needle

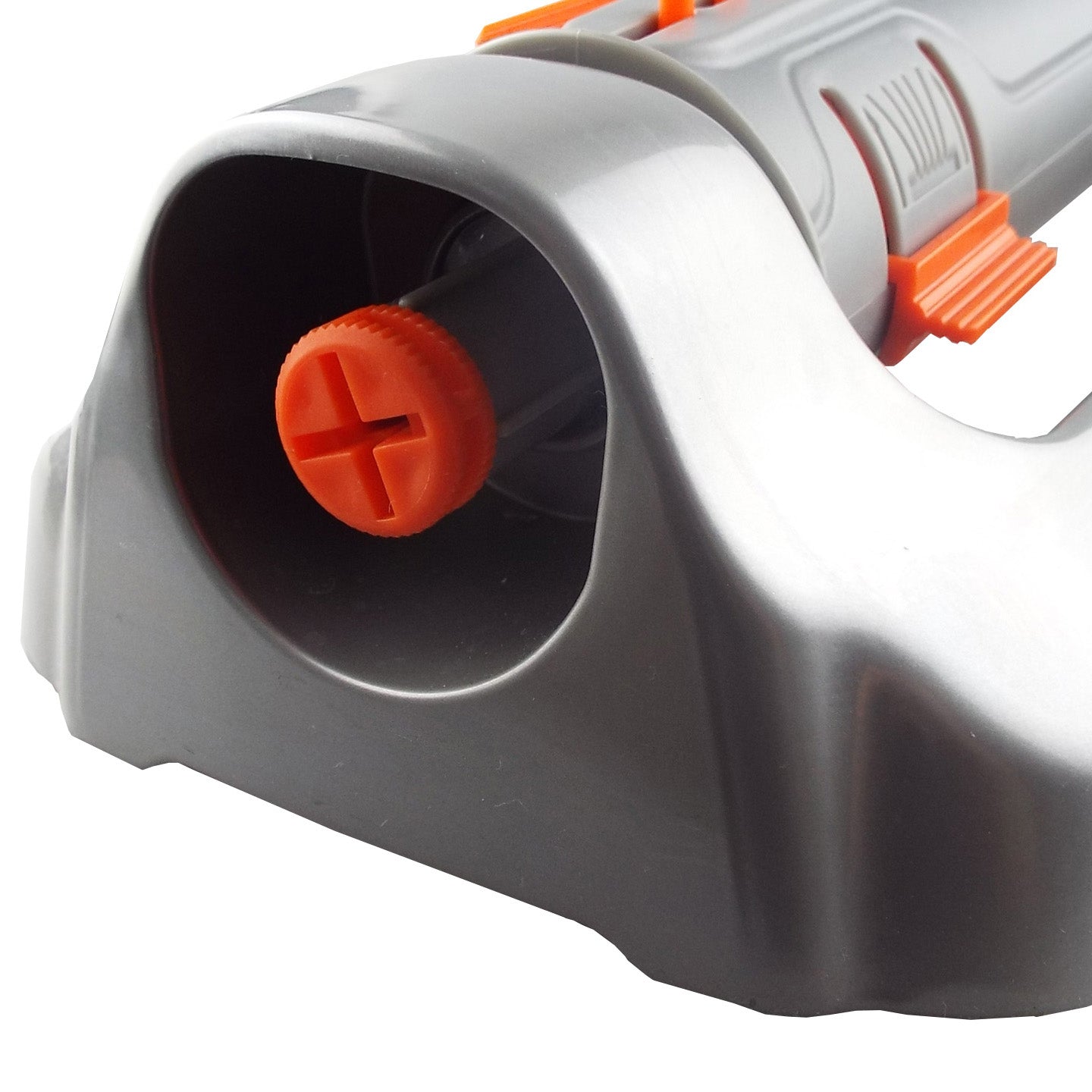

A nozzle-cleaning needle is stored in the end plug. Shut off and release pressure before removing it, and clear visible dirt gently without forcing or enlarging a nozzle opening.
Refit before testing
Put the cleaning plug back securely before turning the water on. Watch the jets again to check that the spray opening is clear.
Drain before storage
Drain the sprinkler and hose after use and store the unit away from frost. Lift the base when moving it rather than dragging it by the hose.
Questions about the WL-Z22
Can I make the watered strip narrower?
Yes. Use the orange width-adjustment tabs to alter the spread, then test the pattern where you are using it. The sweep controls set the bar's travel, and the white dial adjusts flow. Turn off before changing its position.
Will it cover 375m² on every hose?
No. Up to 375m² is the maximum coverage. Pressure and flow at the sprinkler, hose restrictions, the selected settings and wind affect the area reached. Watch a complete pass and check the edges of the watered patch in your own garden.
What else do I need to connect it?
Provide a garden hose, a compatible female hose-end connector and suitable fittings at your water supply. Match the connector's hose attachment to your hose size. This listing supplies one sprinkler, without hose, fittings or timer.
Is the white dial a timer or pressure booster?
No. It adjusts the flow through the sprinkler. It does not measure watering time, switch the tap off automatically or increase supply pressure. Turn off the water when finished; timed control requires a separate suitable timer.
Product information & technical details
| SKU | WL-Z22-001 |
|---|---|
| Product type | |
| Colour | Grey |
| Material | Metal |
| Brand | Bradas |
| Range | WHITE LINE |
| Model | WL-Z22 |
| Sprinkler action | Oscillating bar |
| Nozzles | 18 rubber nozzles |
|---|---|
| Maximum coverage | Up to 375m²; depends on water supply and conditions |
| Width adjustment | Orange sliding tabs |
| Sweep adjustment | Adjustable travel limits |
| Flow control | White dial at the inlet end |
| Water inlet | Male garden quick-connect |
| Cleaning tool | Needle stored in the end plug |
| Supplied contents | One sprinkler; hose, fittings and timer not included |
