Description
A straight connection from tank to hose
Choose the fitting for your tank and hose from six male BSP sizes, 1/2-inch to 2-inch. Each black plastic connector has a straight-through body and a barbed hosetail, with a retaining nut and one sealing washer.
Suitable mounting surfaces, access inside the tank and the hose fit all matter. Check those details for your installation before choosing the size.
One selected fitting supplied with its nut and washer. Hose and installation tools are separate.

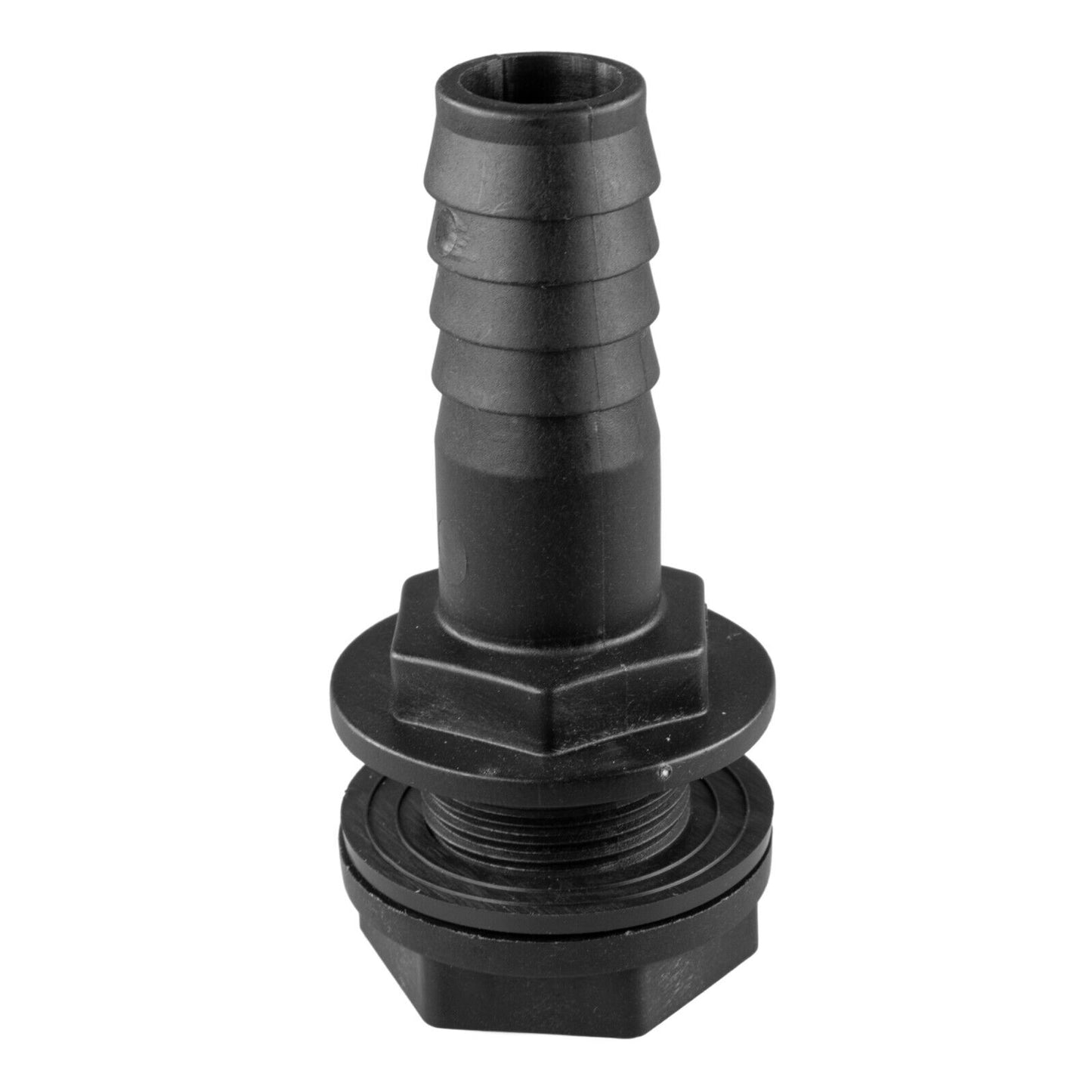

Three parts with different jobs
The connector body brings the male BSP thread and the barbed hose end together in one straight fitting.
The retaining nut secures the fitting through a suitable tank wall. Check that there is room to reach and tighten it, and that the wall thickness suits the available thread.
The sealing washer provides the seal at the tank mounting surface. The actual 3/4-inch parts are shown here; shape and proportions vary with your selected size. This is one fitting, not a pair or a complete hose-linking kit.
Choose the thread and hosetail together
Each option pairs the BSP thread with a hosetail of the same nominal inch size.
| Tank thread | Hose-end designation |
|---|---|
| 1/2-inch BSP | 1/2-inch hosetail |
| 3/4-inch BSP | 3/4-inch hosetail |
| 1-inch BSP | 1-inch hosetail |
| 1.25-inch BSP | 1.25-inch hosetail |
| 1.5-inch BSP | 1.5-inch hosetail |
| 2-inch BSP | 2-inch hosetail |
These are connection designations, not drilling measurements. Check the actual fitting against the hose, tank wall and intended opening before cutting or assembly. The BSP size does not establish compatibility with every water butt or IBC outlet.
Plan the mounting before drilling
A suitable surface and access to the retaining nut are as important as the connection size.
- Check the tank wall, sealing surface and available thread before deciding on the opening.
- Use the actual connector to verify the required hole; do not drill from the BSP label alone.
- Check the hose fit, select any clips for the actual assembly and support the hose so it does not pull on the outlet.
- Water-test the tank seal and hose connection before leaving the installation in use.
Check before you order
How many fittings and washers do I receive?
One selected fitting, one retaining nut and one sealing washer. Hose, clips, tanks and drilling tools are separate.
Is the BSP size the hole size I should drill?
No. BSP identifies the thread. Check the required opening against the actual fitting, allowing for the tank wall, sealing surface and retaining nut, before cutting.
Will it fit any water butt or IBC connection?
Check your particular connection and mounting first. These are male BSP-to-hosetail fittings, not universal tank adapters. Match the thread, hose and mounting arrangement rather than relying on the tank type alone.
Can I use it to link two water butts?
A link needs a suitable fitting at each tank, compatible hose and appropriate securing hardware. This listing supplies one fitting with its nut and washer; it does not include the second fitting or connecting hose.
Product information & technical details
| SKU | BUTT12BSPM-12B001[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1", 1.25", 1.5", 2" |
| Thread gender | Male |
| Barb size | 12.7mm (1/2"), 19mm (3/4"), 25mm (1"), 32mm (1.25"), 38mm (1.5"), 50mm (2") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Available options | Size, colour and connection lists show available options across this range. One selected variant is supplied; select the required combination. |
| Configuration | Straight male BSP-to-barbed hosetail fitting |
| Supplied parts | 1 connector body, 1 retaining nut and 1 sealing washer |
| Pack quantity | 1 fitting in the selected size |
| Not included | Hose, clips, tanks and drilling tools |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
