Description
Pressure reduction at the garden tap

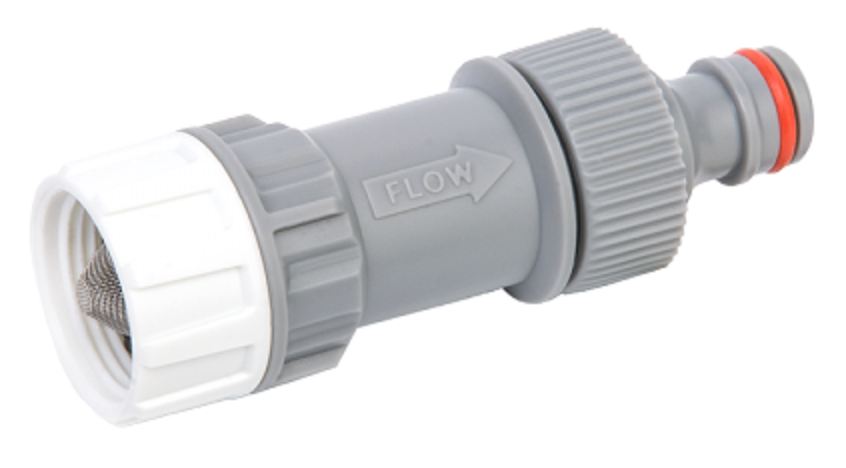

The Bradas WL-2233 pressure reducer fits between a matching garden tap and a quick-connect hose fitting. It combines a 1.0-bar rated output with a removable mesh filter in a grey-and-white plastic body.
Use it where the watering equipment calls for this pressure level. The thread and quick connection establish the physical fit; the equipment’s pressure requirements still need to match.
Match both ends of the connection
The ¾-inch BSP female inlet screws onto a matching male tap outlet. At the opposite end, the male garden quick-connect nipple accepts a compatible female hose-end connector. Choose that separate connector to fit your hose.
The moulded FLOW arrow identifies the direction through the fitting, from the threaded inlet towards the quick-connect outlet. Turn off the water before fitting or disconnecting the unit, then turn it on and check the assembled connections.

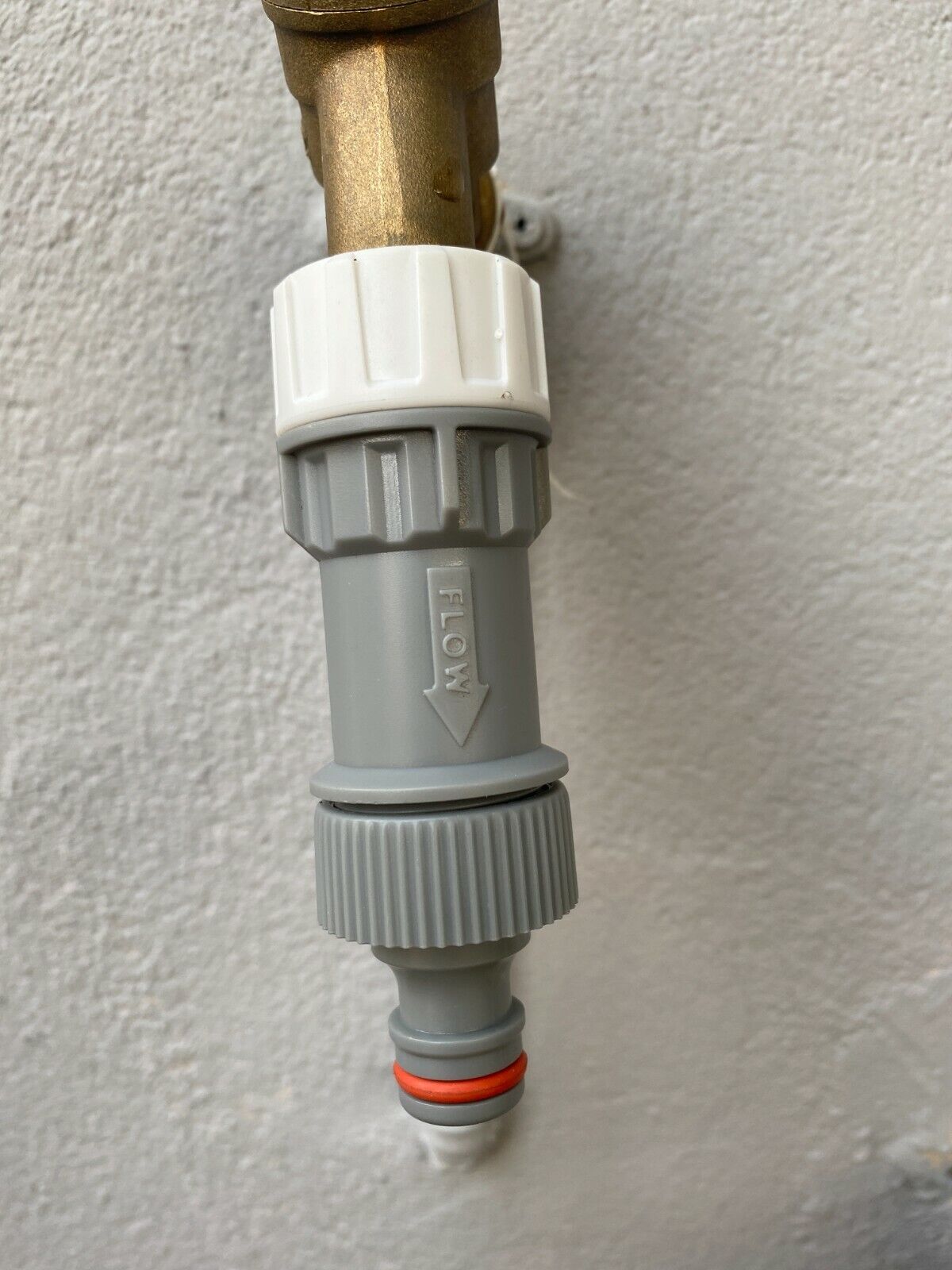

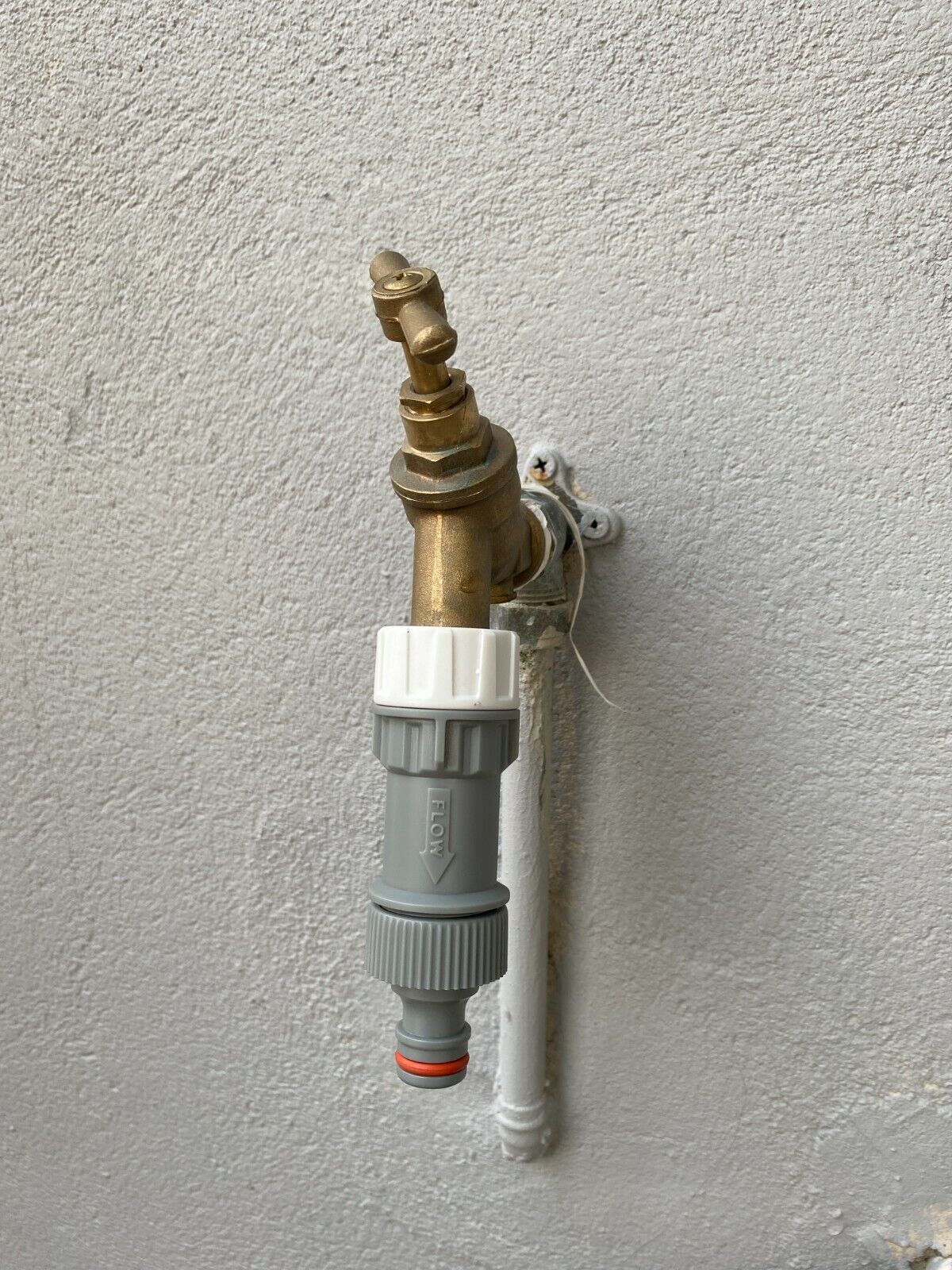

The removable mesh filter catches particles carried by the supply. It does not make untreated water suitable for drinking. One reducer with its filter is supplied; the other parts shown in the installed photograph are separate.
Questions about the 1-bar reducer
Will it connect directly to my tap?
It has a ¾-inch BSP female inlet, so your tap needs a matching ¾-inch BSP male outlet. Check the actual tap thread; a hose diameter is a different measurement.
Is a hose connector included?
No. The reducer has a male garden quick-connect nipple. Attach a compatible female hose-end connector, selected to fit your hose. The optional ½-inch hose connector shown above is sold separately.
Can I use it as the only pressure control for a 0.7-bar soaker hose?
No. Its rated output is 1.0 bar, which exceeds a 0.7-bar maximum. Use pressure control appropriate to the hose’s stated limit rather than relying on this unit alone.
Does it increase low pressure or make water drinkable?
No. This is a pressure-reducing fitting, not a pump. Its mesh filter catches particles; it is not a drinking-water treatment system. Check the pressure requirements and intended use of the complete watering setup.
Product information & technical details
| SKU | WL-2233-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Colour | Grey, White |
| Material | Plastic |
| Brand | Bradas |
| Model | WL-2233 |
|---|---|
| Range | WHITE LINE |
| Rated outlet pressure | 1.0 bar |
| Outlet connection | Male garden quick-connect nipple |
| Filter | Removable mesh filter |
| Quantity supplied | 1 pressure reducer with filter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
