Description
Four branches.
Choose your connections.

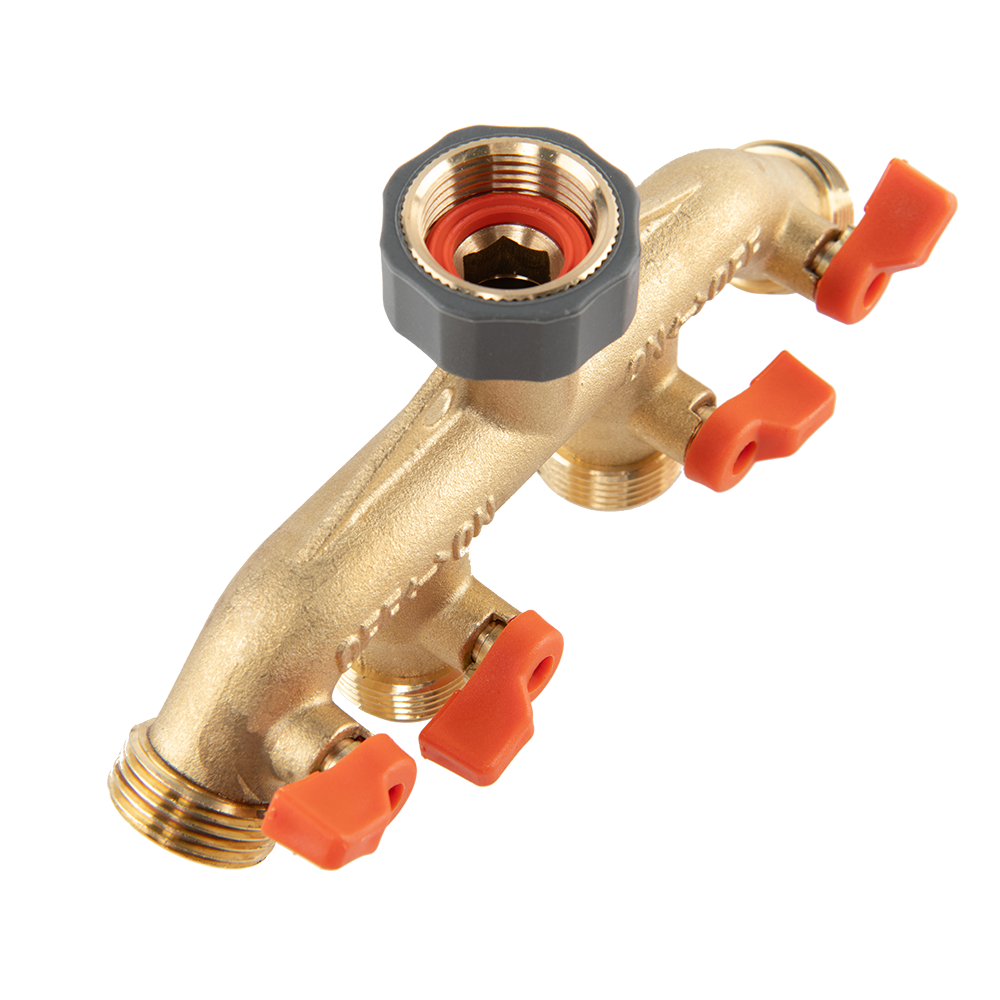

Build your watering setup around a brass four-way tap splitter with ¾-inch BSP threaded outlets. Connect suitable hose tails or garden quick-connect adapters to the branches, then leave each line ready for the next watering job.

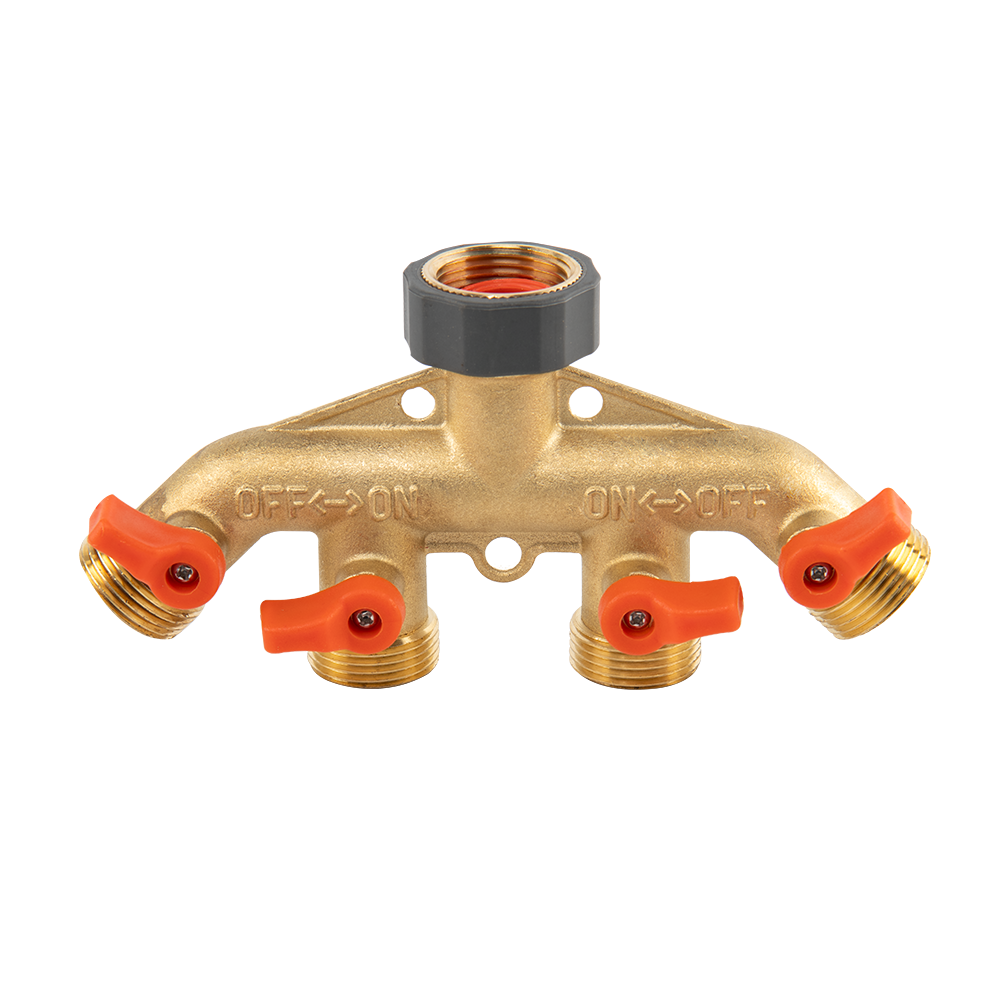

Four orange wing controls let you open, adjust or close the branches individually. The two centre outlets point down; the outer pair angle outwards.
One manifold supplied. Tap, outlet adapters, hoses, hose sockets and clamps are separate.
Start with the thread
These outlets are bare male BSP threads, not garden quick-connect plugs. For a direct hose connection like the illustration, add a suitable ¾-inch BSP female hose-tail adapter matched to the hose bore, with the appropriate hose fastening.
Prefer to click a hose on and off? The optional brass adapter above screws onto a ¾-inch male outlet and provides a male garden plug. You will also need a compatible female socket on the hose. One adapter converts one branch; it is a different connection from the hose tails illustrated.
The splitter distributes the existing tap supply. Opening extra branches can reduce flow at each tool. Check the connected equipment’s needs and use fewer lines together where necessary.
Plan each branch
Match the tap
Turn off the supply. Check for a matching ¾-inch BSP male tap thread, inspect the inlet seal and start the female nut squarely by hand without forcing it.
Fit the adapters
Select compatible female-threaded fittings for the outlets and the correct hose connection for each line. Follow the adapter’s sealing instructions and support attached hoses to avoid pulling on the manifold.
Test before watering
Open the tap gradually and inspect all joints. Adjust the orange controls individually. Turn off the main tap and release pressure before disconnecting; drain exposed fittings before freezing weather.
Connection questions
Can a garden hose socket click straight onto an outlet?
No. The outlets have ¾-inch BSP male threads. Add a compatible female-threaded garden plug adapter first, then attach the separate female socket on your hose.
Are the hose tails in the installation image included?
No. You receive the brass manifold with four valves and bare threaded outlets. The illustrated tap, hose-tail adapters, clamps and hoses are separate.
Can unused branches stay closed?
Yes. Each outlet has its own manual valve, so you can close the branches you do not need. Turn off the main tap when watering is finished.
Do the valves regulate irrigation pressure?
No. They adjust or close branch flow. Use separate pressure-control equipment if your irrigation system requires it; the manifold does not increase the available tap flow.
Product information & technical details
| SKU | TC4-WAY-TH-001BR |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Brass |
| Material | Brass |
|---|---|
| Tap inlet | ¾-inch BSP female threaded connection with grey inlet nut |
| Branch outlets | Four ¾-inch BSP male threads; compatible female-threaded adapters required |
| Valve controls | Four individually operated orange wing controls |
| Supplied contents | One brass manifold with four valves; tap, adapters, hoses and clamps sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
