Description
Filter at the tap

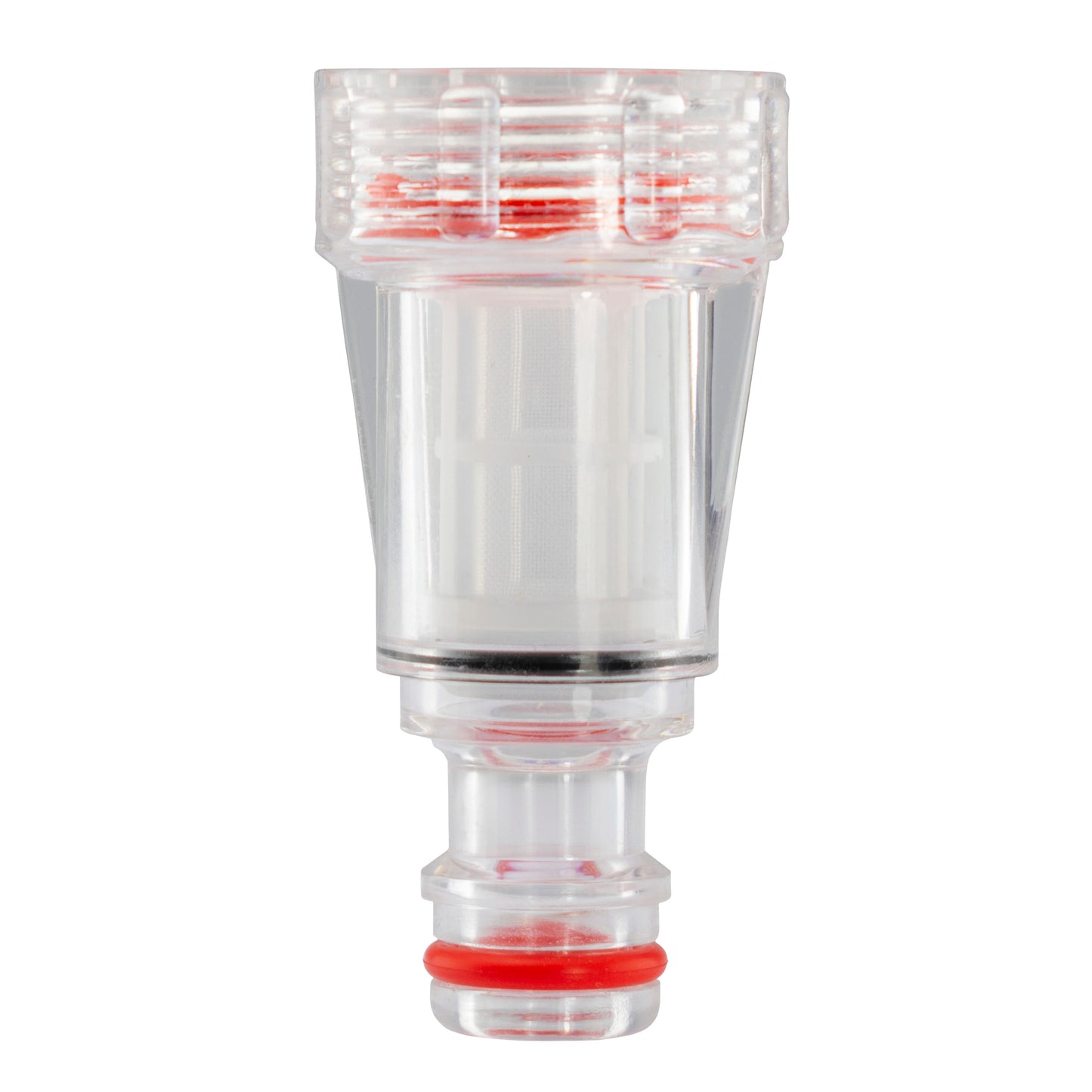

Put a simple debris check at the start of your watering setup. The Bradas WHITE LINE WL-2234 combines a ¾-inch BSP female tap connection, a removable filter and a male garden quick-connect outlet.
The clear housing keeps the filter visible. It collects particles before they reach your hose and sprinkler equipment. Remove the element for cleaning when debris collects.
One filtered tap connector supplied. Tap, hose and female hose socket are not included.
See how the hose fits

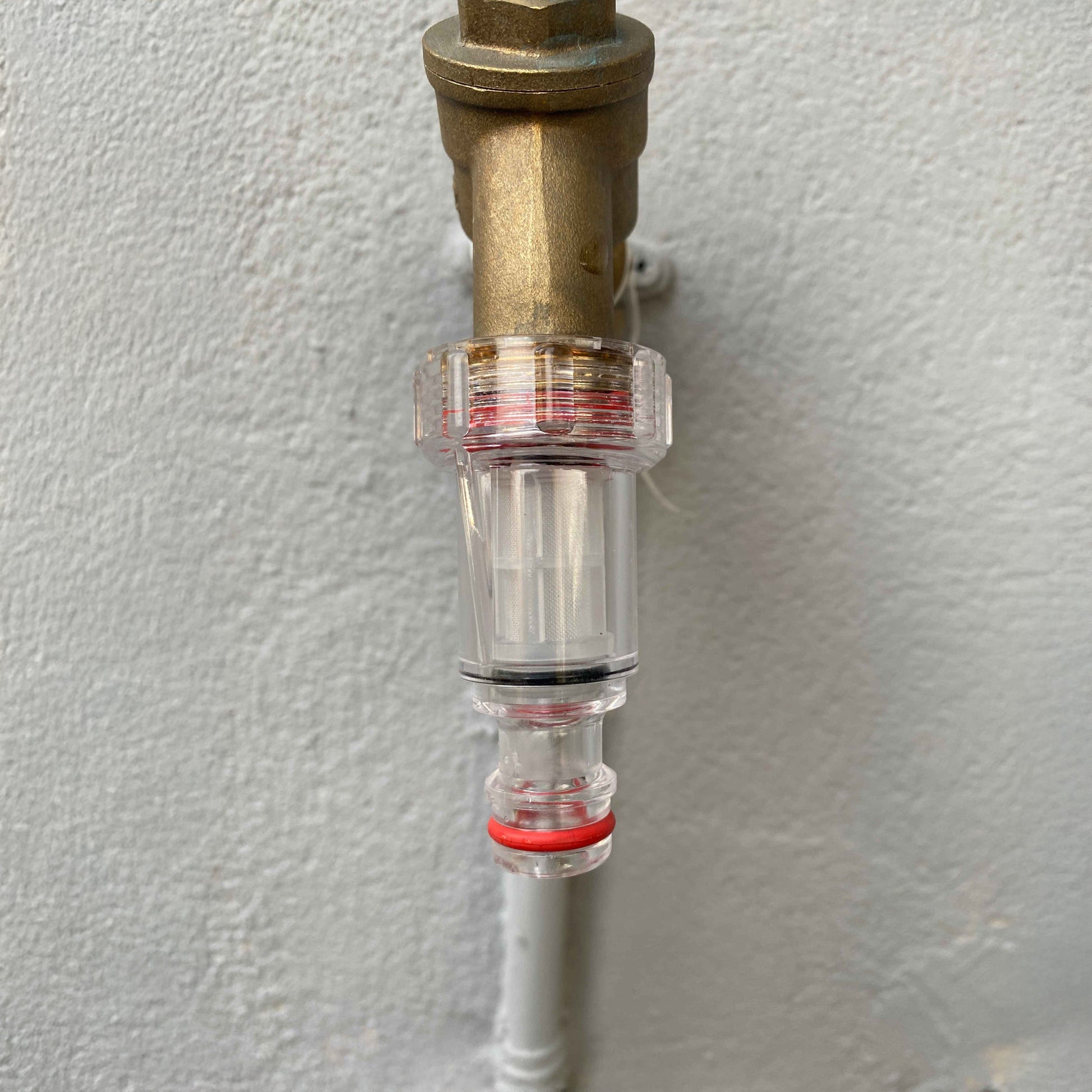

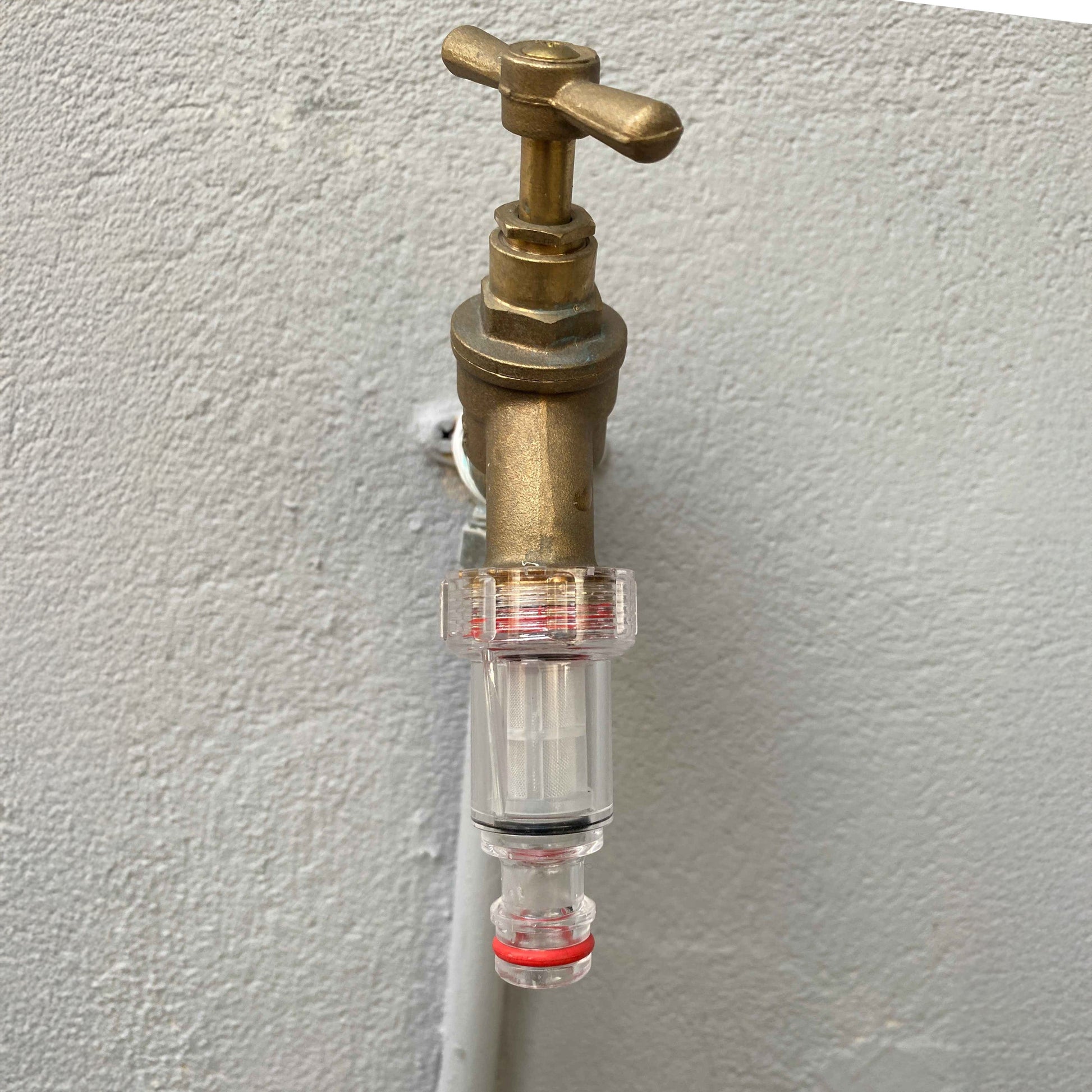

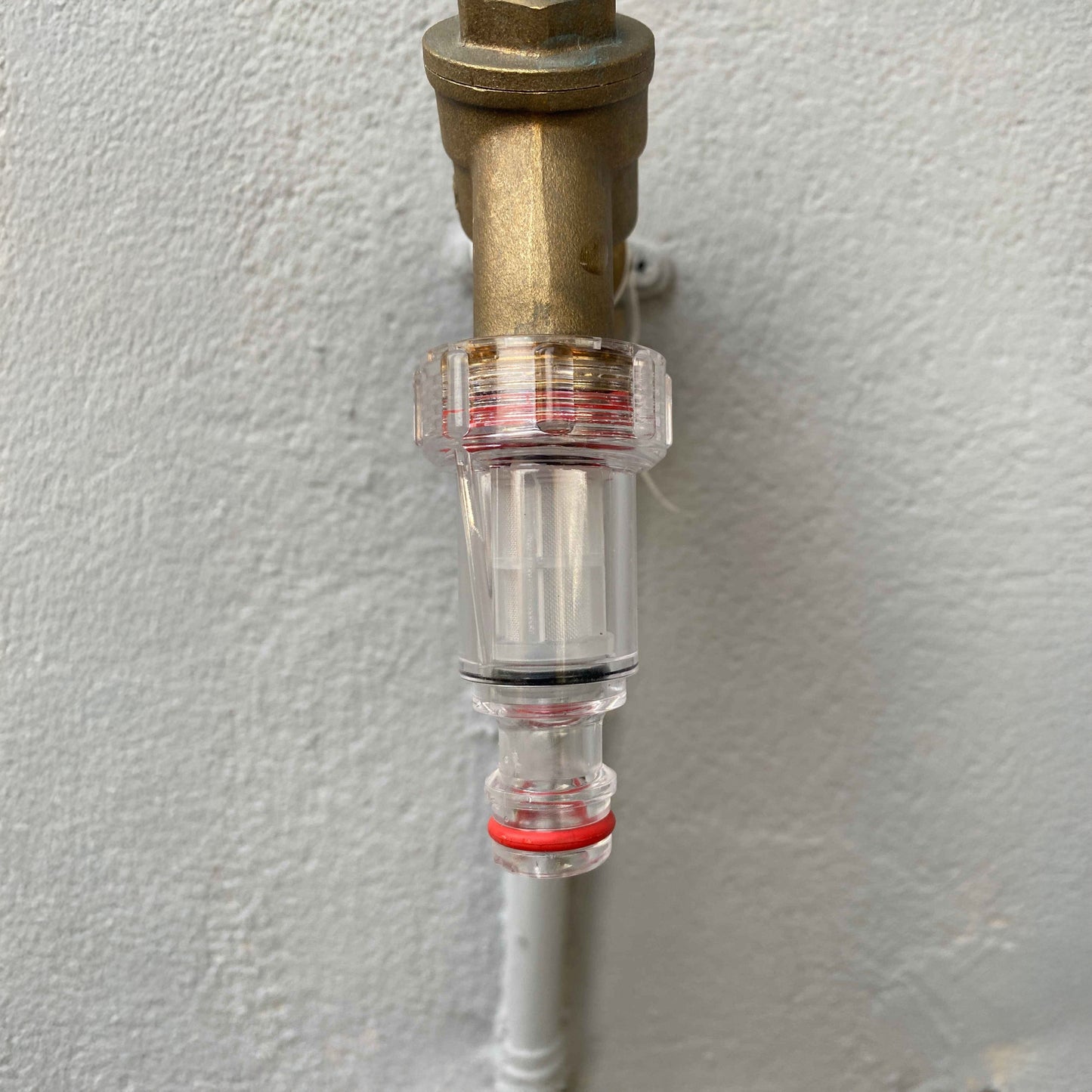

The clear threaded collar fits a matching ¾-inch BSP male tap outlet. At the other end, the narrow male garden plug connects to a compatible female socket already fitted to your hose.
The real pairing photo shows the optional black HOCON12F001BLACK connector attached to that plug. Its socket covers the plug and supplies the locking and release action; the clear filter body is not the release sleeve.
This optional connector grips ½-inch hose. That hose measurement is separate from the filter’s ¾-inch BSP tap thread. Match both connections, and support the hose so it does not pull sideways on the clear housing.
Keep the filter working
Fit and check
Close the tap, check the thread and seals, and fit the connector squarely by hand. Attach your female hose socket, then introduce water gradually and check the assembled joints. Avoid overtightening the plastic body.
Watch for debris
Check the visible element during use. If particles collect or flow becomes noticeably restricted, turn off the supply and release pressure before removing the connector or opening its housing.
Clean and reassemble
Remove the filter element and rinse away collected debris with clean water. Inspect the element and seals, reseat them carefully and check for leaks after reassembly. Drain exposed fittings before freezing weather.
Filter and fitting questions
What does the filter remove?
It collects debris from water used for sprinkler equipment. It cannot promise to prevent every blockage, and no micron rating is specified here. It is not a purifier for making unsafe water suitable for drinking.
How often should I clean it?
Check the clear housing regularly and clean the removable element when debris collects or flow is restricted. The interval depends on the water supply and how much you use it. Turn off the supply and release pressure before opening the housing.
Does it connect directly to bare hose?
No. Use a compatible female garden quick connector sized for your hose. The optional black connector shown is for ½-inch hose; it is sold separately.
Is it a pressure reducer or shut-off valve?
No. This model filters debris and provides a hose connection. It does not regulate pressure or shut off the supply when the hose is removed. Close the tap before disconnecting.
Product information & technical details
| SKU | WL-2234-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Colour | Clear |
| Material | Plastic |
|---|---|
| Filter element | Removable for cleaning; collects debris from sprinkler water |
| Outlet connection | Male garden quick-connect plug |
| Supplied quantity | One filtered tap connector; tap, hose and female hose connector not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
