Description
Give irrigation hose a quick connection
Fit this black and orange adapter to suitable ½-inch hose and connect it to a matching male garden hose plug. The barbed end sits inside the hose; the female quick socket provides the detachable connection.
It is a useful way to connect a hose or irrigation line to compatible watering equipment without repeatedly removing the hose from its barb.
One adapter supplied. Hose and mating quick-connect fittings are separate.
One end grips hose; one end clicks on

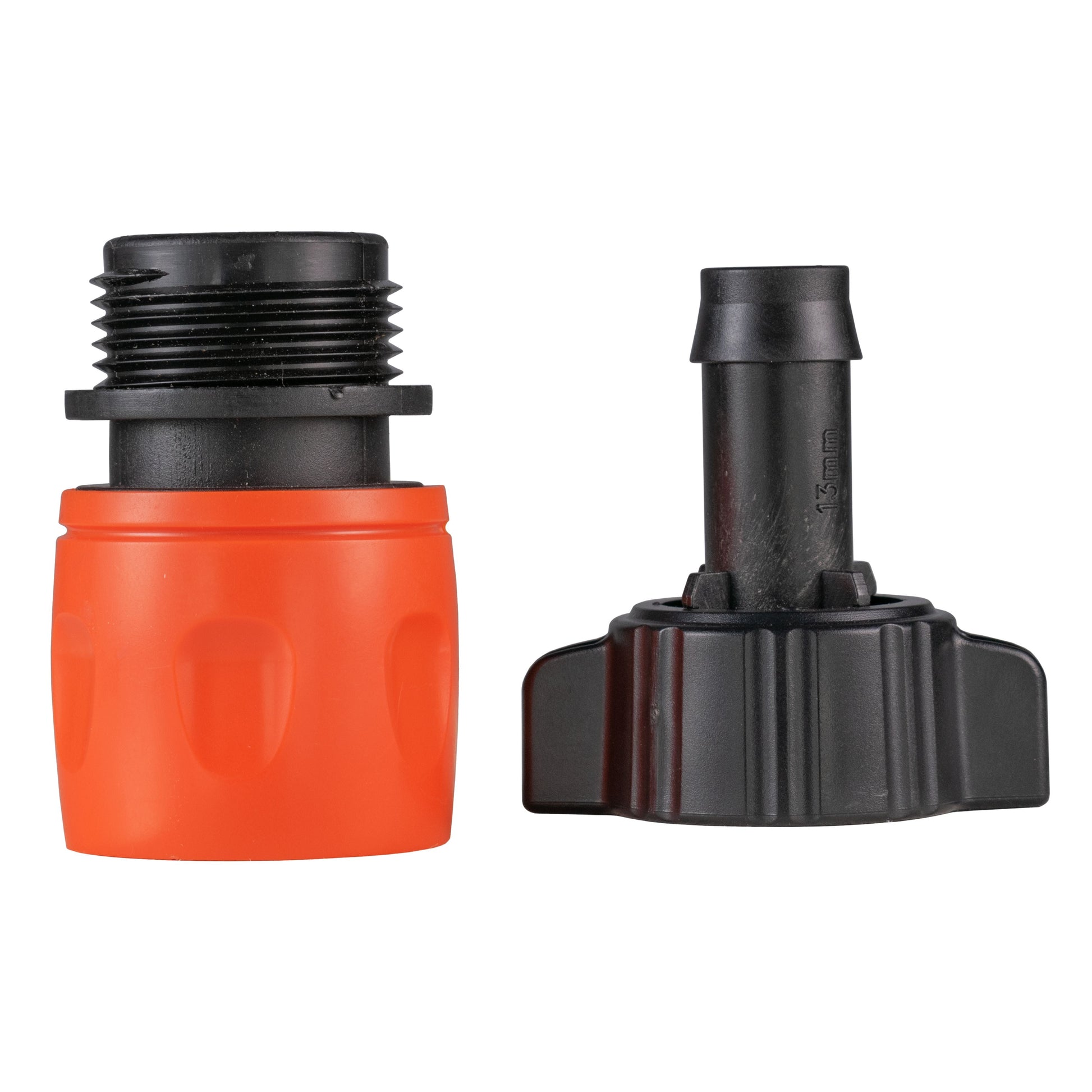

The parts photo shows the removable black hosetail beside the female socket body. Its moulded 13mm marking identifies the hose-size designation. The wings let you grip the hosetail when assembling it to the body.
The barb pushes inside suitable hose. It does not have the compression nut and gripping fingers used by some ordinary hose-end connectors. Check that your hose material and bore suit a push-on barb, and use a suitable retaining clip where the hose or installation requires one.

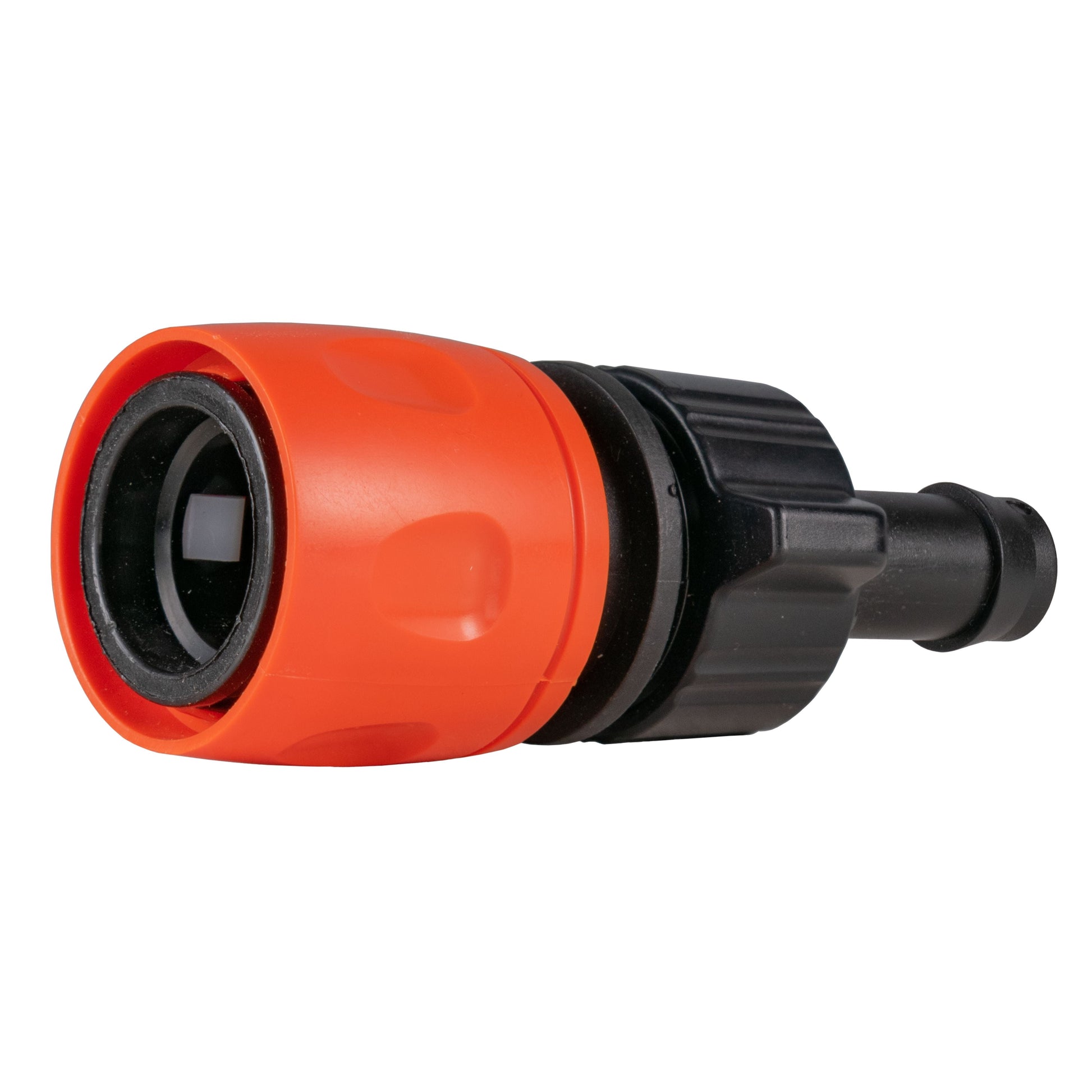

The orange end is a female garden quick socket, so the mating part needs a compatible male quick-connect plug. Two female sockets will not connect directly to each other. A male joiner can link them when you are joining two socket-ended hoses.

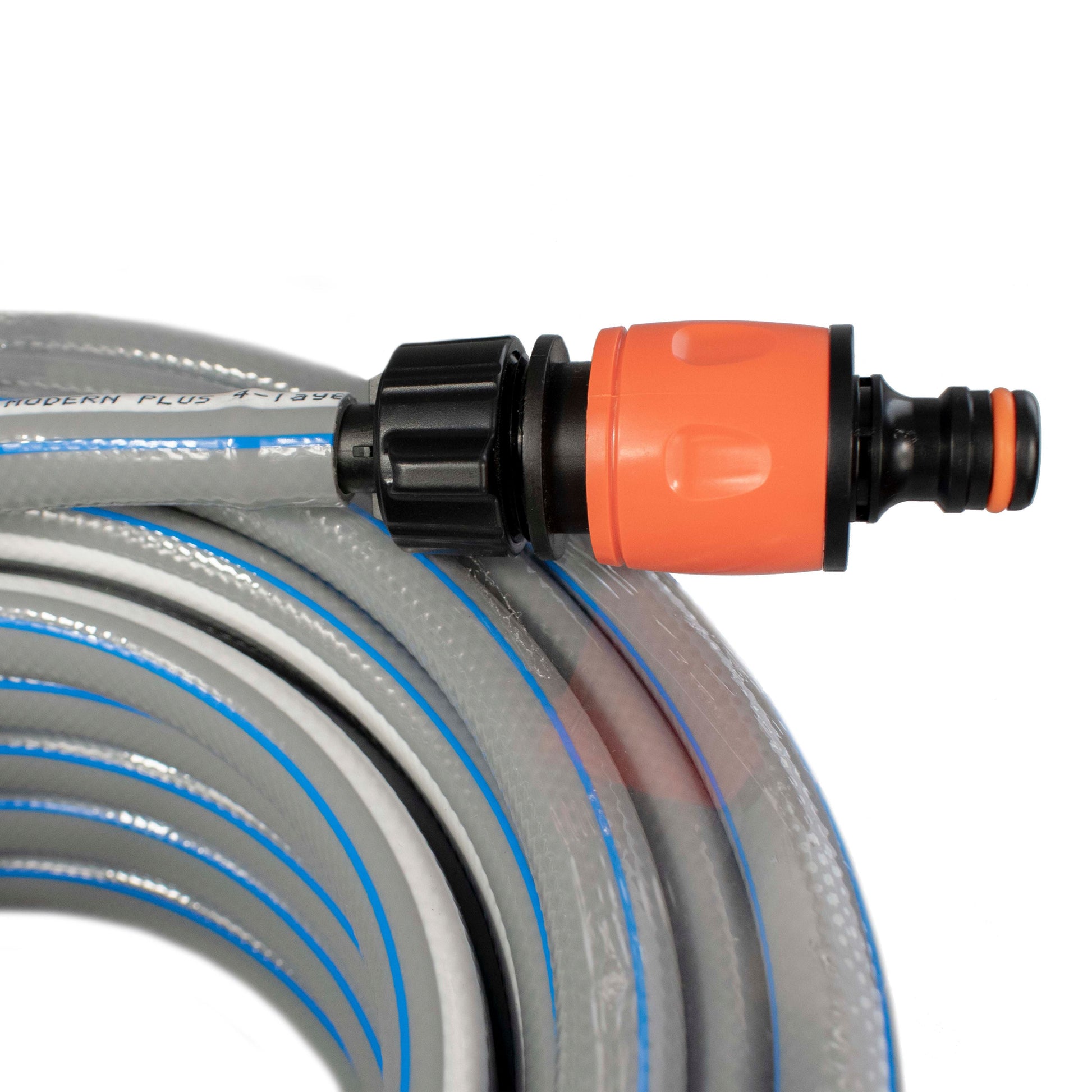

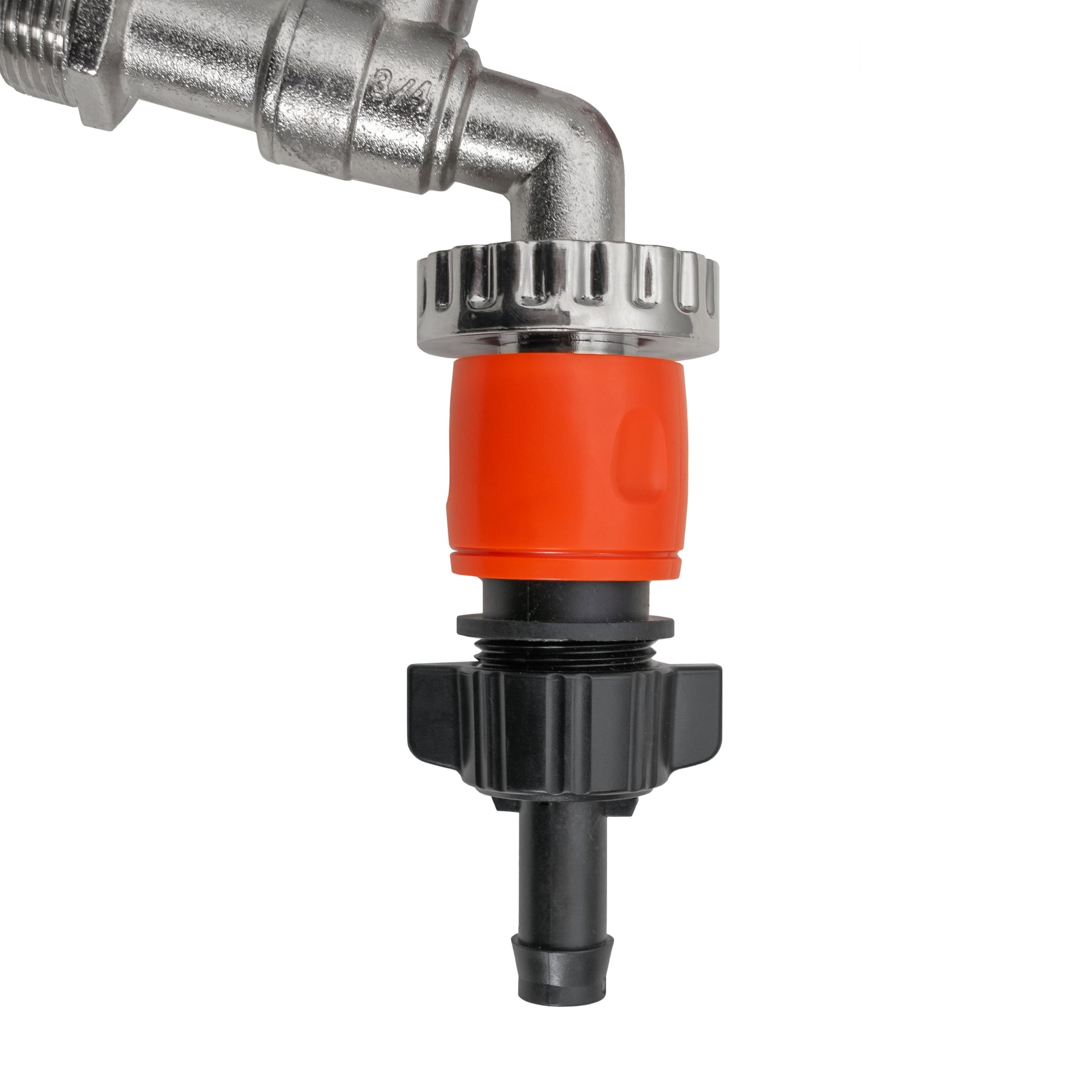

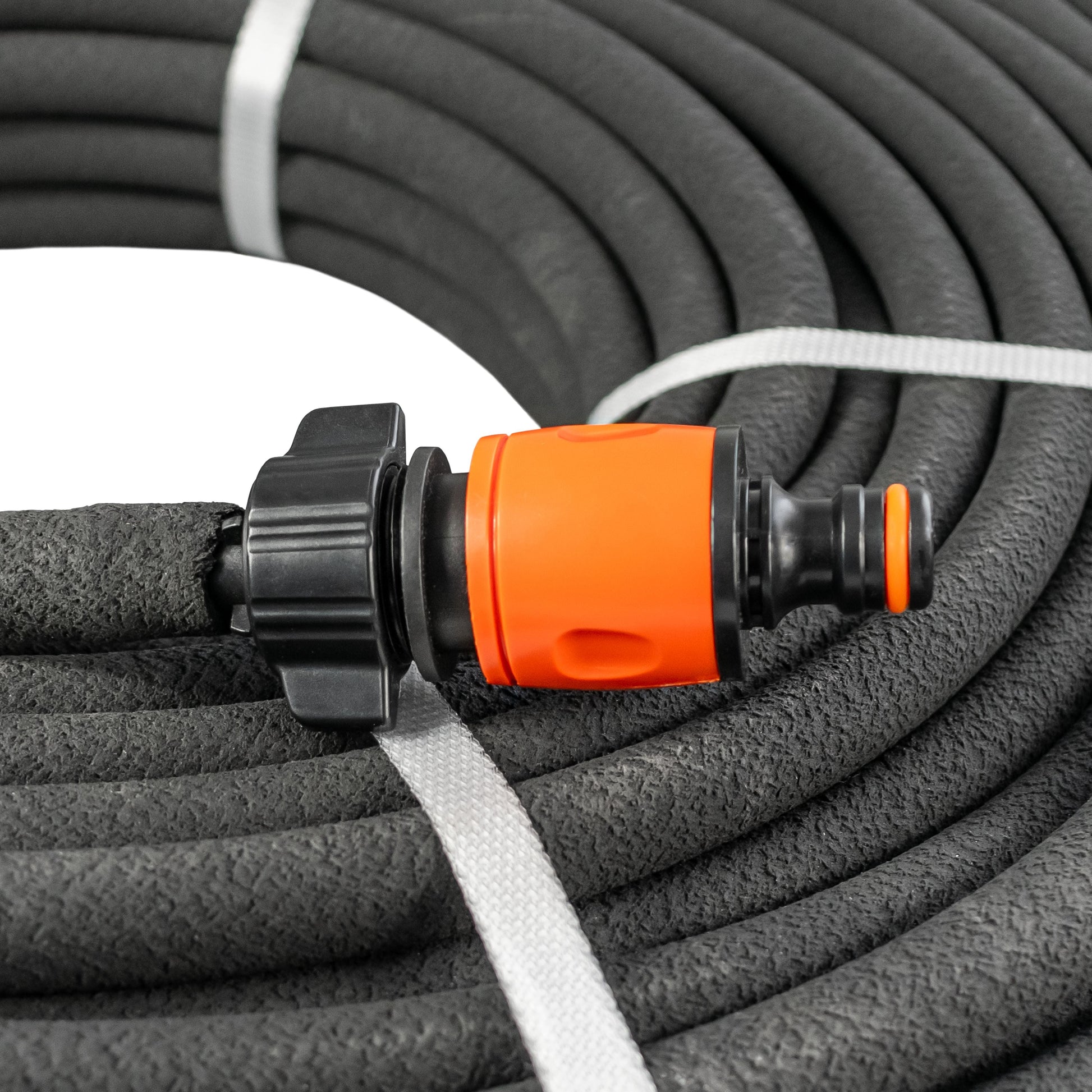

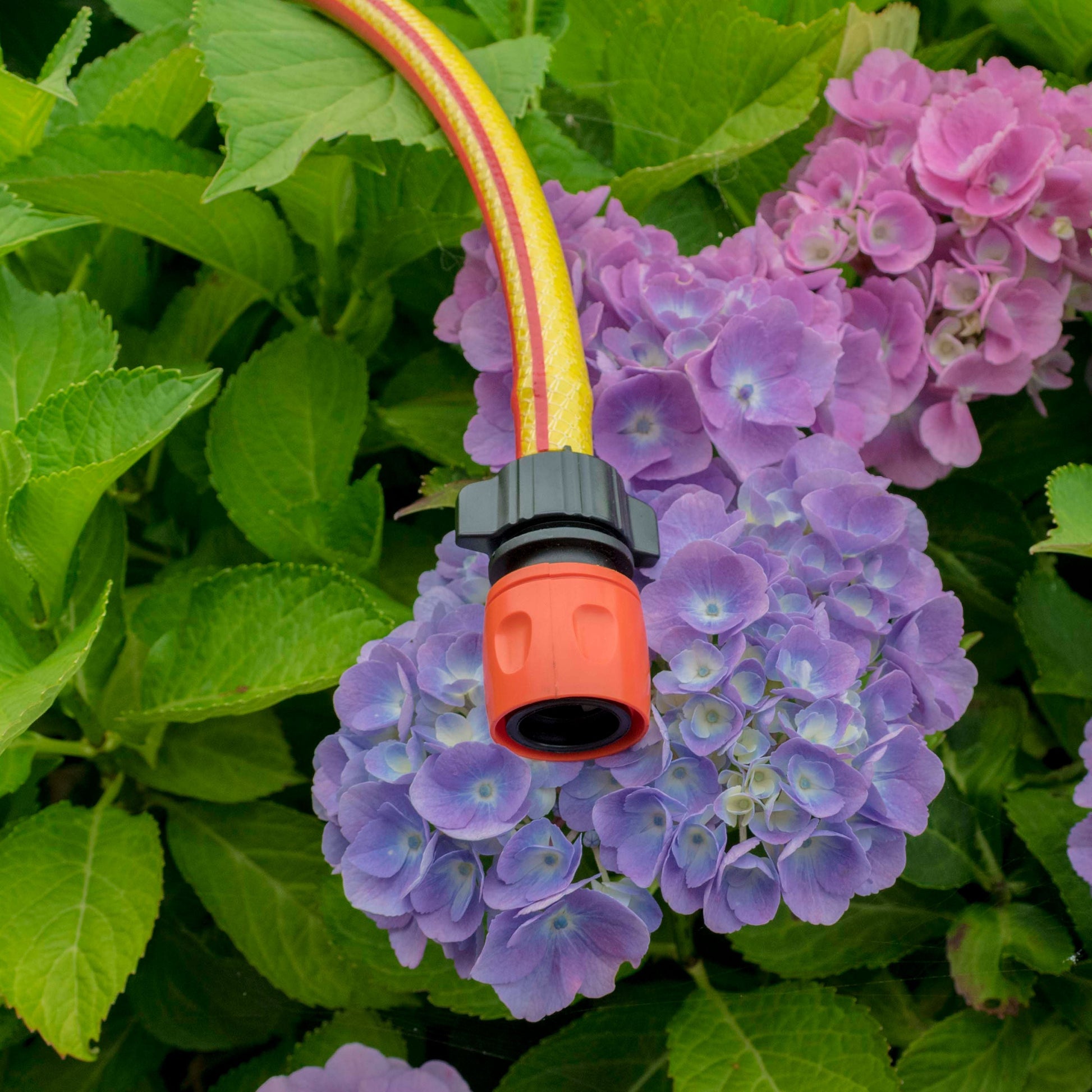

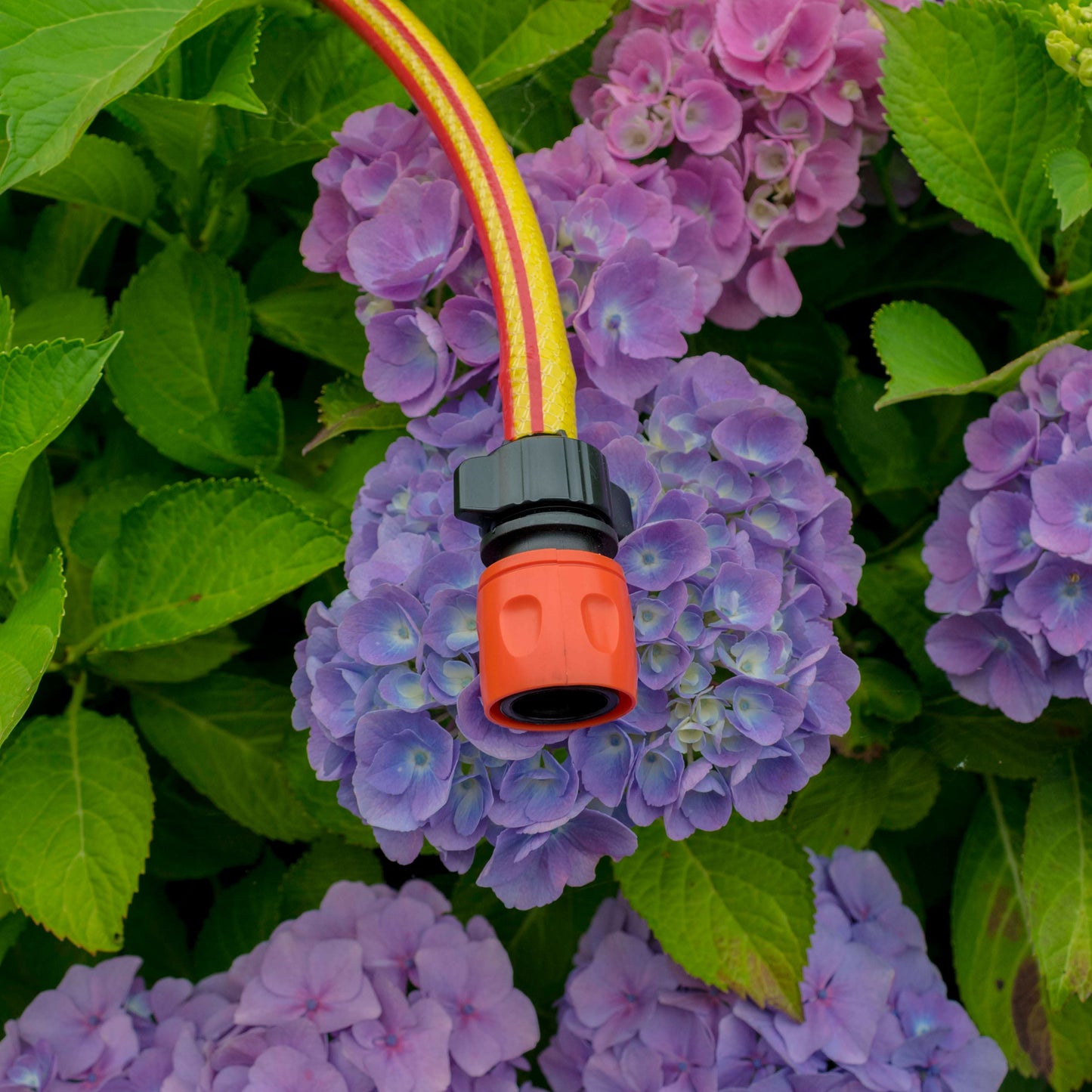

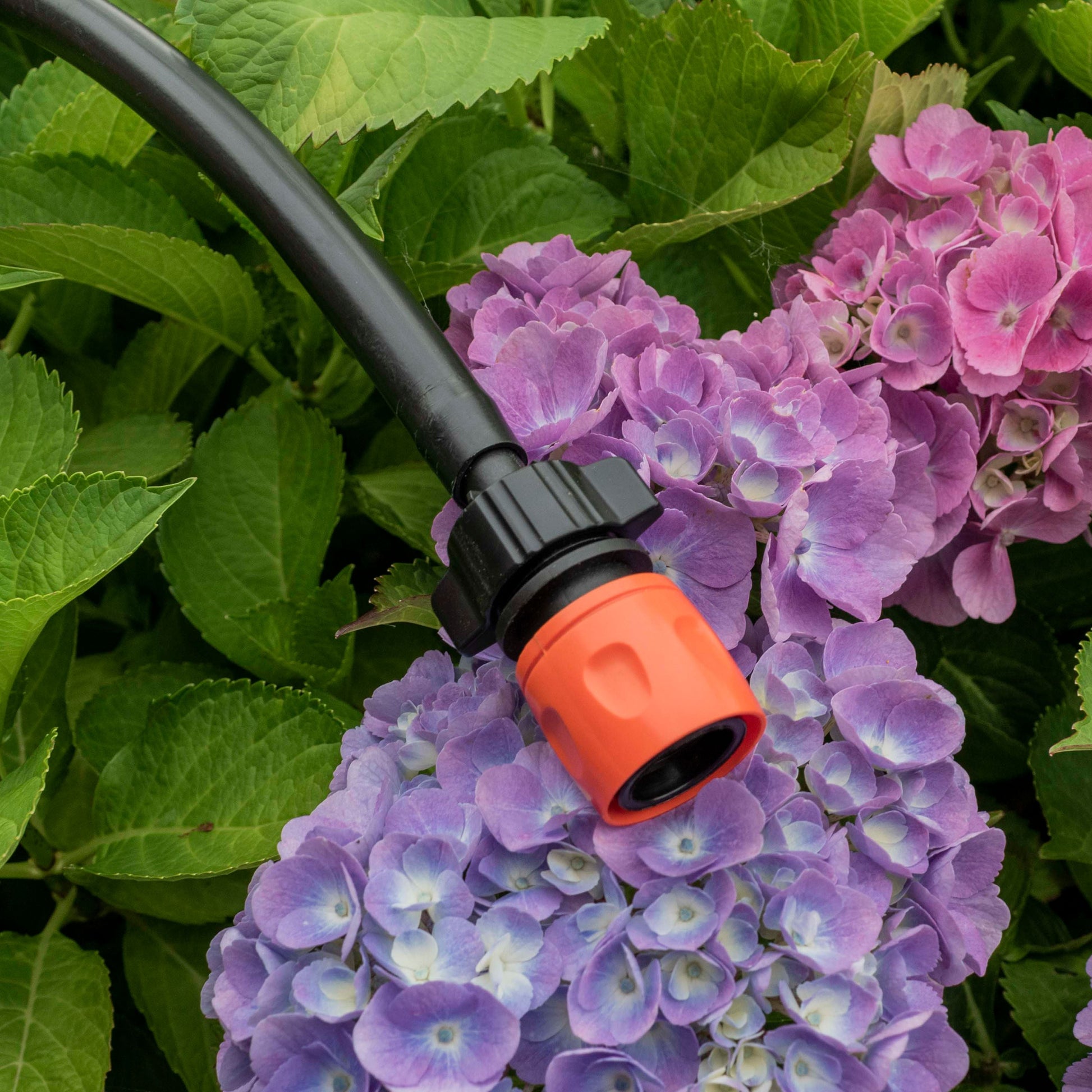

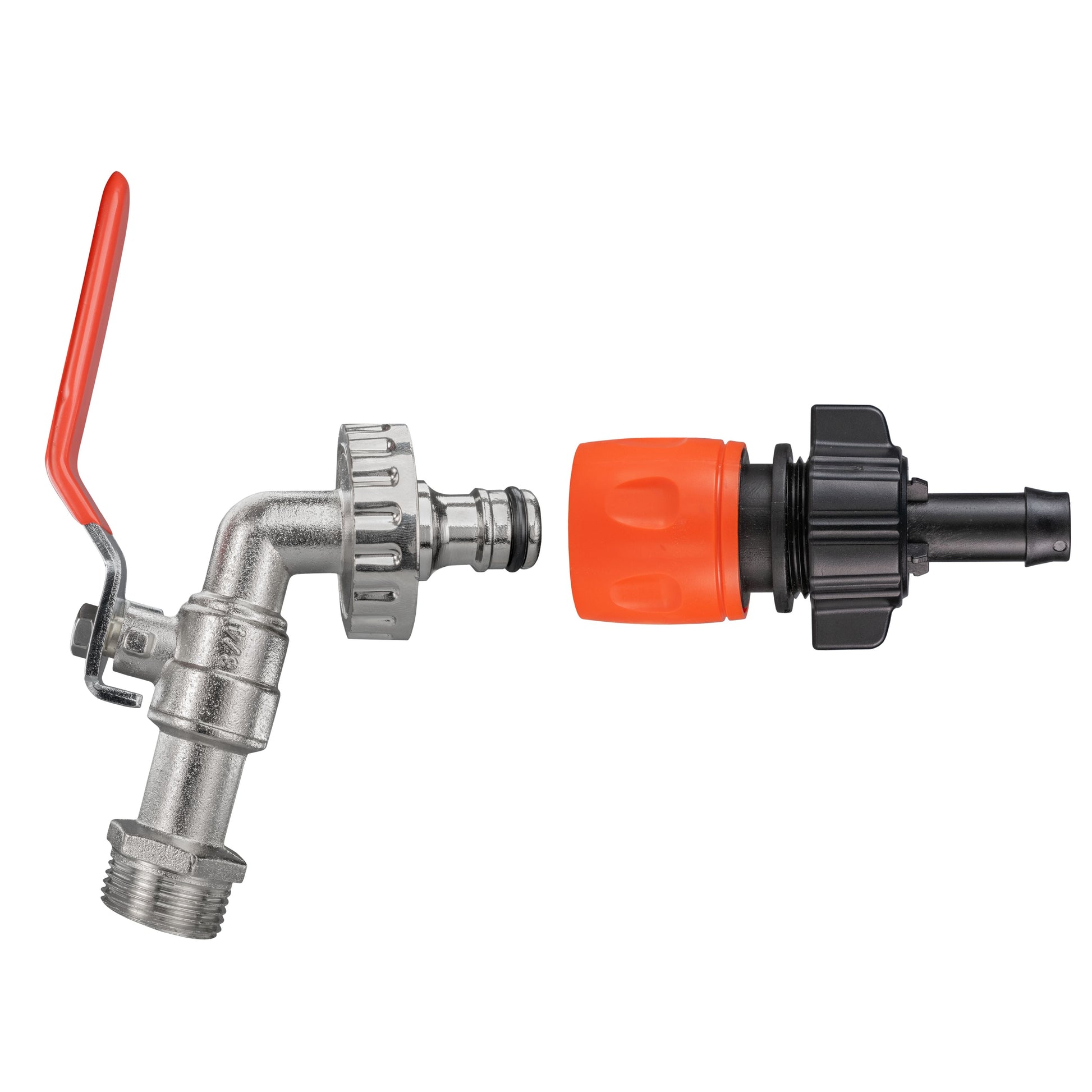

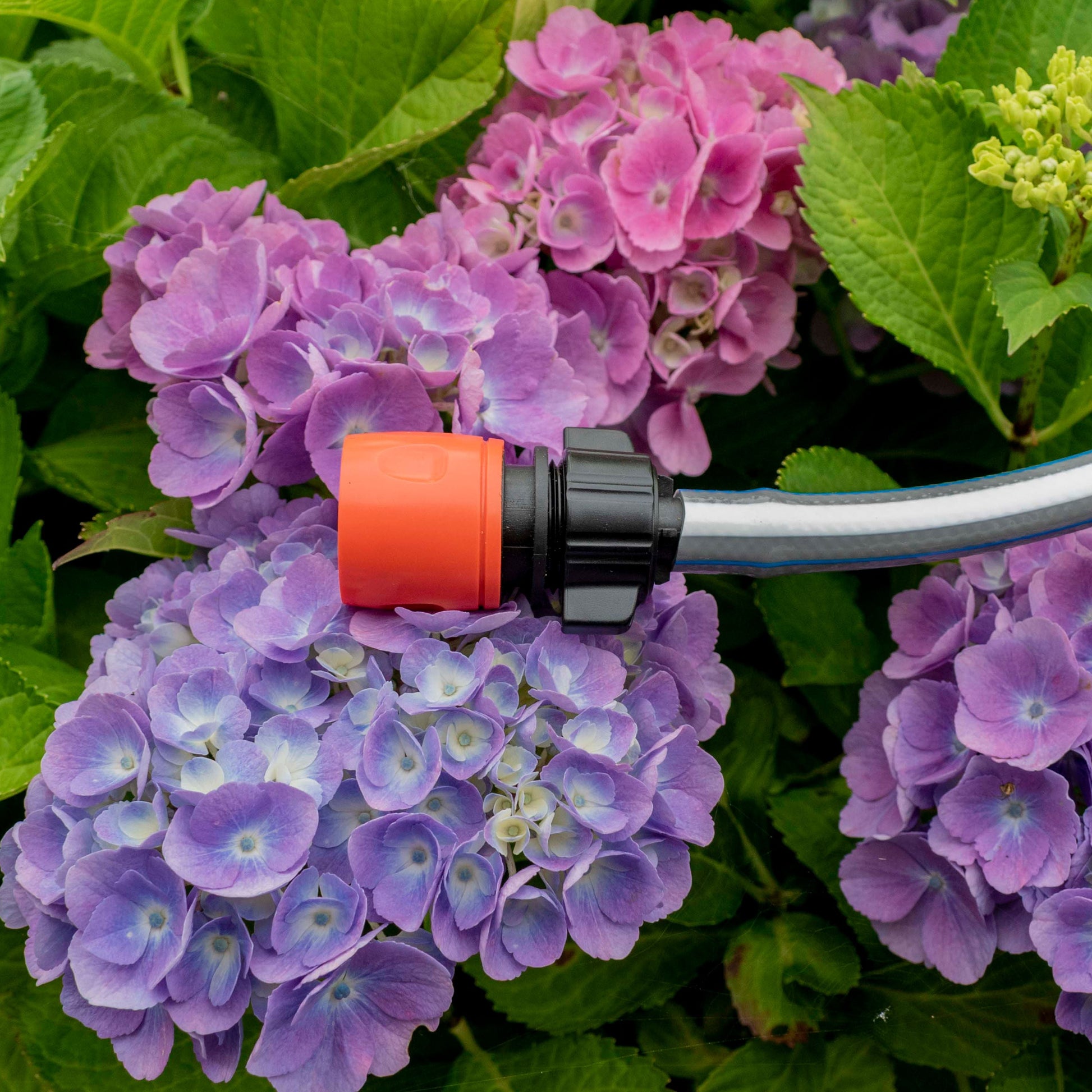

Some gallery photos show a tap, hose or male plug to demonstrate possible connections. These extra parts are not supplied with this single adapter.
Check the inside and outside sizes separately
In hose sizing, ½-inch is commonly rounded to 13mm internal diameter. Irrigation pipe is also often described by its outside diameter: a 13/16mm pipe has roughly 13mm inside and 16mm outside. Those two numbers can describe the same pipe.
Use the pipe’s stated bore and fitting compatibility when choosing the barb. Do not assume that every pipe labelled 16mm has the same internal diameter, wall thickness or flexibility. This adapter is not for 4mm micro-irrigation tubing.

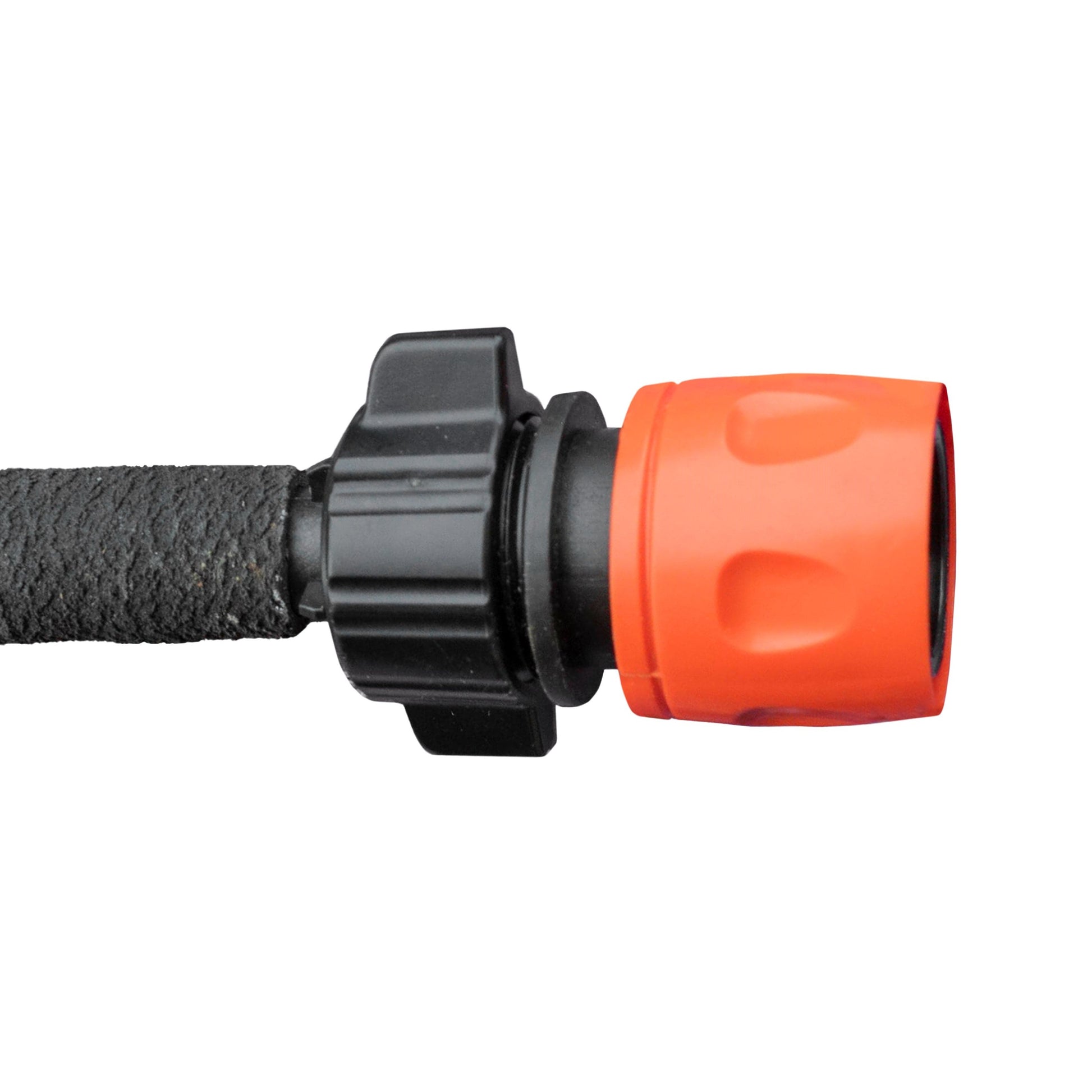

Fit the hose
Turn off the supply. Seat a clean, sound hose end over the barb and secure it as required by the hose and installation. Reassemble the hosetail to the socket body if it has been removed.
Connect the socket
Push the female socket onto a compatible male garden plug until engaged. Check that it is held securely before turning on the water gradually.
Disconnect without pressure
Turn off the supply and release pressure before operating the orange release sleeve or removing the hose. Inspect both the hose-to-barb joint and the quick connection during use.
Choosing the barb-to-quick adapter
How does 13mm relate to 16mm irrigation pipe?
Irrigation pipe is commonly described as 13/16mm: approximately 13mm internal and 16mm external diameter. The hosetail on this fitting is marked 13mm and the nominal hose designation is ½-inch. Check your pipe specification as well as its name.
Will it connect directly to another female hose socket?
No. The orange socket needs a compatible male garden quick-connect plug. A suitable double-male joiner can connect two female sockets; that joiner is not included.
Is it for 4mm micro-irrigation tube?
No. Its hose barb is the ½-inch/13mm nominal version. Use the appropriate small-bore adapter for micro-irrigation tubing.
Are the hose and tap in the photographs included?
No. You receive one black and orange plastic female quick connector with its barbed hosetail. Hose, taps, male plugs and separate retaining clips are not included.
Product information & technical details
| SKU | HC12F-16B001 |
|---|---|
| Product type | |
| Barb size | 12.7mm (1/2") |
| Colour | Black, Orange |
| Material | Plastic |
| Hose size designation | ½-inch nominal; hosetail marked 13mm |
| Quick connection | Female garden hose socket |
|---|---|
| Mating quick fitting | Compatible male garden hose plug |
| Hose attachment | Push-on barb inside suitable hose |
| Hosetail construction | Removable black winged hosetail |
| Pack contents | One socket body with barbed hosetail |
