Description
Add quick release to a threaded watering connection

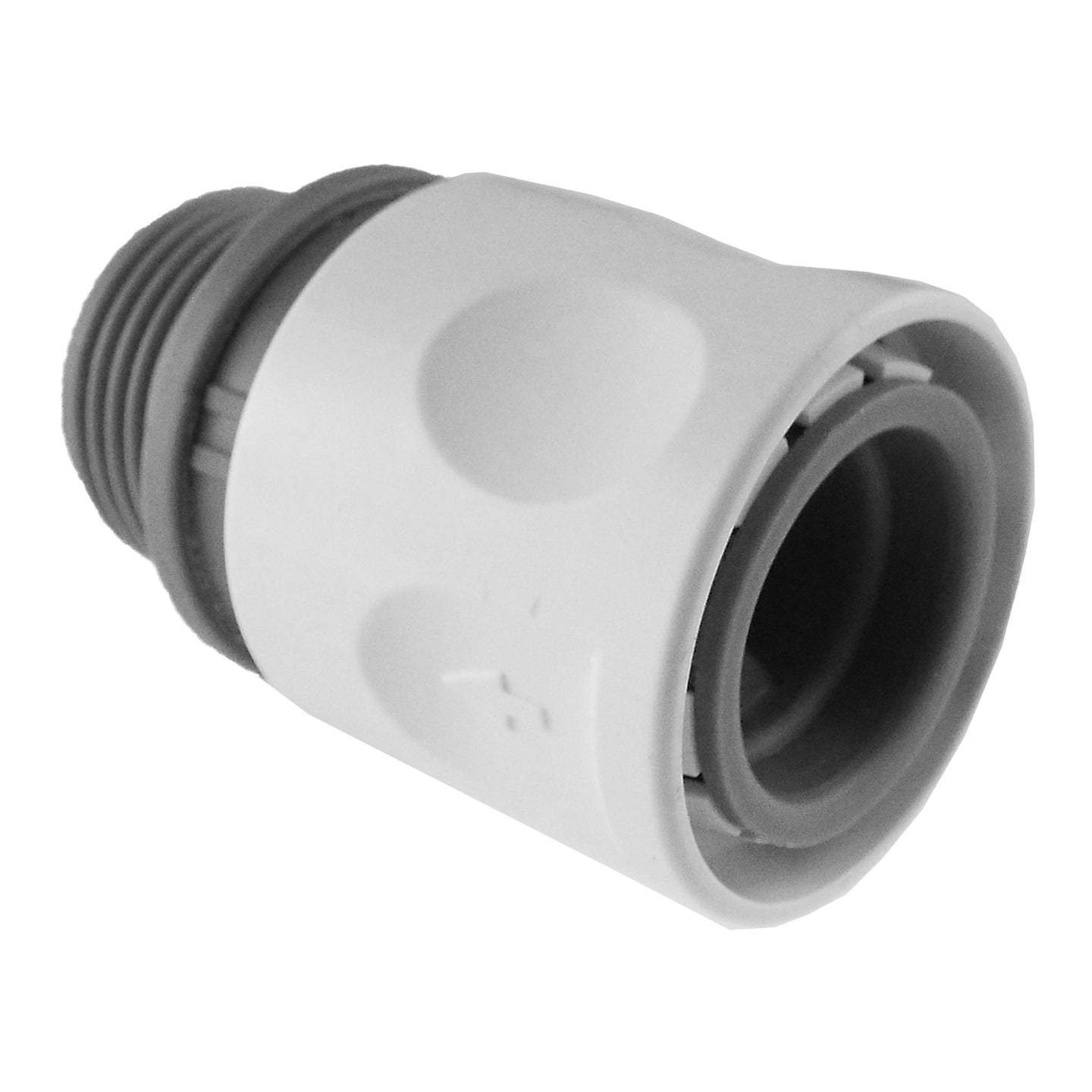

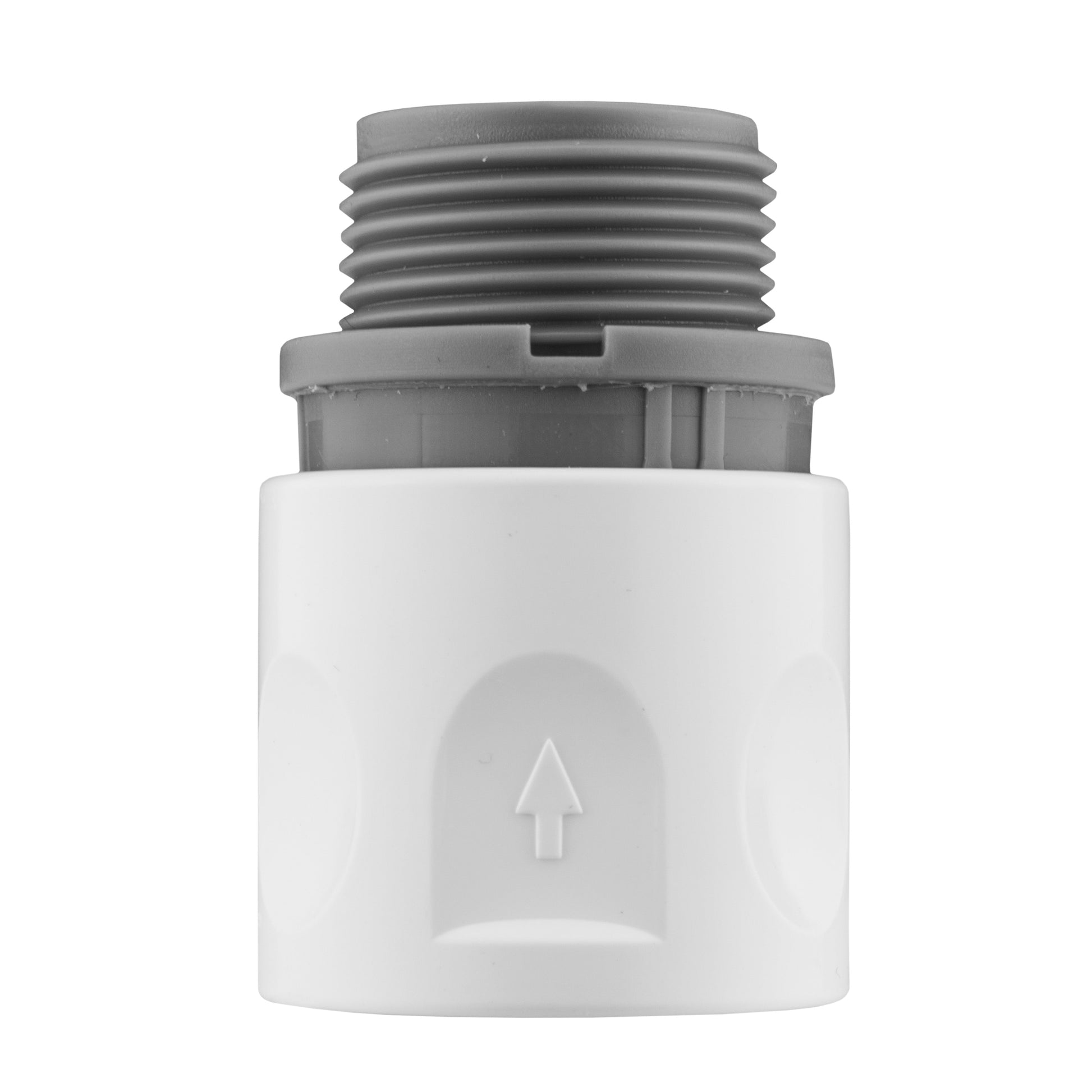

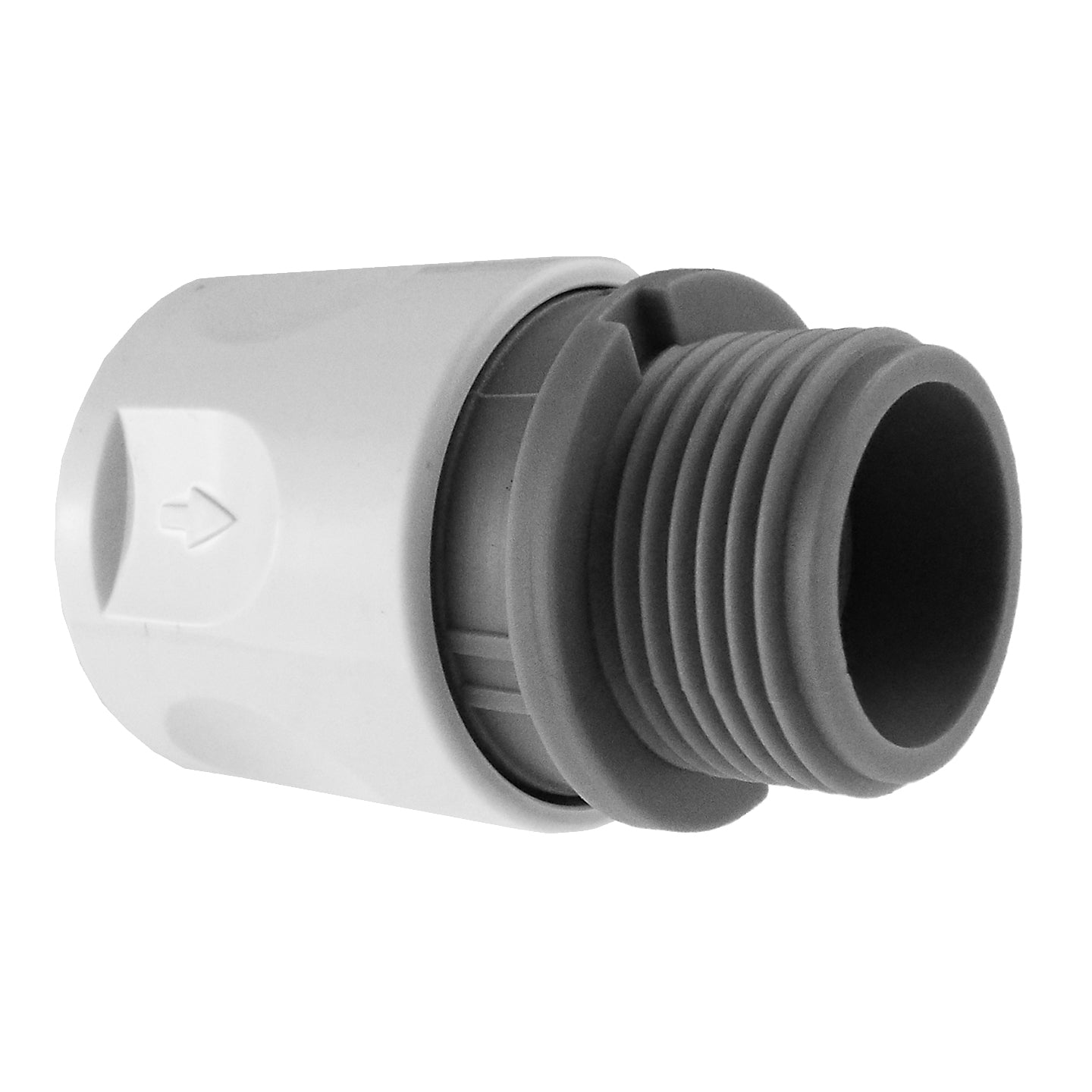

This White Line hose adapter has a grey ¾-inch BSP male thread and a white female garden quick socket. It connects a matching female-threaded fitting to a compatible male garden quick plug.
The white sleeve releases the quick plug, so the threaded side can remain fitted during routine disconnection.
One white and grey plastic adapter supplied. Hose and other fittings are separate.
Two joints, two fitting methods
Assemble with the water off, then check each connection before use.
Screw in the grey thread
Use a matching ¾-inch BSP female fitting with a suitable sealing arrangement. Start the male thread squarely and tighten by hand without forcing or overtightening it.
Connect the male plug
Engage a compatible male garden quick plug in the white socket. Check it is retained, then open the water supply gradually and inspect both joints for leakage.
Release at the white sleeve
Turn off the supply and relieve pressure before disconnecting. Use the white sleeve to release the plug. Drain after use and keep grit out of the socket and exposed thread.
See where the threaded connection is made

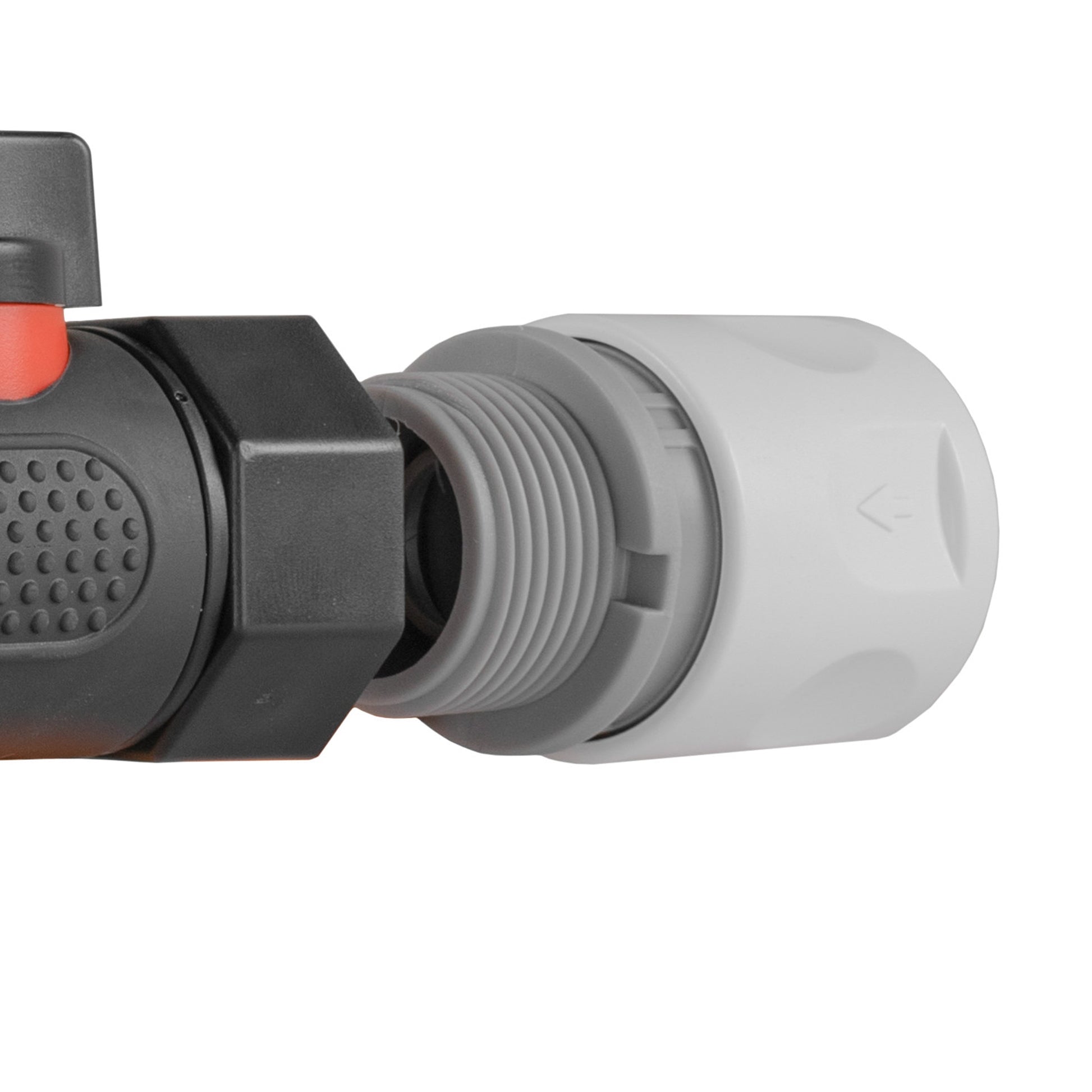

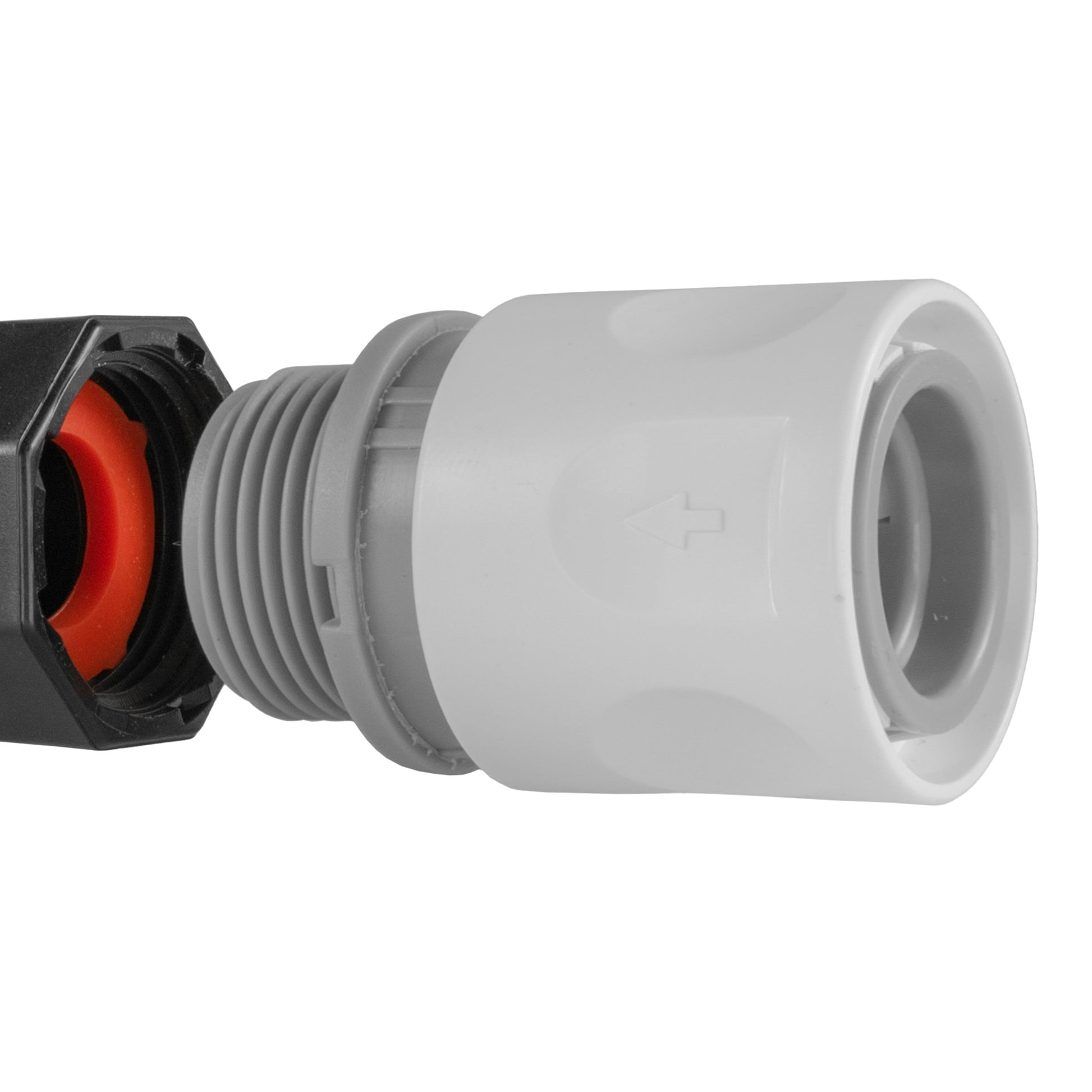

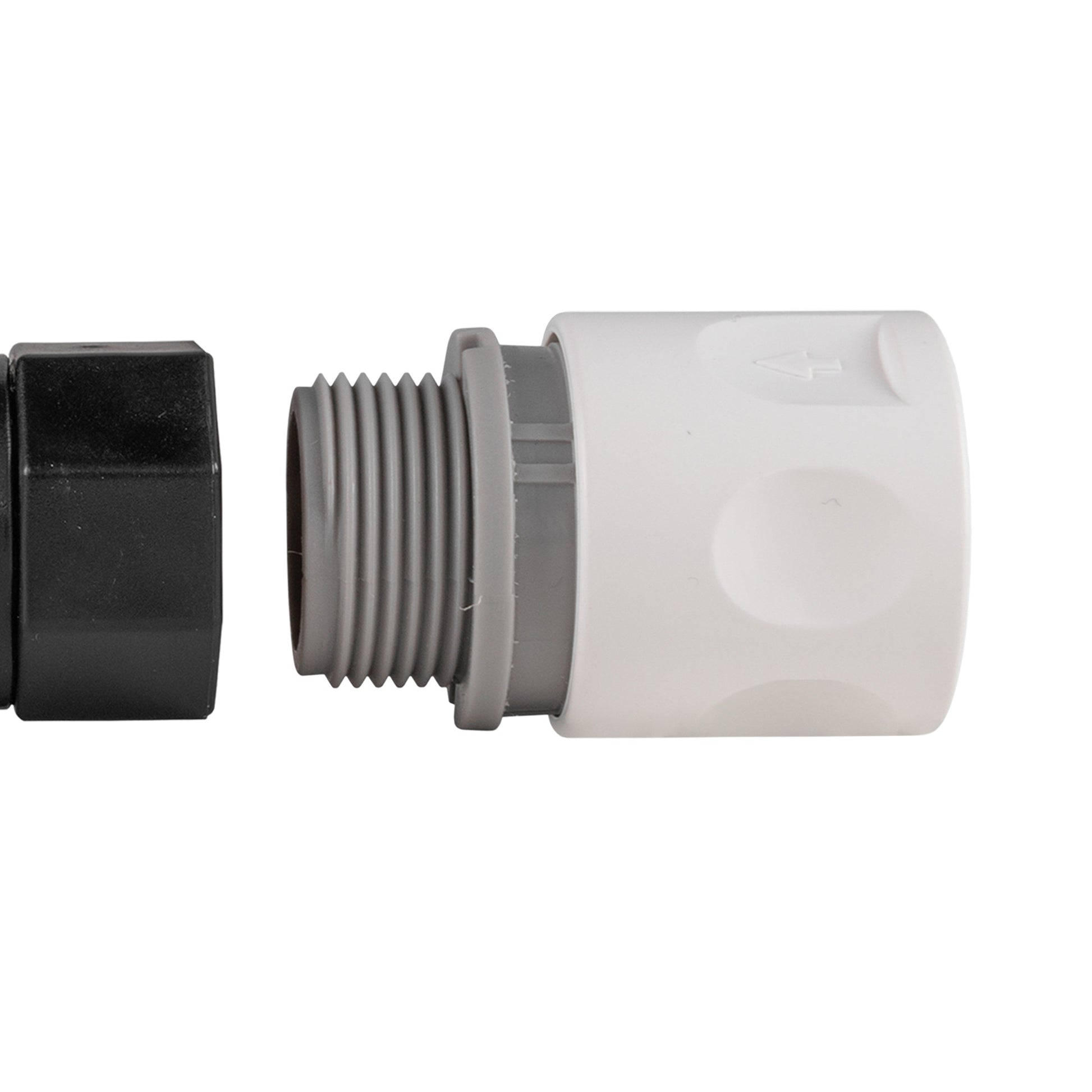

The close-up shows the adapter’s grey male thread facing a separate black female-threaded valve fitting. The red washer belongs to the illustrated mating fitting; the parts screw together at this end.

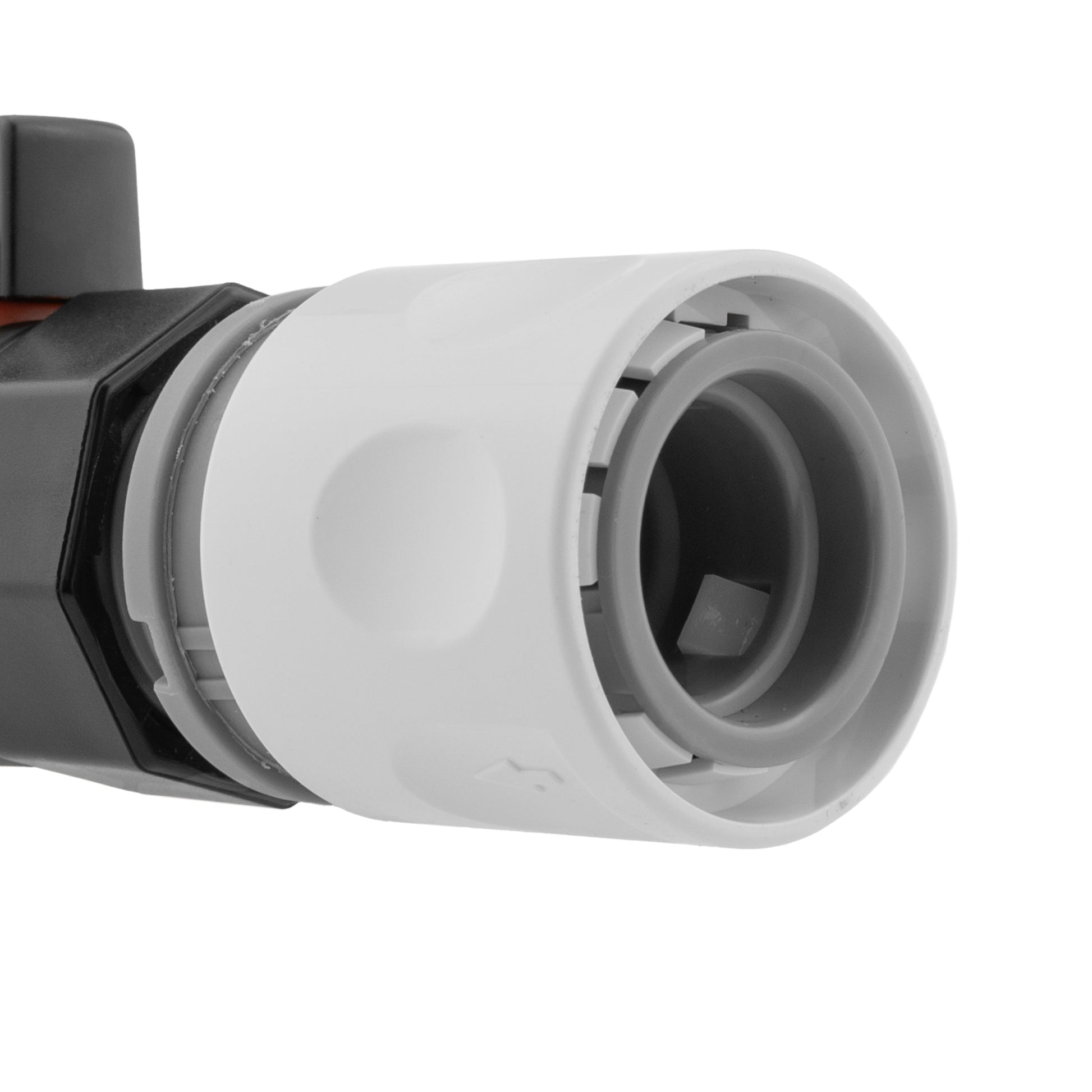

The white quick socket remains at the opposite end. It accepts a compatible male garden quick plug, rather than gripping bare hose with teeth or a retaining nut.
Check thread size, gender and sealing arrangement on the fitting you plan to use. The valve in the example is not included.
Connection questions
Is the quick socket male or female?
The white quick socket is female and takes a compatible male garden quick plug. The grey pipe-threaded end is male and needs a matching ¾-inch BSP female fitting. Each end uses a different connection system.
Can this attach directly to an unthreaded hose?
No. It has no bare-hose clamp or barb. Use a separate hose attachment suitable for your hose and connection, rather than pushing bare hose into the white socket.
Does it fit a tap with a male-threaded outlet?
It will not screw straight onto another male thread. The grey end needs a matching ¾-inch BSP female fitting. A tap connection at the quick-socket end would need a compatible male garden quick plug instead.
Are the valve and other example fittings supplied?
No. This is one White Line white and grey threaded quick adapter. Valves, caps, taps, hose and male quick plugs shown in connection examples are separate items.
Product information & technical details
| SKU | EXPAND34BSPM-FEM001WL |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | White, Grey |
| Material | Plastic |
| Range | White Line |
|---|---|
| Quick connection | Female garden quick socket for a compatible male plug |
| Threaded connection | ¾-inch BSP male external thread |
| Release control | White sliding quick-release sleeve |
| Quantity supplied | One white and grey plastic adapter; other fittings separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
