Description
A quick socket for a female-threaded fitting

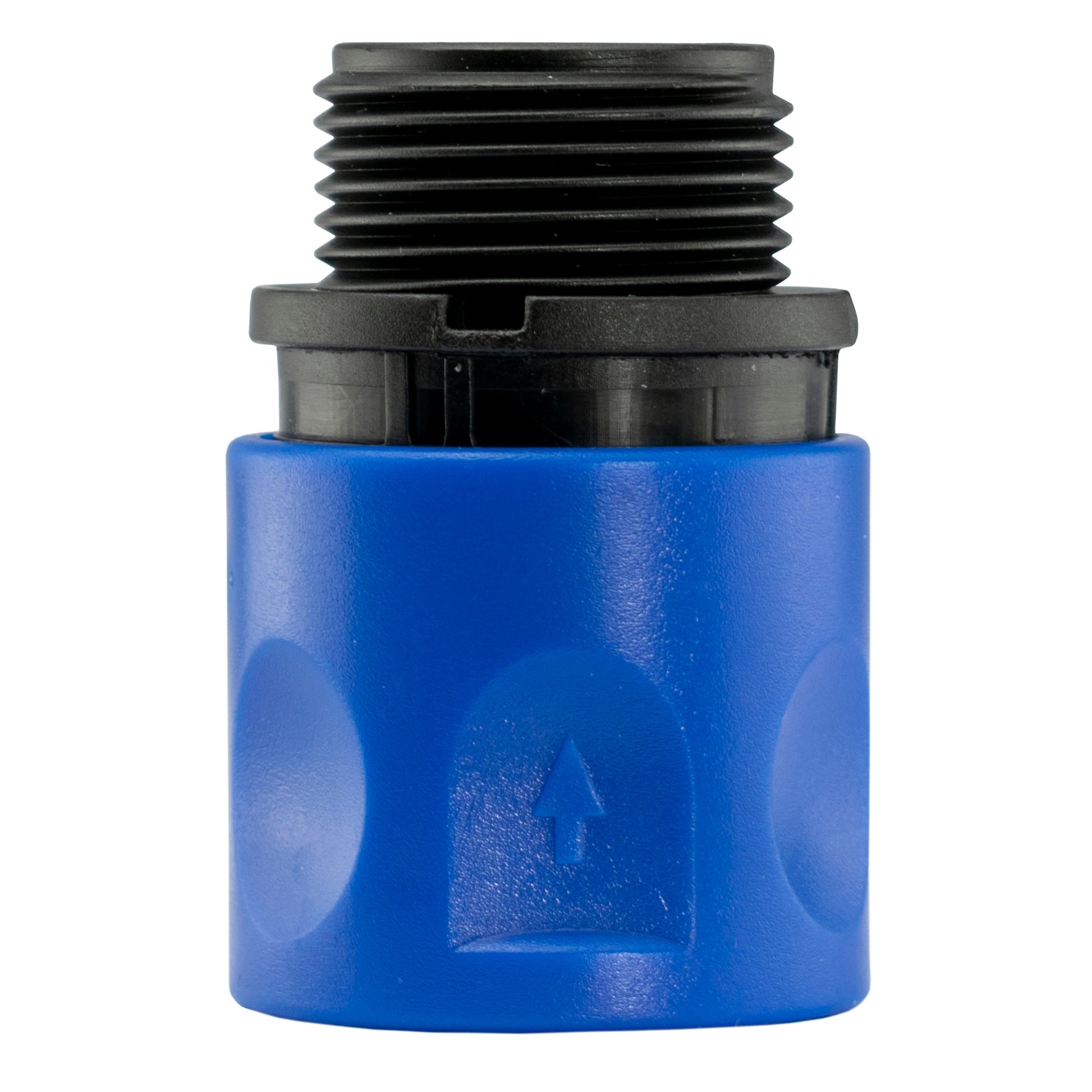

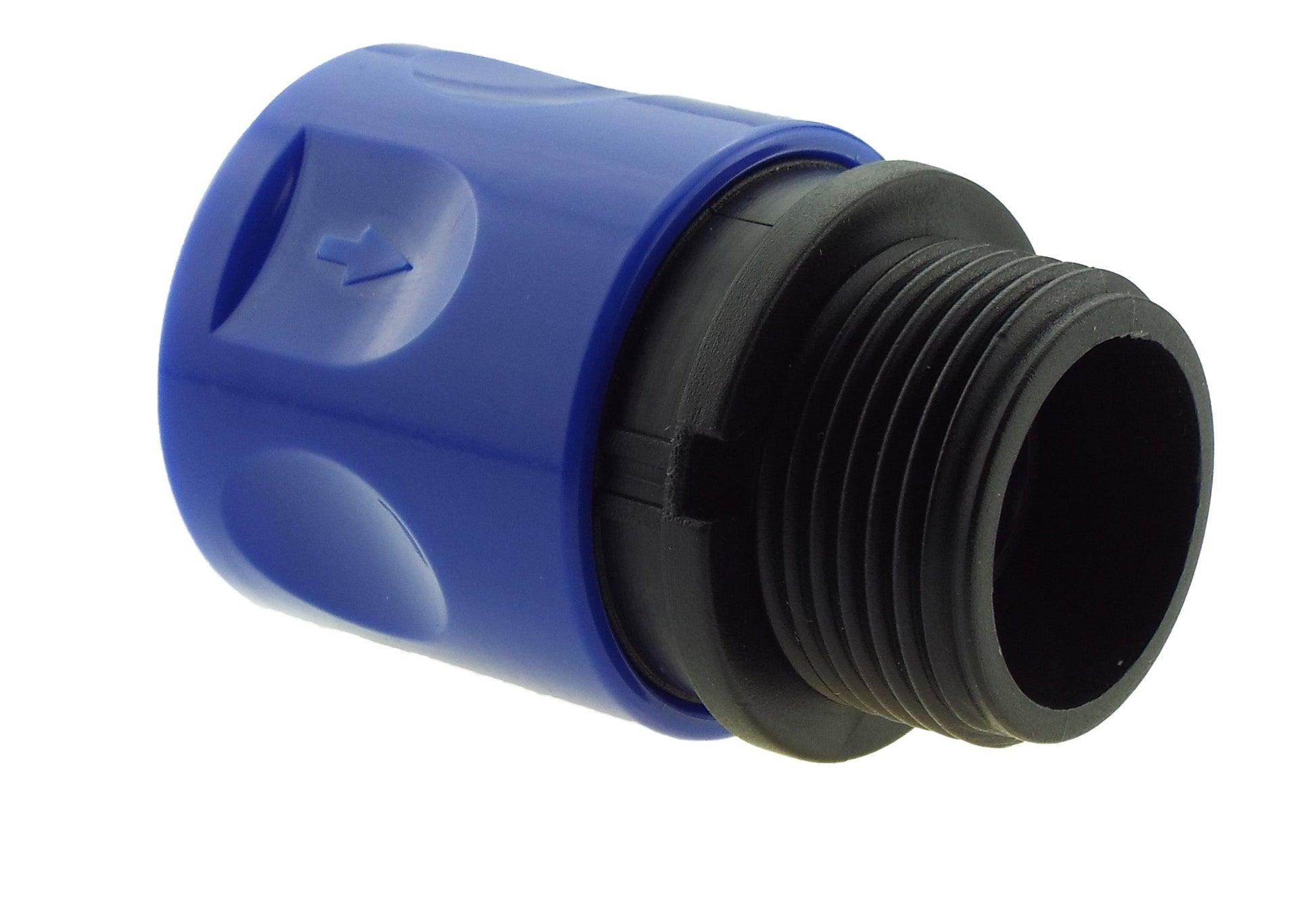

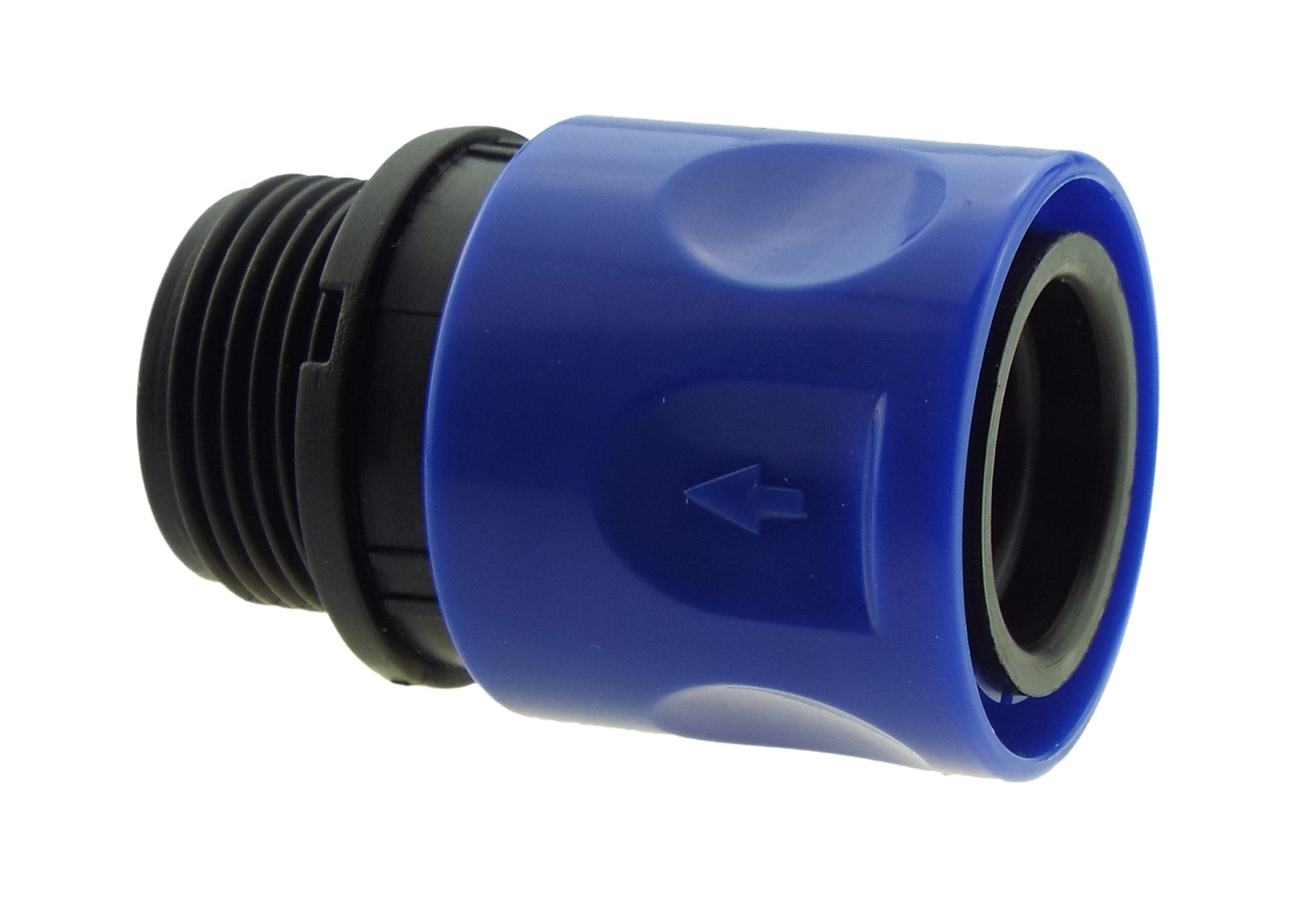

This blue and black hose adapter adds a female garden quick socket to a matching ¾-inch BSP female fitting. Its black external male thread screws into the fitting; the blue sleeve operates the quick-release side.
Use it where you need to connect a compatible male garden quick plug without unscrewing the installed threaded joint every time.
One plastic adapter supplied. Hose, male plugs and other fittings are sold separately.
Keep the hose attachment and quick socket distinct
In this connection example, a separate black female-threaded hose fitting covers the adapter’s external male thread. That hose fitting secures the hose; the blue socket provides the quick connection at the other end.
The adapter itself has no bare-hose clamp or barb. Match the rear thread to the fitting you have, then check the male garden quick plug you intend to use at the socket.
The hose and black hose attachment shown here are not included.
Set up the threaded side before connecting the plug
Turn off the water before assembly or maintenance.
Match the rear thread
Check for a compatible ¾-inch BSP female fitting and suitable sealing arrangement. Start the black male thread squarely and tighten by hand without forcing or overtightening.
Engage the quick plug
Insert a compatible male garden quick plug into the blue socket and check it is retained. Turn on the supply gradually and inspect the threaded and quick joints for leakage.
Disconnect and drain
Shut off the water and relieve pressure before disconnecting. Use the blue release sleeve to remove the plug. Drain after use and keep grit out of the socket and threads.
Before you connect it
Why is it called female when the thread is male?
Female describes the garden quick socket at the blue end. The black threaded end is male. They are two different connection types: a compatible male quick plug fits the socket and a matching ¾-inch BSP female fitting takes the thread.
Can bare hose go straight into the blue end?
No. The blue end accepts a compatible male garden quick plug, not bare hose. This adapter has no hose clamp; use a separate suitable fitting to attach hose in your setup.
Will it fit any ¾-inch tap?
Check the actual outlet. This adapter needs a compatible ¾-inch BSP female thread at the screw connection, so it will not screw directly onto a male-threaded tap outlet. Hose bore and pipe-thread size are different measurements.
Do I get the hose attachment in the photo?
No. This listing supplies one blue and black threaded quick adapter. The hose, black female-threaded hose attachment and any male quick plugs are separate items.
Product information & technical details
| SKU | EXPAND34BSPM-FEM001B |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Black, Blue |
| Material | Plastic |
| Quick connection | Female garden quick socket for a compatible male plug |
|---|---|
| Threaded connection | ¾-inch BSP male external thread |
| Release control | Blue sliding quick-release sleeve |
| Hose attachment | Requires a separate suitable hose fitting; no bare-hose clamp |
| Quantity supplied | One blue and black plastic adapter; hose and other fittings separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
