Description
Connect a female thread to a garden quick plug

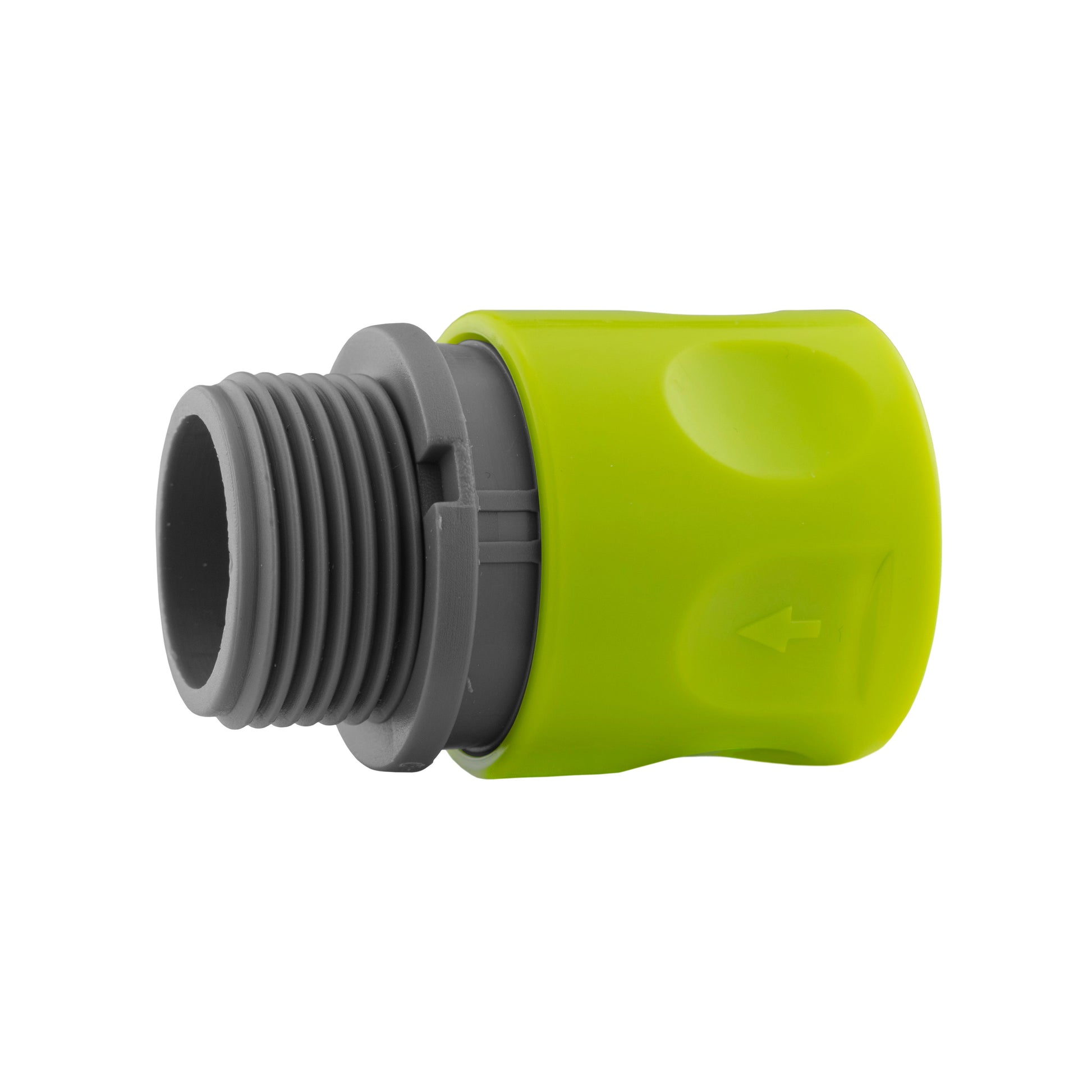

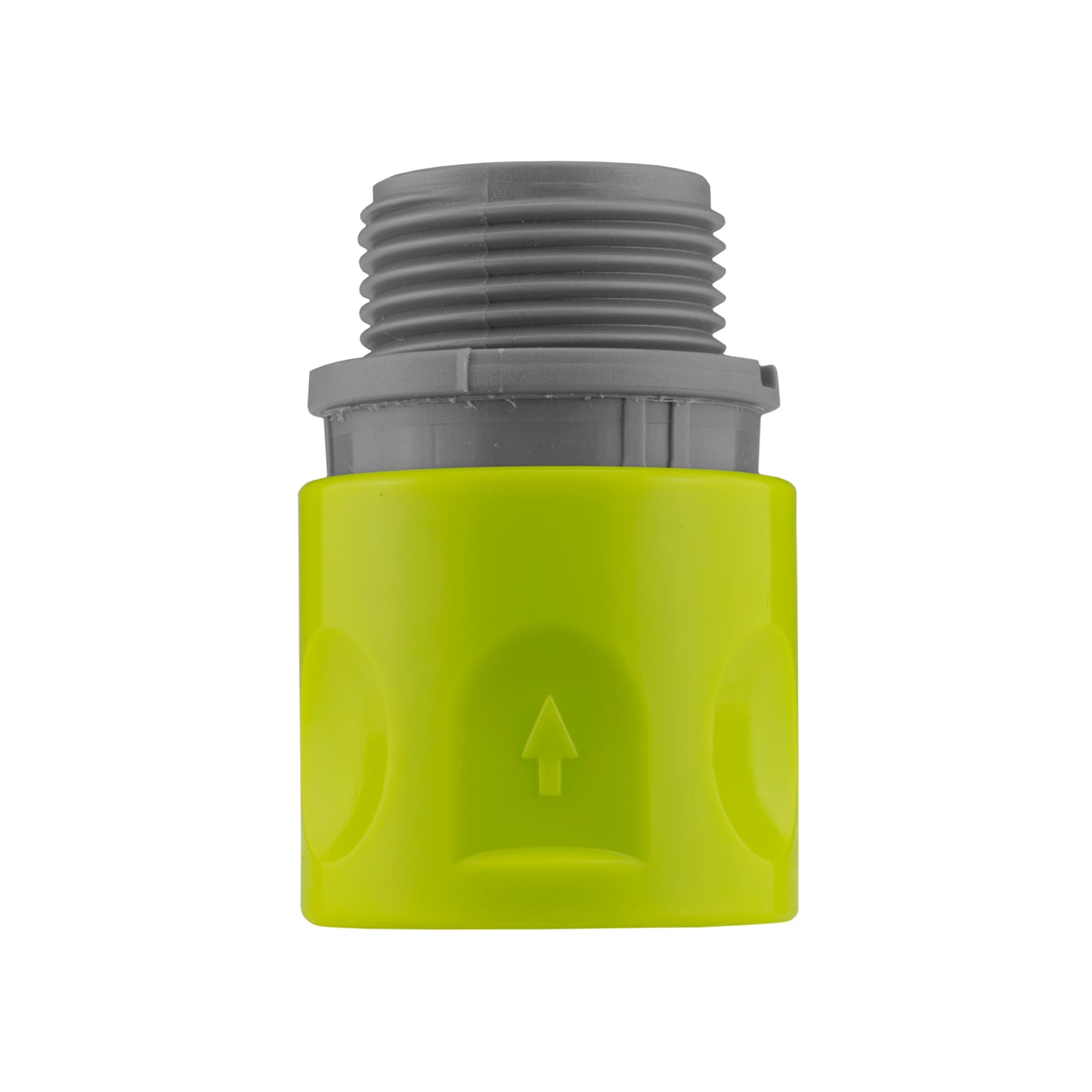

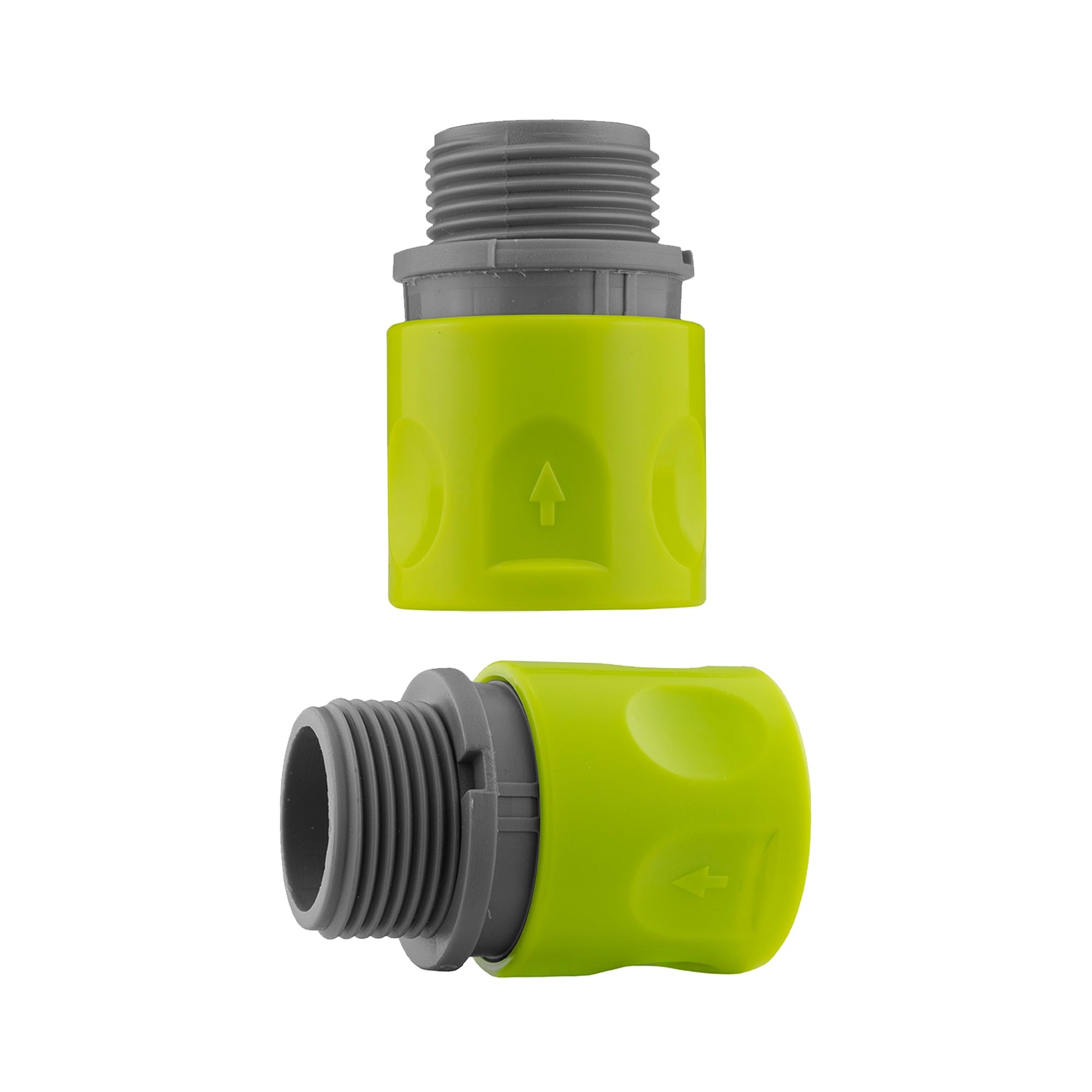

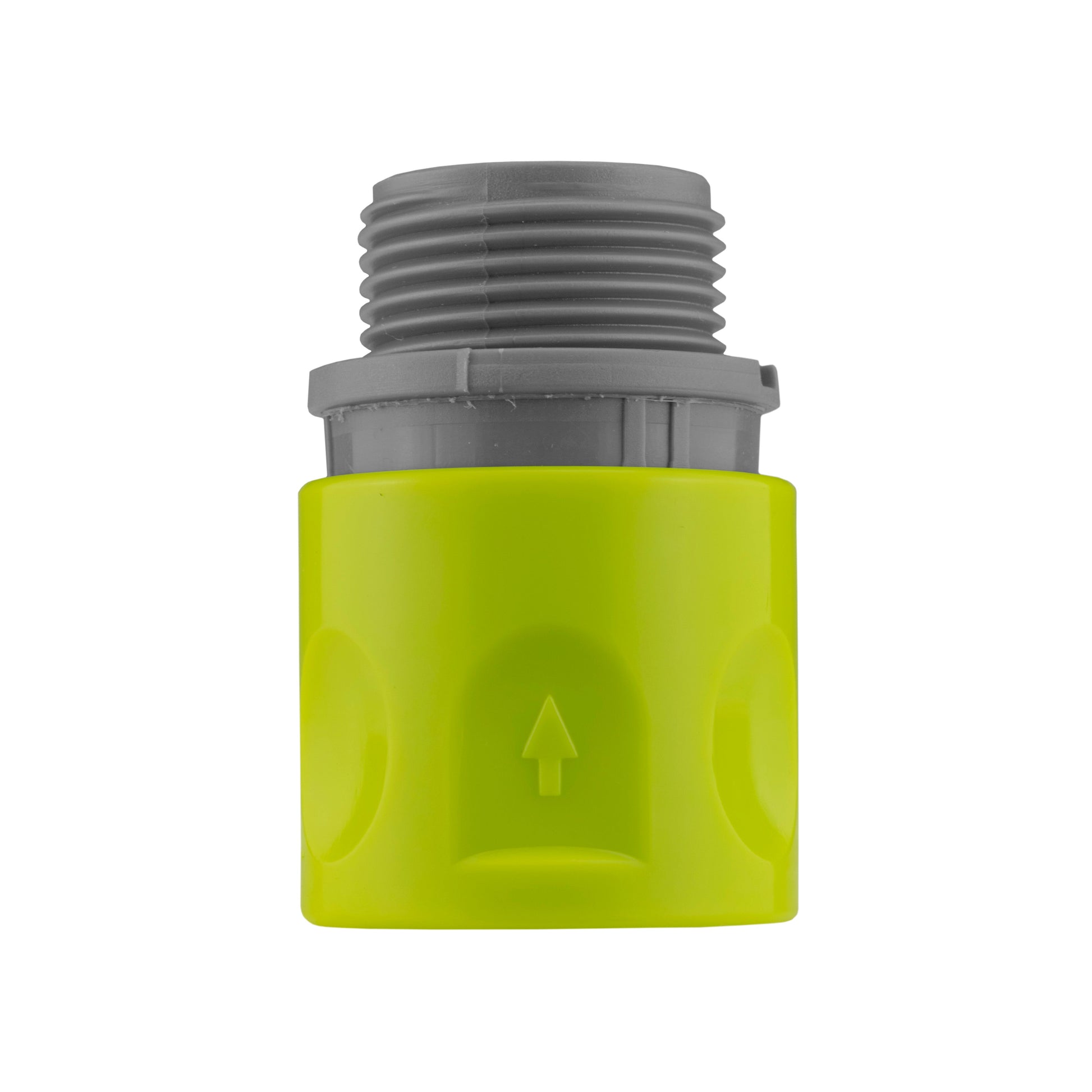

The Bradas Lime Line threaded quick adapter gives you a female garden quick socket at one end and a ¾-inch BSP male thread at the other.
The grey thread screws into a matching female-threaded fitting. The lime sleeve releases a compatible male garden quick plug, letting you disconnect at the socket while the threaded joint remains fitted.
One lime and grey plastic adapter. Hose and other connection parts are sold separately.
Match the screw connection first
The example shows the grey male thread facing a separate black female-threaded hose fitting. These parts screw together; the hose is secured by its own attachment.
The lime adapter has no bare-hose clamp or barb. Its socket takes a compatible male garden quick plug. Check both connection types rather than treating the ¾-inch thread size as a hose-bore measurement.
The black hose attachment and hose shown here are separate items, not included with this adapter.
Keep the threaded and quick joints separate
Use the grey end for assembly and the lime sleeve for quick release.
Fit the male thread
Turn off the water. Check the matching ¾-inch BSP female fitting and its sealing arrangement, then start the grey male thread squarely. Tighten by hand without forcing or overtightening.
Insert the quick plug
Connect a compatible male garden quick plug to the lime socket and check it is retained. Open the supply gradually and inspect both joints for leakage.
Release and put away
Shut off the water and relieve pressure before disconnecting. Use the lime sleeve to remove the plug. Drain after use and keep dirt out of the socket and threads.
Check your fittings before ordering
Why does a female connector have a male thread?
Female refers to the garden quick socket, which accepts a compatible male quick plug. The rear pipe thread is male and screws into a matching ¾-inch BSP female fitting.
Can I fit it straight onto bare hose?
No. There is no hose-gripping nut or barb on this adapter. Use a separate hose attachment suitable for your hose, with the correct connection to the threaded side or quick socket.
Will it screw onto a male-threaded garden tap?
Not directly: its own grey thread is male too. The threaded side needs a compatible ¾-inch BSP female fitting. At the socket end, a tap setup would need a compatible male garden quick plug.
Does the connection example show everything supplied?
No. One lime and grey Bradas Lime Line adapter is supplied. The black hose attachment, hose and any taps, valves or male quick plugs are separate items.
Product information & technical details
| SKU | EXPAND34BSPM-FEM001LIME |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Green, Grey |
| Material | Plastic |
| Range | Bradas Lime Line |
|---|---|
| Quick connection | Female garden quick socket for a compatible male plug |
| Threaded connection | ¾-inch BSP male external thread |
| Release control | Lime sliding quick-release sleeve |
| Quantity supplied | One lime and grey plastic adapter; hose and other fittings separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
