Description
A quick socket with a threaded rear connection

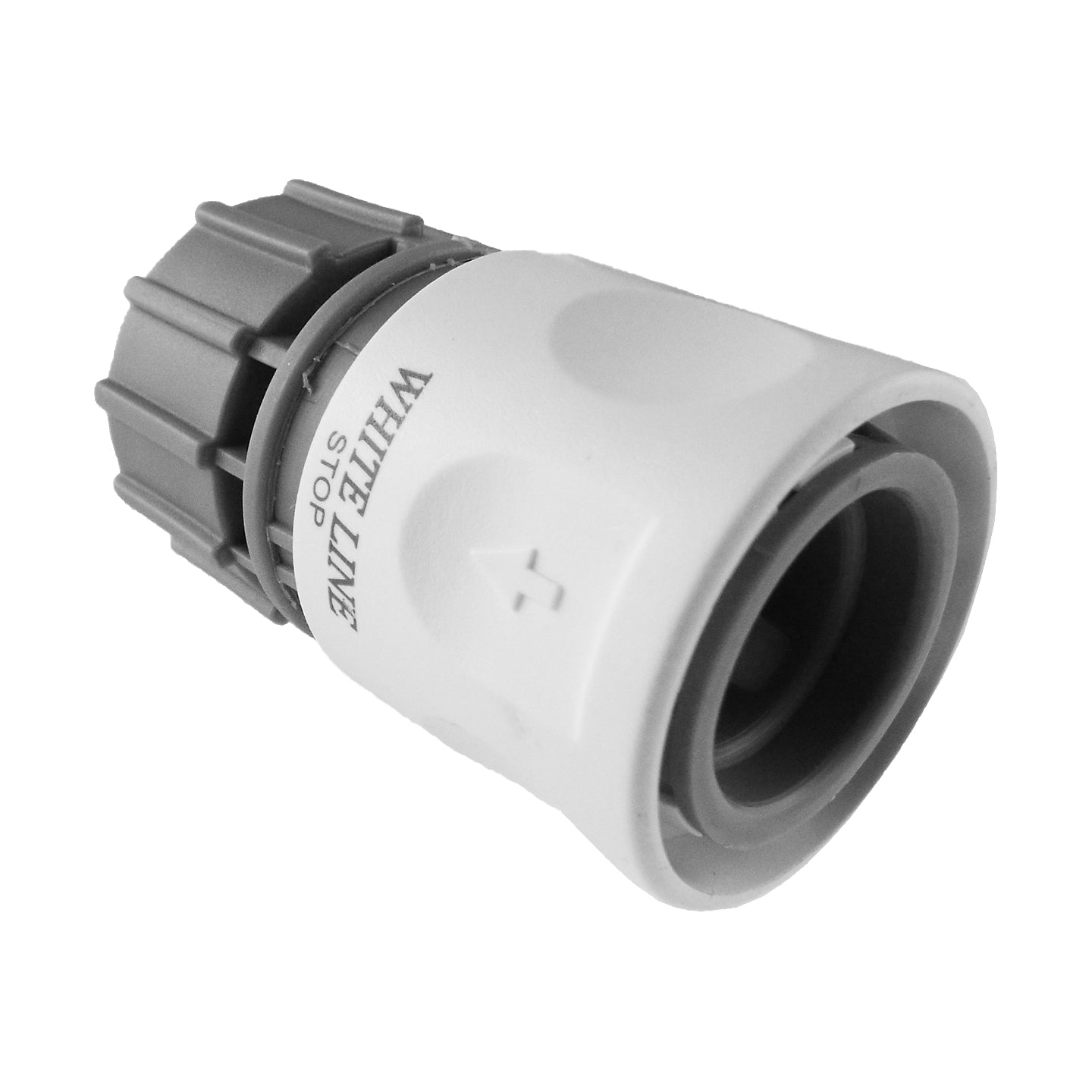

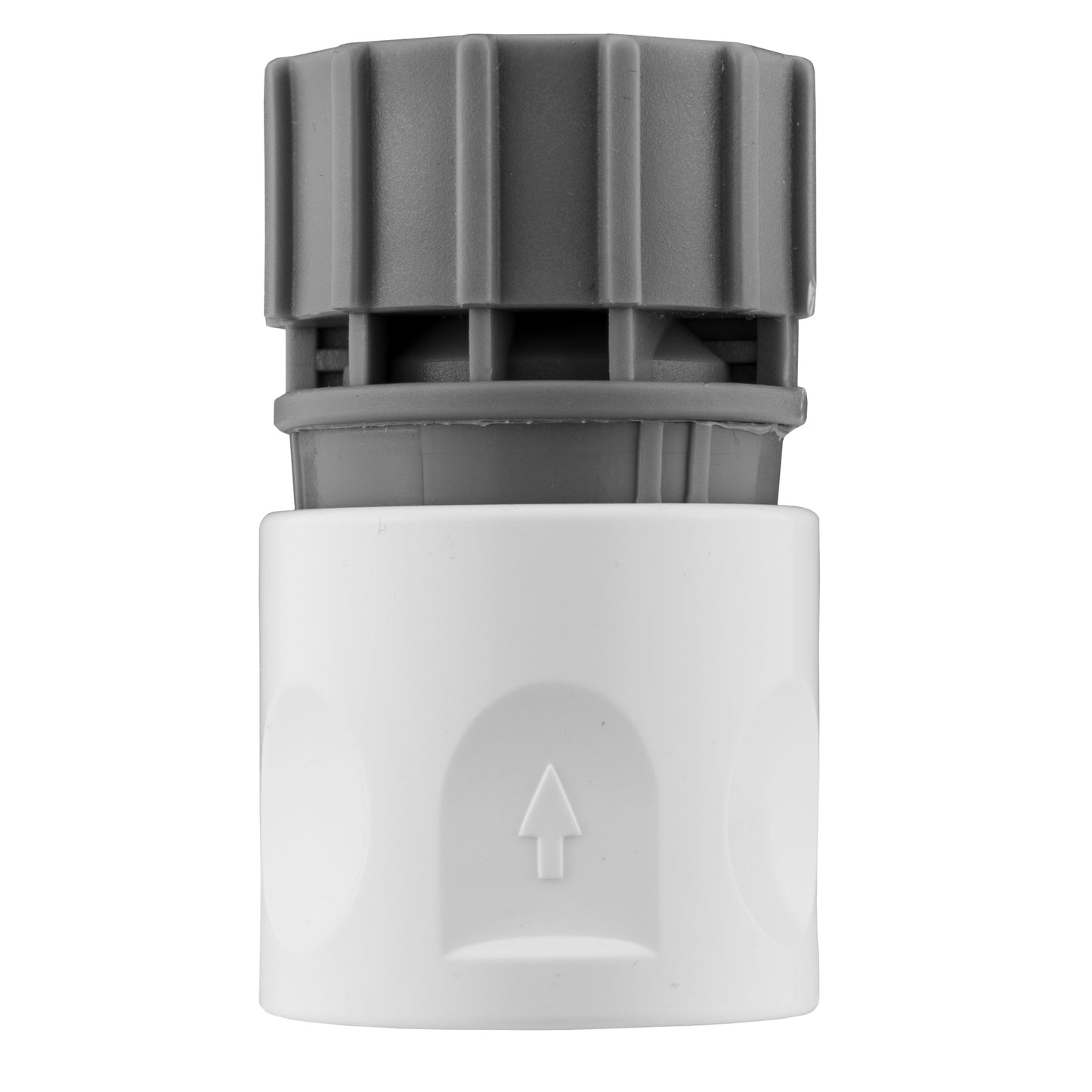

This White Line female hose connector brings two different connections together: a ¾-inch BSP female thread in the grey nut and a female garden quick socket at the white end.

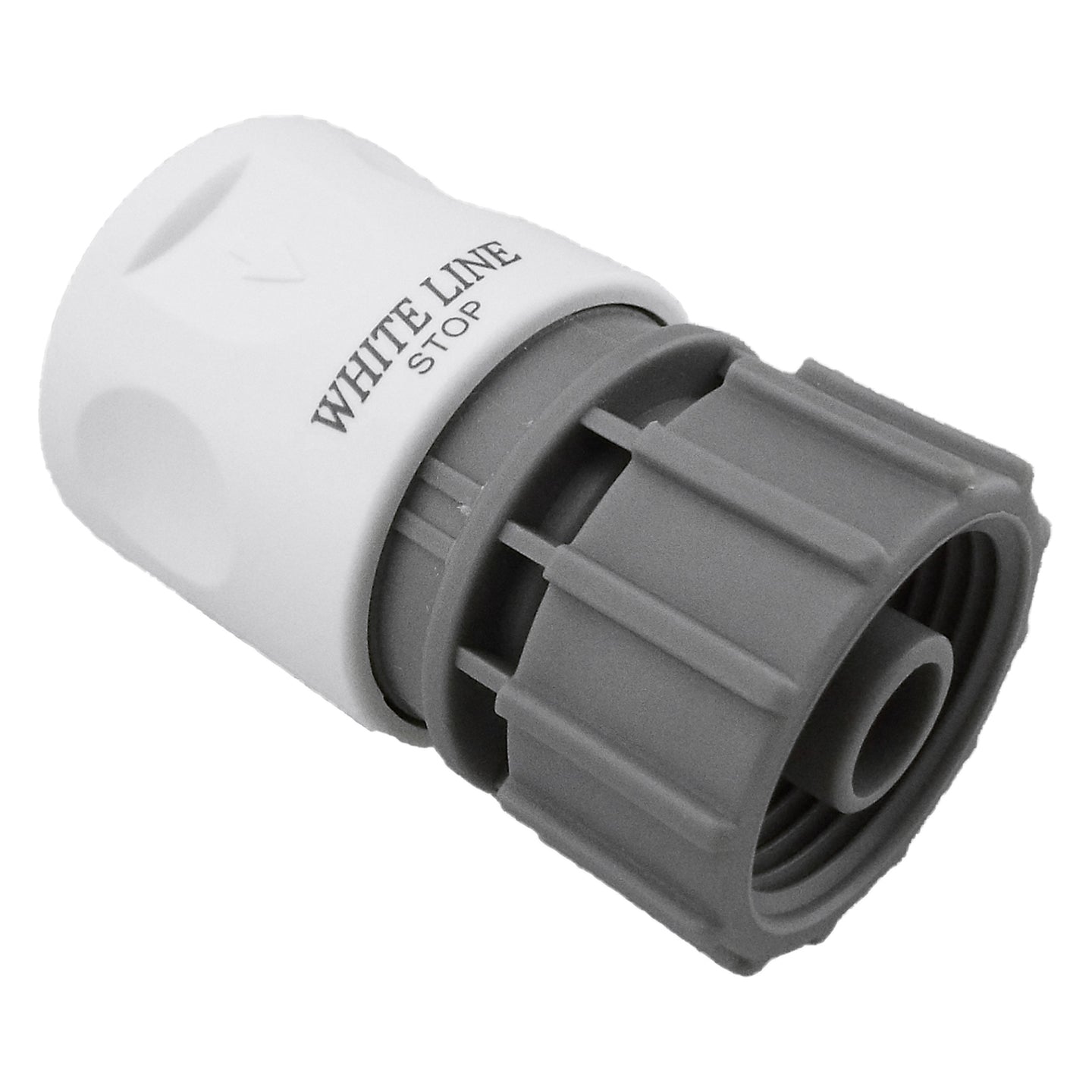

Fit the threaded end to a matching male BSP fitting, then use the socket for a compatible male garden quick plug. The stop-type socket is marked WHITE LINE STOP.
One white and grey adapter supplied. Hose and other fittings are separate.
Look inside the nut before fitting

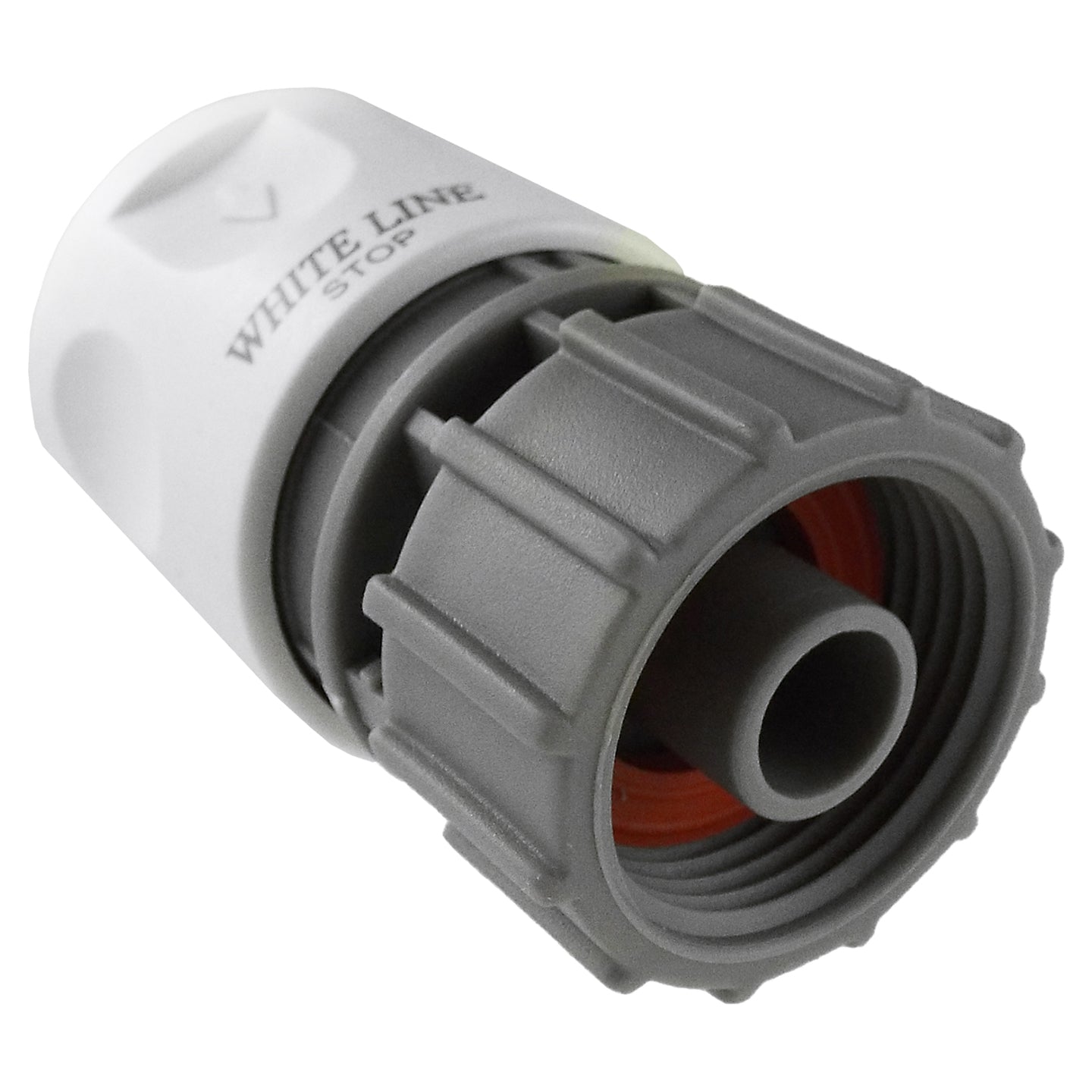

The actual close-up shows the internal BSP thread and red sealing washer. Check that the washer is seated and the mating surfaces are clean before installing the grey nut on a matching male fitting.
The central opening and surrounding thread are part of the adapter’s threaded connection. They are not a collet or clamp for gripping bare hose. The ¾-inch BSP size describes this thread, not the bore of any hose elsewhere in the setup.
At the opposite end, the white sleeve releases a compatible male garden quick plug. Keep routine quick-release operation separate from the installed threaded joint.
Make each connection in turn
Check the BSP thread first, then the garden quick plug.
Fit the grey nut
Turn off the water. Inspect the washer and start the female nut squarely on a matching ¾-inch BSP male thread. Tighten by hand without forcing the thread or overtightening.
Engage the quick plug
Connect a compatible male garden quick plug to the white socket and check it has engaged. Open the supply gradually and inspect the threaded joint and socket for leakage.
Release and store
Shut off the supply and relieve pressure before maintenance. Use the white release sleeve to remove the male plug. Keep dirt out of the socket and stop insert, drain after use and check the washer whenever the threaded fitting is removed.
Check your connection before ordering
Can I tighten the grey nut onto bare garden hose?
No. It contains a ¾-inch BSP female thread and sealing washer, not hose-gripping teeth. It needs a matching male-threaded fitting. A separate hose attachment is required if your setup starts with bare hose.
Why are both ends described as female?
They are different interfaces: the grey end is a female BSP pipe thread and the white end is a female garden quick socket. The rear takes a matching ¾-inch BSP male fitting; the socket takes a compatible male garden quick plug.
What does WHITE LINE STOP mean?
White Line is the range marking. STOP identifies the water-stop socket, designed to interrupt flow when the mating male plug is removed. The main supply tap remains the control for shutting off the water.
Do I need to unscrew it every time I disconnect?
No. Use the white sleeve to release the quick plug while leaving the BSP side fitted. Unscrew the grey nut only when removing the adapter from the threaded fitting, with the supply off and pressure relieved.
Product information & technical details
| SKU | EXPAND34BSPF-FEM001WL |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Colour | White, Grey |
| Material | Plastic |
| Range | White Line |
|---|---|
| Quick connection | Female garden quick socket for a compatible male plug |
| Socket function | Water-stop type, marked STOP |
| Thread seal | Red sealing washer inside the female threaded nut |
| Quantity supplied | One white and grey adapter; other fittings separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
