Description
Bring a threaded fitting into your quick-connect setup

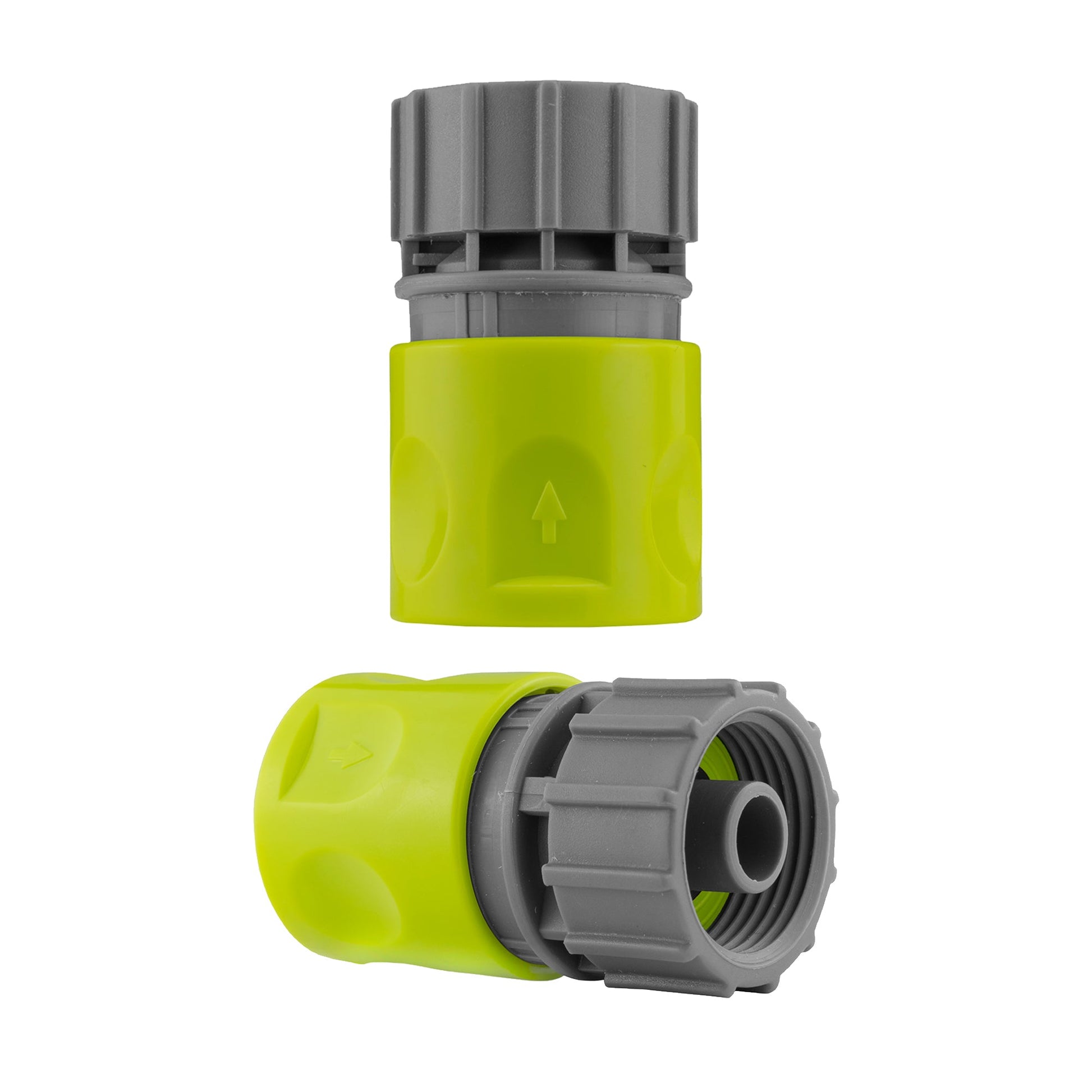

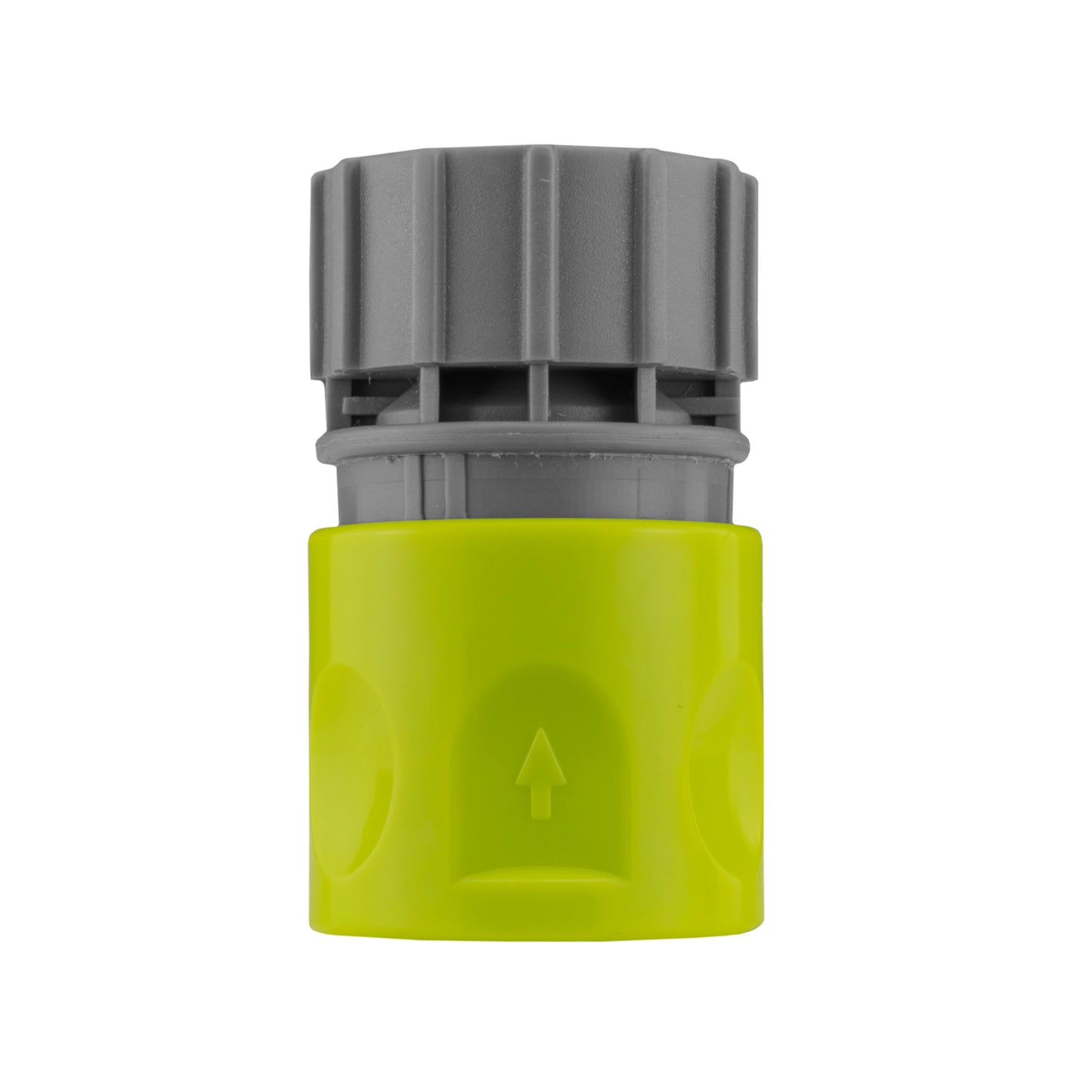

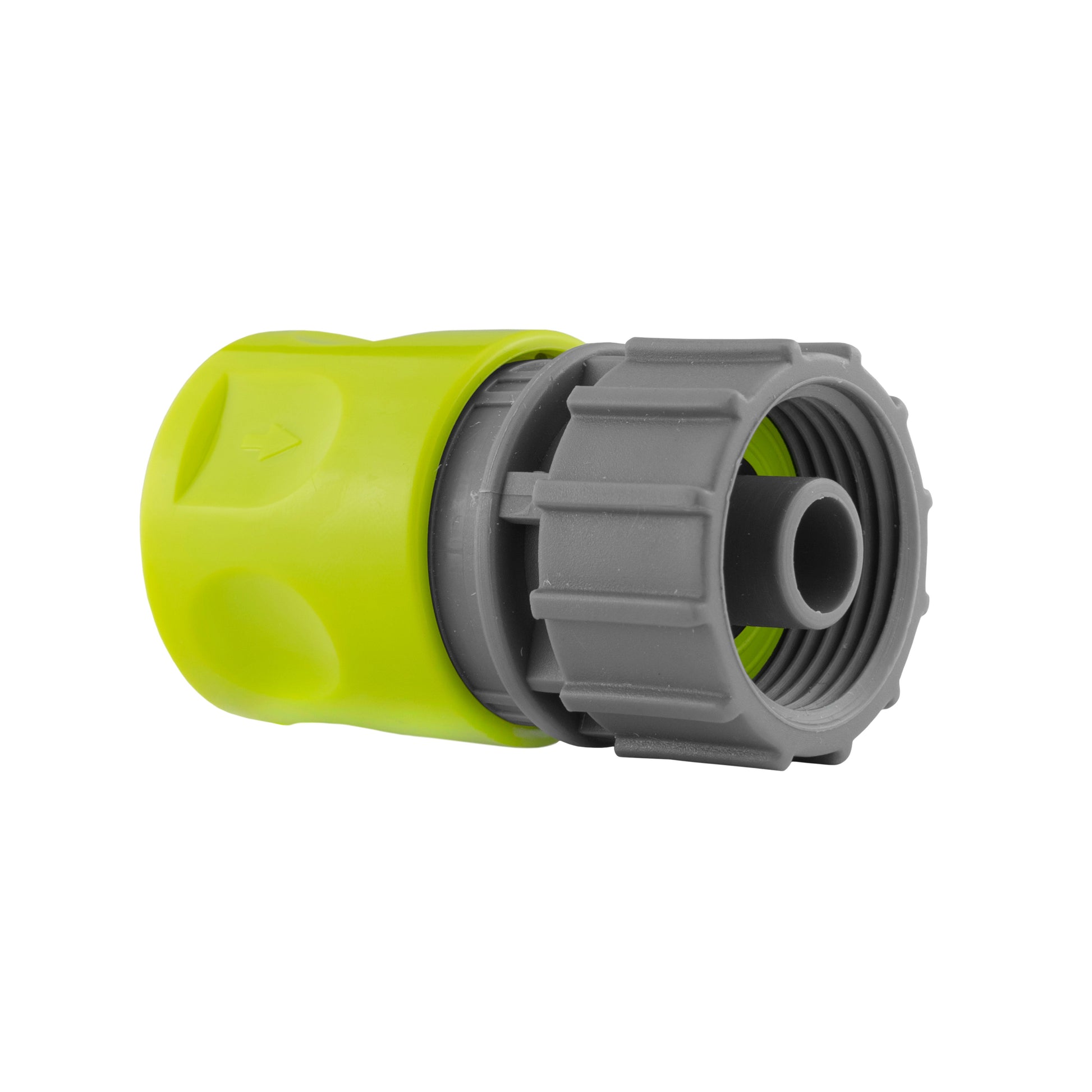

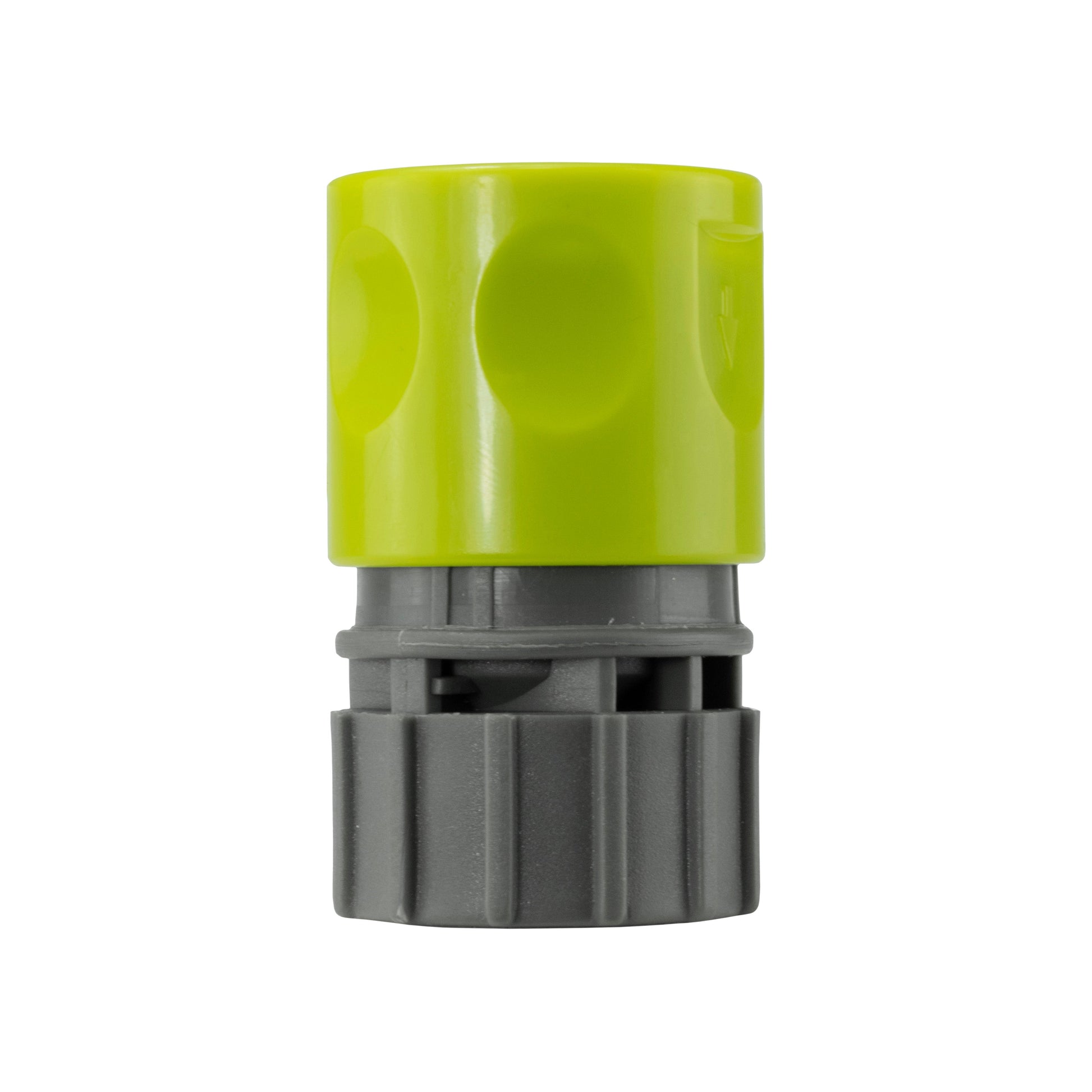

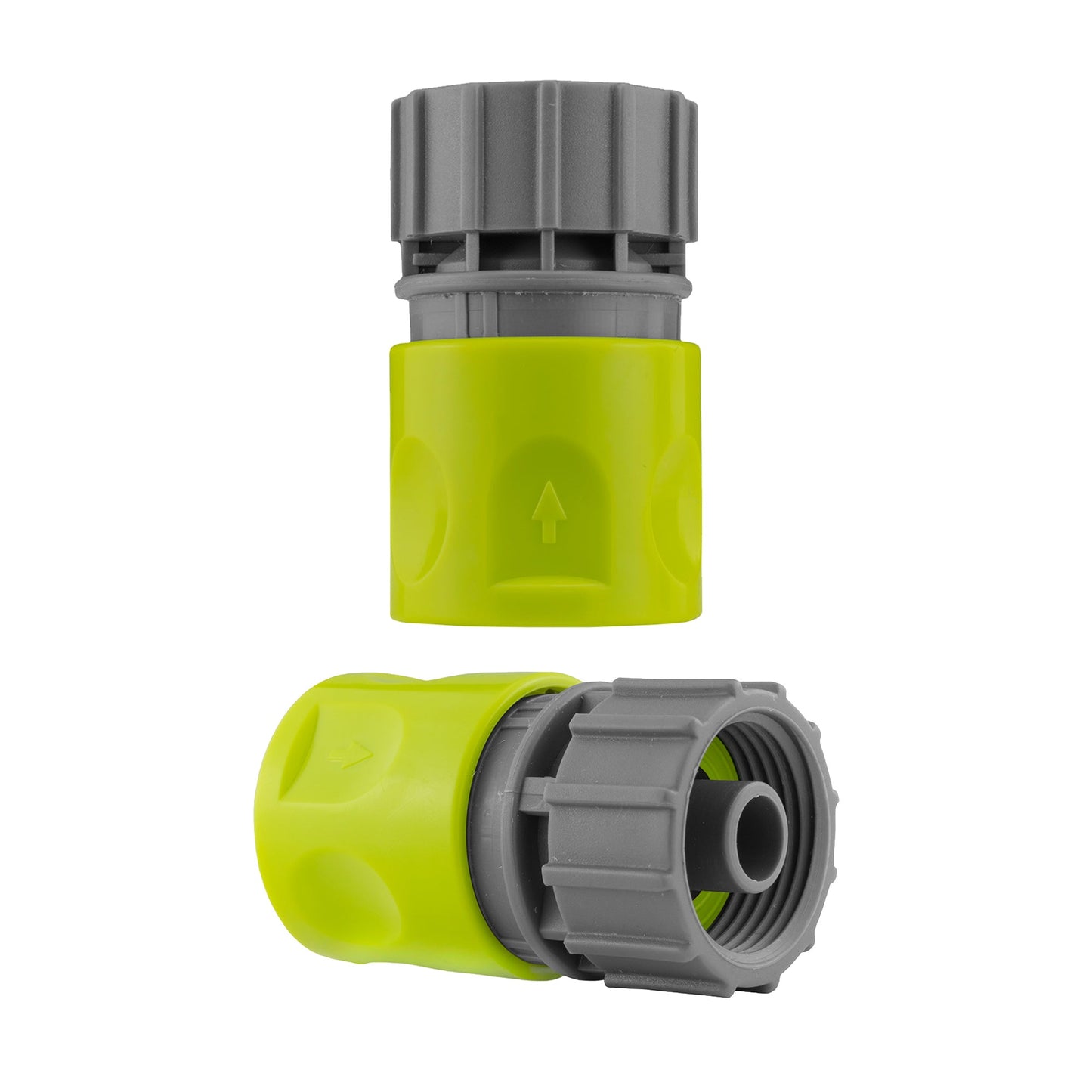

The Bradas Lime Line LE-2141 combines a ¾-inch BSP female thread with a female garden quick socket. Screw the grey nut onto a matching male fitting and use the lime sleeve for routine quick-release connections.
The socket is the STOP type, with a water-stop mechanism designed to interrupt flow when its mating male plug is removed.
One lime and grey plastic adapter. Hose and additional fittings are not included.
Fit the thread once. Use the sleeve to disconnect.
Each end has a different role in the watering connection.
Check the grey nut
With the water off, check the sealing washer and mate the female nut to a matching ¾-inch BSP male thread. Start squarely and tighten by hand, without forcing or overtightening.
Connect the male plug
Push a compatible male garden quick plug into the lime socket and check it is engaged. Open the supply gradually and inspect both joints for leakage before use.
Release at the sleeve
Use the lime sleeve for quick disconnection rather than unscrewing the rear joint. Shut off the supply and relieve pressure before maintenance; drain and keep the socket free of grit after use.
A screw joint, not a hose-gripping nut
The connection example shows the grey female nut facing a separate male threaded hose fitting. These parts screw together. The open centre of the adapter is not a barb for pushing bare hose over.
Check the BSP thread size and gender on the fitting you want to use. A hose labelled ¾-inch does not, by itself, confirm that its end fitting has a ¾-inch BSP male thread.
At the other end, the lime socket accepts a compatible male garden quick plug. The hose and male threaded fitting in this example are separate items.
Choose the right adapter for your connection
Does ¾-inch BSP mean this grips ¾-inch hose?
No. It is the size of the female pipe thread in the grey nut. Bare hose needs its own suitable hose attachment; this adapter does not have a hose-gripping clamp.
Can it screw directly onto a garden tap?
Only where the tap presents a compatible ¾-inch BSP male thread and the sealing arrangement matches. Check the outlet thread rather than assuming every garden tap is the same size.
What does the STOP marking do?
It identifies the water-stop socket, designed to interrupt flow when the mating male quick plug is removed. Use the supply tap to isolate the water for maintenance or when leaving the setup unused.
Which parts are included?
One Bradas Lime Line LE-2141 adapter in lime and grey. The male threaded fitting and hose shown in the connection example, and any taps, valves or male quick plugs, are not included.
Product information & technical details
| SKU | EXPAND34BSPF-FEM001LIME |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Colour | Green, Grey |
| Material | Plastic |
| Range and model | Bradas Lime Line LE-2141 |
|---|---|
| Quick connection | Female garden quick socket for a compatible male plug |
| Socket function | Water-stop type, marked STOP |
| Rear connection | ¾-inch BSP female threaded nut; not a bare-hose clamp |
| Quantity supplied | One lime and grey adapter; hose and other fittings separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
