Description
Give your micro tubing a quick-connect starting point
Use this Cost Wise adapter to connect suitable micro-irrigation tubing to a compatible male garden quick plug. Its 4mm barb handles the small tube, and its female socket handles the garden quick connection.
It provides a removable connection point for a low-pressure micro-watering setup around pots, beds or a greenhouse.
One black and orange adapter supplied. Tubing and the rest of your irrigation equipment are sold separately.
Two connections, with different jobs

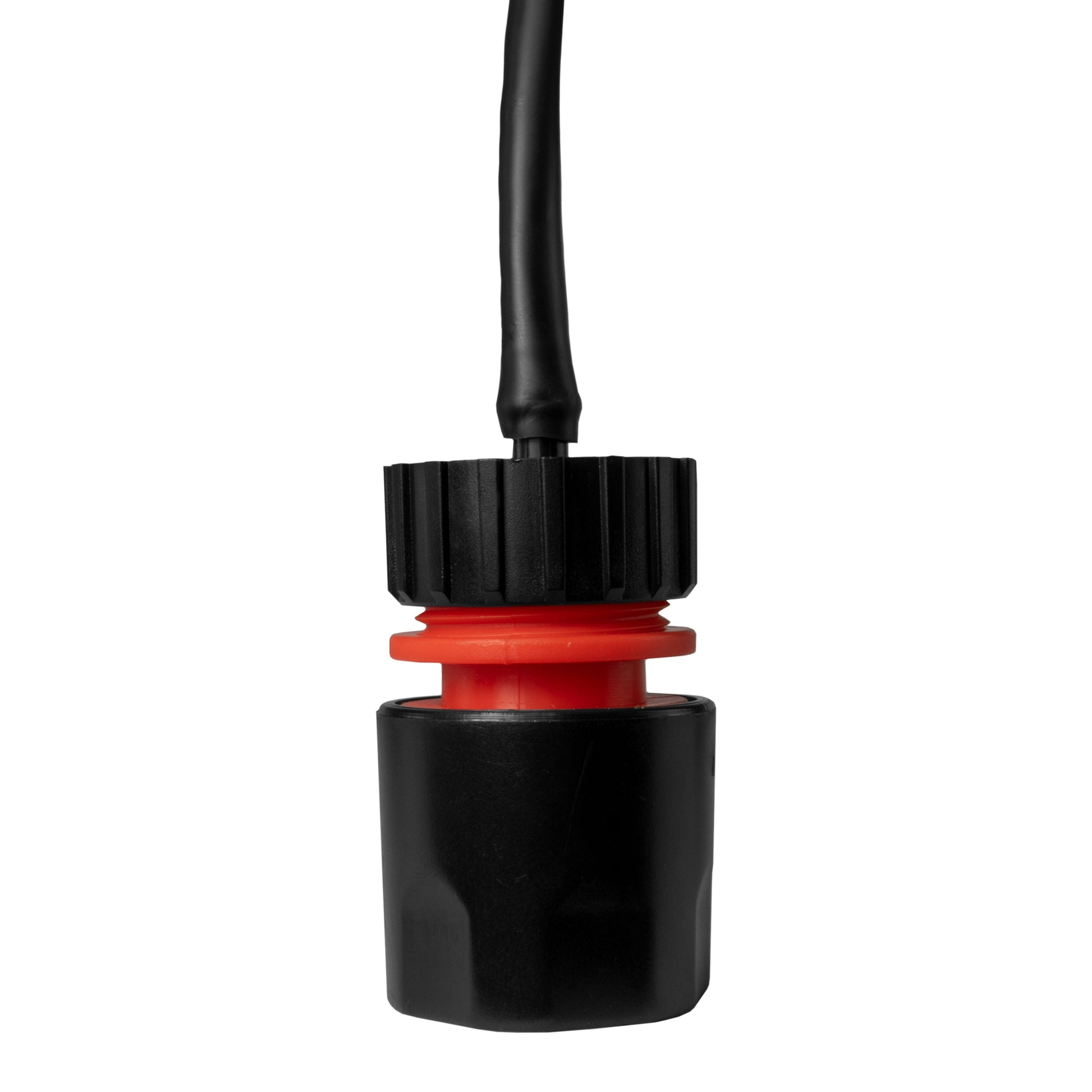

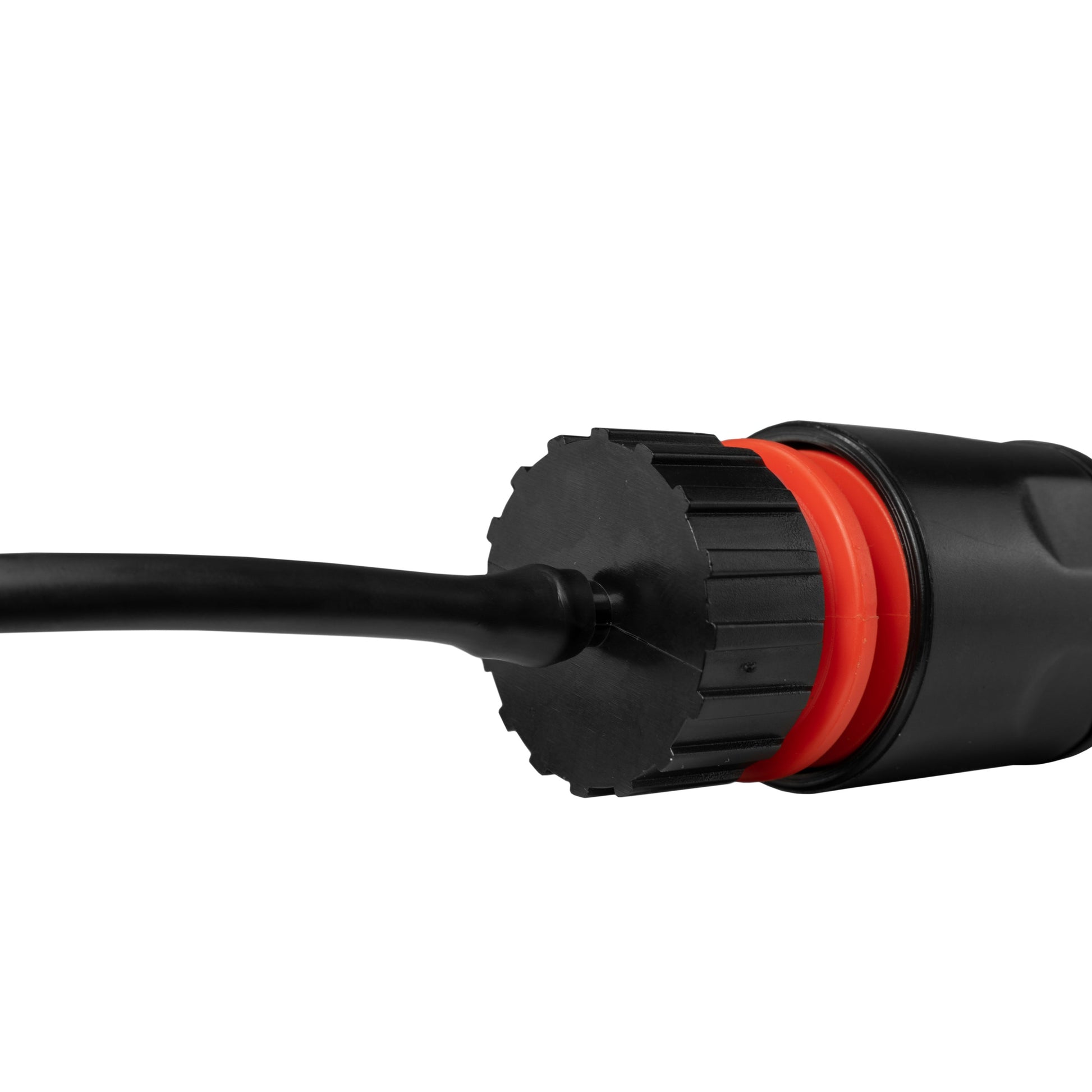

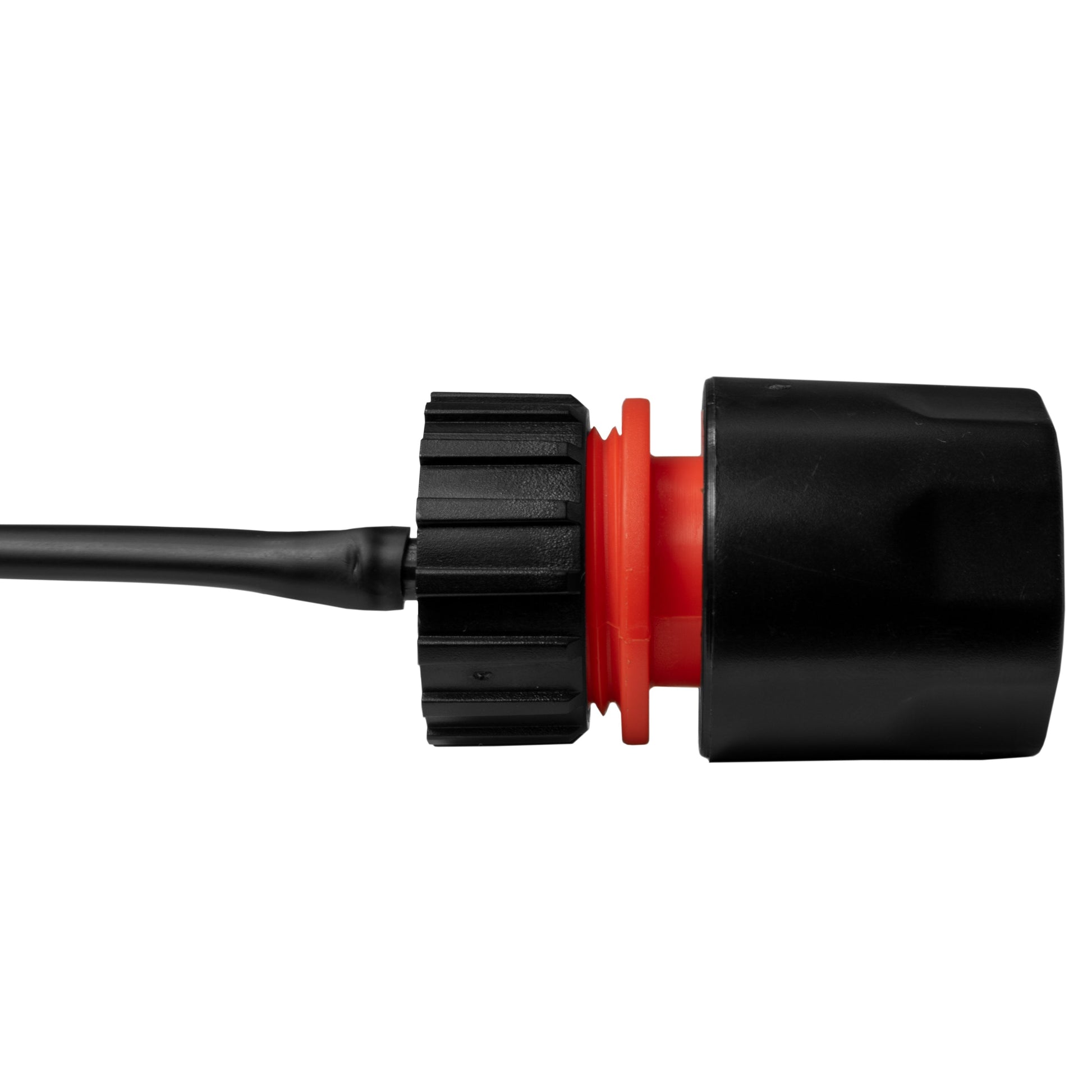

The photo shows micro tubing fitted to the small barb. Choose tubing intended for a 4mm micro-irrigation barb and seat it fully over the attachment. The tube shown is an example and is not included.

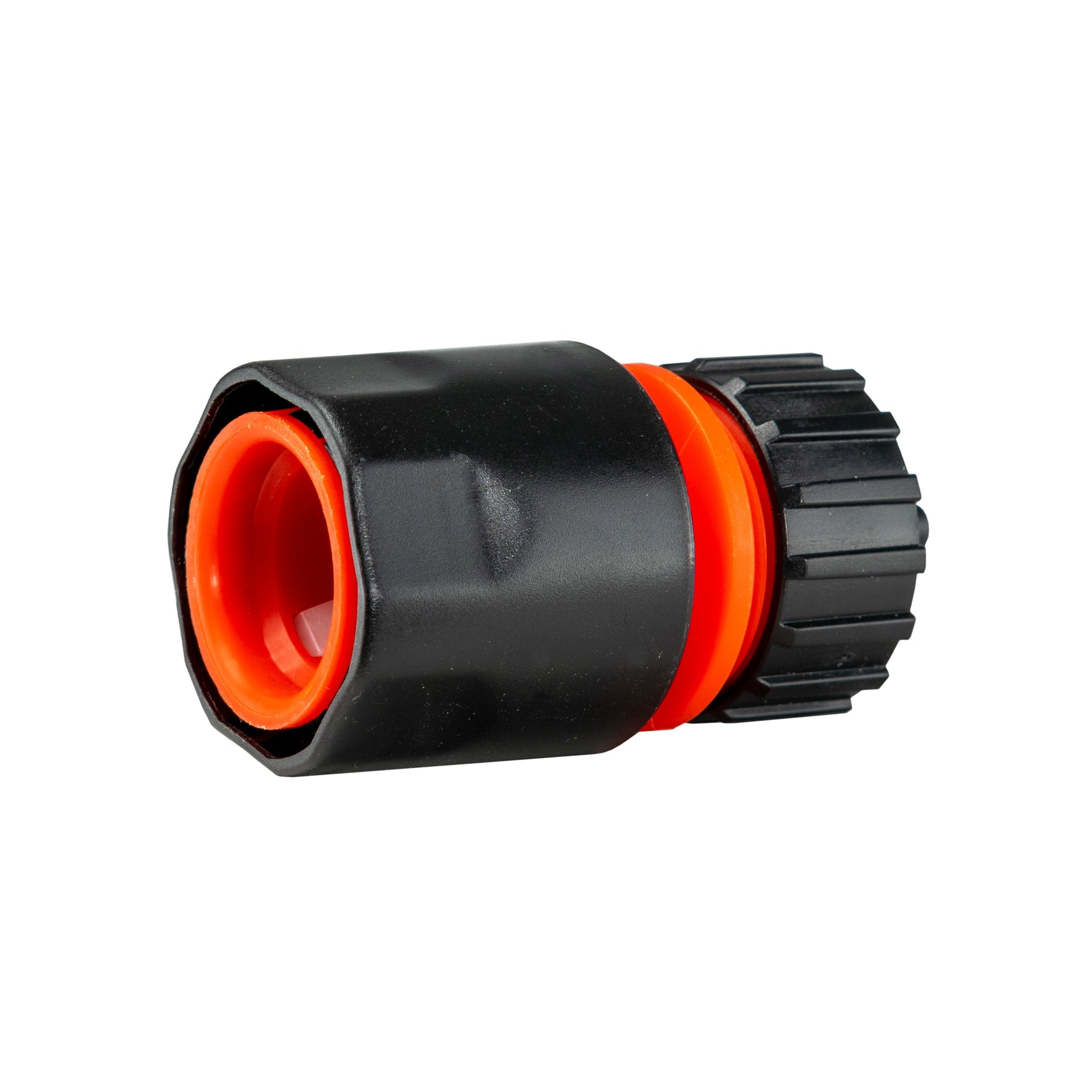

The female garden socket at the opposite end accepts a compatible male quick plug. For a hose that already ends in a female quick connector, place a separate compatible double-male joiner between the two sockets.
A threaded tap needs a suitable separate tap adapter with a matching male plug. Neither connection on this adapter is a bare-hose attachment for a full-size garden hose.
Set up the connection before watering
Match the tubing, plug and supply to the rest of your irrigation system.
Fit the micro tube
With the supply off and pressure released, push suitable tubing fully over the barb. Check the tube is retained without pulling the adapter sideways.
Connect the garden plug
Engage a compatible male plug in the female socket and check it is retained. Add any separate pressure control and filtration needed for your tubing and emitters.
Test, then disconnect
Turn on the supply gradually and check the joints before leaving the system running. Shut off the water and release pressure before uncoupling. Drain and keep the socket and barb clear of dirt.
Planning your micro-watering connection
Does it lower mains water pressure?
No. This fitting adapts the connection; it is not a pressure regulator. Use separate pressure control where your micro-irrigation tubing or emitters require it.
Will it plug straight into a female hose-end connector?
No. This adapter also has a female socket. Use a separate compatible double-male garden joiner between the two female connections.
What does the 4mm size describe?
The small micro-irrigation barb. Select suitable tubing for that connection; it is not the size of the garden quick socket or a BSP tap thread.
Are tubing and drippers supplied?
No. You receive one adapter. Tubing, drippers, tap adapters, joiners, regulators and filters are separate items to choose for your setup.
Product information & technical details
| SKU | HOCON12F-4MM-001 |
|---|---|
| Product type | |
| Colour | Black, Orange |
| Material | Plastic |
| Brand | Cost Wise |
| Micro connection | 4mm micro-irrigation barb |
| Garden connection | Female garden quick-connect socket |
|---|---|
| Mating plug | Compatible male garden quick-connect plug |
| Application | Low-pressure micro-irrigation tubing systems |
| Pressure control | Connection adapter only; separate pressure control where required |
| Quantity supplied | One adapter; tubing, joiners and other equipment separate |
