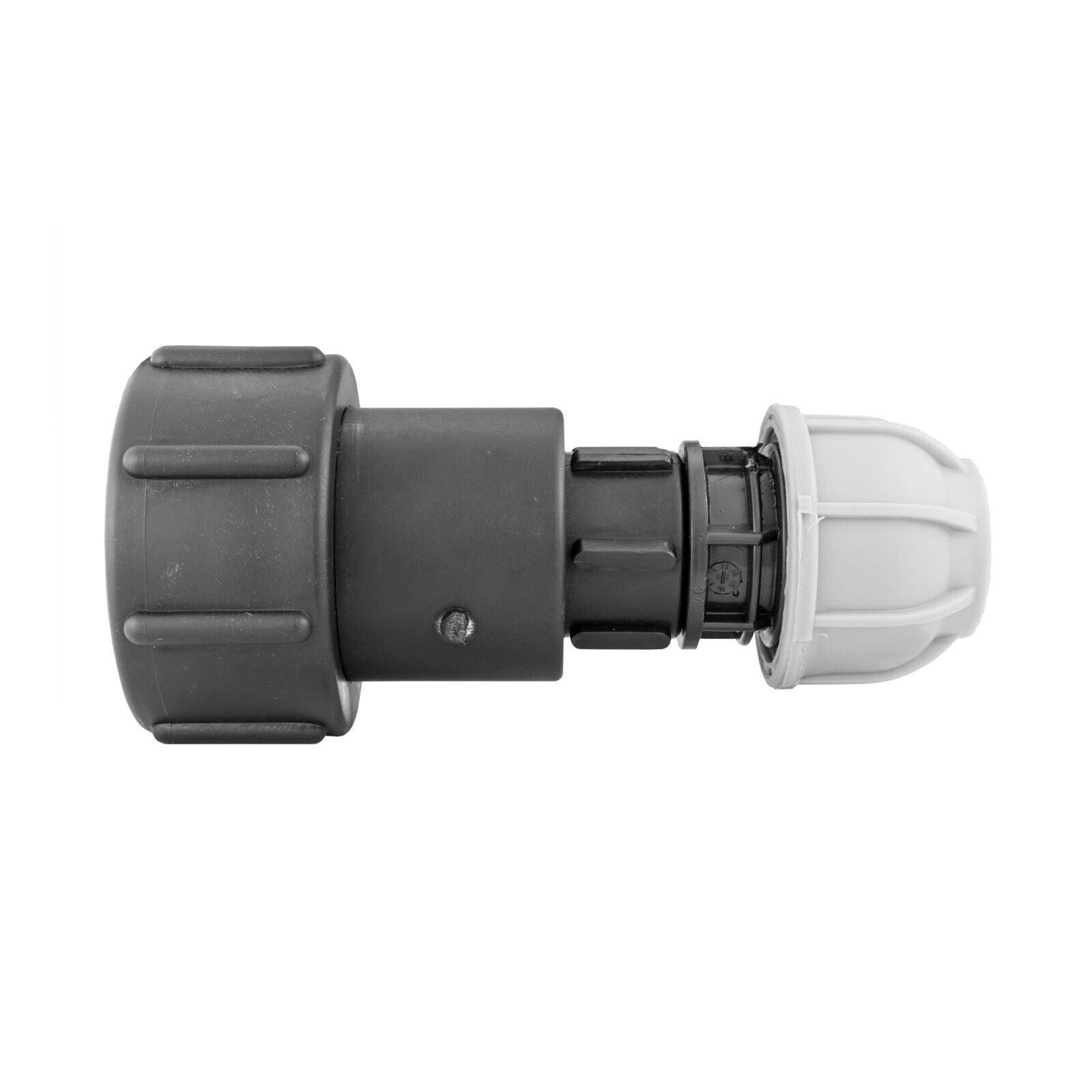

Straight
One compression outlet continues the pipe run in line with the extender. Choose it when the pipe can leave the tank forwards.
Description
Choose the route from your IBC
Take a pipe run forwards, turn it around a corner, or branch in two directions. Choose an extended S60x6 adapter with one MDPE compression fitting to suit the route you are building.
Select 20mm, 25mm or 32mm pipe size, then choose Straight, Elbow or Tee. The extended body brings the pipe connection forwards from the tank outlet; check the space around your own valve and pallet before fitting.
One selected two-part kit supplied. The IBC, its original valve, pipes, liners and thread-sealing tape are separate.
S60x6Female tank connection
20-32mmPipe outside diameter
3 shapesStraight, Elbow or Tee
2 partsOne selected kit

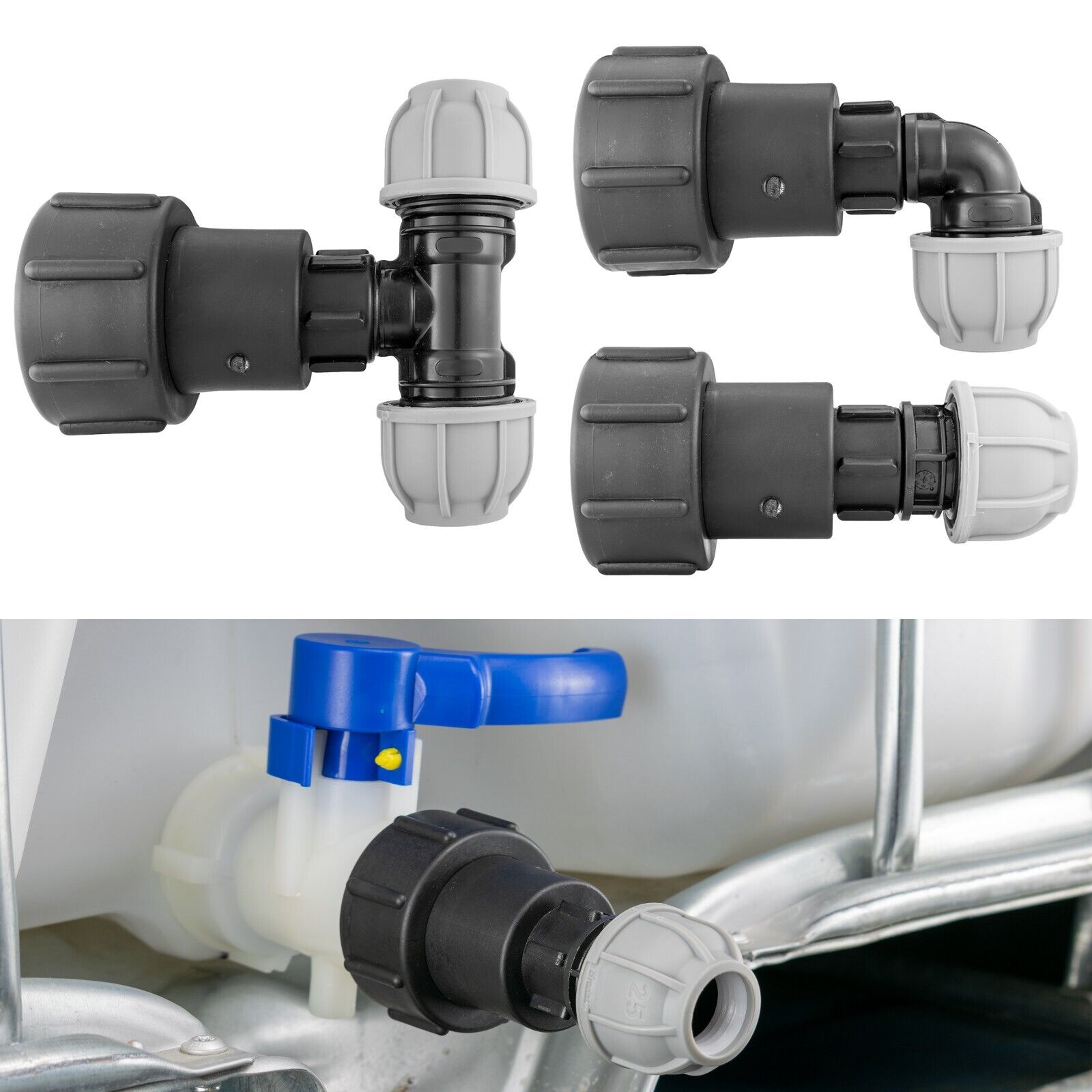

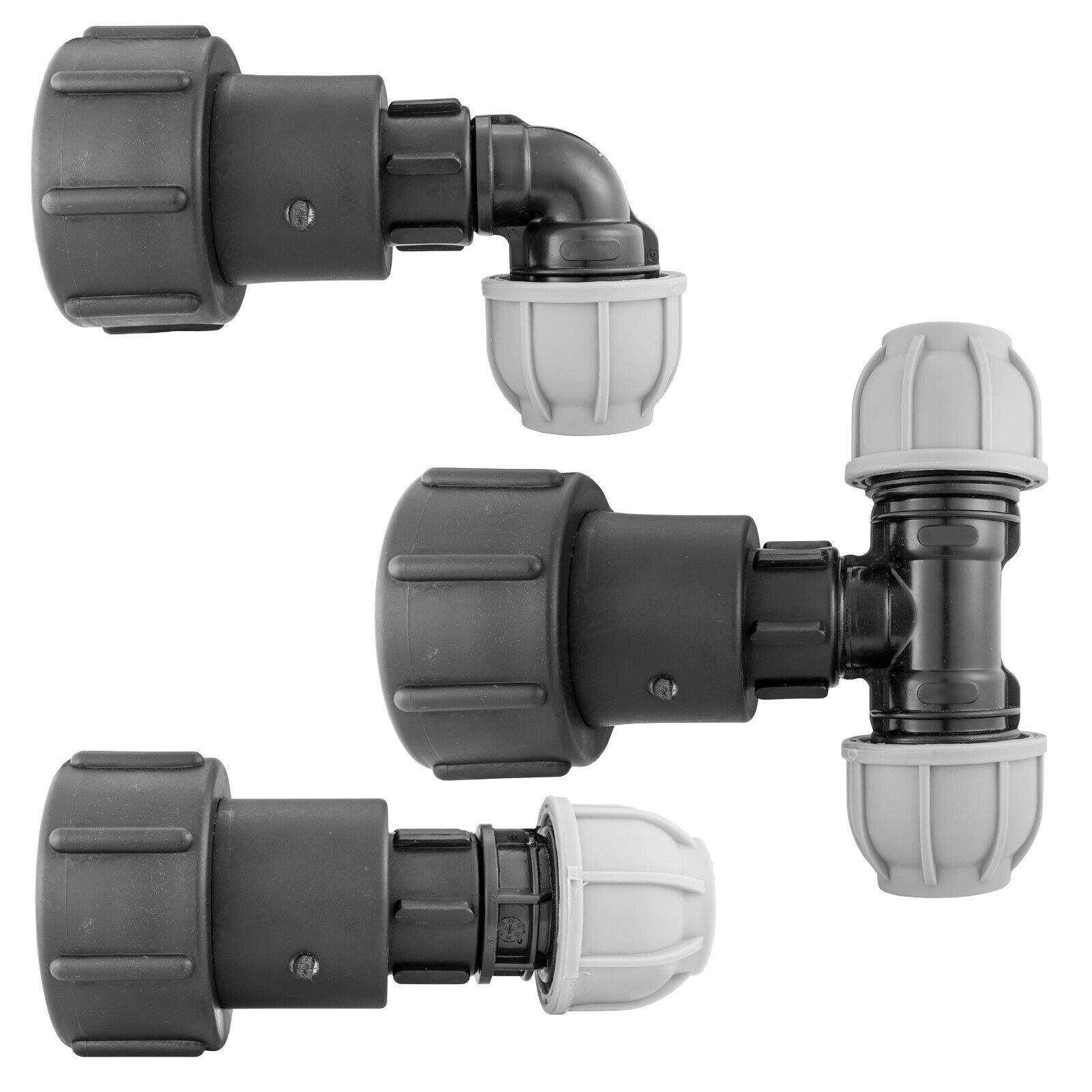

Choose the shape for your pipe run
Shape examples are shown below. Select the pipe size and one fitting shape above; all three shapes are not supplied together.
Elbow
One compression outlet turns the route through a right angle. Useful when the pipe needs to turn rather than continue straight out.

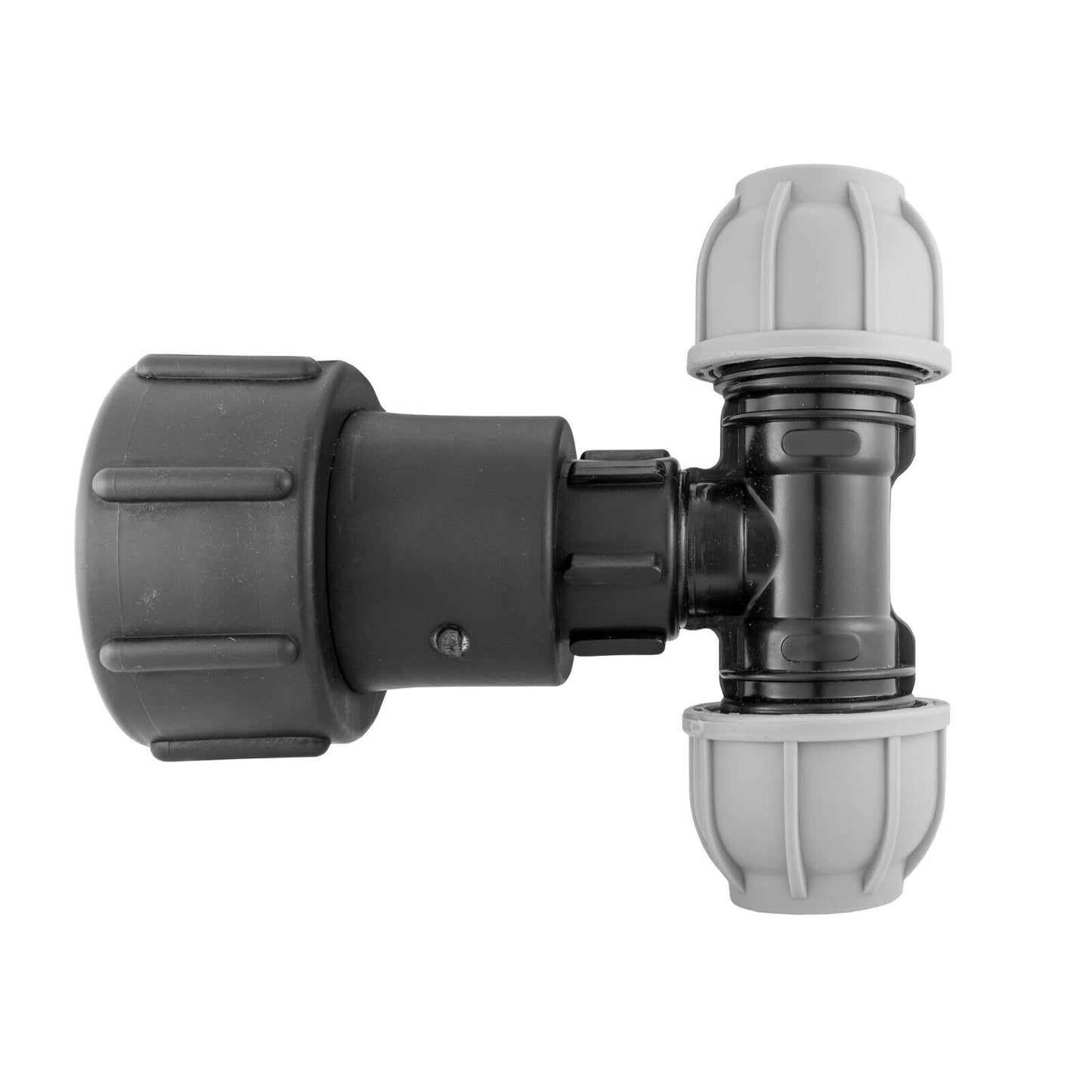

Tee
Two opposite compression outlets let the pipe run branch in two directions from the tank connection. Both pipe ports use the selected MDPE size.
Match the kit to your installation
Are all three fitting shapes included?
No. Each option supplies one extended S60x6 adapter and one MDPE fitting in the size and shape you select. Choose from nine combinations: three pipe sizes, each with Straight, Elbow or Tee.
Does the extender include a tap?
No. This is a connection kit, without a separate shut-off valve or pump. Use the IBC's existing valve or suitable control in your pipework. Isolate the supply before assembling or disconnecting the fittings.
How do I choose the pipe and seal the joints?
Match the pipe's outside diameter to the selected 20mm, 25mm or 32mm compression fitting. Check the actual tank outlet for a male S60x6 coarse thread. The fitting screws into the extender's BSP socket; it does not clip in. PTFE tape may be required at that threaded joint and is sold separately. Follow the pipe and fitting instructions for preparation and any liner requirement, support the pipe run, and check the finished joints for leaks.
Product information & technical details
| SKU | IBC024A |
|---|---|
| Product type | |
| IBC thread size | S60X6 (2") |
| MDPE size | 20mm, 25mm, 32mm |
| Kit parts | 1 × extended S60x6 female adapter, 1 × MDPE fitting in the selected size and shape |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Extender body length | 10cm overall, excluding the MDPE fitting |
| Pipe sizing | 20mm, 25mm or 32mm outside diameter (selected option) |
| Internal BSP joint | ¾-inch for 20mm; 1-inch for 25mm and 32mm |
| Compression pipe ports | Straight or Elbow: 1; Tee: 2 of the selected size |
