Description
Two brass outlets

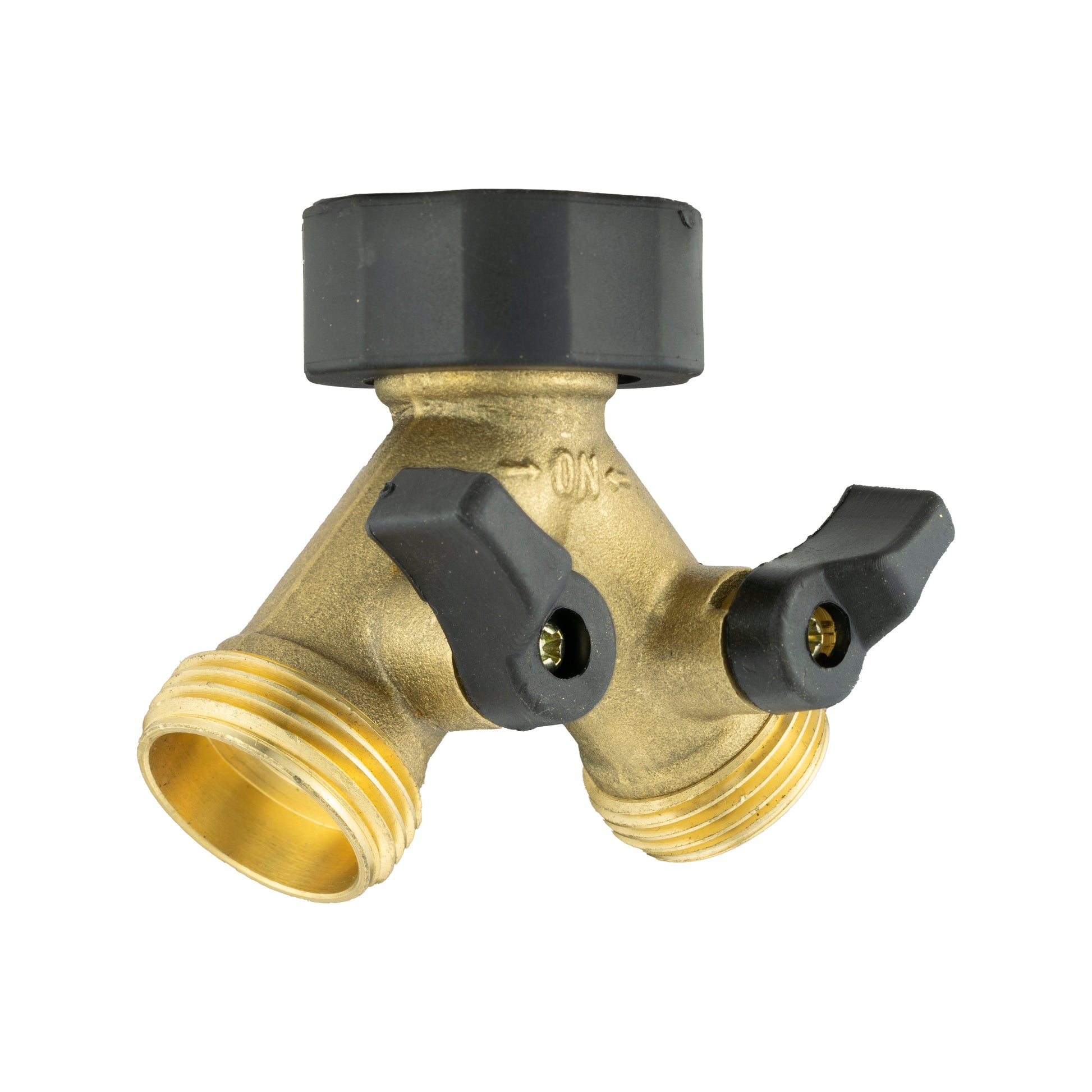

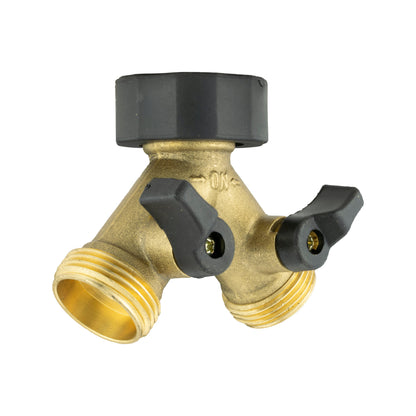

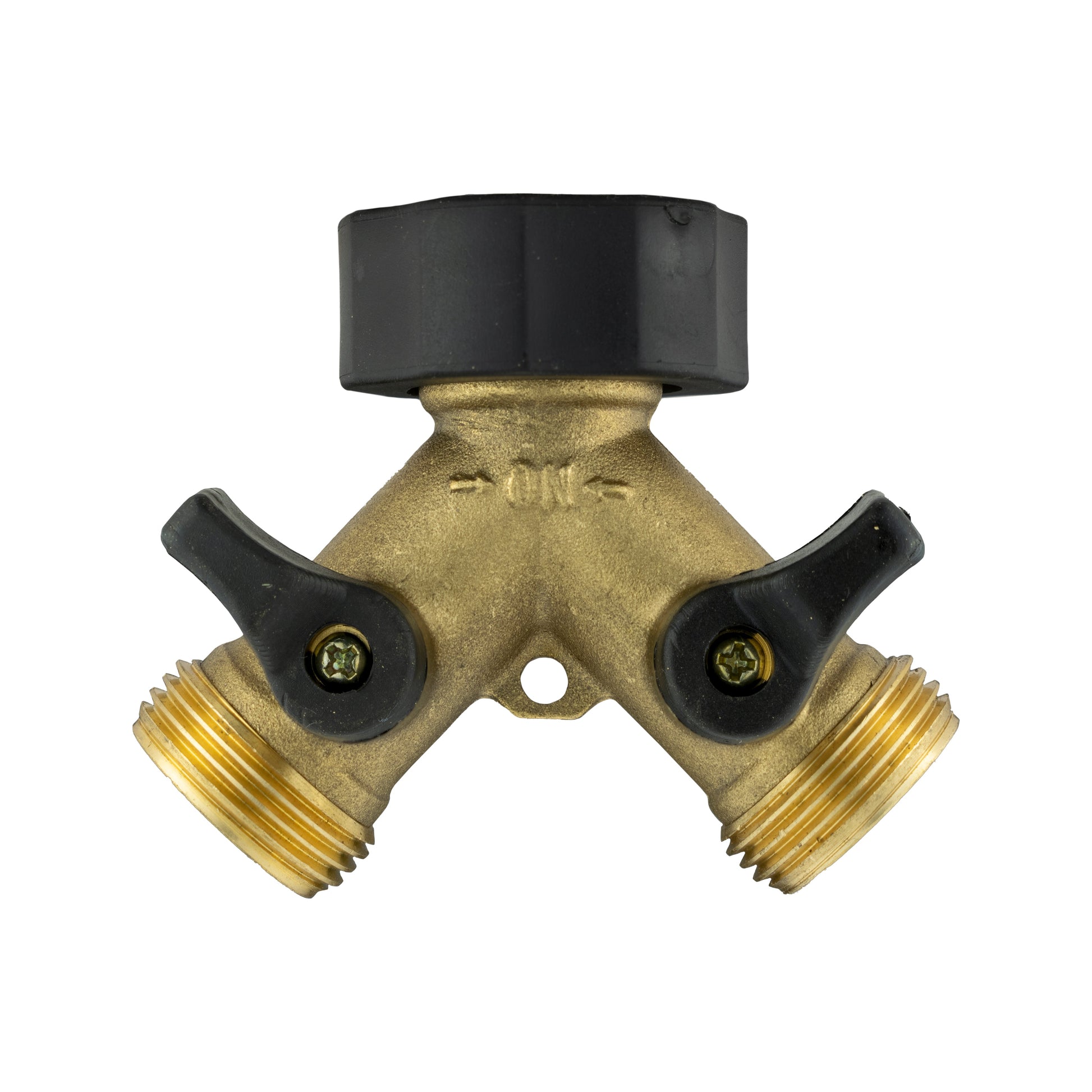

Give each watering line its own control at the tap. This brass two-way tap splitter has a ¾-inch BSP female inlet and two ¾-inch BSP male threaded outlets, with a black valve handle for each branch.
Keep a sprinkler connection available alongside a separate watering hose, or choose suitable threaded fittings for your irrigation setup. You can adjust or close either branch without removing the splitter.
One splitter supplied. Tap, hoses and outlet adapters are separate.
Build the connection you need

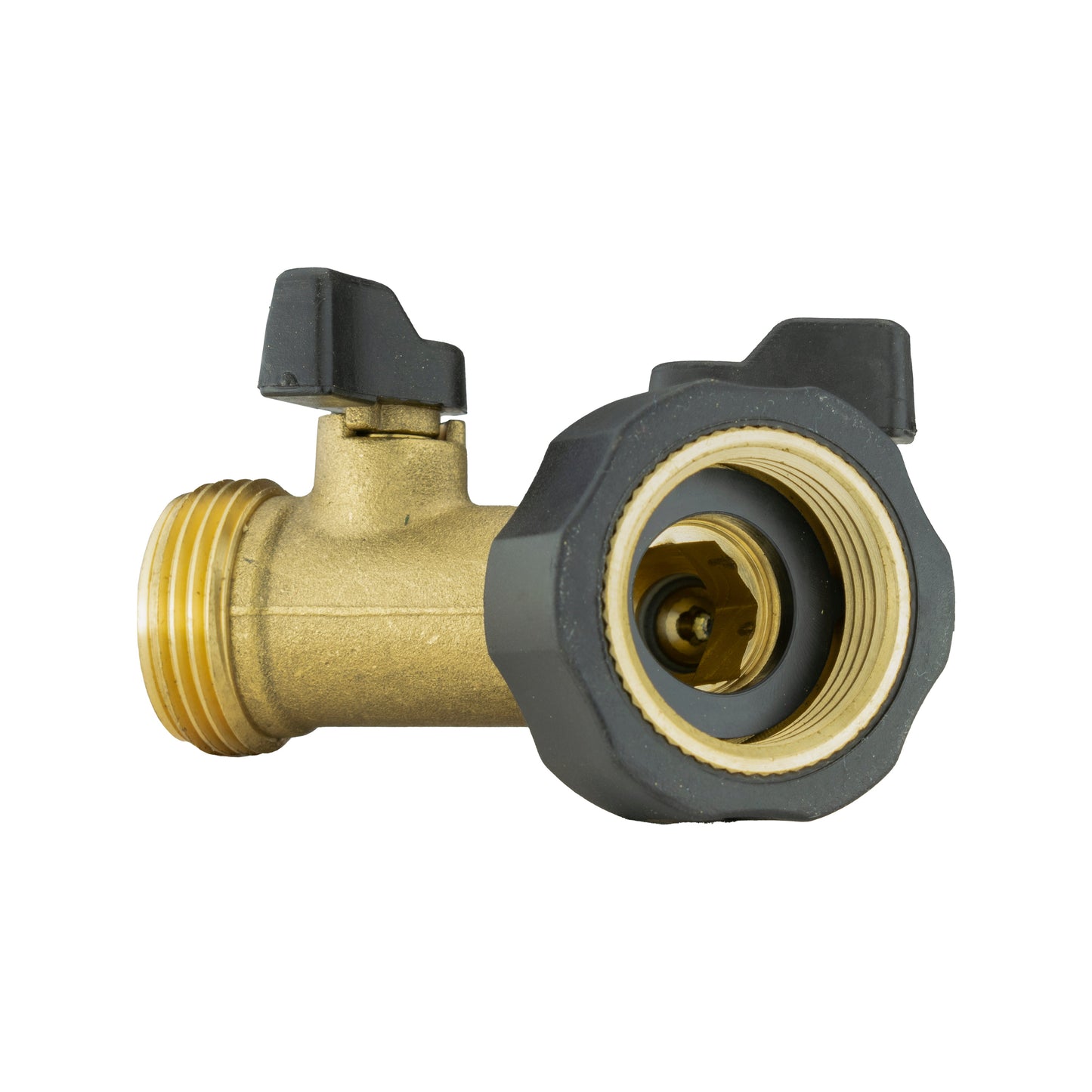

The black inlet nut fits over a matching ¾-inch BSP male tap thread. Below it, the two brass branches provide separate male threaded connection points for your outlet fittings.
For garden quick-connect hoses, screw a suitable ¾-inch BSP female tap adapter onto each branch you want to convert. Its male garden plug then accepts a compatible female hose socket. The optional brass adapter above performs that conversion; hose sockets must also suit your hose bore.
The black handles control the branches independently, but both draw from one tap. Available flow depends on your supply and the equipment connected; the splitter does not create extra pressure.
Fit, check and use
Connect to the tap
Close the water supply and check the tap thread and inlet seal. Start the swivel nut squarely by hand. Support the brass body while fitting, and avoid forcing an incompatible thread.
Prepare both branches
Fit matching female threaded outlet connections using the sealing method appropriate to each joint. Support attached hoses so their weight or a pull does not strain the splitter or tap.
Set your watering flow
Open the tap gradually and inspect all joints. Use each black handle to adjust its branch. Turn off the main tap and relieve pressure before disconnecting; drain exposed fittings before freezing weather.
Before you order
Will a hose socket clip directly onto the outlets?
No. Both outlets are ¾-inch BSP male screw threads. Add matching female threaded tap adapters if you want garden quick-connect plugs, plus compatible hose-end sockets.
Can I close one branch while using the other?
Yes. Each branch has its own manual valve. Both can also be used together, with the available water supply shared between them.
Does the inlet fit a 1-inch BSP tap?
No. This version has a fixed ¾-inch BSP female inlet and needs a matching male tap outlet. Check the connection before ordering rather than choosing by the outside appearance of the tap.
Are the brass tap adapters part of this product?
No. One brass-bodied splitter is supplied. The tap, outlet adapters, hose sockets and hoses are separate; the installation illustration shows how the splitter sits beneath a matching tap.
Product information & technical details
| SKU | TC2-WAY001THBRASS |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male, Female |
| Colour | Brass |
| Material | Brass |
|---|---|
| Tap inlet | Fixed ¾-inch BSP female thread with black swivel nut |
| Branch outlets | Two ¾-inch BSP male threads; female outlet fittings required |
| Controls | Two independent manual valves with black wing handles |
| Supplied quantity | One brass-bodied splitter; tap, hoses and outlet adapters sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
