Description
One tap, two outlets

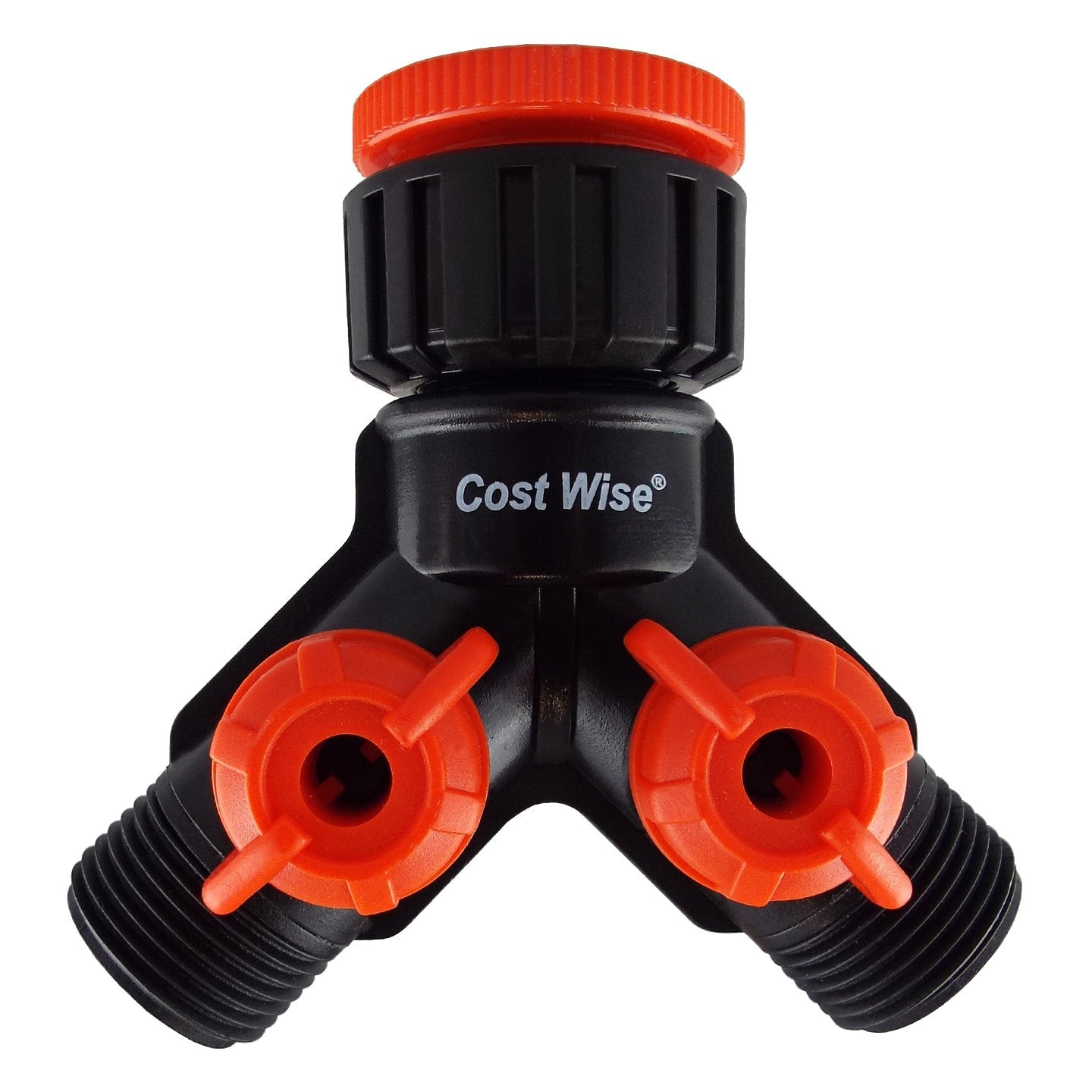

Keep two watering connections available at the same tap with this black and orange two-way splitter. Its Y-shaped body divides the inlet into two ¾-inch BSP male threaded outlets, each with its own orange valve control.
Leave a sprinkler line on one branch and a separate watering hose on the other, using suitable fittings for each connection. Open either branch or both as your watering task requires.
One splitter with inlet reducer supplied. Tap, hoses and outlet adapters are separate.
Choose your outlet fittings

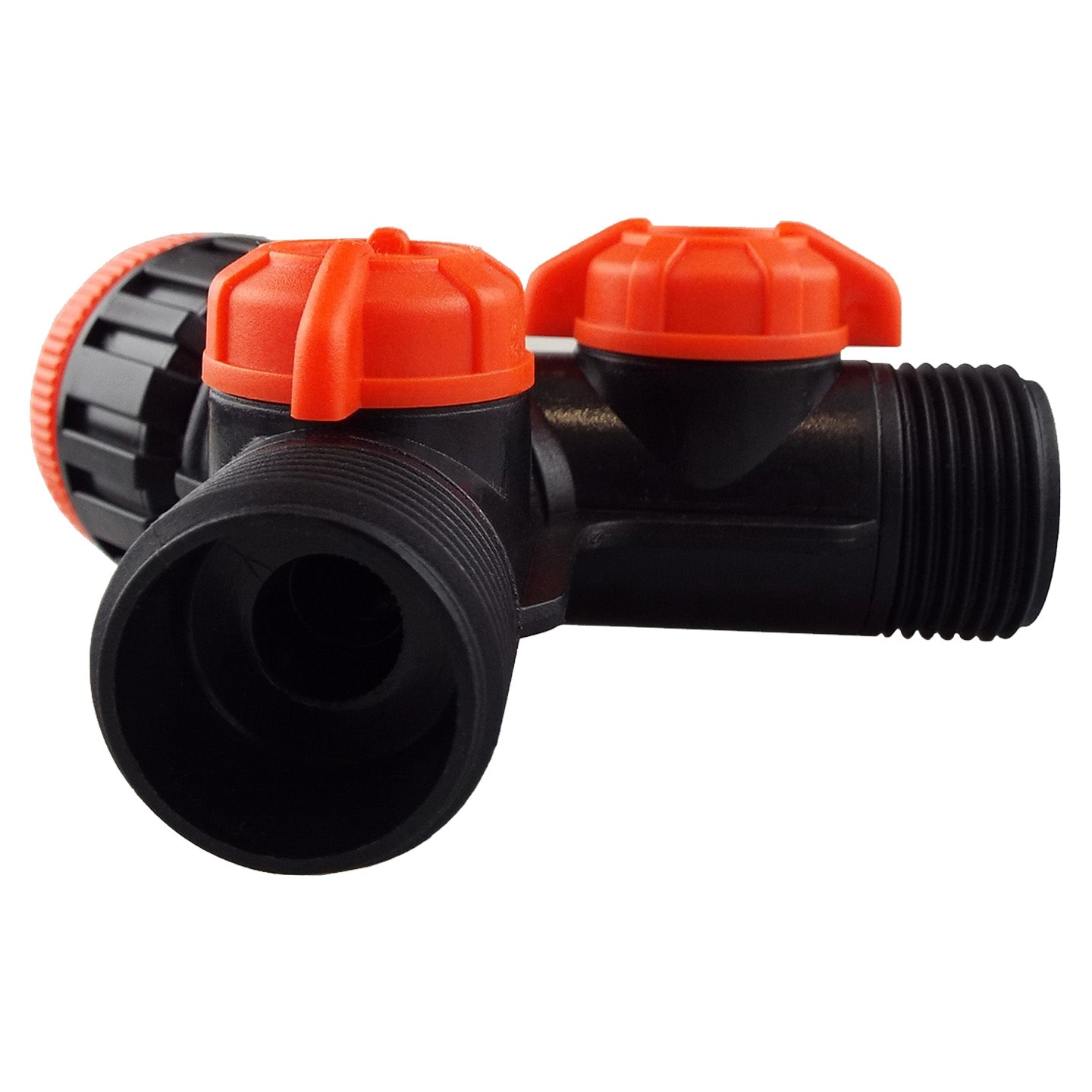

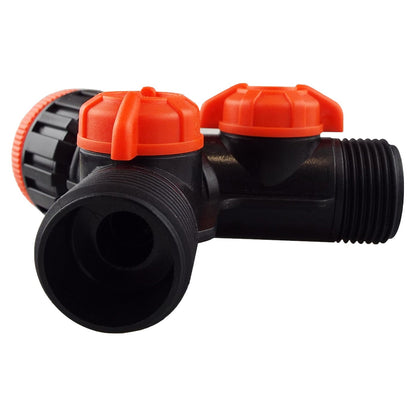

The close-up shows bare male screw threads on both branches. They need matching ¾-inch BSP female fittings. A female garden quick-connect socket will not clip directly onto these threads, and bare hose does not fit directly either.
For a garden quick-connect setup, fit a suitable female threaded tap adapter to each outlet you want to use that way. Its male garden plug then receives a compatible hose-end socket. The optional black/orange adapter above provides that conversion; choose hose sockets separately for your hose bore.
The two orange controls regulate their own branches. They share the same incoming water supply: opening both does not create extra pressure or guarantee the same flow at each hose.
Set up for your watering jobs
Match the tap inlet
Close the tap. Use the inlet configuration for your matching 1-inch or ¾-inch BSP male outlet, checking the reducer and seals are correctly seated. Start squarely by hand and avoid overtightening the plastic parts.
Fit each branch
Choose matching female threaded fittings for the two outlets and the sealing method each joint requires. Support the hoses so their weight or a pull does not strain the splitter or tap.
Check and control
Open the supply gradually and inspect every joint. Adjust each branch with its own orange control. Shut off the main tap and release pressure before removing fittings; drain and protect exposed equipment before freezing weather.
Before you order
Are quick-connect hose adapters included?
No. Both outlets are ¾-inch BSP male threads. Add matching female threaded adapters and compatible hose sockets separately if you want garden quick connections.
Can I use both outlets at once?
Yes. Each valve can be adjusted or closed independently. Both draw from one supply, so available flow depends on the tap, hoses and equipment in use.
Which tap thread does the inlet fit?
It fits a matching 1-inch BSP male tap outlet, with a reducing insert for a ¾-inch BSP male outlet. It does not clamp onto a smooth, unthreaded spout.
Does ¾-inch BSP mean ¾-inch hose?
No. BSP describes the screw thread. Select each outlet fitting for that thread, then select the hose connection for your hose’s internal diameter. These are separate measurements.
Product information & technical details
| SKU | TC2-WAY001TH |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Male, Female |
| Colour | Black, Orange |
| Material | Plastic |
|---|---|
| Tap inlet | 1-inch BSP female; reducing insert for ¾-inch BSP male tap |
| Branch outlets | Two ¾-inch BSP male threads; outlet adapters not included |
| Controls | Two independently adjustable manual valves |
| Supplied quantity | One plastic splitter with inlet reducer; tap, hoses and outlet fittings sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
