Description
Put a number on your garden watering

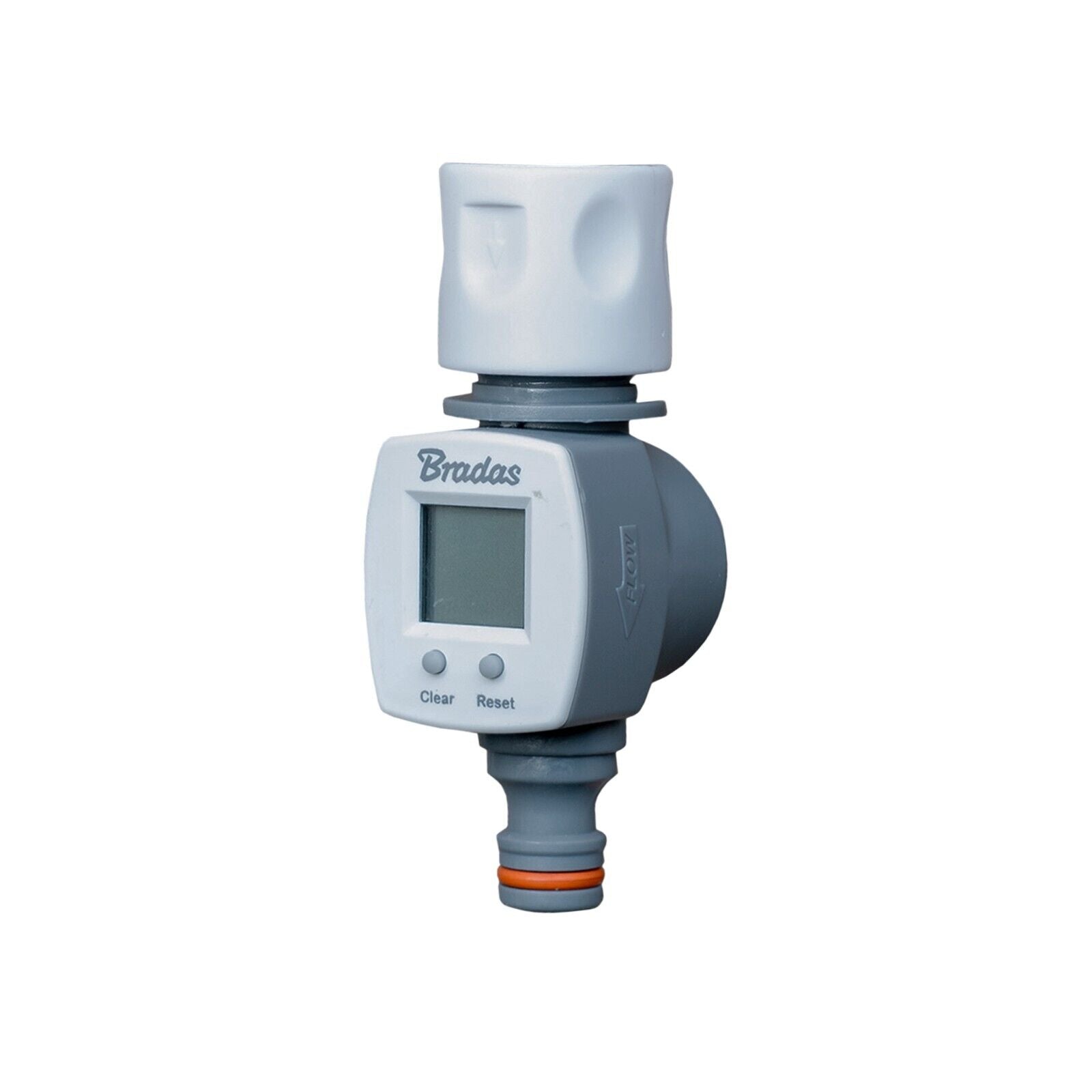

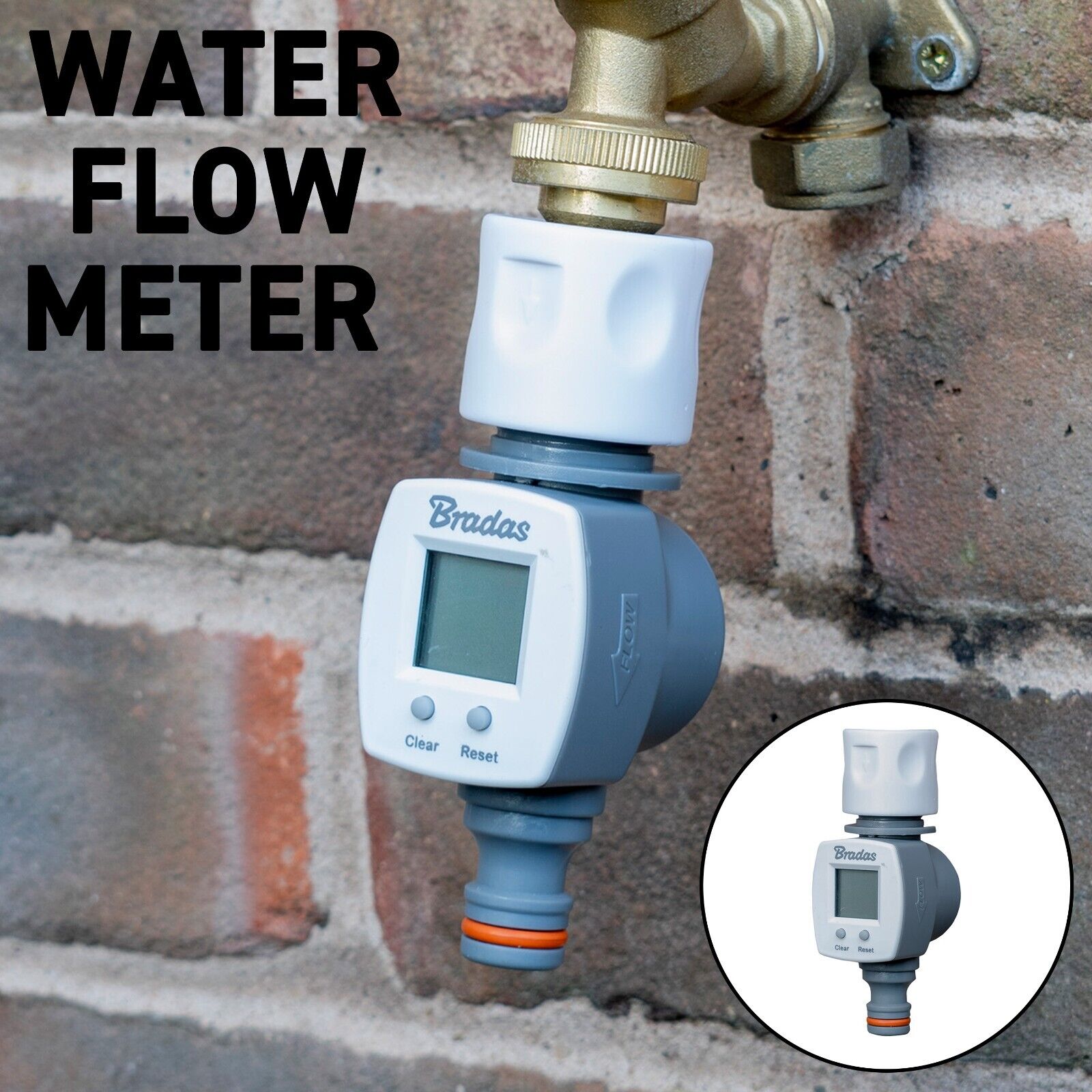

The Bradas WHITE LINE WL-3100 water meter shows the volume passing through your watering connection. Read the amount used for one task and keep a separate total, in litres or gallons.
Use the readings to compare watering sessions or monitor a container fill. You stay in control of the tap: this is a volume counter, rather than an automatic watering timer or shut-off valve.
A session reading and a running total
The upper reading records water for the current session. The lower reading keeps a total until it is reset. Use the Clear button for the session counter and Reset for the total, following the supplied instructions.
Litres are the default unit. To change units, hold Clear for about three seconds, choose the unit with Reset, then confirm with Clear. Check the unit shown on the screen before comparing readings.
The meter uses a CR2032 battery, supplied fitted. The display sleeps after around 30 minutes without button use or water flow. Keep the supplied operating instructions for the button sequence and battery care.
The stated tolerance is ±8% at 3–8 bar, and ±10% at 1–2 or 9–10 bar. Treat the reading as a garden-use measurement with that tolerance; a small difference between sessions may not represent a meaningful change in use.
Connect in the marked flow direction

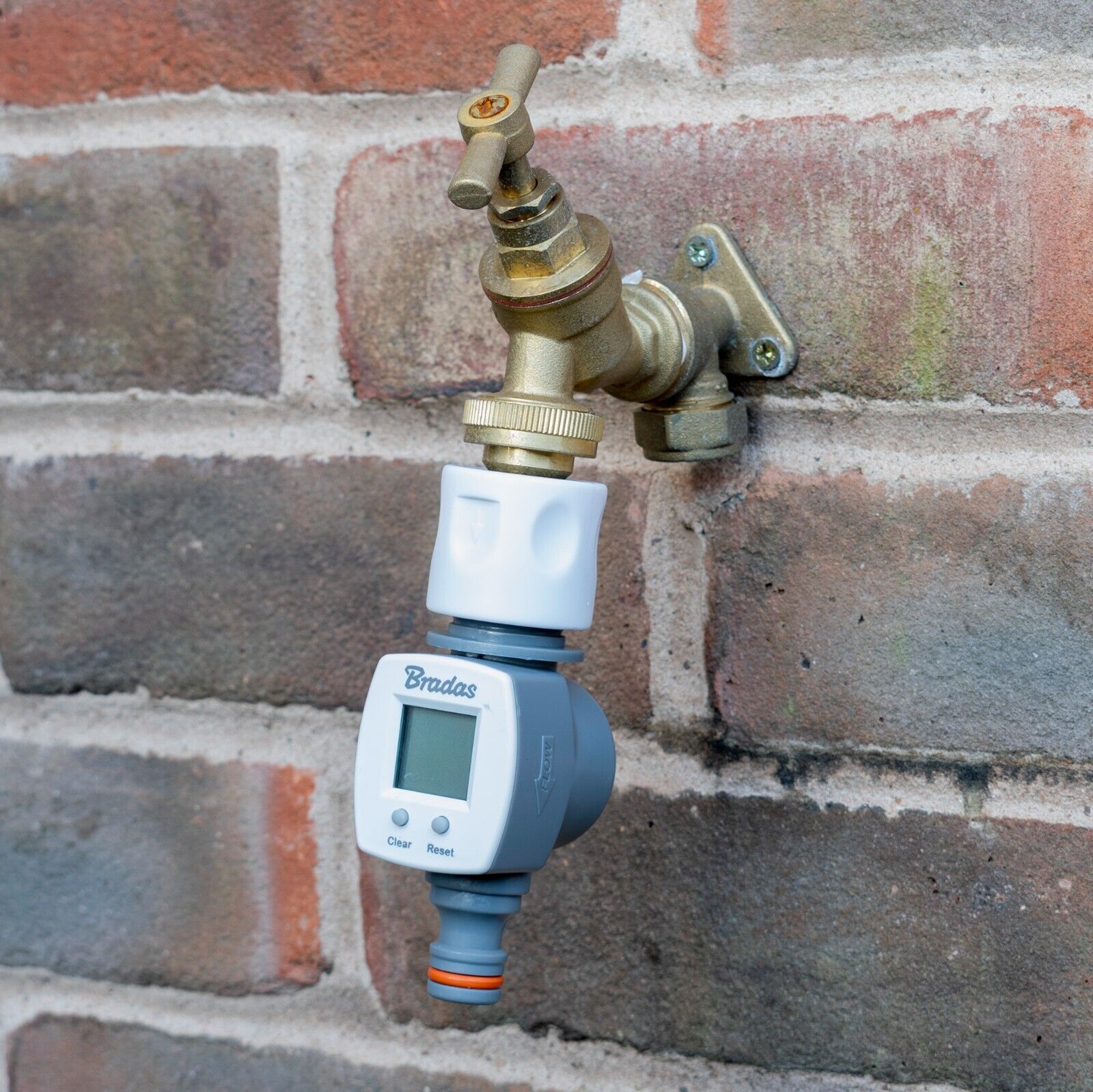

The female quick-release inlet attaches to a compatible male garden tap nipple. At the opposite end, connect your hose using a compatible female hose-end connector on the meter’s male quick-connect outlet.
Follow the moulded FLOW arrow from the water supply towards the hose. Turn off the supply before connecting or removing the meter. Check that your tap adapter and hose fittings suit their respective thread and hose sizes.
One meter with its quick-connect ends is supplied. The tap, separate tap adapter, hose and hose-end connector are not included. The optional connector shown above is for ½-inch hose; choose a different suitable hose connector when your hose size requires it.
Questions about the WL-3100 water counter
Does it shut off when a chosen volume is reached?
No. It displays measured water volume; it is not an automatic shut-off valve or watering timer. Stop the water at the tap or use separate suitable control equipment.
What do the two readings show?
The upper counter is the session volume and the lower is the running total. Clear resets the session reading; Reset clears the total. Check the selected unit before recording or comparing readings.
Can I select gallons instead of litres?
Yes. Litres are the default. Hold Clear for about three seconds to enter unit selection, choose with Reset and confirm with Clear. Follow the supplied instructions for your unit.
Does the meter fit directly onto a threaded tap?
Its inlet is a female garden quick-release connector, so the tap needs a compatible male quick-connect nipple. A separate tap adapter may be needed. The lower male nipple accepts a compatible female hose-end connector; hose and separate fittings are not included.
Product information & technical details
| SKU | WFMQ001 |
|---|---|
| Product type | |
| Colour | Grey, White |
| Material | Plastic |
| Brand / model | Bradas WHITE LINE WL-3100 |
| Display | LCD, session and total-volume readings |
| Measurement units | Litres or gallons |
| Maximum displayed measurement | 999.9 litres / gallons |
| Inlet connection | Female garden quick-release connector |
|---|---|
| Outlet connection | Male garden quick-connect nipple |
| Power | CR2032 battery; supplied fitted |
| Display sleep | Around 30 minutes without activity |
| Measurement tolerance at 3–8 bar | ±8% |
| Measurement tolerance at 1–2 / 9–10 bar | ±10% |
| Quantity supplied | 1 meter with quick-connect ends; tap and hose fittings separate |
