Description
A controlled outlet for 20mm pipe
Connect a compatible IBC water store to 20mm MDPE pipe, with a lever valve at the outlet for local on/off control. The kit brings together the tank cap, plated brass valve and straight compression connector.
The tank end fits a male S60x6 coarse-thread outlet. The other end takes MDPE pipe measured at 20mm outside diameter, so check both connections before ordering.
Three fitting parts supplied. The IBC, its original valve, pipe, pipe liners and thread-sealing tape are separate.
What each part does

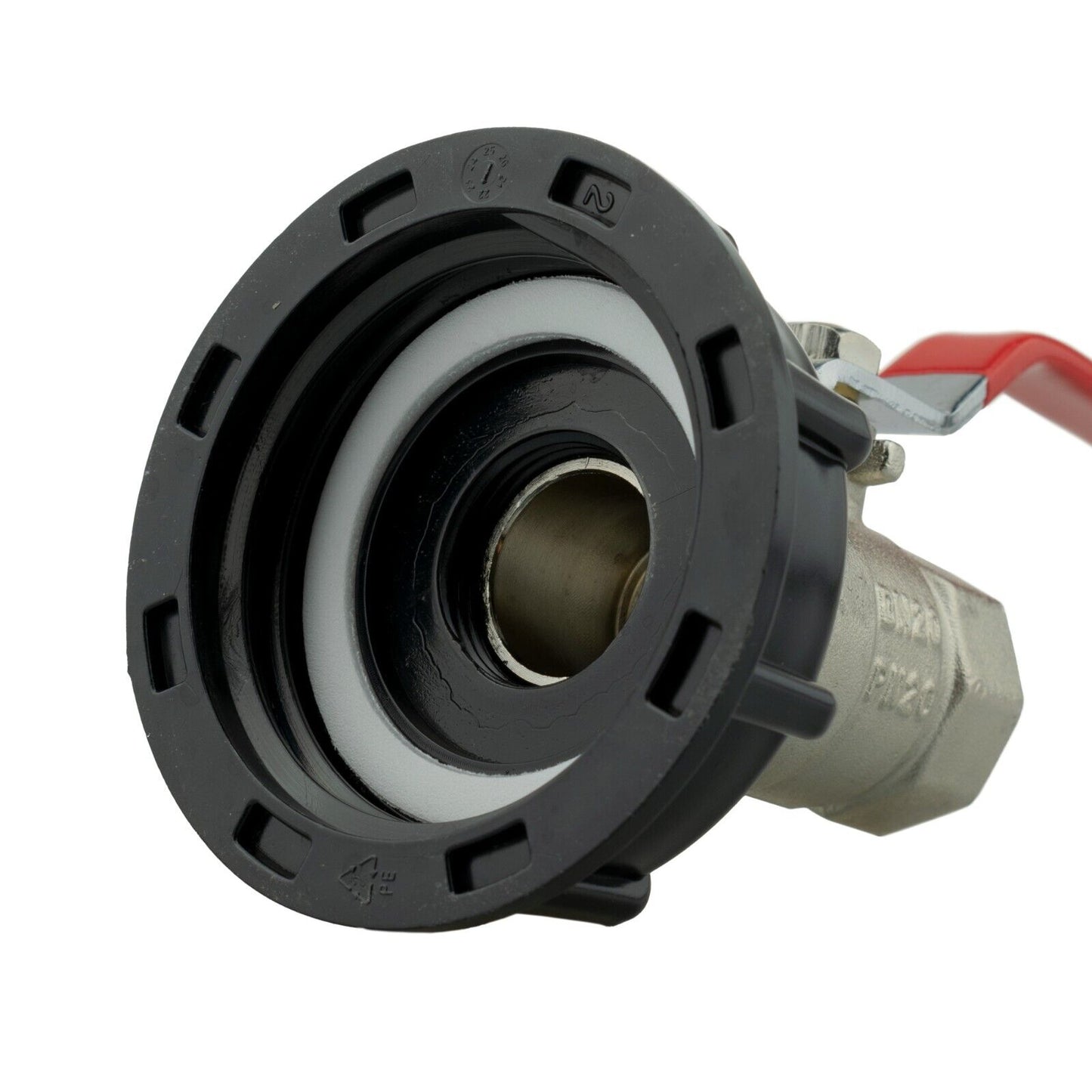

The black cap screws onto the tank's matching male S60x6 outlet. Its central ¾-inch BSP female socket accepts the valve's male thread.
The plated brass lever valve provides on/off control between the tank and your pipe run. Its ¾-inch BSP female end takes the compression connector's male thread.
The straight compression connector grips compatible 20mm OD MDPE pipe. It is a pipe fitting, not a push-on hose barb or a garden-hose quick connector. Support the pipe run so it does not pull on the tank outlet.
Check the connection before fitting
Will this fit an ordinary garden hose?
No. The compression outlet is for compatible MDPE pipe with a 20mm outside diameter. A hose described by its internal bore is a different connection. At the tank end, check for a male S60x6 coarse thread; the ¾-inch BSP threads join the kit components and do not identify the IBC outlet.
Do I need tape, pipe liners or extra pipe?
The kit contains the cap, lever valve and compression connector only. Pipe and any required liners are separate. PTFE tape may be required at the BSP threaded joints and is sold separately. Prepare and assemble the compression connection according to the pipe and fitting instructions, including any liner requirement, then check the completed joints for leaks before use.
Product information & technical details
| SKU | IBC001M |
|---|---|
| Product type | |
| IBC thread size | S60X6 (2") |
| MDPE size | 20mm |
| Kit parts | 1 × S60x6 cap with ¾-inch BSP female socket, 1 × ¾-inch BSP male/female lever valve, 1 × ¾-inch BSP male to 20mm compression connector |
| Colour | Black, Silver, Grey |
|---|---|
| Material | Plastic, Brass |
| Valve body | Plated brass |
| Valve component threads | ¾-inch BSP male / female |
| Compression connector | ¾-inch BSP male to 20mm OD MDPE pipe |
