Description
Bring the spout further from the supply connection
A long straight body gives this bib tap its extended shape. The turn handle sits above the tap body, with a downward spout and tail for 13mm-bore hose.
½-inch BSP inlet · nickel-plated brass · removable hose tail
One tap supplied. Hose, clips and mounting fittings are separate.
Check the extended section against your available space

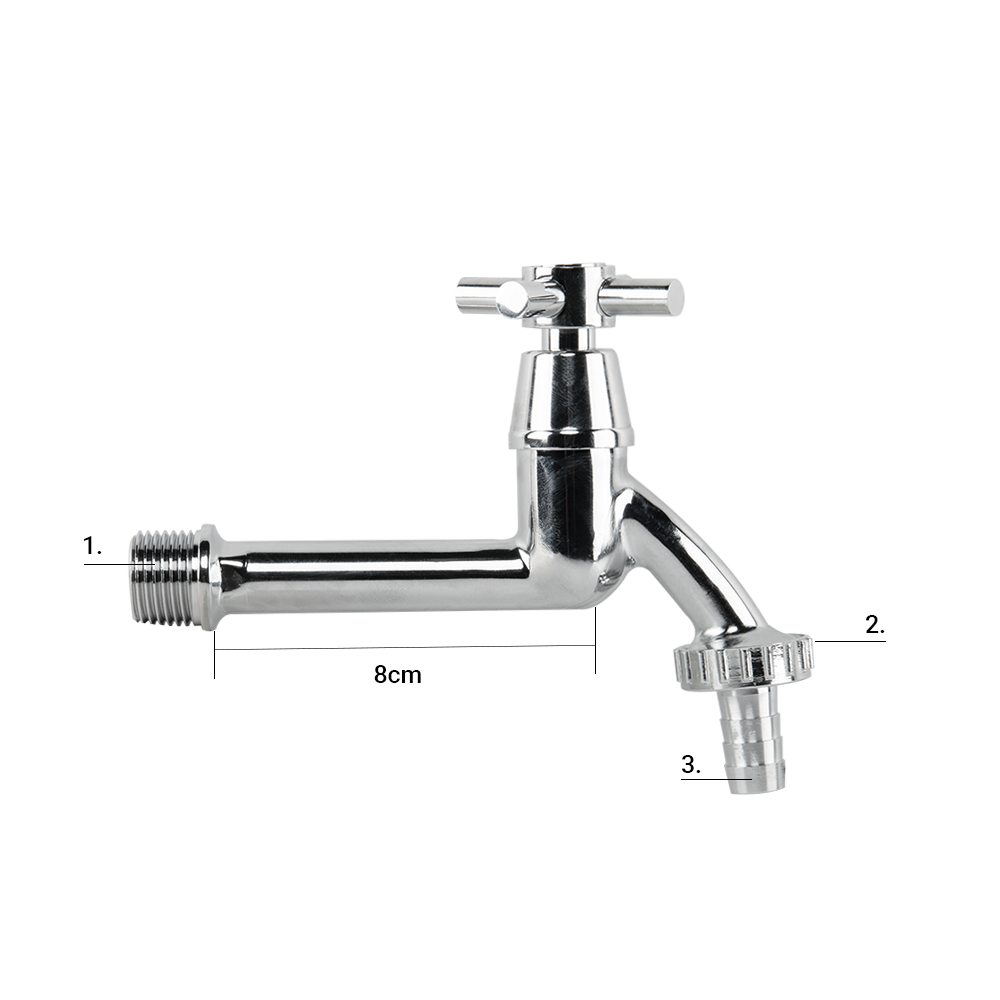

The drawing marks an 8cm section between the inlet shoulder and tap body. The curved spout and hose tail extend beyond that section.
Use the complete shape when checking clearance for a wall, container or water point. The 8cm mark is not the tap's overall length and should not be treated as the installed distance to the end of the spout.
Leave room above for your hand to turn the handle and below for the hose or watering can. The final position also depends on the supply fitting into which the inlet screws.
Match the supply thread and hose separately
The rear connection is ½-inch BSP male for a matching female BSP supply fitting. BSP is a nominal thread designation, rather than the outside diameter measured across the threads.
The supplied ribbed tail takes ½-inch-bore hose, approximately 13mm internally. Fit suitable hose directly over the ribs and secure it with an appropriate clip.
The hose-tail fitting is removable. The supplied tail is not a male click-fit plug, so a female garden quick connector will not click directly onto it.
Fit the longer body without loading the joints
Support the supply connection and leave the hose free to move.
Prepare the mounting
Isolate the water and check the matching BSP fitting. Use the sealing method required by that joint and support the mating fitting during installation.
Secure the hose
Use suitable 13mm-bore hose with an appropriate securing clip. Allow slack so pulling the hose does not twist or strain the extended tap body.
Check before use
Restore water gradually and check the inlet and outlet joints. Isolate and drain exposed outdoor fittings and attached hose ahead of freezing weather.
Questions about the extended bib tap
Is 8cm the total length of the tap?
No. It is the section marked between the inlet shoulder and tap body in the dimension drawing. The spout and hose tail extend beyond it. Check the full shape and your mounting arrangement when planning clearance.
What supply connection does it need?
The tap has a ½-inch BSP male inlet, which needs a matching female BSP fitting or a suitable adapter for a different connection. Mounting fittings and adapters are separate.
Can I fit a click-fit hose connector straight onto the tail?
No. The ribbed tail is for hose attached directly over it. A click-fit setup needs a compatible replacement outlet fitting; match the connection and sealing arrangement before changing it.
What is supplied with the tap?
One nickel-plated brass extended bib tap with turn handle and removable hose-tail fitting. Hose, clips, wall plates, supply adapters and sealing materials are separate.
Product information & technical details
| SKU | GTBIB12B001CH-LONG |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Body finish | Nickel-plated brass |
| Inlet connection | ½-inch BSP male |
|---|---|
| Hose connection | Tail for 13mm / ½-inch-bore hose |
| Extended section | 8cm section marked in dimension image |
| Handle | Turn handle |
| Outlet fitting | Removable hose tail with collar |
| Supplied quantity | One extended bib tap with hose tail |
| Mounting fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
