Description
Keep the screw connection. Detach at the camlock.
A Type A adapter gives a compatible male-threaded outlet a male camlock connection. Screw the female BSP end onto your equipment, then attach a separate female camlock coupler at the grooved end.
When it is time to change or remove the hose assembly, open the cam joint rather than repeatedly unscrewing the equipment connection.
Two ends. Two different connections.
Check both before choosing your size above.
- Female BSP thread: the internal screw thread fits a matching male BSP thread on your pipework, tank outlet or equipment.
- Male camlock: the smooth nose and surrounding groove fit a compatible female camlock coupler of the same nominal size.
Choose ½, ¾, 1, 1¼, 1½, 2, 3 or 4 inches. These are nominal connection labels, not measurements across the body or a hose-bore specification. A 2-inch option has a nominal 2-inch camlock and 2-inch female BSP thread; their physical diameters differ.

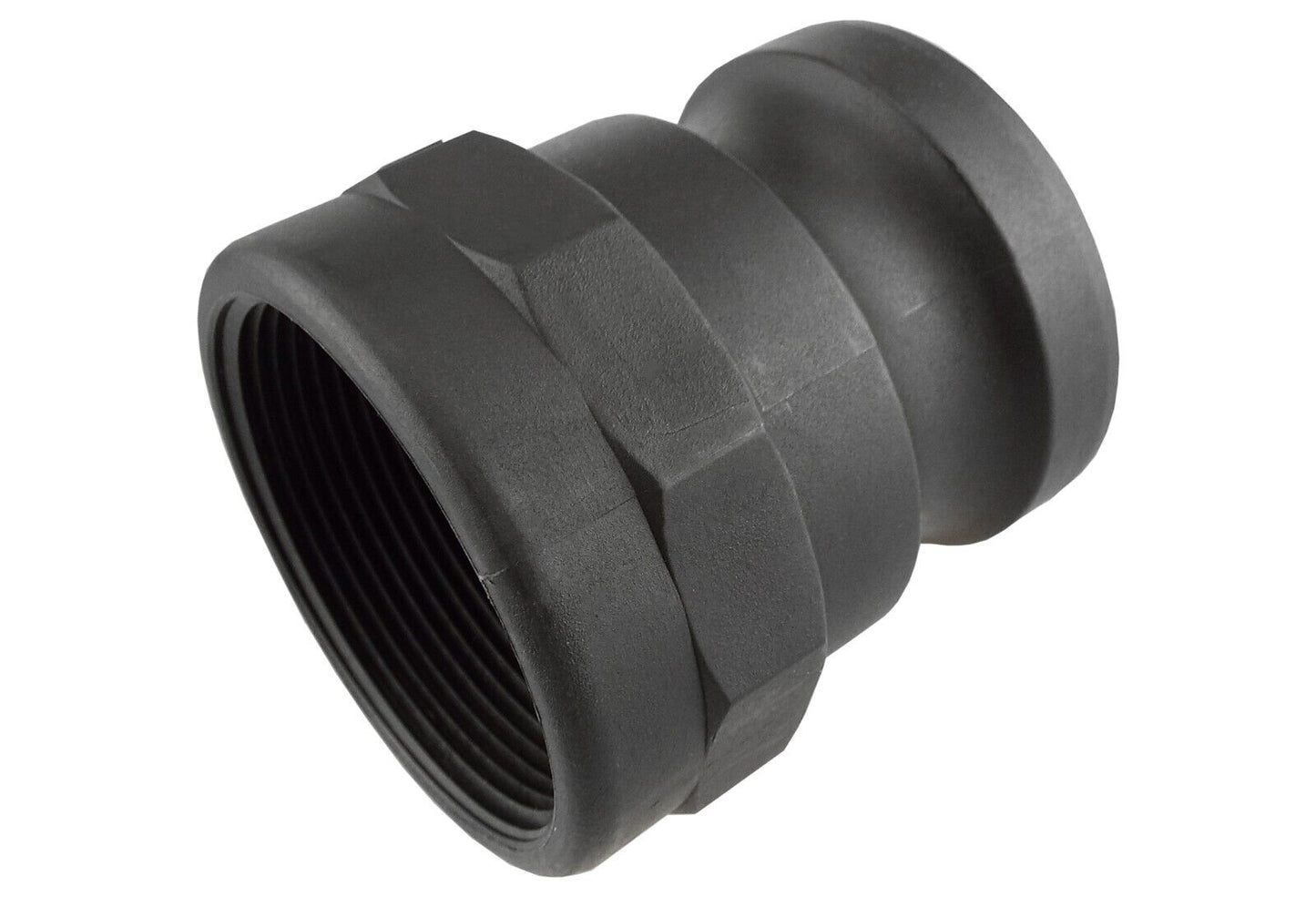

Photos show the Type A design. Mould details and body proportions vary with size; the selector determines the one adapter supplied.
Set up the fixed end once
Then use the cam connection for routine hose changes.
- Match the male equipment thread to the adapter’s female BSP thread. Check the thread form and use a sealing arrangement suitable for that connection.
- With flow stopped, seat the male camlock fully in a compatible female coupler. Close both of the female coupler’s arms evenly by hand and fit its retaining hardware as instructed.
- Check the assembled connection before use. Stop the flow, isolate and depressurise before opening the cam joint again.
The lightweight black body is polypropylene. Check the body, coupler seal and complete assembly against your liquid, temperature and working pressure. This is an open-bore adapter, so use separate flow control where needed.
Choosing the right adapter
Why is it called male when the screw thread is female?
“Male” describes the camlock end: its grooved nose enters a female camlock coupler. The other end has an internal, female BSP thread. Type F is the alternative male camlock design with an external male BSP thread.
Does it connect directly to an IBC outlet?
Only if the outlet has the correct matching BSP male thread. Common IBC coarse threads are different, so identify your outlet and use a suitable adapter where required. This fitting does not include an IBC thread converter or a shut-off valve.
Product information & technical details
| SKU | CAMTA12BSPF001[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1", 1.25", 1.5", 2", 3", 4" |
| Thread gender | Female |
| Camlock type | Type A |
| Camlock size | 1/2", 3/4", 1", 1.25", 1.5", 2", 3", 4" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Polypropylene (PP) |
| Supplied quantity | 1 × Type A adapter in the selected nominal size. Female coupler, hose, outlet and sealing materials are separate. |
| Connection layout | Male camlock groove × female BSP thread, both carrying the same nominal size label. Not a reducing adapter. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
