Description
Two hose outlets
A plastic bib tap and two-way valved splitter, supplied with a brass tank adapter.
Control the main supply at the tap, then open or close each hose branch separately.

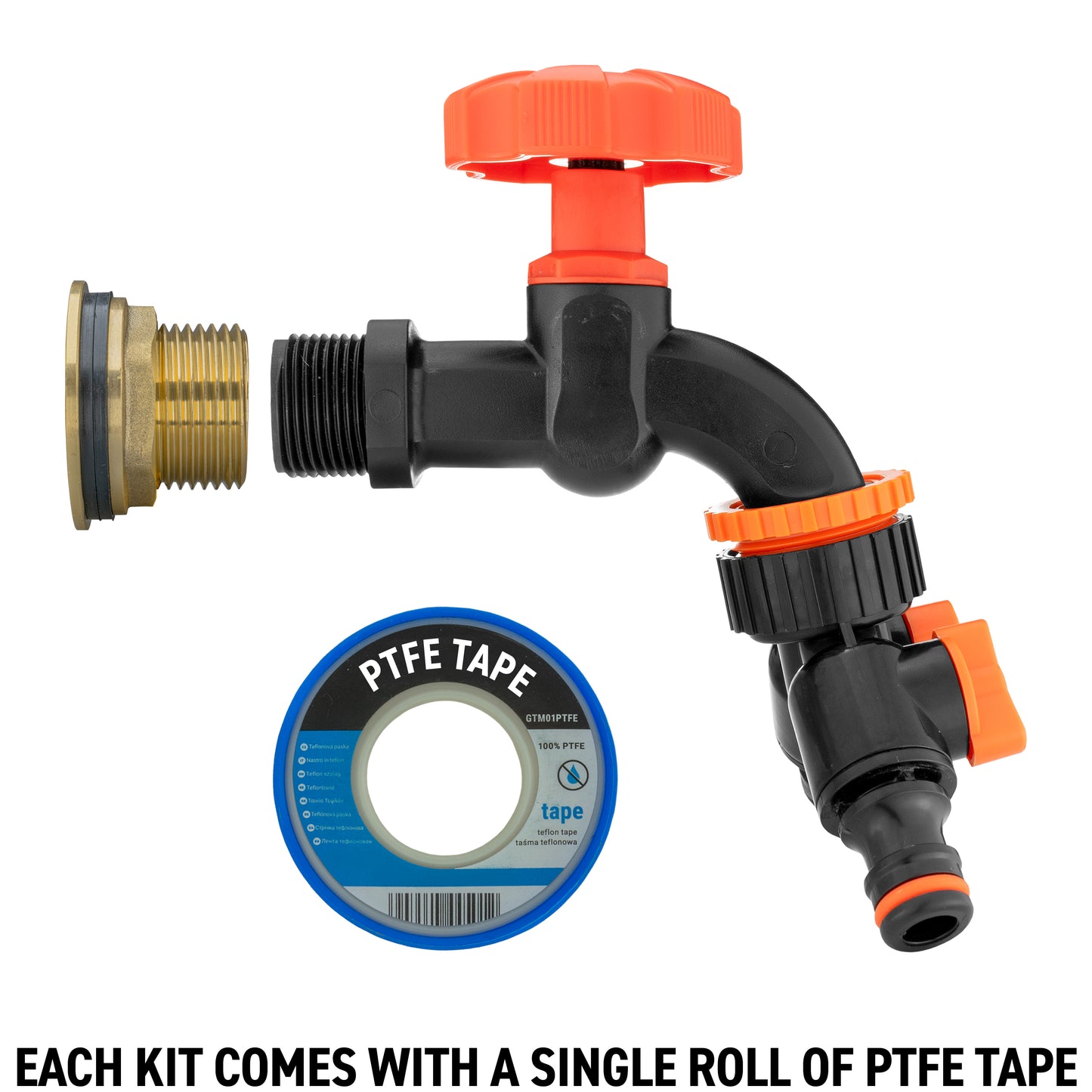

Choose one colour and size. PTFE tape included.

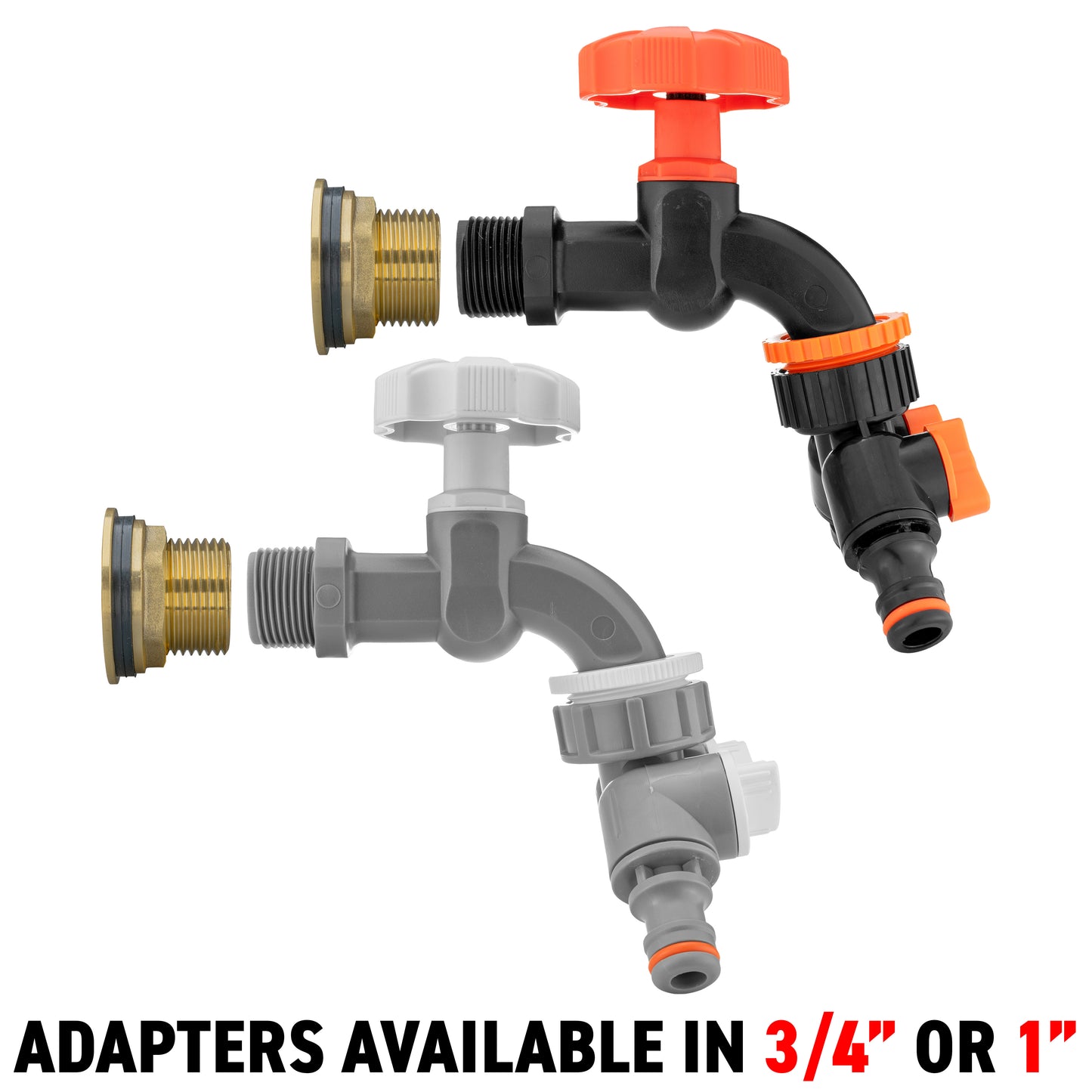

The ¾-inch adapter option
The brass adapter has a ¾-inch BSP male external thread and ½-inch BSP female internal thread. It is paired with a tap that has a ½-inch BSP male inlet.

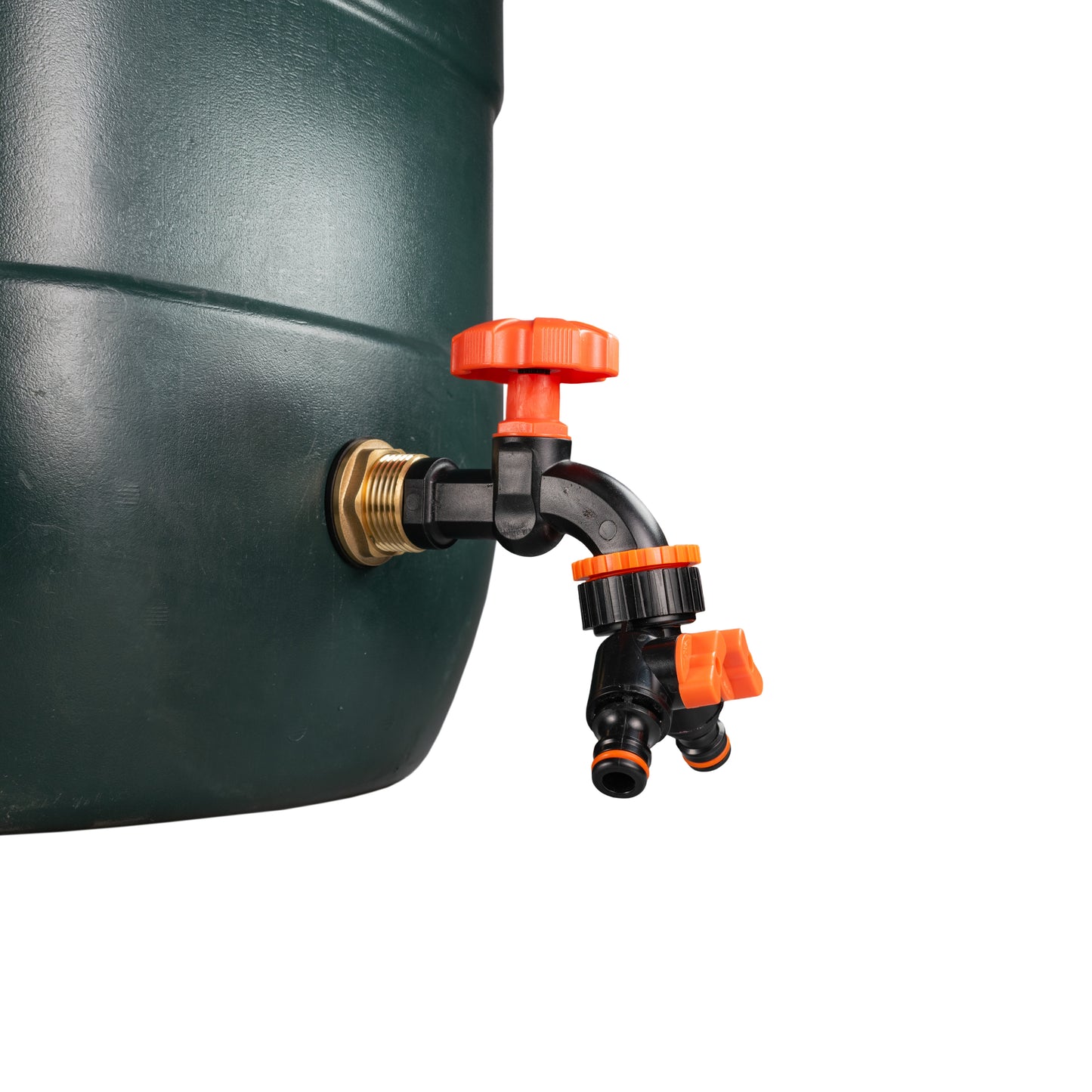

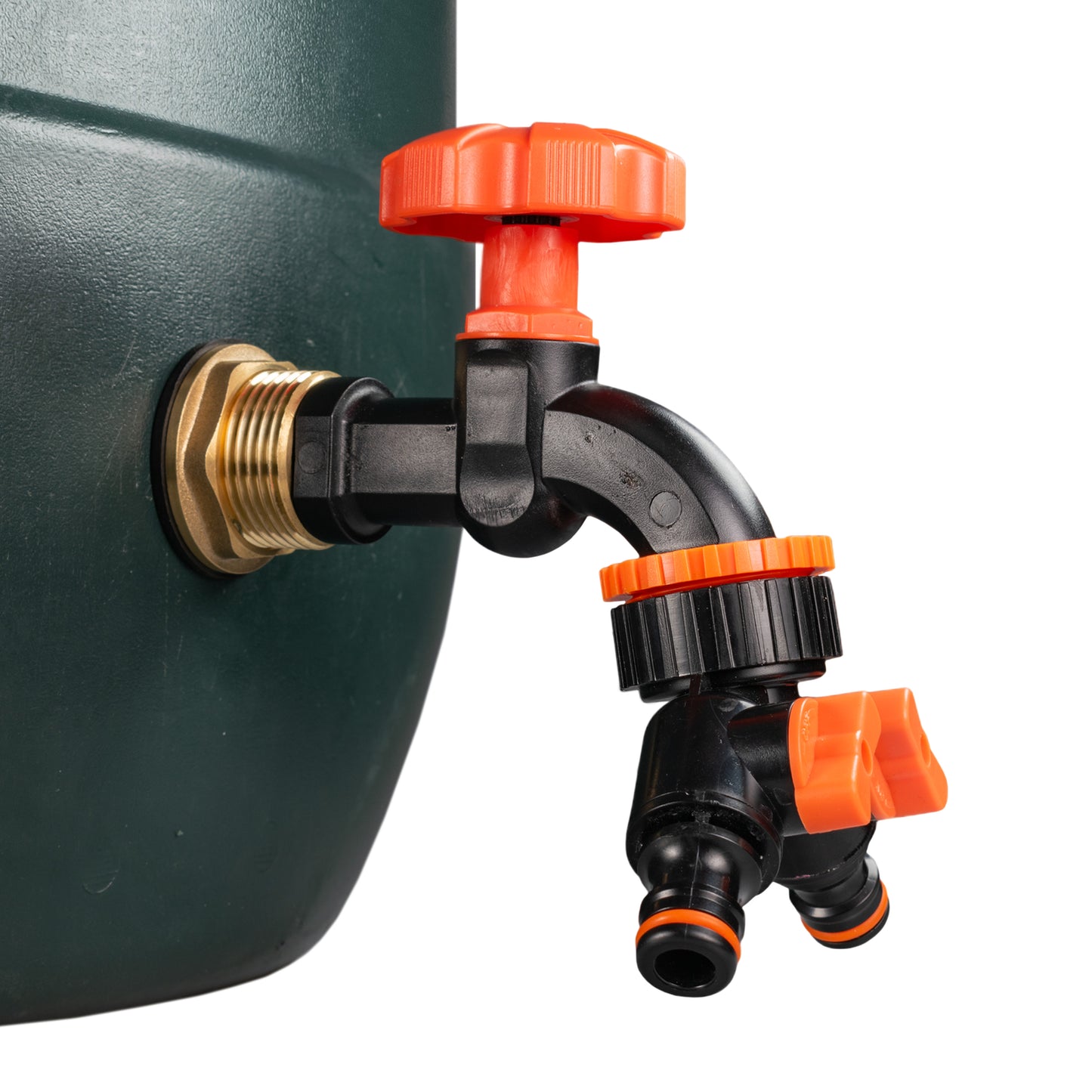

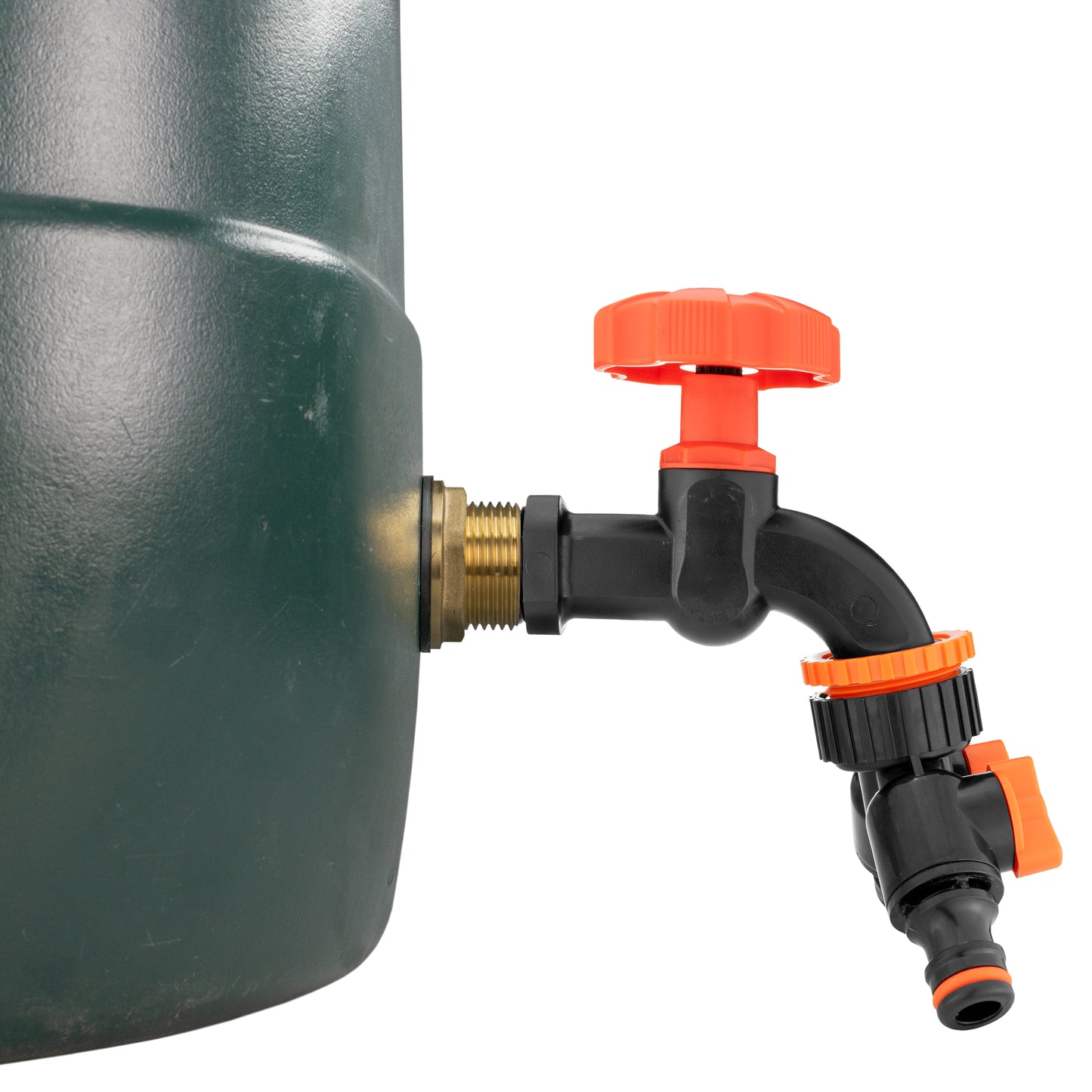

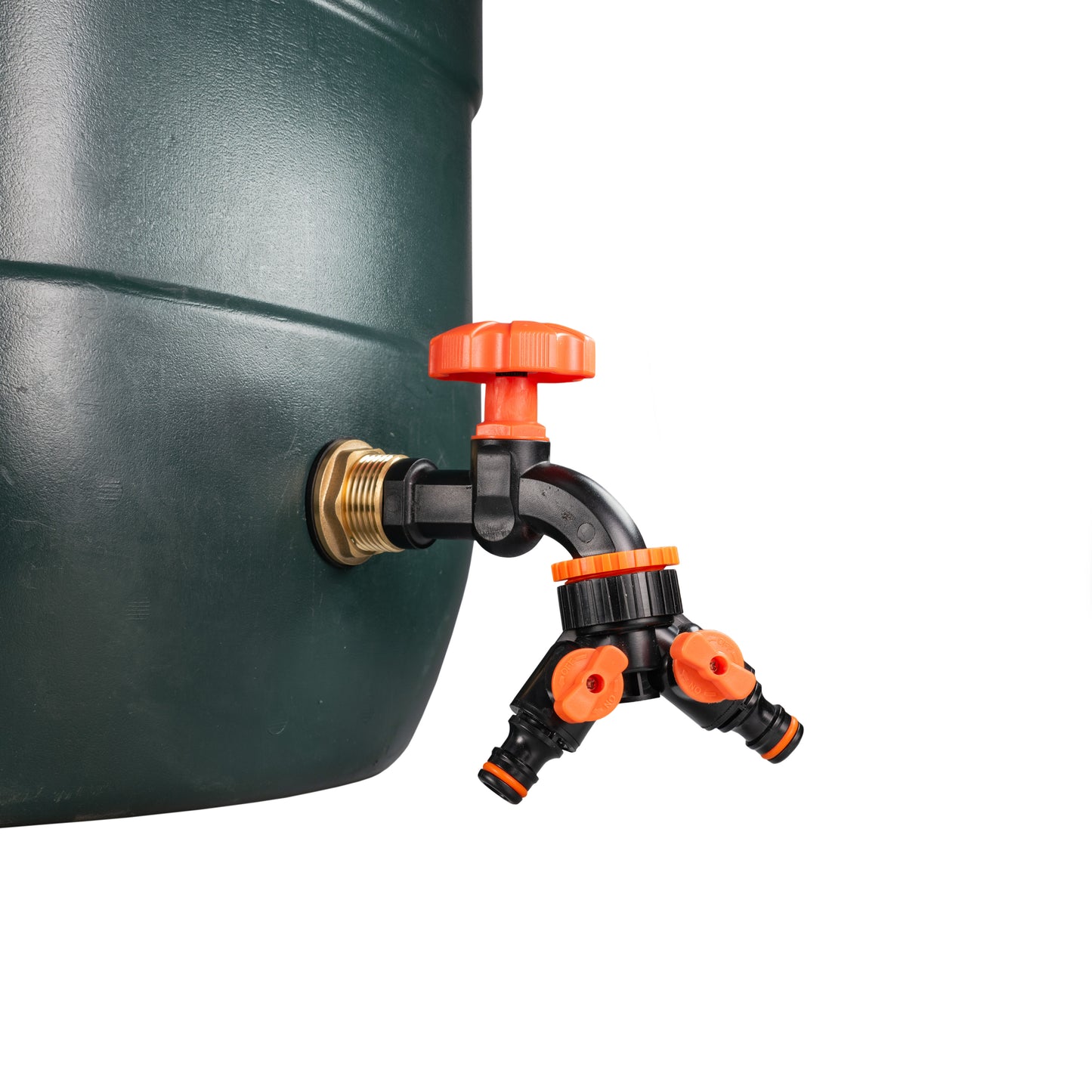

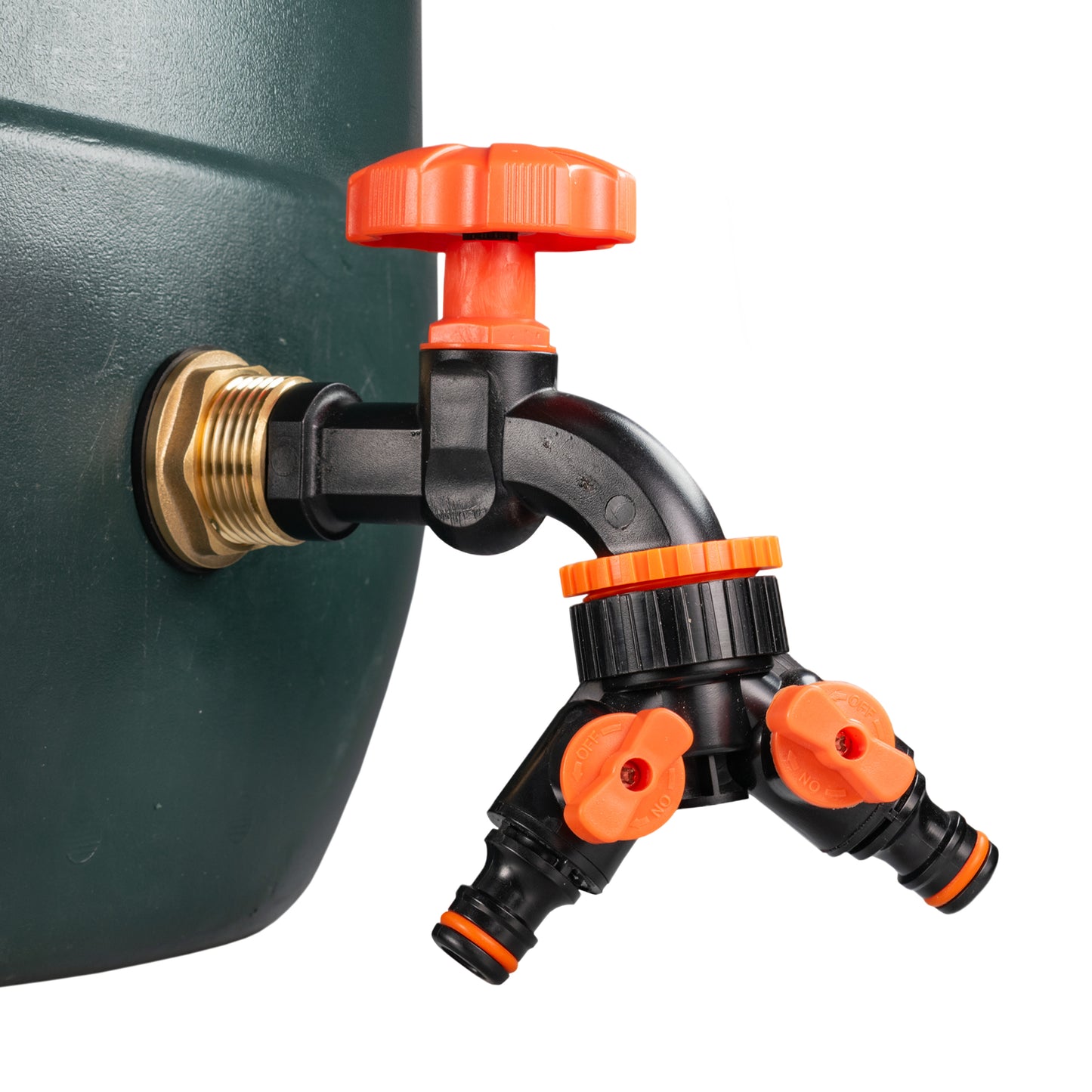

Shown here is the Black & Orange kit, SKU WB12-BRASS-KIT-009+. The same adapter-size option is also available in Grey & White, SKU WB12-BRASS-KIT-010+.
Both include the adapter with its nut and two washers, the plastic bib tap, a separate two-way valved splitter and one PTFE roll. The adapter size refers to the tank-side thread.
The 1-inch adapter option
This brass adapter has a 1-inch BSP male external thread and ¾-inch BSP female internal thread. The supplied tap has a matching ¾-inch BSP male inlet.

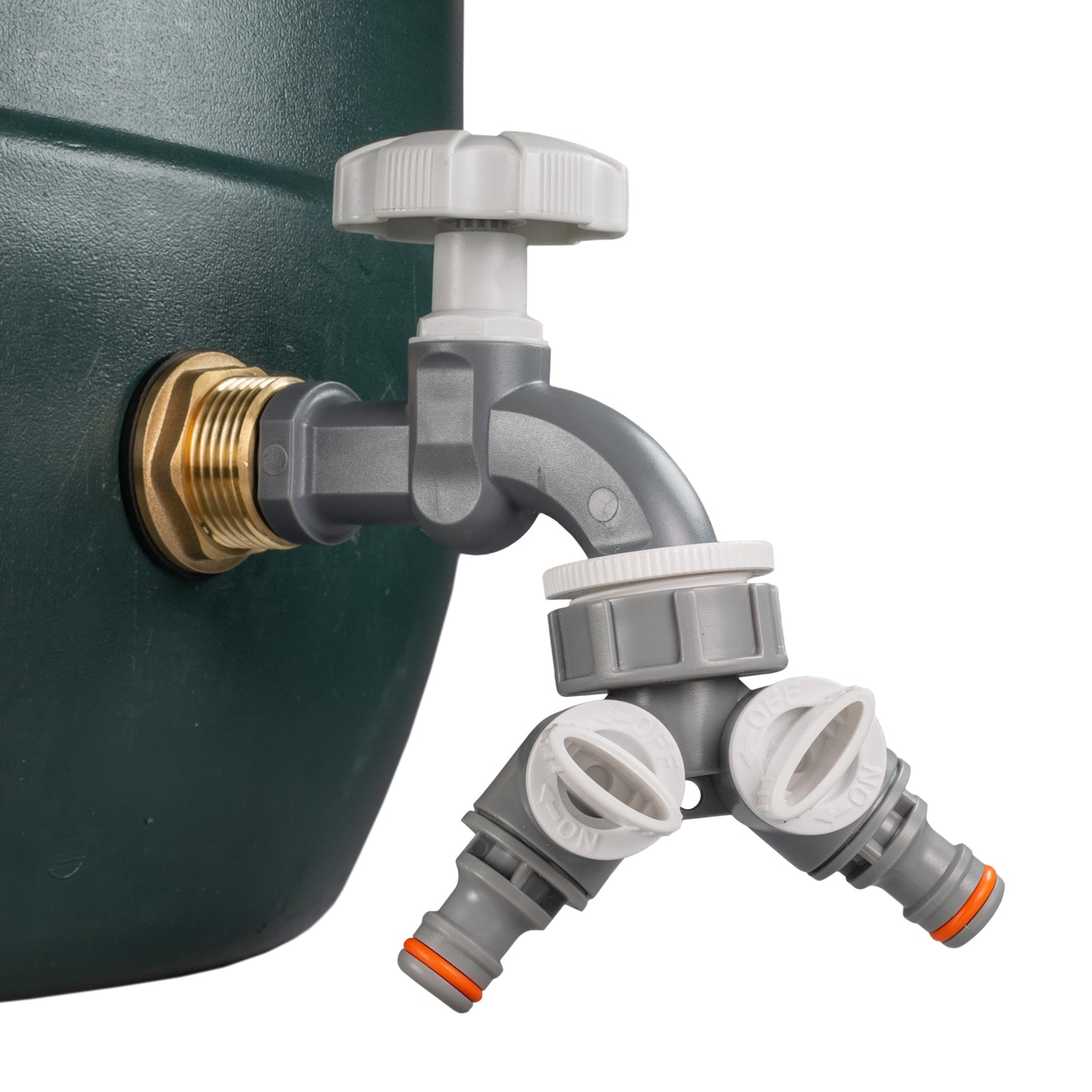

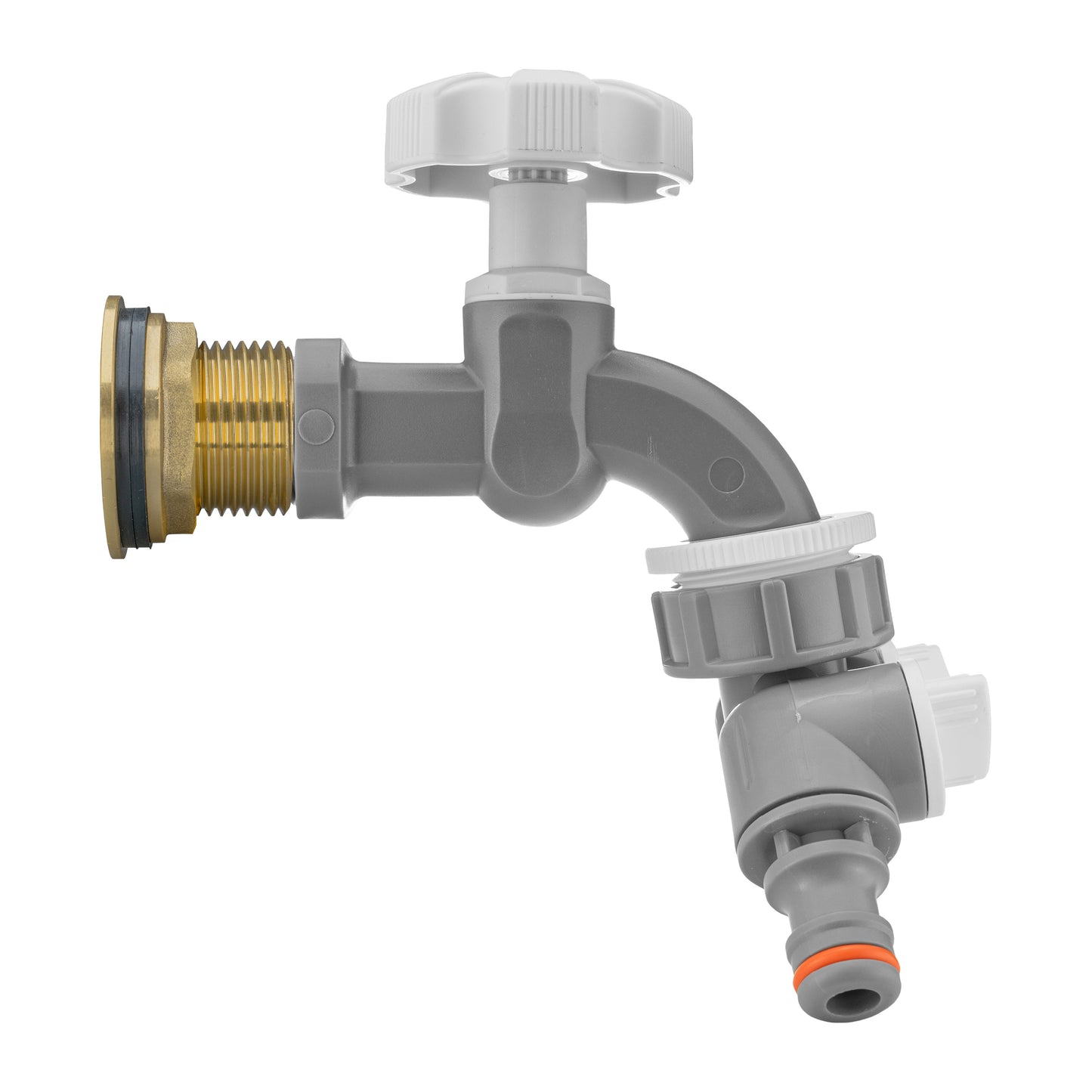

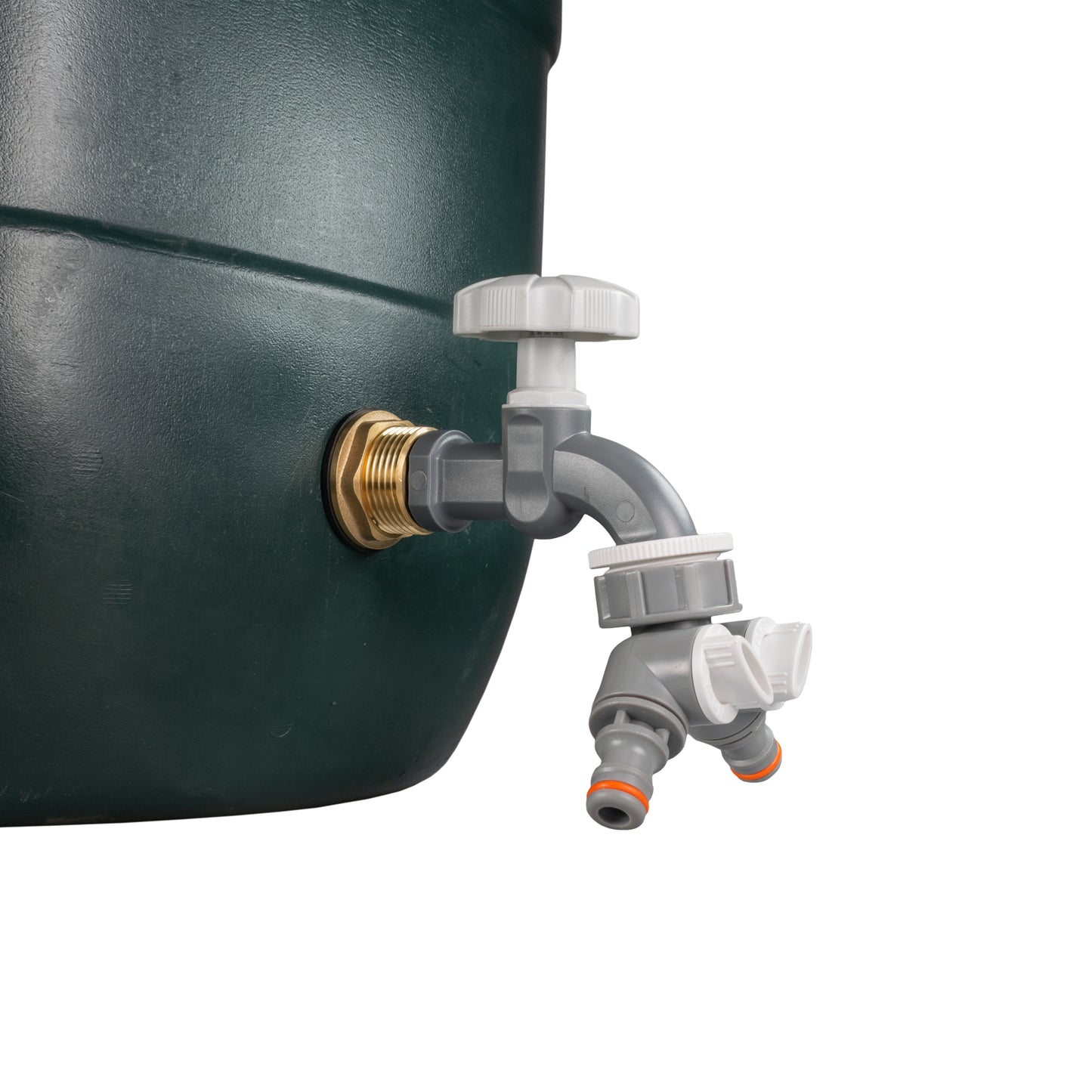

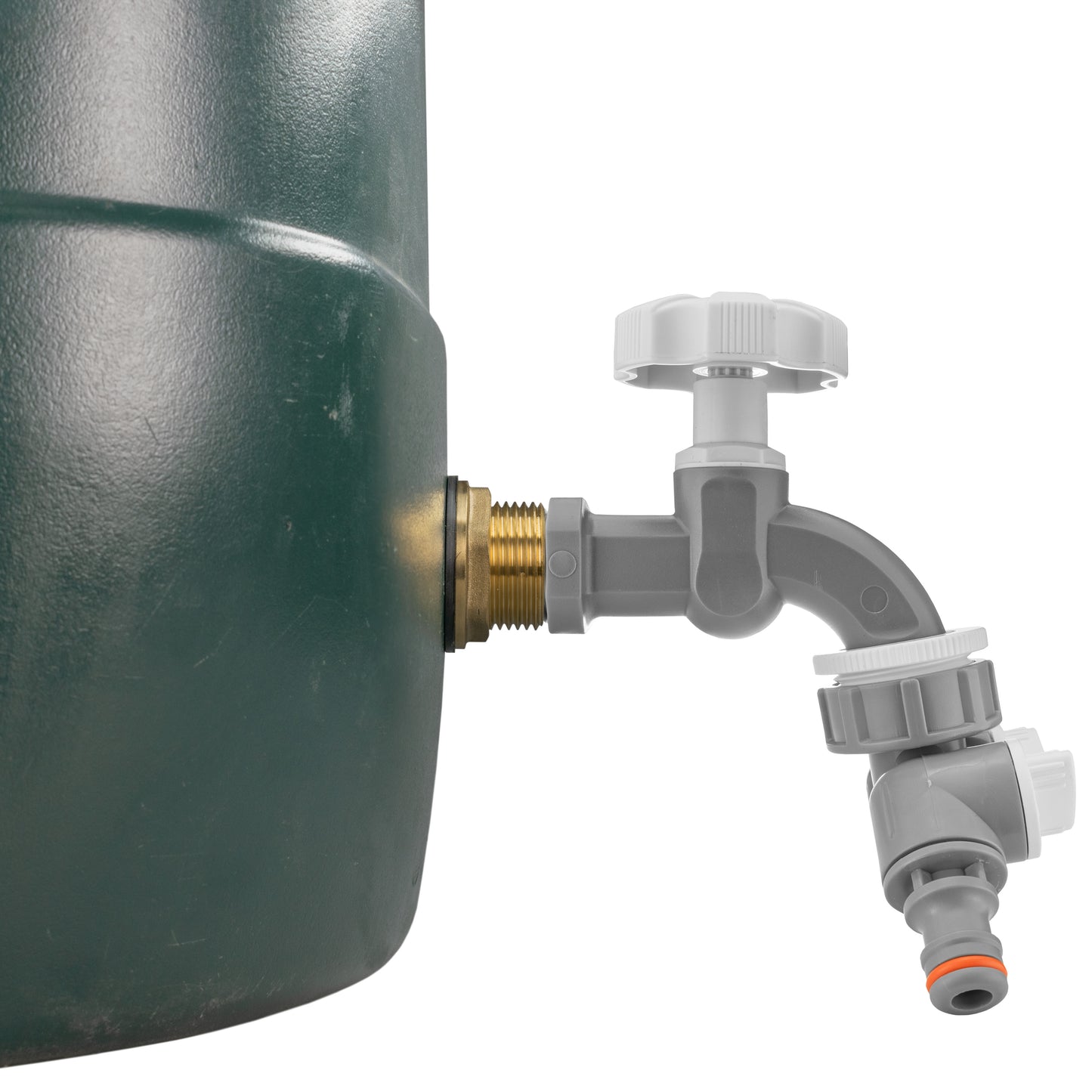

The Grey & White version shown is SKU WB34-BRASS-KIT-010+. Select Black & Orange for SKU WB34-BRASS-KIT-009+.
Each kit supplies one two-way splitter with independently valved male quick-connect outlets. Both hose branches share the water available from the same tank; the splitter does not increase the supply pressure.
Check the mounting point and both branches
Make room for the controls, connector releases and the weight of the hoses.
Match the tank thread
Check the actual thread and gender of an existing outlet. For a new opening, check the adapter, wall thickness, washer seating and nut access first. BSP thread names are not drilling diameters.
Connect the hoses
Each male outlet nipple needs a matching female quick connector on the hose. Leave room to release both connectors and turn the branch valves. Support the hoses so they do not pull on the splitter.
Test the controls
The main tap must be open to supply the splitter. Check each branch valve, mounting seal and threaded connection with water after fitting. No pressure rating is specified for the complete assembled kit.
Questions about the tap and splitter kits
Can I turn each hose on and off separately?
Yes. The splitter has an individual valve for each of its two outlets. The bib tap provides a separate main control upstream, so it must be open for either branch to receive water. Both branches share the supply available from the same tank; the splitter does not create additional water pressure.
Which adapter size do I need?
Match the adapter’s external male thread to the tank connection. The ¾-inch BSP option uses a ¾-inch male / ½-inch female adapter and ½-inch male-inlet tap. The 1-inch BSP option uses a 1-inch male / ¾-inch female adapter and ¾-inch male-inlet tap. Both sizes are available in either colour.
Do bare hoses push straight onto the splitter?
No. The splitter outlets are male quick-connect nipples, rather than hose barbs. Each hose needs a matching female receiving connector. Check the connector system on your hoses before ordering; hoses and their receiving connectors are not supplied in these kits.
Is the splitter built into the tap?
No. The kit includes a plastic bib tap and a separate two-way splitter fitted beneath the spout. You also receive the brass tank adapter with its nut and two washers, plus one PTFE roll. Choose one colour and adapter size above; a tank, hoses, matching hose connectors and drilling tools are separate.
Product information & technical details
| SKU | WB12-BRASS-KIT-009+ |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1" |
| Thread gender | Male, Female |
| Kit parts | Brass Tank Adapter, Plastic Bib Tap, 2-way Valved Splitter with Male Quick-connect Outlets, PTFE Tape |
| Colour | Brass, Black, Orange, Grey, White |
| Material | Brass, Plastic |
| ¾-inch BSP option | ¾-inch BSP male / ½-inch BSP female adapter; ½-inch BSP male tap inlet |
|---|---|
| 1-inch BSP option | 1-inch BSP male / ¾-inch BSP female adapter; ¾-inch BSP male tap inlet |
| Splitter outlets | 2 male quick-connect nipples; matching female hose connectors required |
| Water controls | Main tap plus an independent valve for each splitter outlet |
| Adapter mounting parts | Brass back nut and two washers |
| Kit quantity | 1 adapter, 1 tap, 1 two-way splitter and 1 PTFE roll |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
