Description

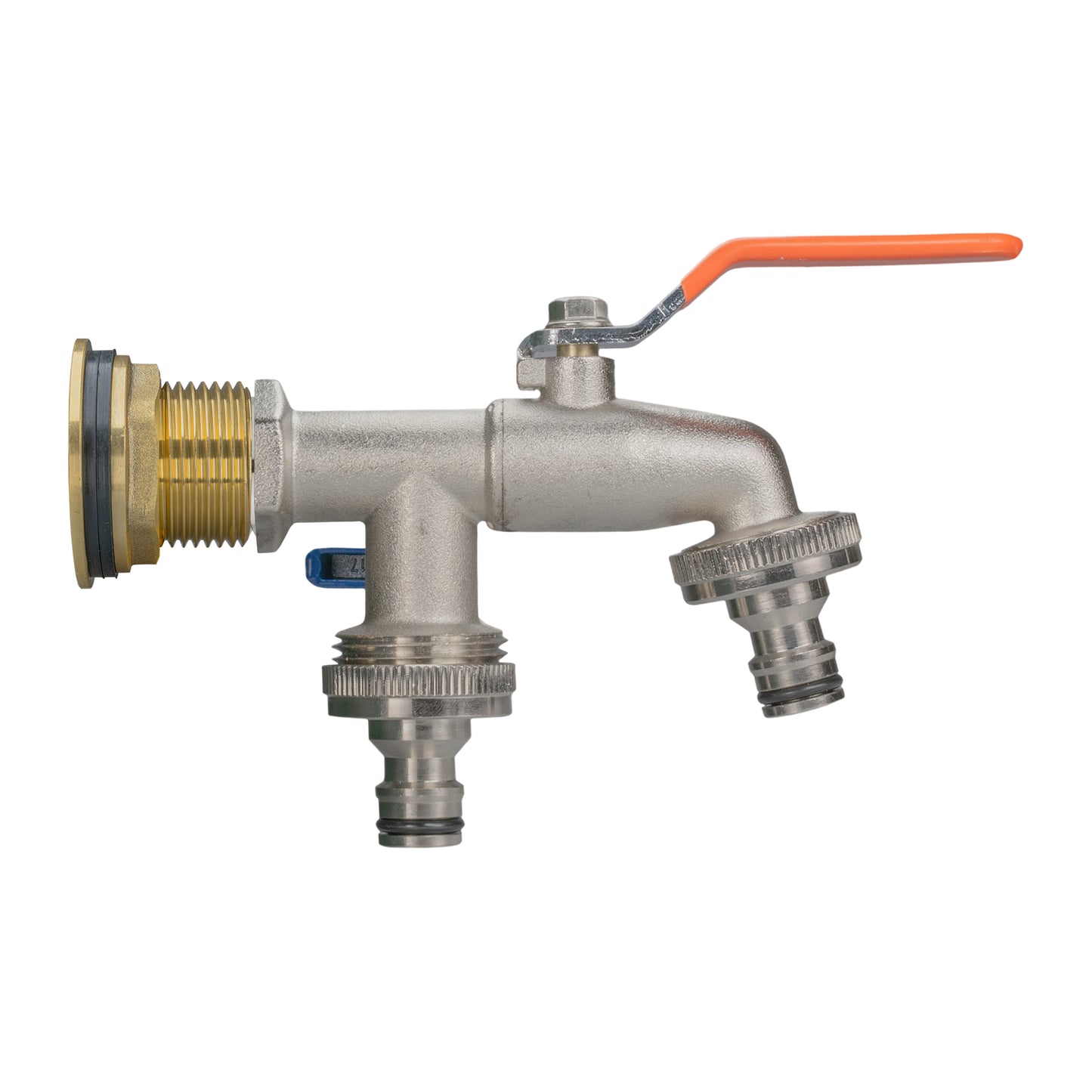

Two quick-connect outlets
A double-outlet metal tap with quick-connect fittings for both hose connections.
Supplied with a brass tank adapter and PTFE tape in your chosen size.
One selected-size kit. Hoses and mating hose-end connectors separate.
What makes this a double quick-connect kit?
The extra screw-on fitting equips the second outlet for a mating hose connector.
Front connection
The curved front spout has a click-lock quick-connect fitting operated by the main lever. Choose a compatible hose-end connector that also fits your hose; the hose and mating connector are separate.
Second connection
The downward branch has its own valve. An additional screw-on quick-connect tap fitting is included for this outlet, so both branches can accept suitable mating hose-end connectors.
Both hose runs
Allow space to operate each control and release each connector. Support the attached hoses independently of the tap, and check every completed joint with water. Two outlets do not increase the pressure available from the tank.
¾-inch tank adapter kit
The ¾-inch BSP selector option uses a brass adapter with a ¾-inch male external thread and ½-inch female internal thread. Its matching double tap has a ½-inch BSP male inlet.
Kit WB12-BRASS-KIT-017+ also includes an extra ¾-inch BSP female quick-connect tap fitting for the second branch, plus one PTFE tape roll.
The adapter comes with a retaining nut and two washers. Check the tank-side connection and mounting access; the selector size is not the tap’s inlet size or a drilling dimension.
1-inch tank adapter kit
The 1-inch BSP option pairs a 1-inch male / ¾-inch female brass adapter with a ¾-inch BSP male-inlet double tap.
Kit WB34-BRASS-KIT-023+ includes an extra 1-inch BSP female quick-connect tap fitting for the second branch, one PTFE roll and the adapter’s nut and two washers.
Match the actual tank thread or assess the adapter and mounting parts before making a new opening. Check the wall thickness and washer seating, and leave room behind the wall for the nut.
Questions before you fit the kit
Are both hose outlets quick connect?
Yes. The front spout has a click-lock fitting, and the kit includes an extra screw-on tap connector for the separately controlled second branch. You still need a suitable mating hose-end connector on each hose. Check that those connectors suit both the tap fittings and your chosen hose.
Which adapter size should I choose?
Choose by the external BSP male thread needed at the tank: ¾ inch or 1 inch. The ¾-inch option uses a ½-inch inlet tap; the 1-inch option uses a ¾-inch inlet tap. Check the actual tank thread, wall thickness, washer seating and access. BSP names are nominal designations rather than drill sizes.
Can I control one hose without opening the other?
The two branches have separate controls: the main lever for the front spout and a second valve for the downward outlet. Each can be opened or closed independently. Actual flow still depends on the water supply, hose routing and connected equipment; the kit does not increase tank pressure.
What else is needed for installation?
Each kit supplies one brass adapter with nut and two washers, one matching metal double tap, one extra quick-connect tap fitting and one PTFE tape roll. Provide suitable hoses, mating hose-end connectors and any tools needed. No universal tank fit, mains-pressure rating or drinking-water approval is specified.
Product information & technical details
| SKU | WB34-BRASS-KIT-023+ |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1" |
| Thread gender | Male, Female |
| Kit parts | Brass Tank Adapter, Metal Double Outlet Tap, Extra Quick Connector, PTFE Tape |
| Colour | Brass, Silver |
| Material | Brass |
| Adapter material | Brass |
|---|---|
| Tap finish | Nickel-plated metal |
| Hose outlets | 2 click-lock quick connectors |
| Outlet control | Separate main lever and second valve |
| Adapter mounting parts | Back nut and two washers |
| Kit quantity | 1 adapter, 1 tap, 1 extra connector, 1 PTFE roll |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
