Description
Control the flow
Connect a suitable 13mm irrigation line to your tank with a brass adapter and an Antelco on/off valve.
A threaded tank connection at one end, a hose barb at the other.
One kit with PTFE tape. Irrigation water only.
Match the tank thread and tube separately
The brass adapter’s 1-inch BSP male external thread fits a matching tank connection. Its ¾-inch BSP female internal thread accepts the Antelco valve’s ¾-inch BSP male inlet.
The valve’s other end is a 13mm barb for suitable irrigation tube. Match the tube’s internal fit to the barb; an outside-diameter pipe label is a different measurement.

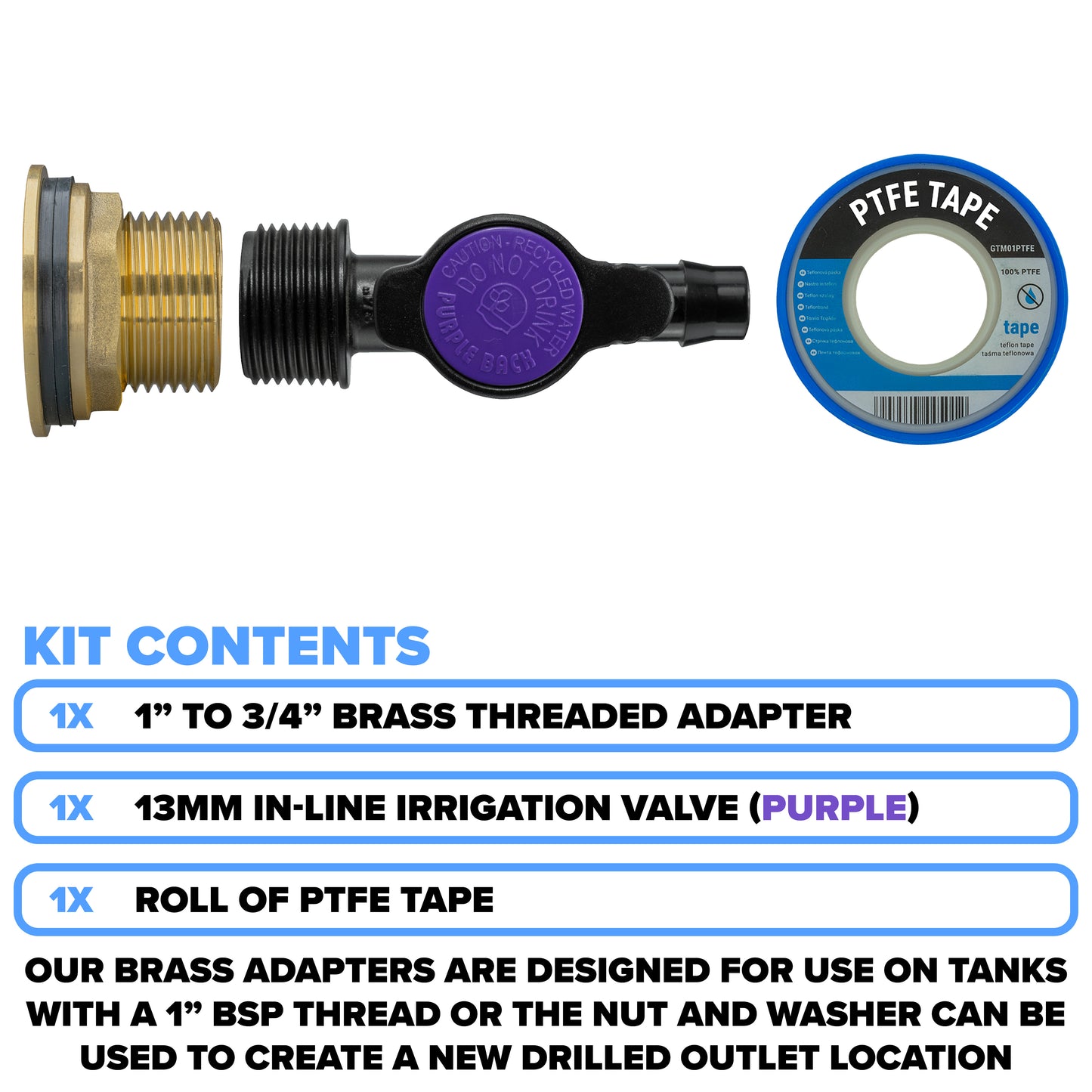

Kit WB34-BRASS-KIT-020+ includes the adapter with its brass back nut and two washers, one Antelco 46705 Purple Back valve and one PTFE tape roll. Hose, emitters and securing clips are separate.
The purple cap identifies the recycled-water version and is marked not for drinking water. This manual valve opens or closes the line; it does not automate watering or regulate pressure.
Build the connection around your tank
Check the mounting point, tubing fit and access to the valve before assembly.
Check the mounting point
Match an existing outlet’s actual thread. For a new opening, check the adapter, wall thickness, washer seating and access to the nut first. A nominal BSP size does not tell you what hole to drill.
Connect the irrigation tube
Use tube that fits the 13mm barb and a suitable securing method. Support the line so its weight does not pull on the valve or tank fitting, and leave room to operate the valve control.
Test before watering
Inspect the tank-wall seal, threaded joint and tube connection with water after assembly and again when the tank is filled. The assembled kit has no separately established pressure rating.
Questions about this irrigation valve kit
What does the 13mm size refer to?
It refers to the valve’s barbed outlet for compatible irrigation tube, not the tank thread. The adapter has a 1-inch BSP male external thread and a ¾-inch BSP female internal thread; the valve has a matching ¾-inch BSP male inlet. Check the tubing’s internal fit rather than assuming an outside-diameter label means the same thing.
Why does the valve have a purple cap?
This is Antelco’s Purple Back version for recycled-water irrigation applications. Its cap is marked not for drinking water. Use the kit for an appropriate irrigation-water setup; neither the colour nor the brass mounting adapter establishes drinking-water approval for the completed connection.
What pressure can the kit be used at?
Antelco specifies an operating range up to 300kPa (3 bar) for the valve component. That is not a pressure rating for this assembled kit, the tank, tubing or mounting seal. Check the requirements and ratings of the complete system before using a pressurised supply. The Antelco threaded-valve datasheet gives the valve’s specification.
Does this replace an irrigation timer?
No. The valve is a manual on/off control with a straight-through connection. It does not switch on to a schedule or regulate pressure. You receive one adapter with its nut and two washers, one valve and one PTFE roll; timers, tubing, emitters, clips and the tank are separate.
Product information & technical details
| SKU | WB34-BRASS-KIT-020+ |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Male, Female |
| Barb size | 13mm (1/2") |
| Kit parts | Brass Tank Adapter, Antelco 46705 Barbed Valve, PTFE Tape |
| Colour | Brass, Black |
| Material | Brass, Plastic |
|---|---|
| Adapter threads | 1-inch BSP male / ¾-inch BSP female |
| Valve model | Antelco 46705 Purple Back |
| Valve inlet | ¾-inch BSP male |
| Valve outlet | 13mm hose barb |
| Water use | Irrigation / recycled water; not drinking water |
| Kit contents | 1 brass adapter with nut and two washers, 1 valve, 1 PTFE roll |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
