Description

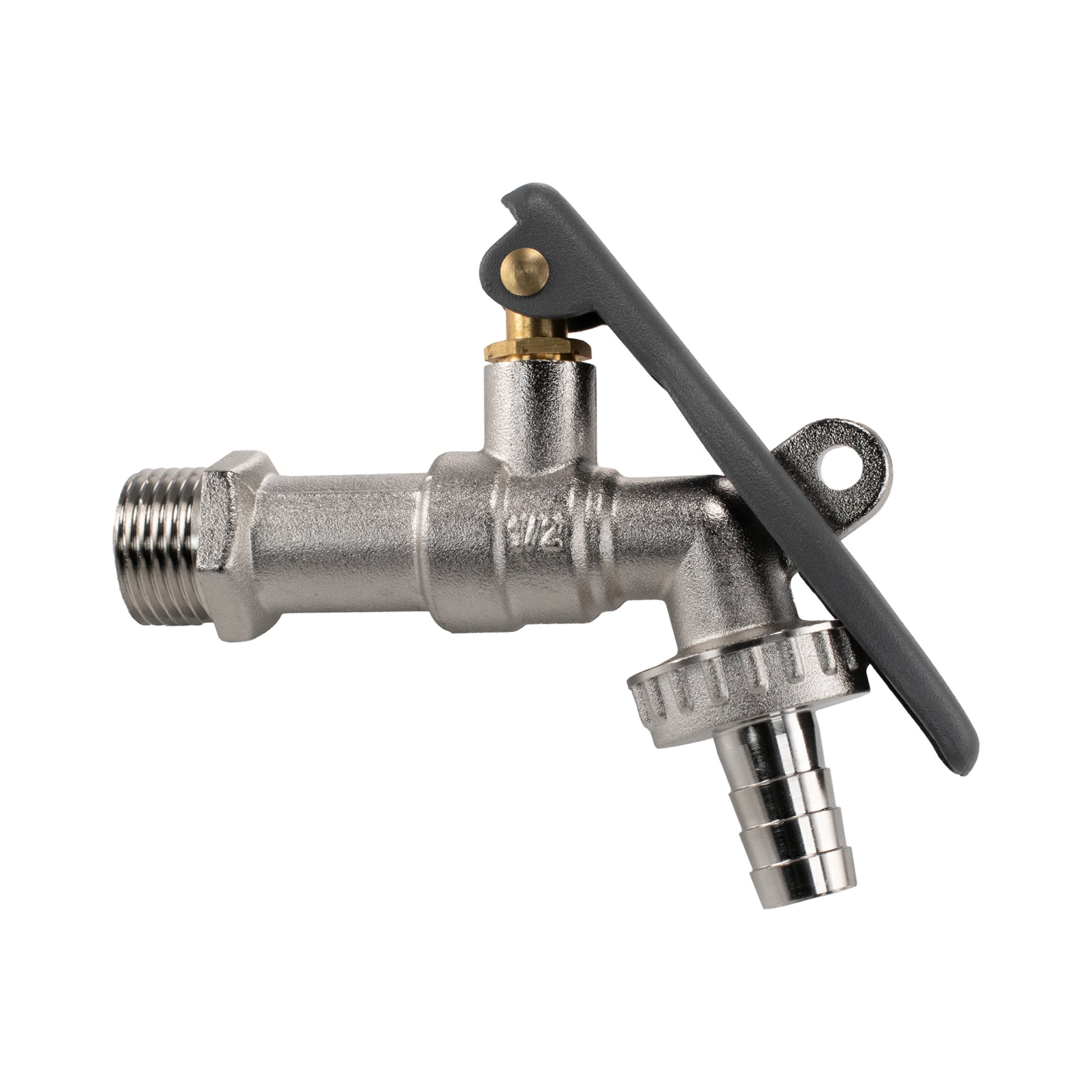

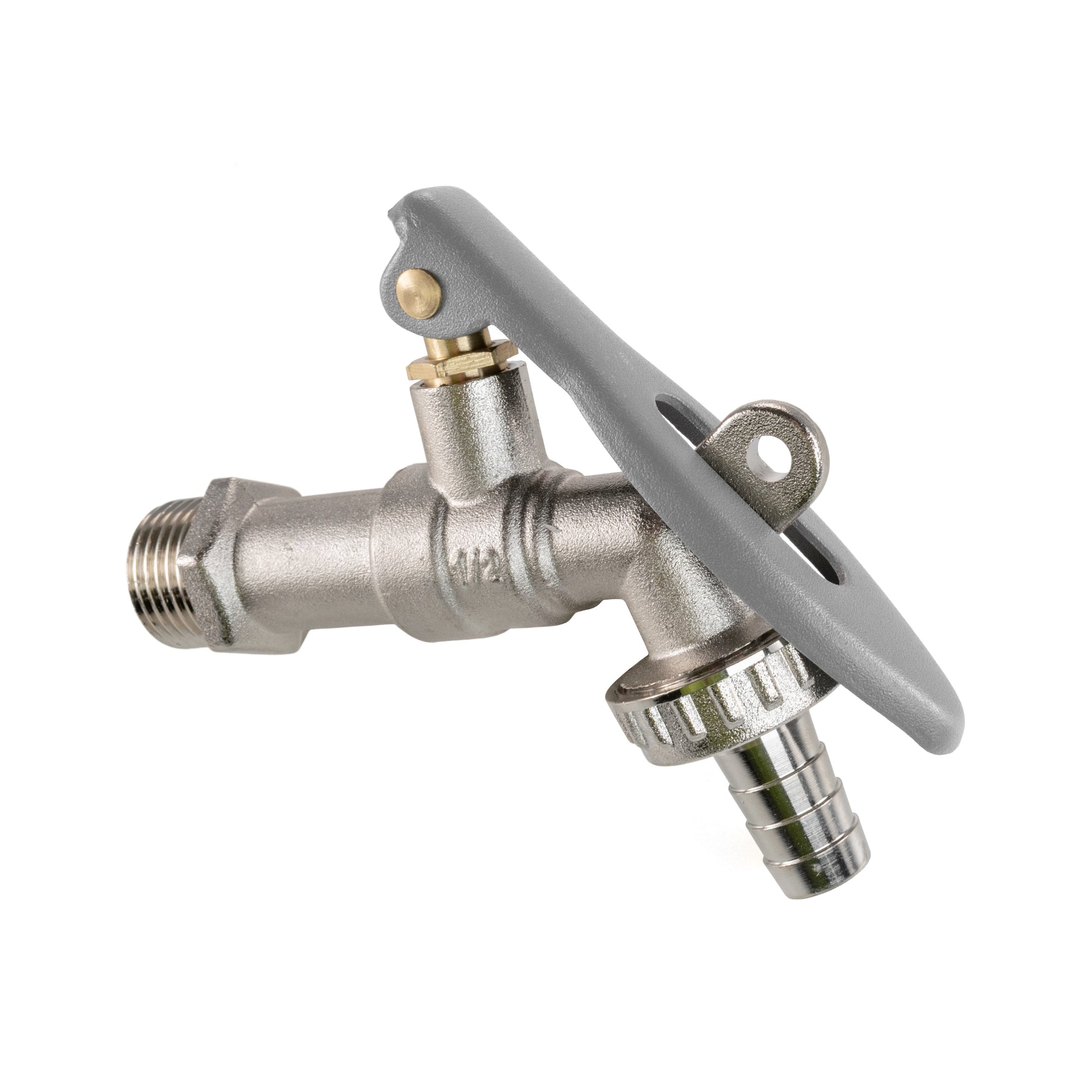

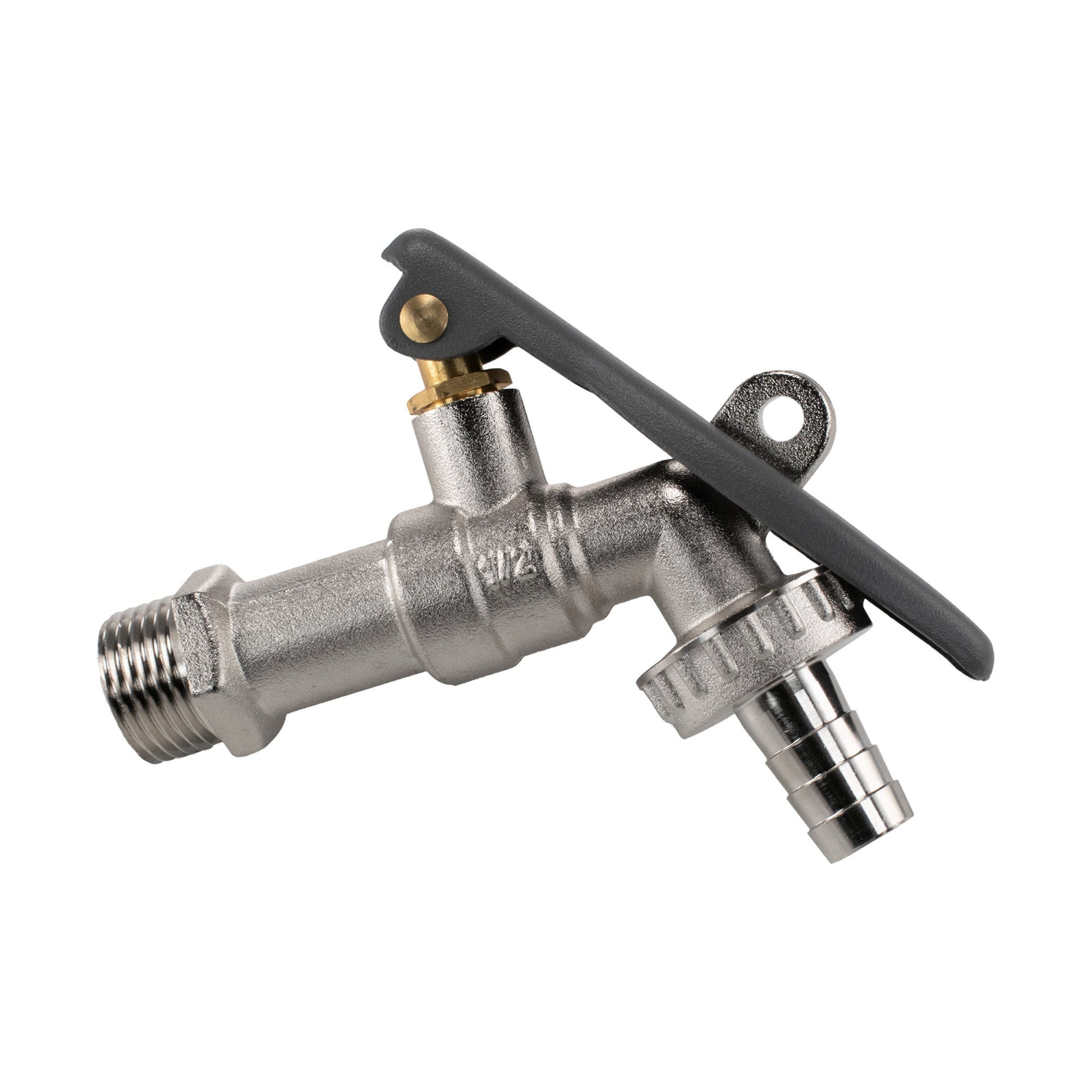

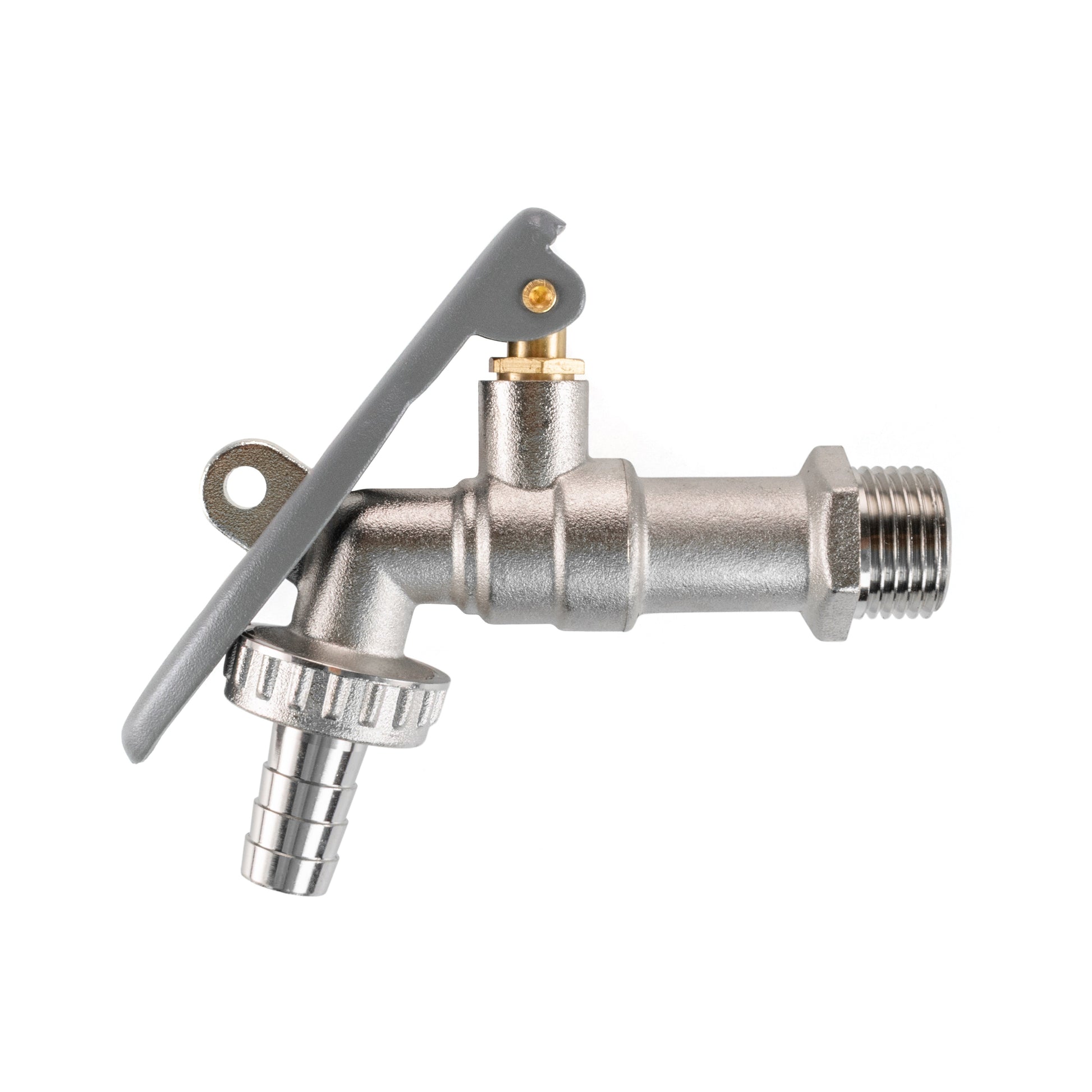

A garden tap with a through-handle locking eye
The metal eye passes through the lever's slot. Add a suitable padlock to restrict handle movement when the tap is closed, and remove it when you need the water.
Nickel-plated brass · ½-inch BSP inlet · 13mm hose tail
One Bradas tap supplied. Padlock, hose, clips and mounting fittings are separate.
See how the locking parts meet

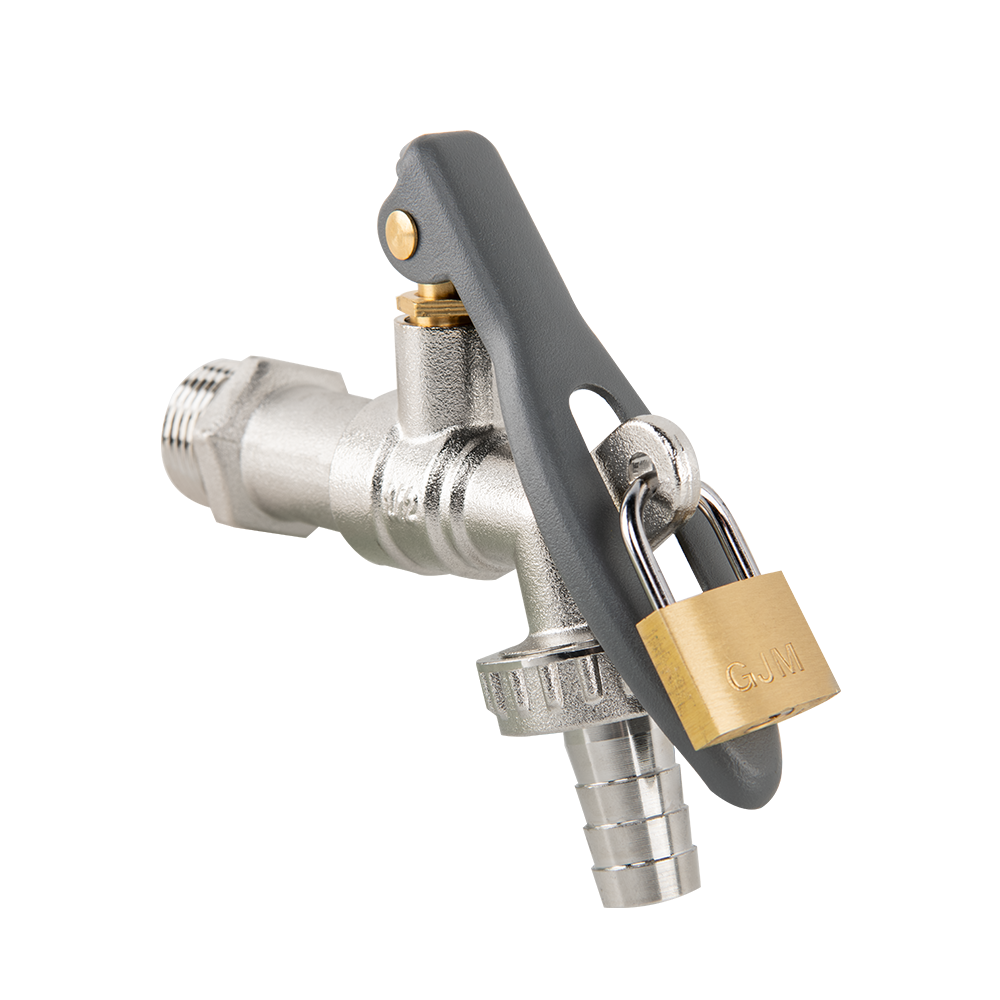

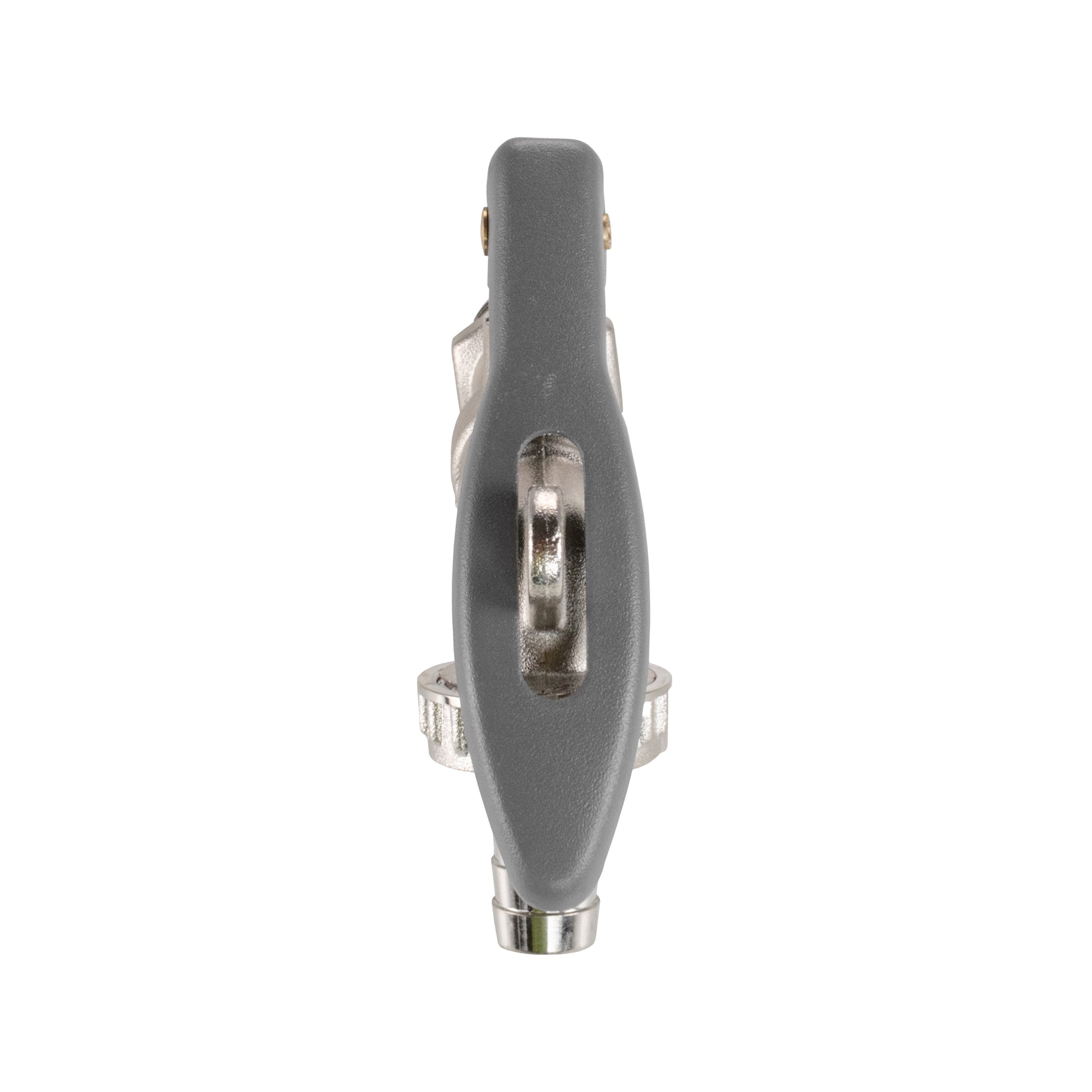

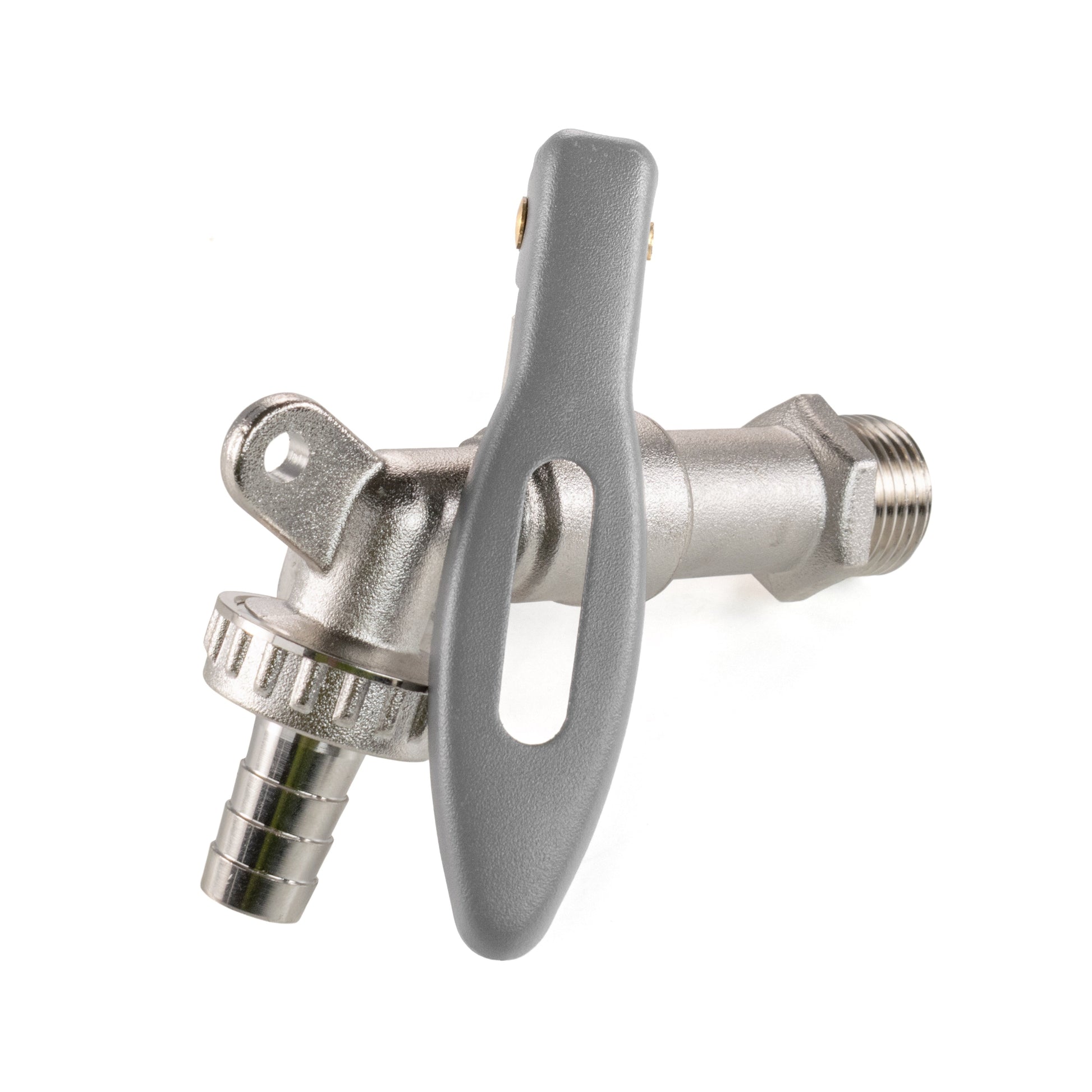

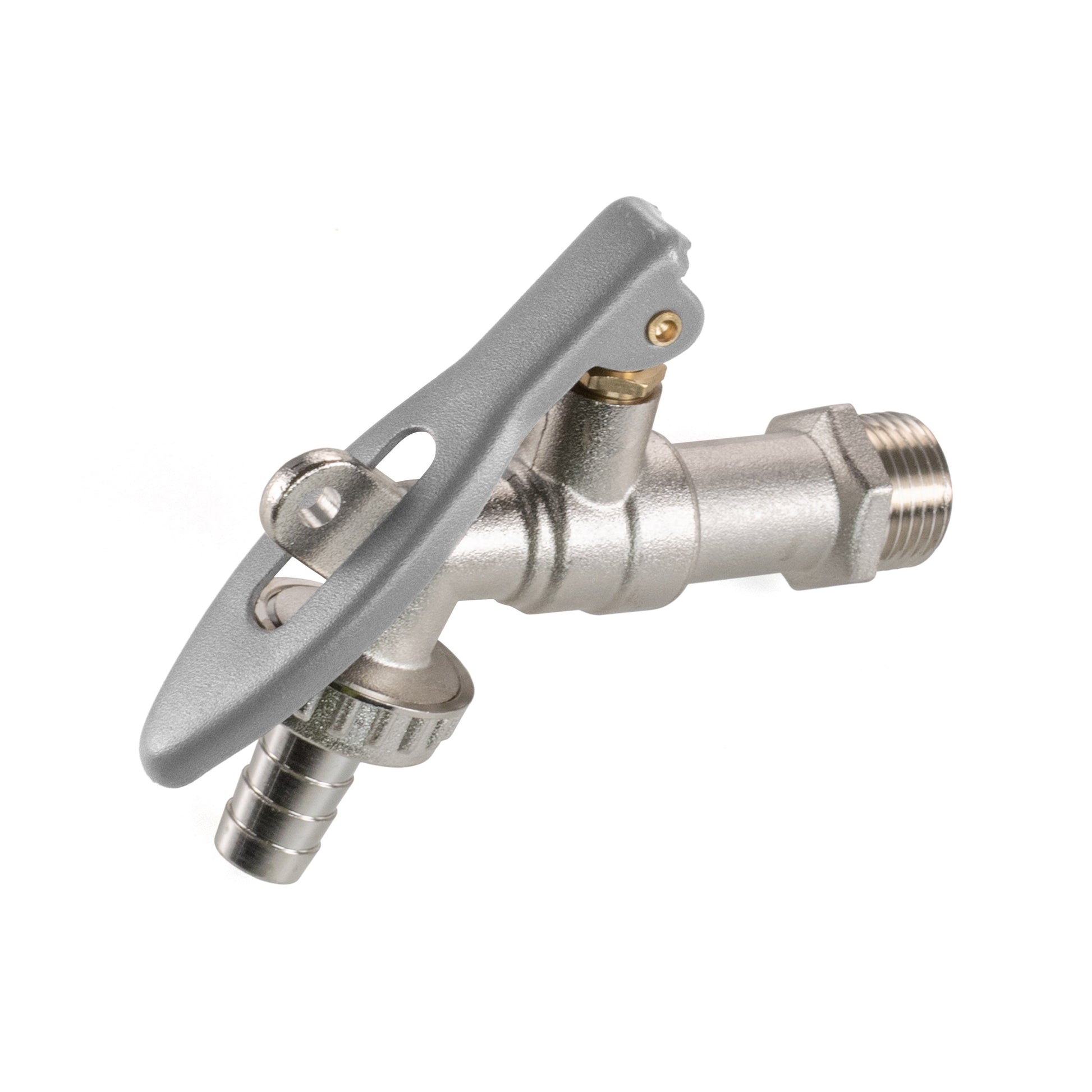

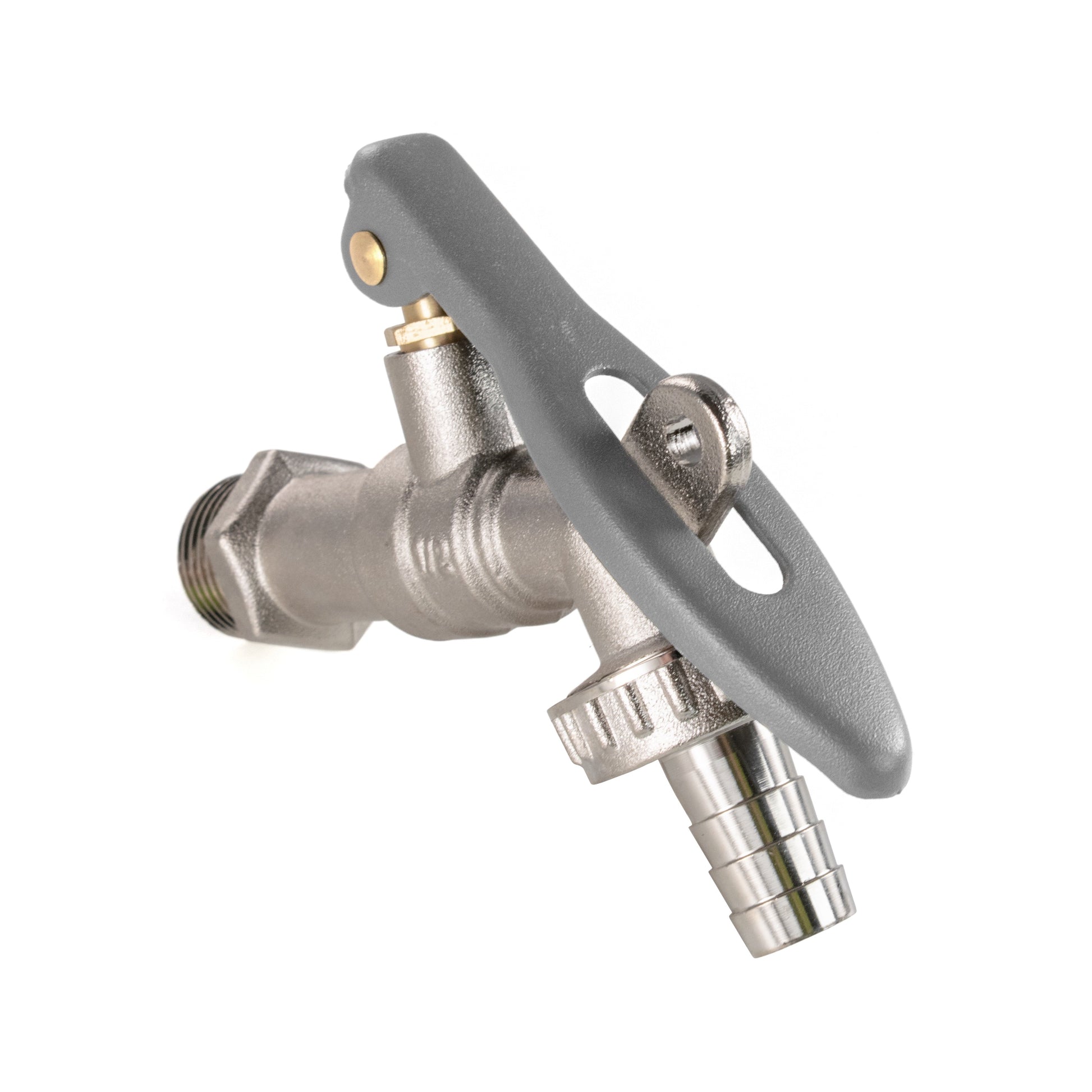

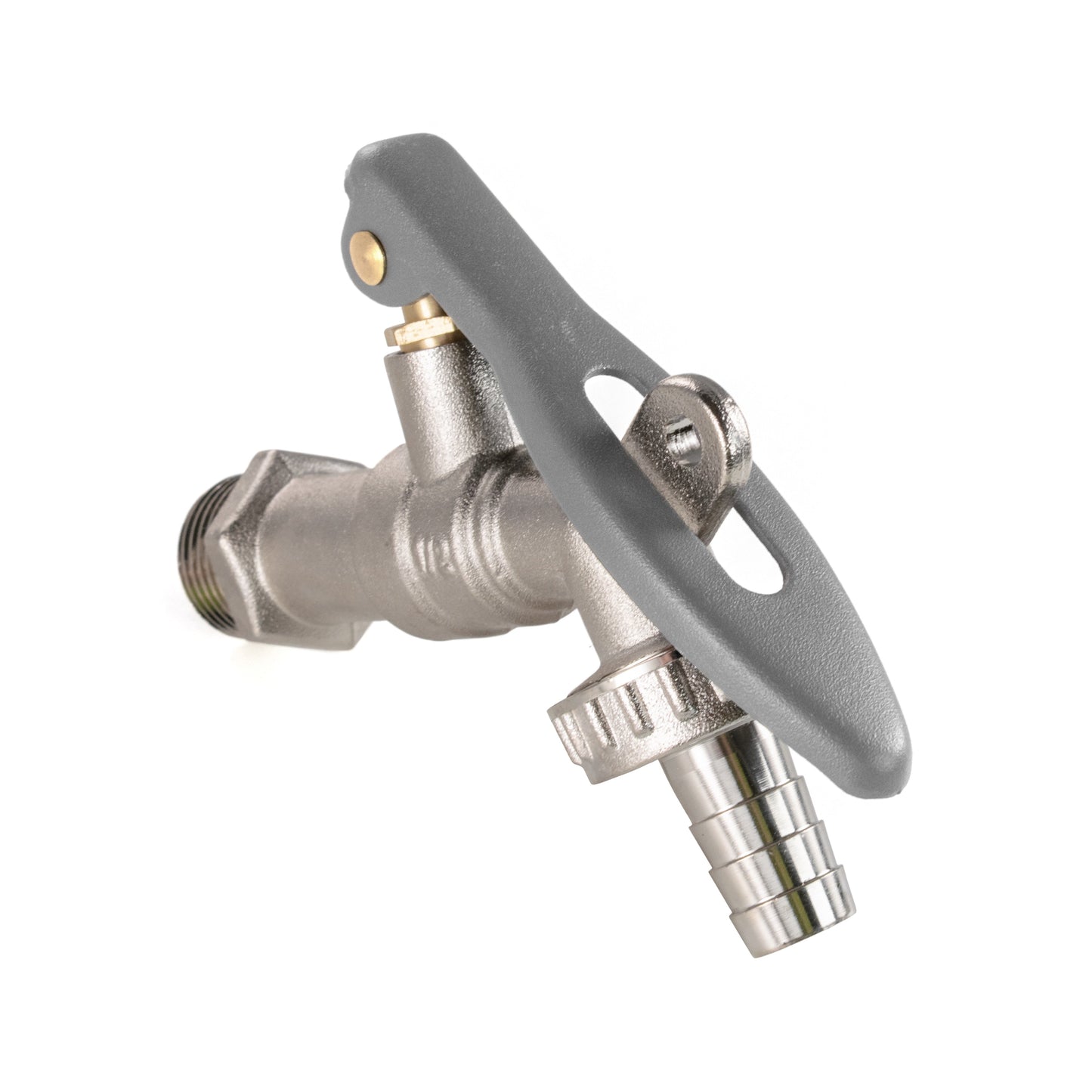

The tap has a fixed metal eye that projects through the long opening in the handle. A suitable padlock through that eye restricts the lever's movement.
Check the padlock shackle against the eye and the space around the lever. The lock is separate from the tap, so you can choose one for your installation.
Keep the eye accessible when positioning the tap. The locking feature controls access to the handle; it does not replace shutting off and draining an exposed water supply in freezing conditions.

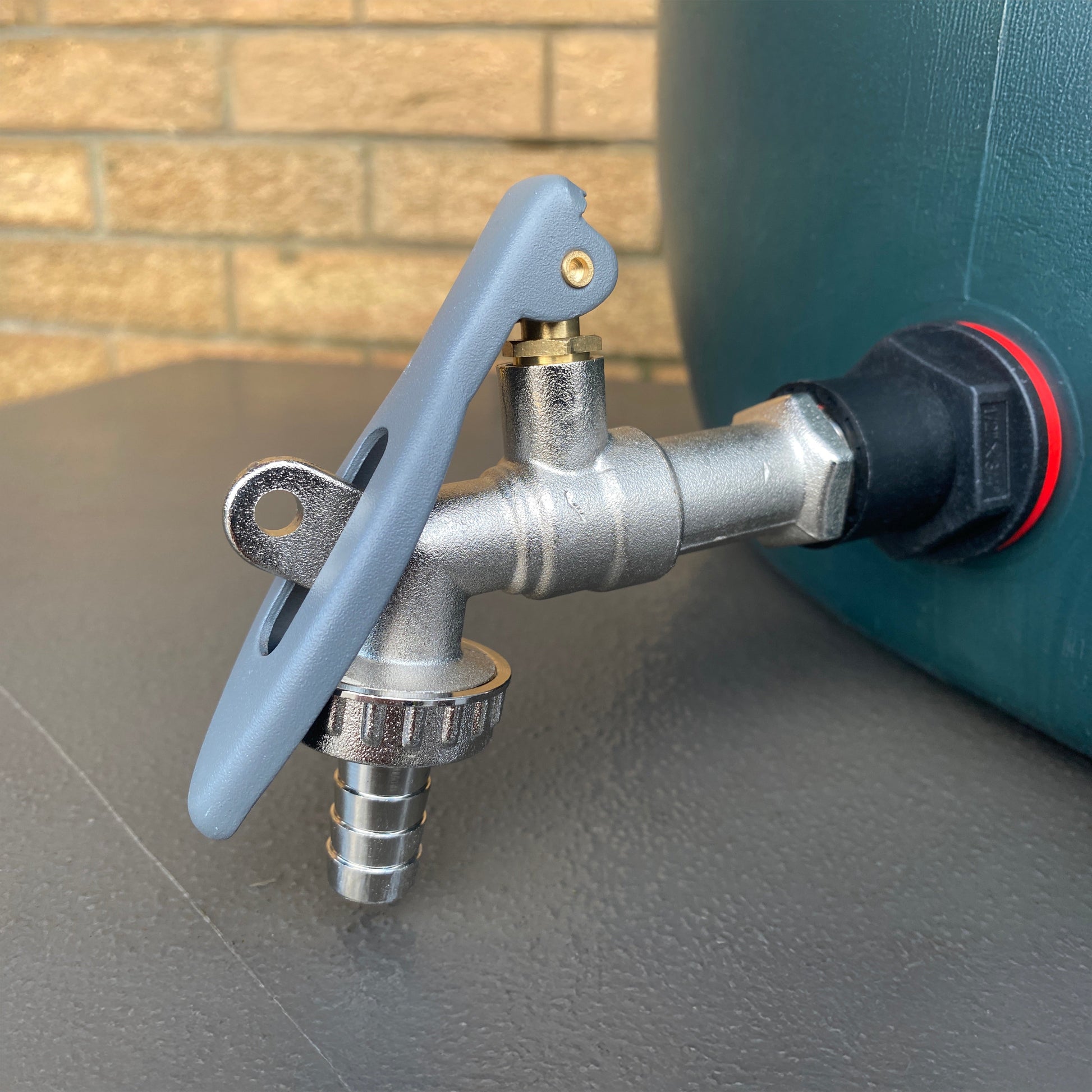

A BSP supply inlet and a direct hose outlet

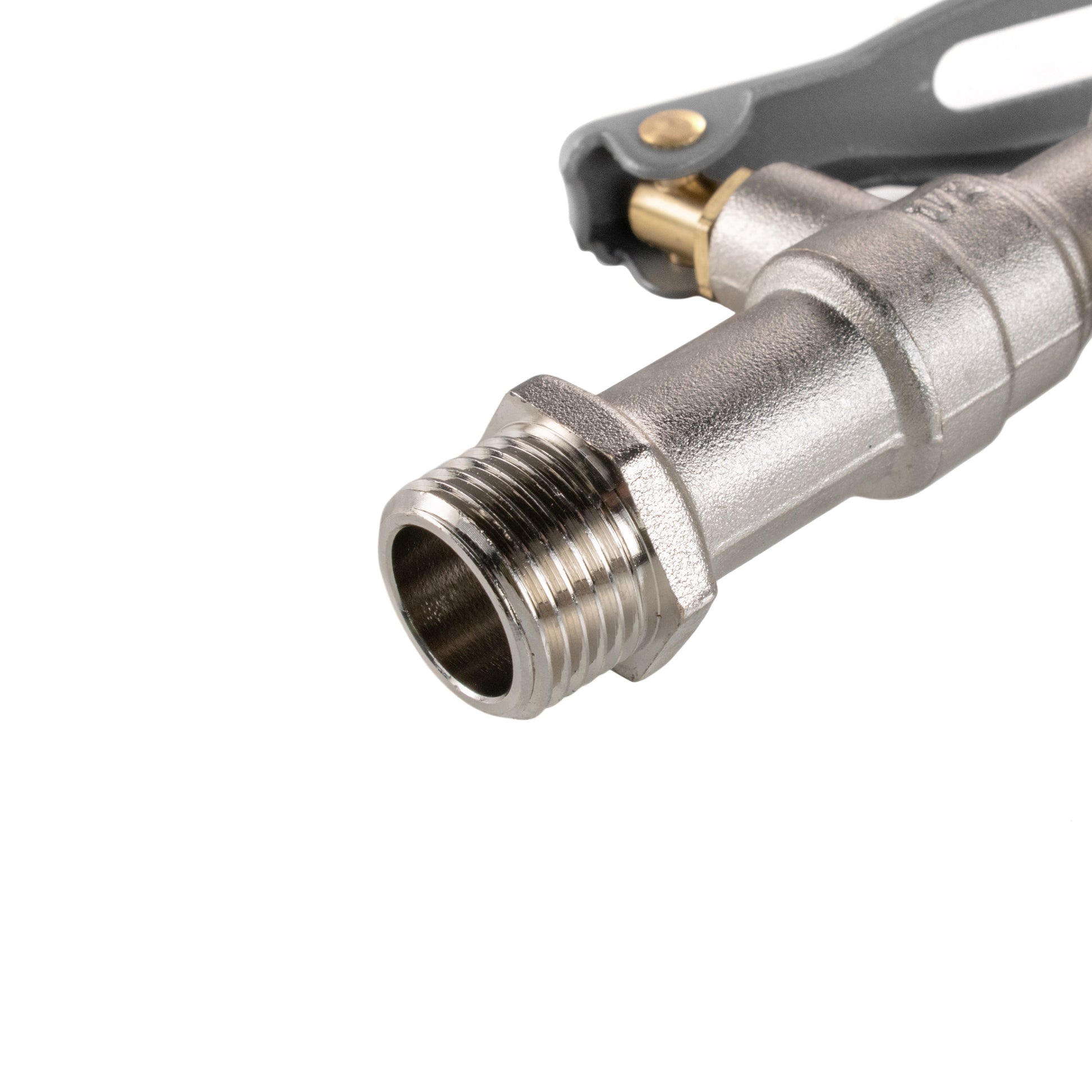

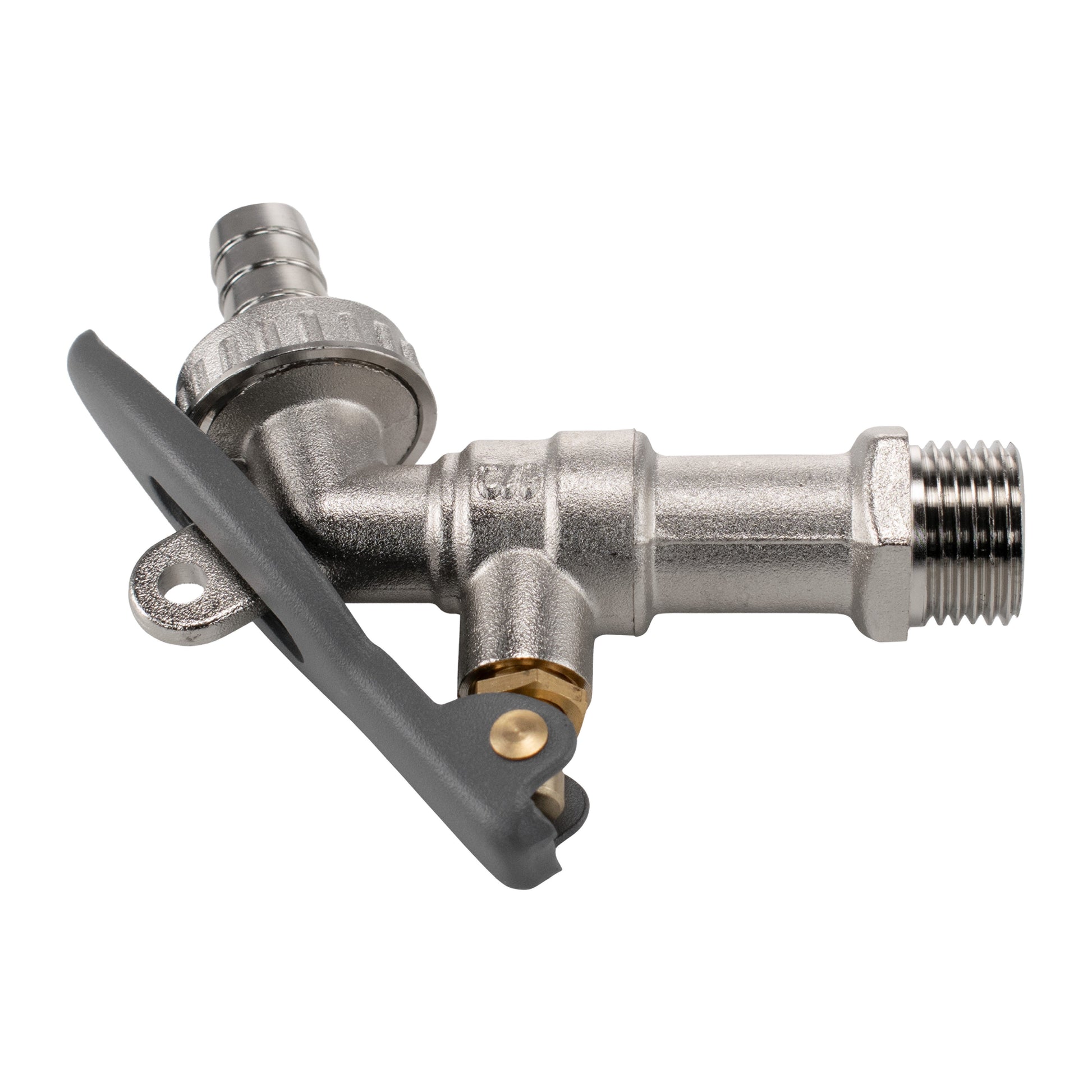

The ½-inch BSP male inlet connects to a matching female BSP supply fitting. BSP is a nominal thread designation, not the outside diameter you would measure across the thread.

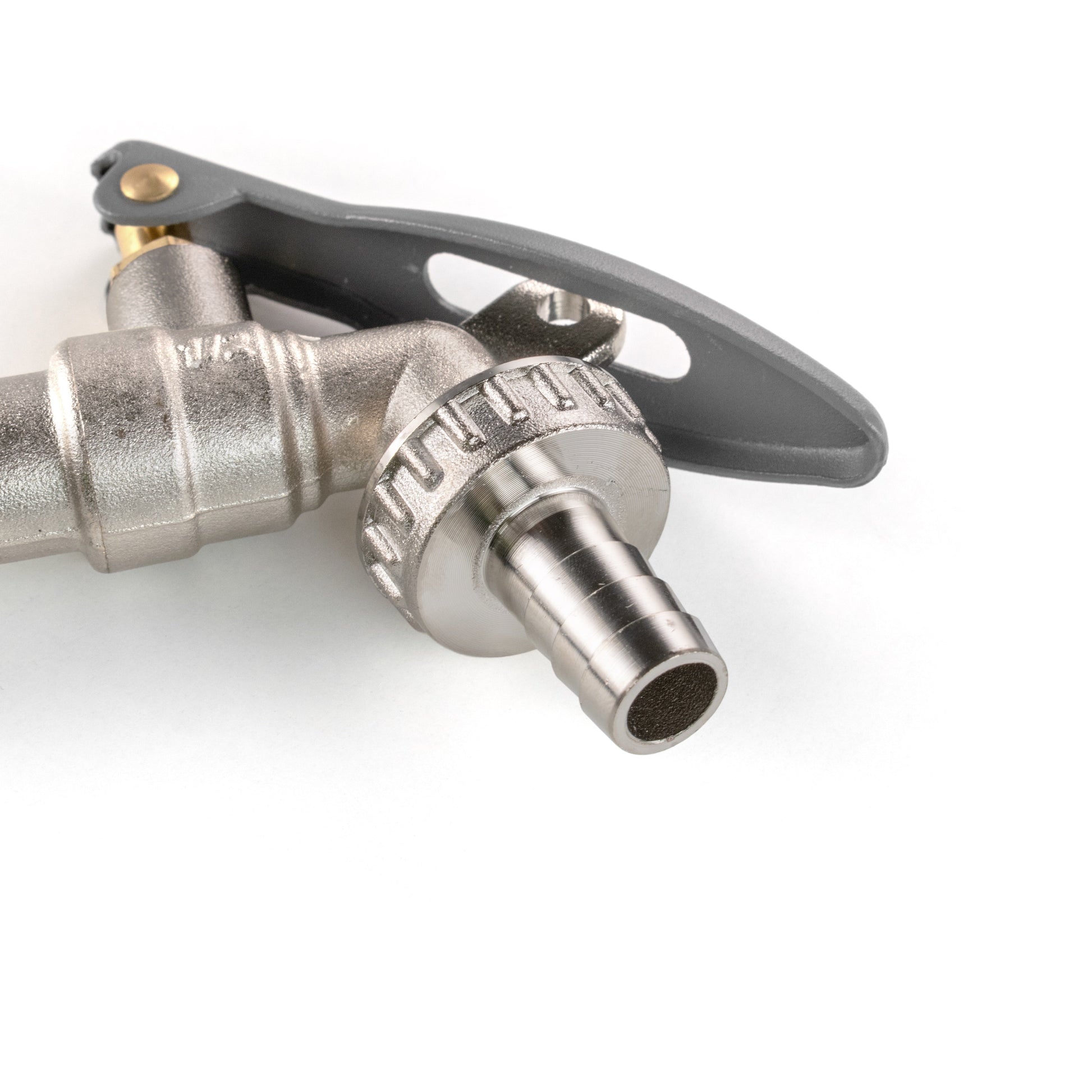

The ribbed tail takes ½-inch-bore hose, approximately 13mm internally. Push suitable hose over the ribs and secure it with an appropriate clip.
This tail is for direct hose attachment. A female garden click-fit connector does not click onto the ribs. Allow hose slack so moving it does not twist the tap or its supply joint.
Plan room for the lever, lock and hose
Check access as well as the connection sizes before fitting.
Support the inlet
Isolate the water, match the BSP supply fitting and use that joint's required sealing method. Support the mating fitting during installation.
Secure the outlet
Fit suitable 13mm-bore hose and a securing clip. Restore water gradually and check the supply and hose joints before use.
Check locking access
With the tap closed, check that your chosen padlock fits the eye without forcing the handle. Remove the padlock before moving the lever.
Questions about the through-handle tap
How does the handle lock?
A fixed metal eye passes through the slot in the lever. A suitable separate padlock through the eye restricts handle movement when the tap is closed. Check shackle fit and clearance before choosing a padlock.
Is a padlock supplied?
No. One Bradas tap with hose-tail fitting is supplied. The padlock shown in some photographs demonstrates the locking arrangement and is not included.
What hose fits the barbed outlet?
Suitable hose with a 13mm / ½-inch internal bore fits directly over the ribs. Secure it with an appropriate clip. Hose and clips are separate.
Does locking the tap protect it from freezing?
No. A lock restricts access to the handle. Isolate and drain exposed outdoor taps and attached hose when freezing weather is expected.
Product information & technical details
| SKU | GTLEVER-TOPLOCK12B001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Brand | Bradas |
| Body finish | Nickel-plated brass |
|---|---|
| Inlet connection | ½-inch BSP male |
| Hose connection | Tail for 13mm / ½-inch-bore hose |
| Locking arrangement | Fixed eye through slotted lever |
| Padlock | Not included |

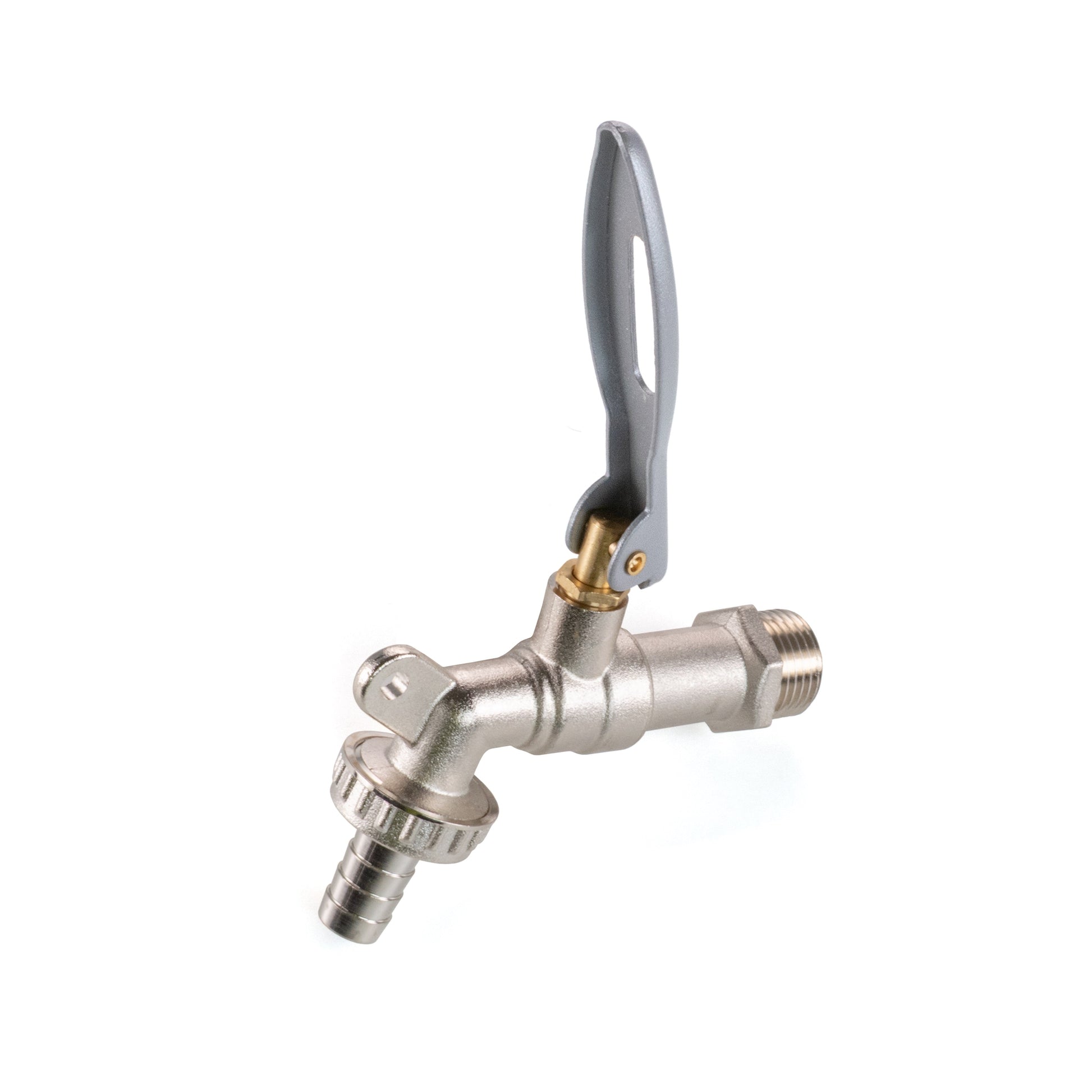

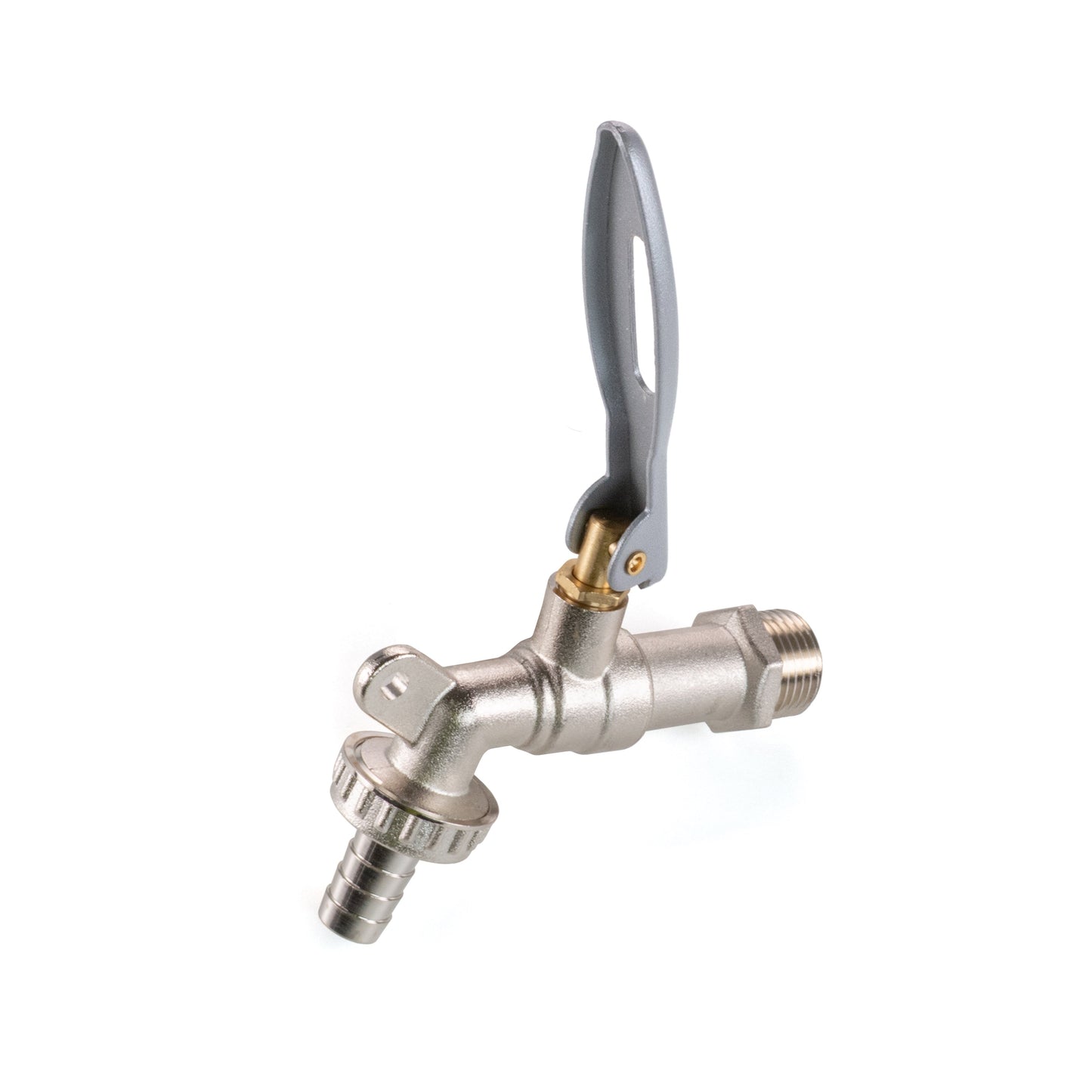

| Operation | Lever on/off control |
| Supplied quantity | One tap with hose-tail fitting |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
