Description

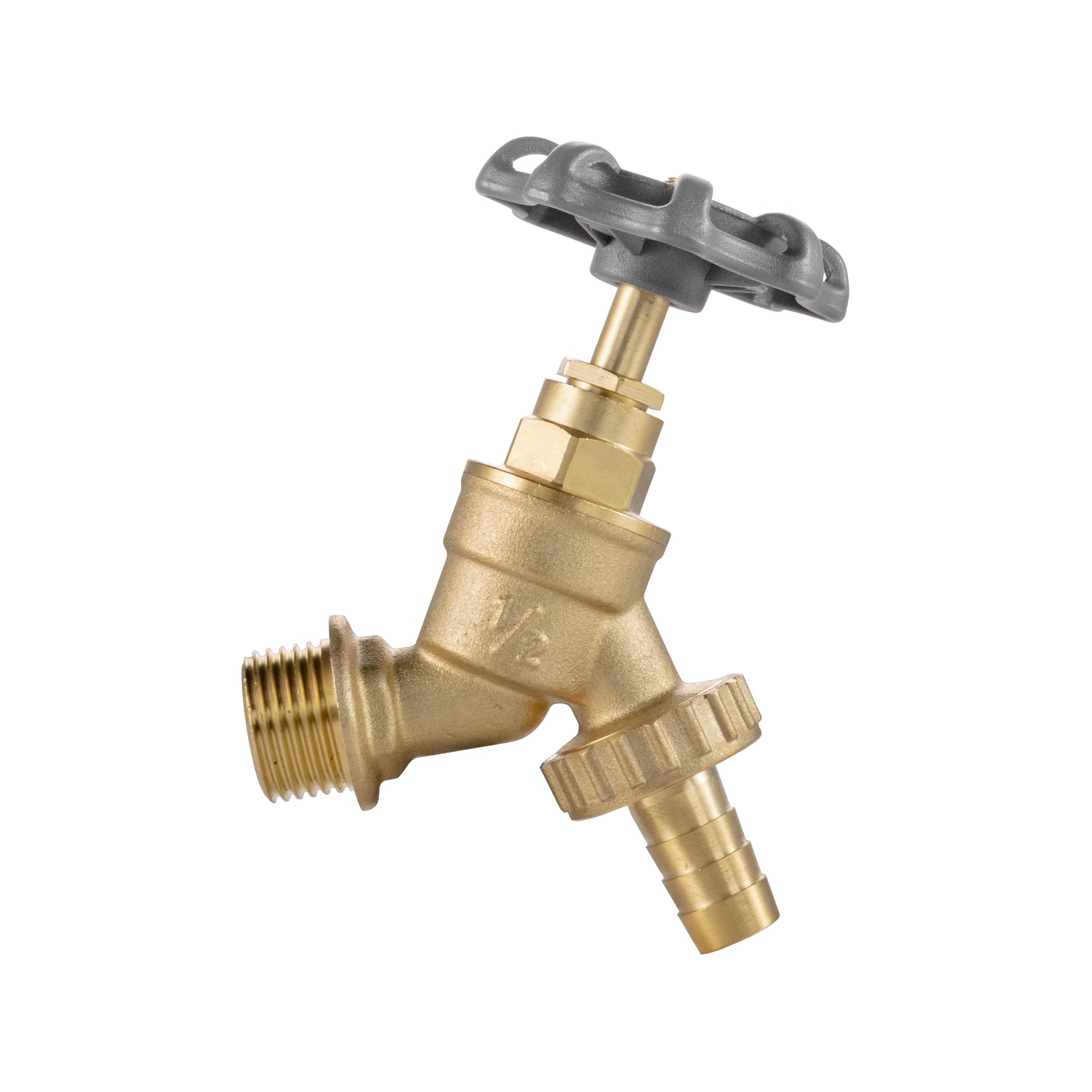

A wheel-handle brass tap for the garden

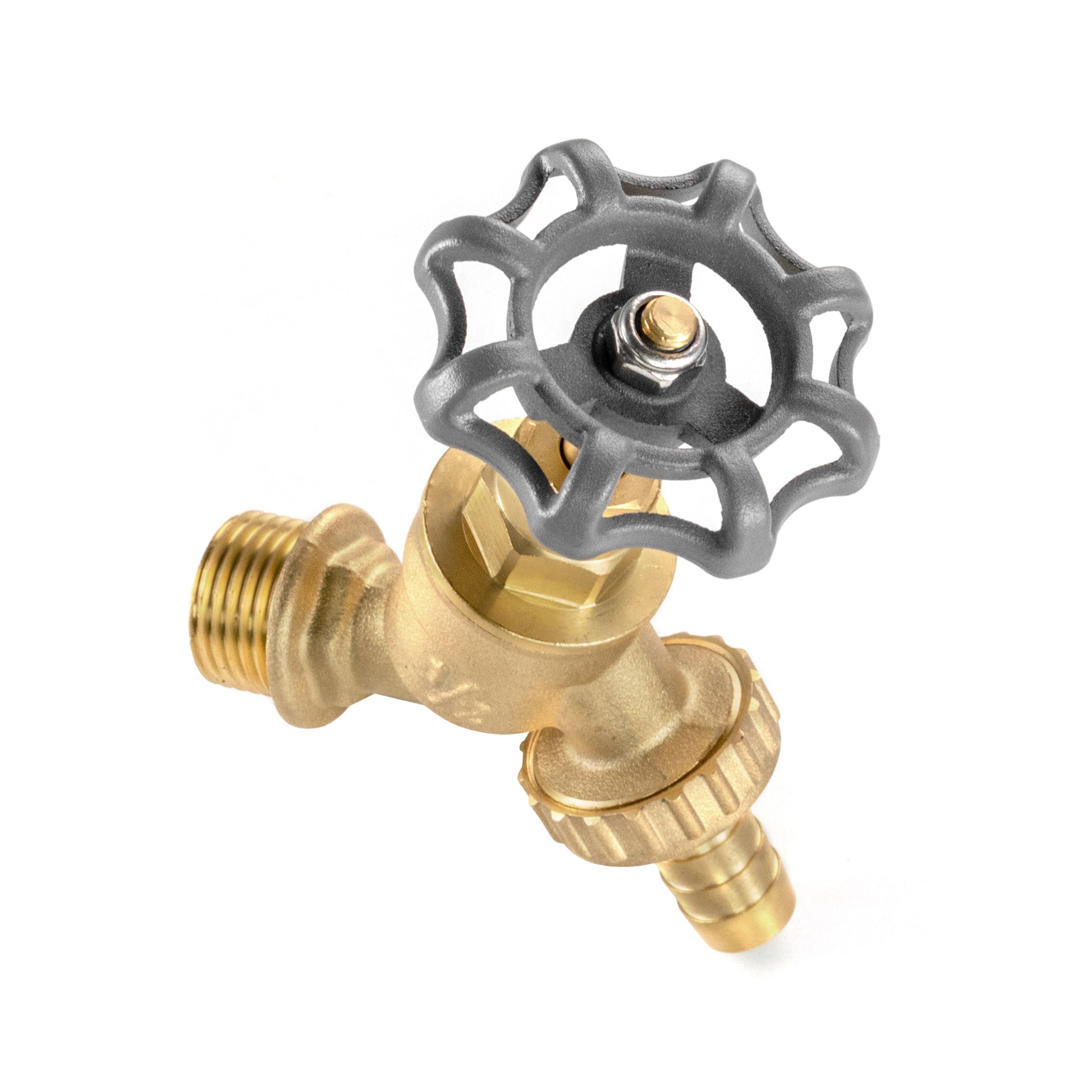

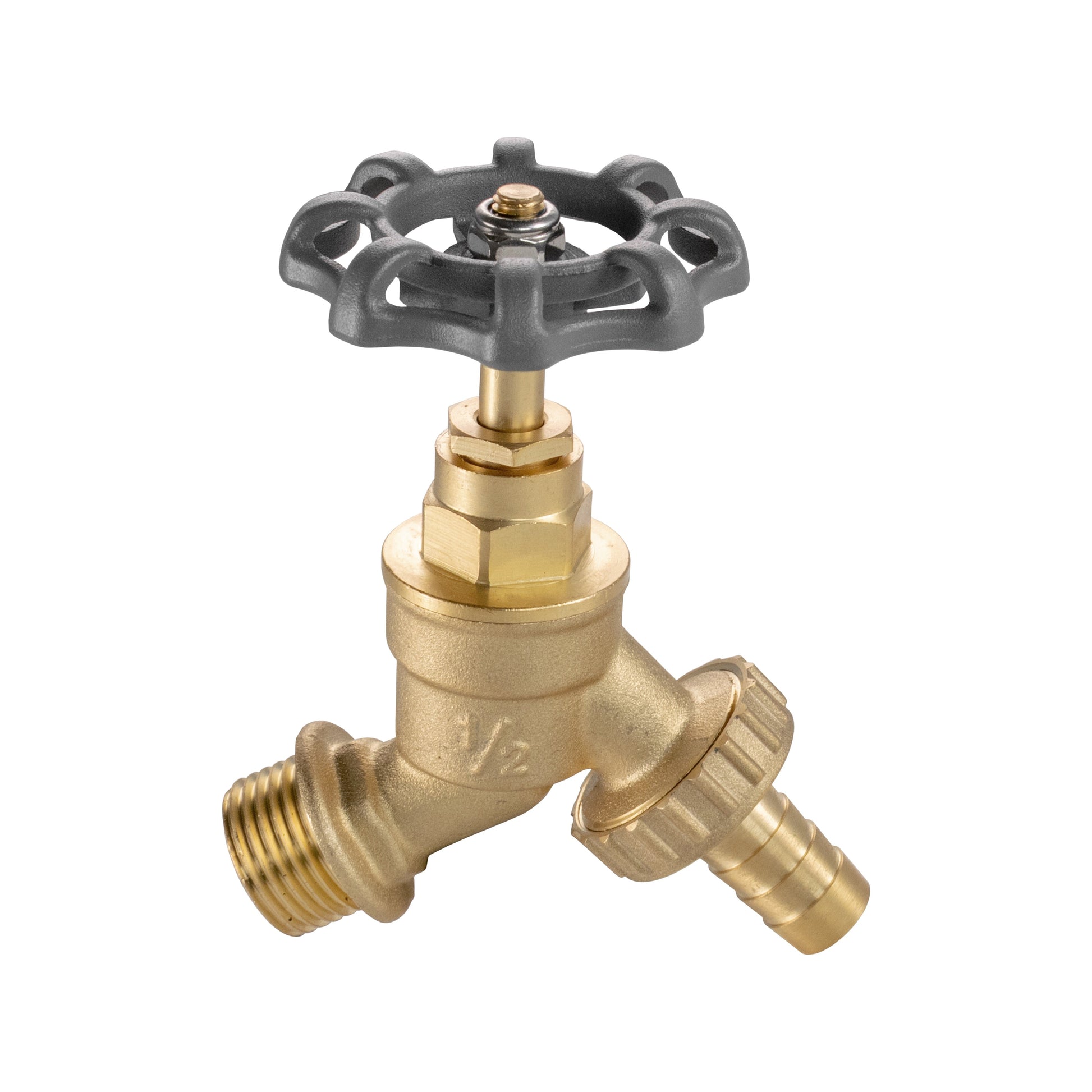

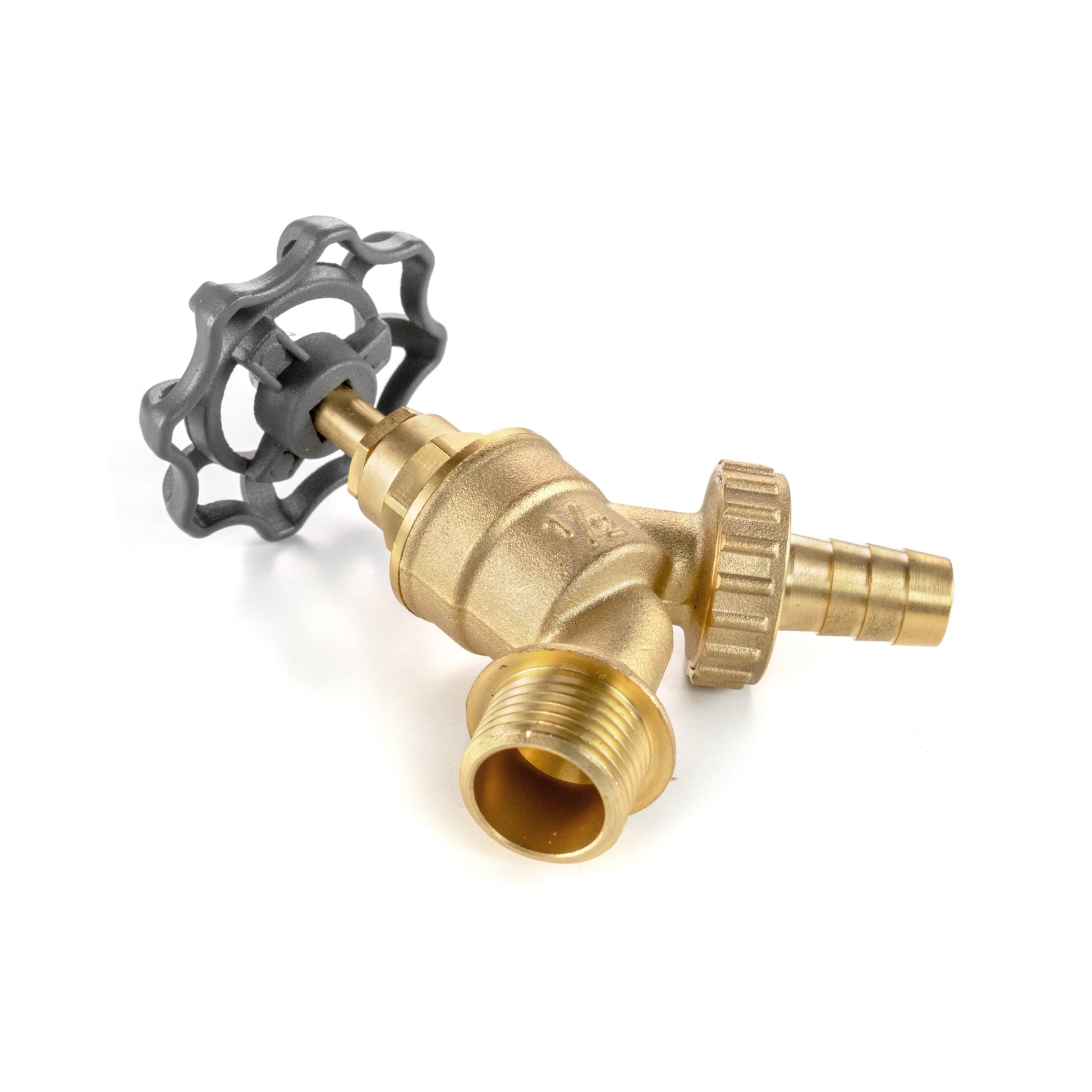

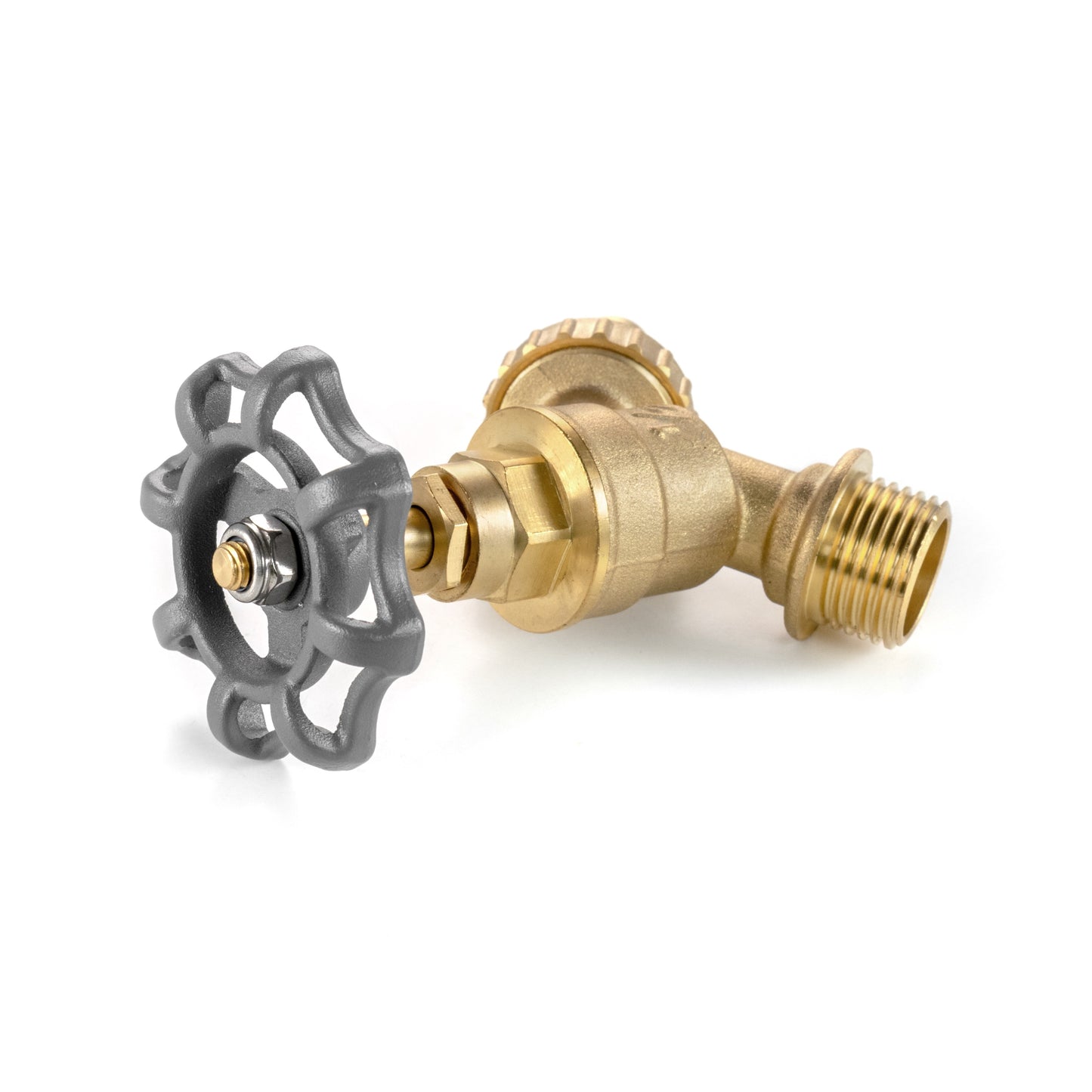

The dark round handle gives this Bradas bib tap its traditional shape. A ½-inch BSP inlet joins the supply, while the removable tail connects directly to 13mm-bore hose.
Bradas BR-KRH1234 · brass body · removable hose tail
One tap and tail supplied. Hose, clips and mounting fittings are separate.
Choose the tap by its supply connection
The ½-inch BSP male inlet needs a matching female BSP water-supply fitting. When replacing an existing tap, check that inlet designation first.
A BSP size names the thread standard and nominal size; it is not the outside diameter measured with a ruler. It also does not tell you the hose size at the other end of the tap.
Leave room around the round handle for your hand, and beneath the angled spout for the hose or watering can. A wall plate or other supply support is not included.
The hose tail is removable

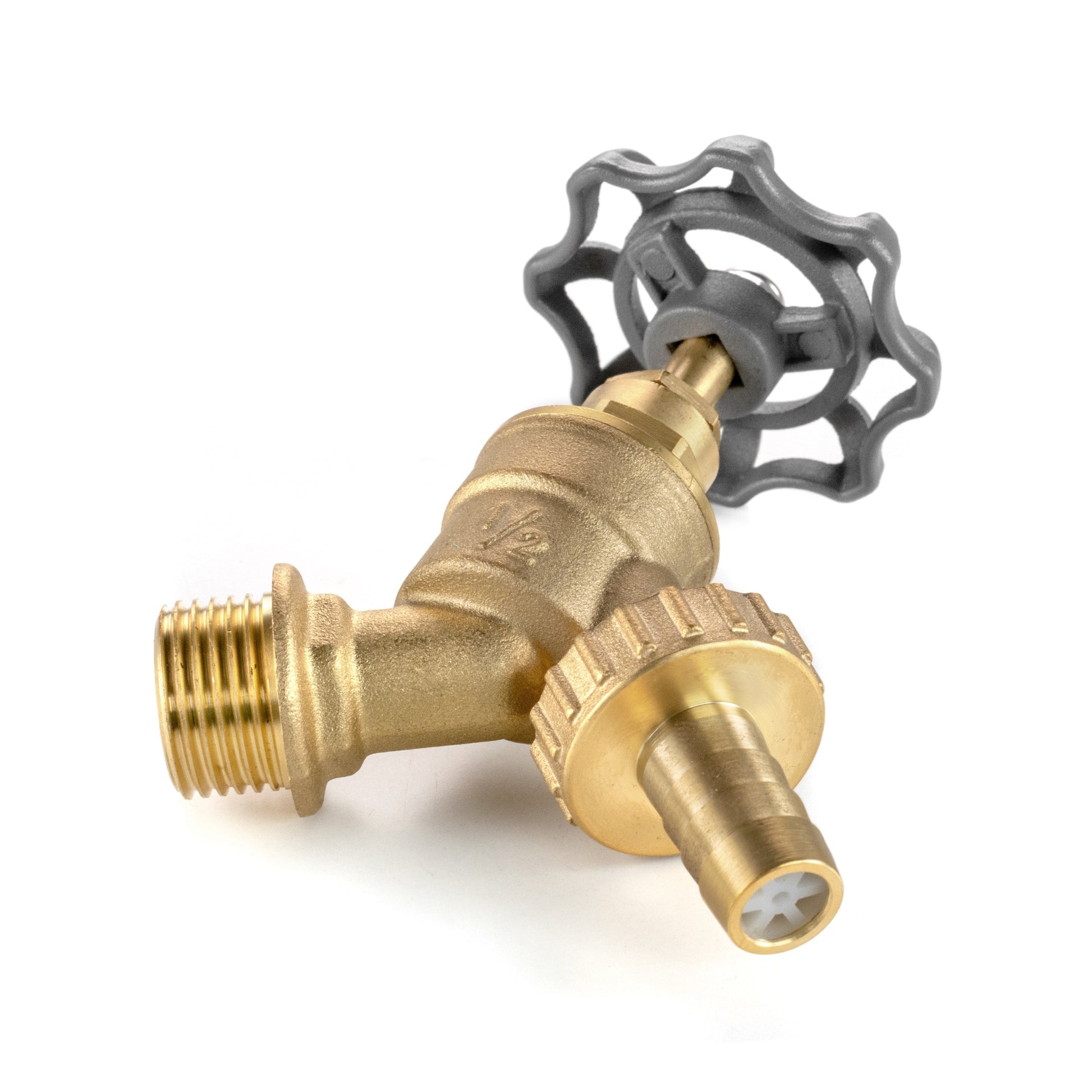

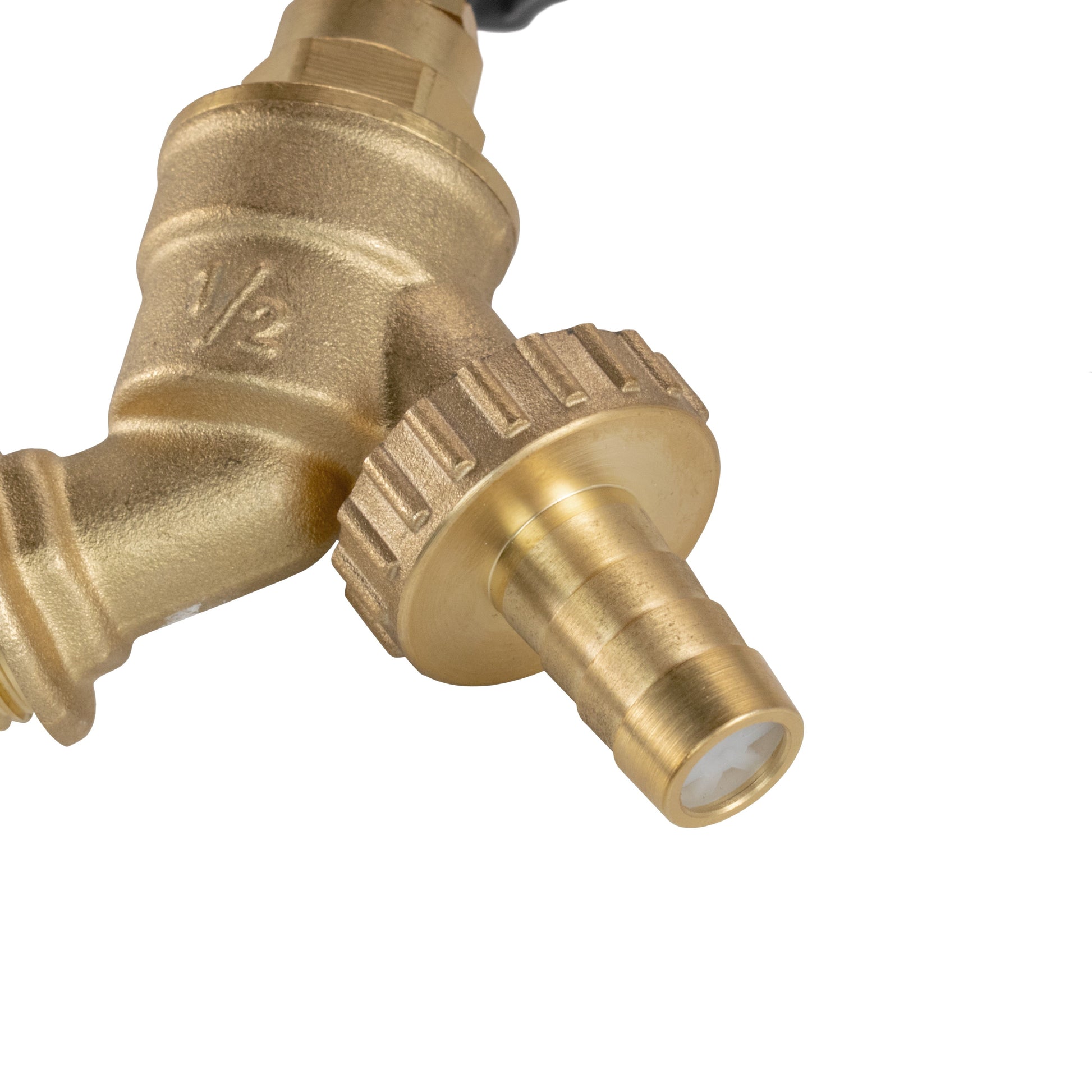

The supplied tail is sized for ½-inch hose bore, approximately 13mm internally. Fit suitable hose over the ribs and secure it with an appropriate clip.
Unscrewing the collar exposes a ¾-inch BSP male spout thread. A different outlet fitting must match that thread and its sealing arrangement.
For a garden click-fit connection, use a compatible male quick-connect fitting in place of the tail. A female click-fit hose connector does not attach directly to the ribs.
Check the fit, then install and test
A supported inlet and secured hose help keep strain away from the joints.
Prepare the supply
Isolate the water before installation. Confirm the mating BSP thread, support the supply fitting and use the sealing method required by that joint.
Connect the hose
Use suitable 13mm-bore hose and a securing clip on the supplied tail. Leave slack so moving the hose does not pull or twist the tap.
Restore water gradually
Check the supply and outlet connections for leaks before use. For exposed outdoor installations, isolate and drain the tap and hose when freezing weather is expected.
Questions about the wheel-handle tap
Is this the wheel-handle or T-bar version?

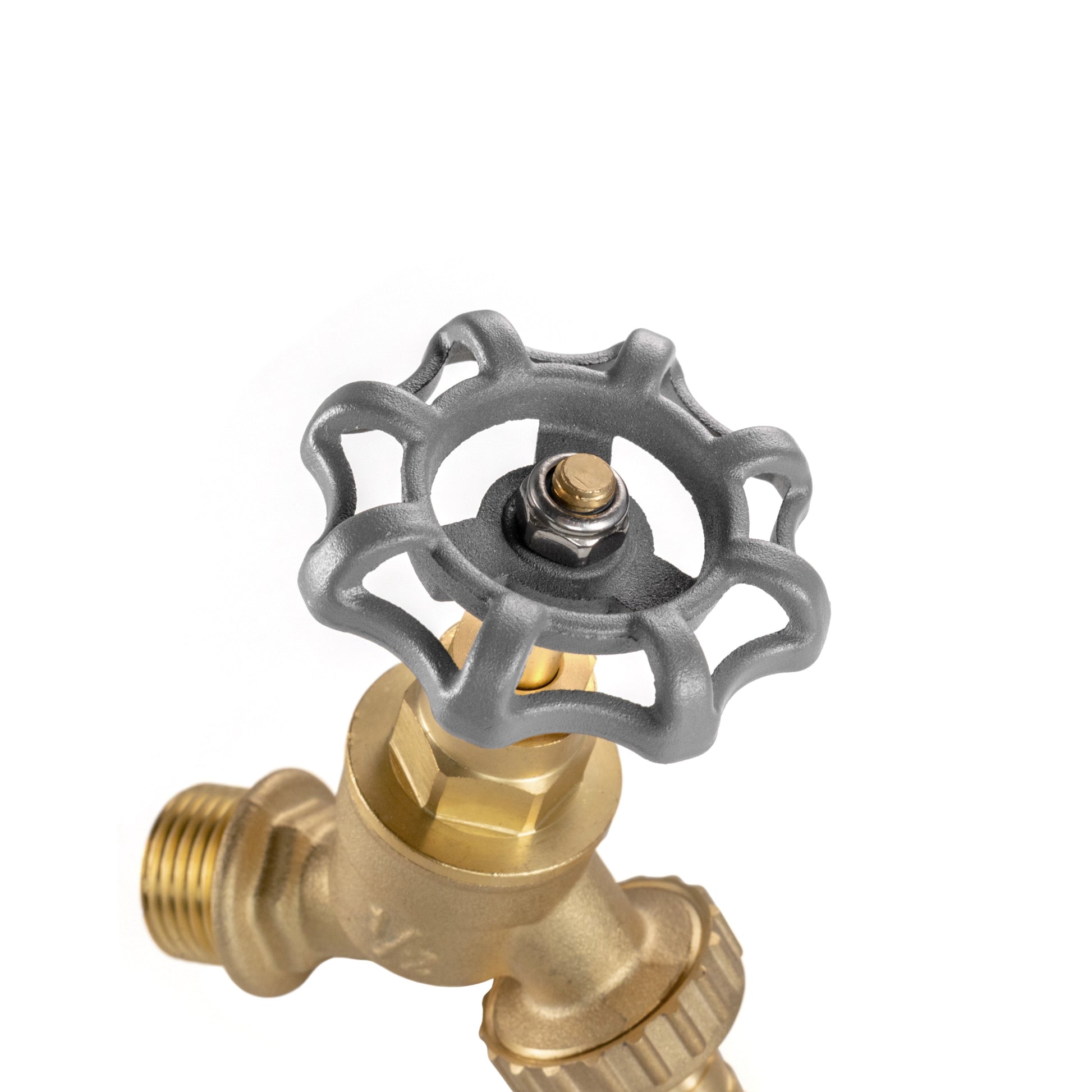

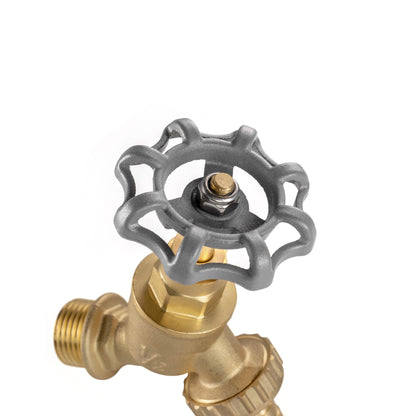

This is Bradas BR-KRH1234 with a dark round wheel handle. The handle turns to control the flow; no specific opening angle is stated.
What hose size fits the supplied tail?
The tail takes hose with an internal bore of approximately 13mm, commonly called ½-inch hose. Secure suitable hose over the ribs with an appropriate clip, supplied separately.
Can I replace the hose tail with a quick-connect fitting?
Yes, with a compatible male quick-connect fitting matched to the tap's ¾-inch BSP male spout and its sealing arrangement. The supplied ribbed tail itself is for direct hose attachment.
Are mounting fittings and hose clips included?
No. One brass bib tap with round wheel handle and removable hose tail is supplied. Wall plates, adapters, hose, clips and sealing materials are separate.
Product information & technical details
| SKU | BR-KRH1234-001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Brass |
| Material | Brass |
| Brand | Bradas |
| Model | BR-KRH1234 |
|---|---|
| Inlet connection | ½-inch BSP male |
| Spout outlet thread | ¾-inch BSP male |
| Supplied hose tail | For 13mm / ½-inch-bore hose |
| Handle | Dark round wheel handle |
| Outlet fitting | Removable hose tail with threaded collar |
| Supplied quantity | One bib tap with hose tail |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
