Description

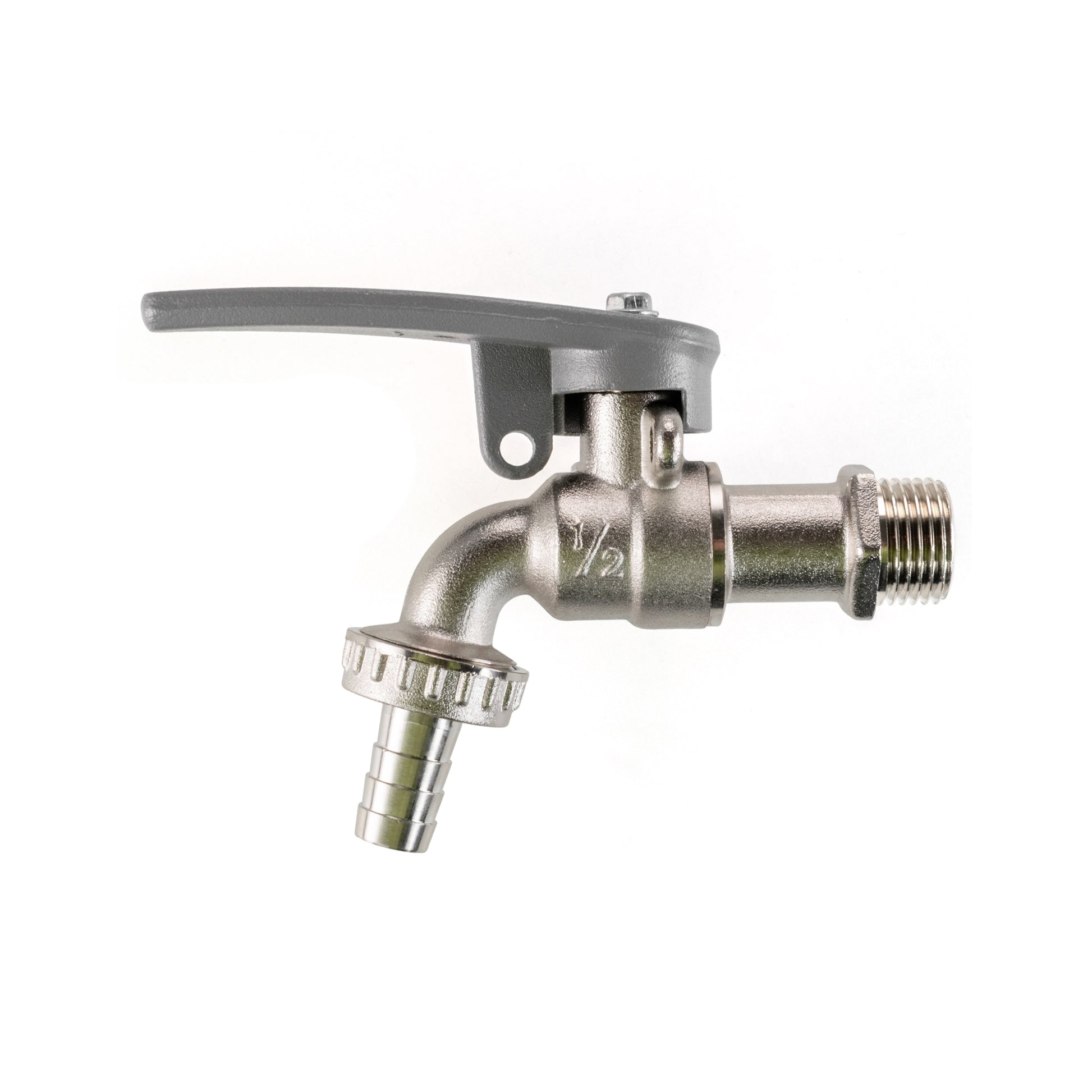

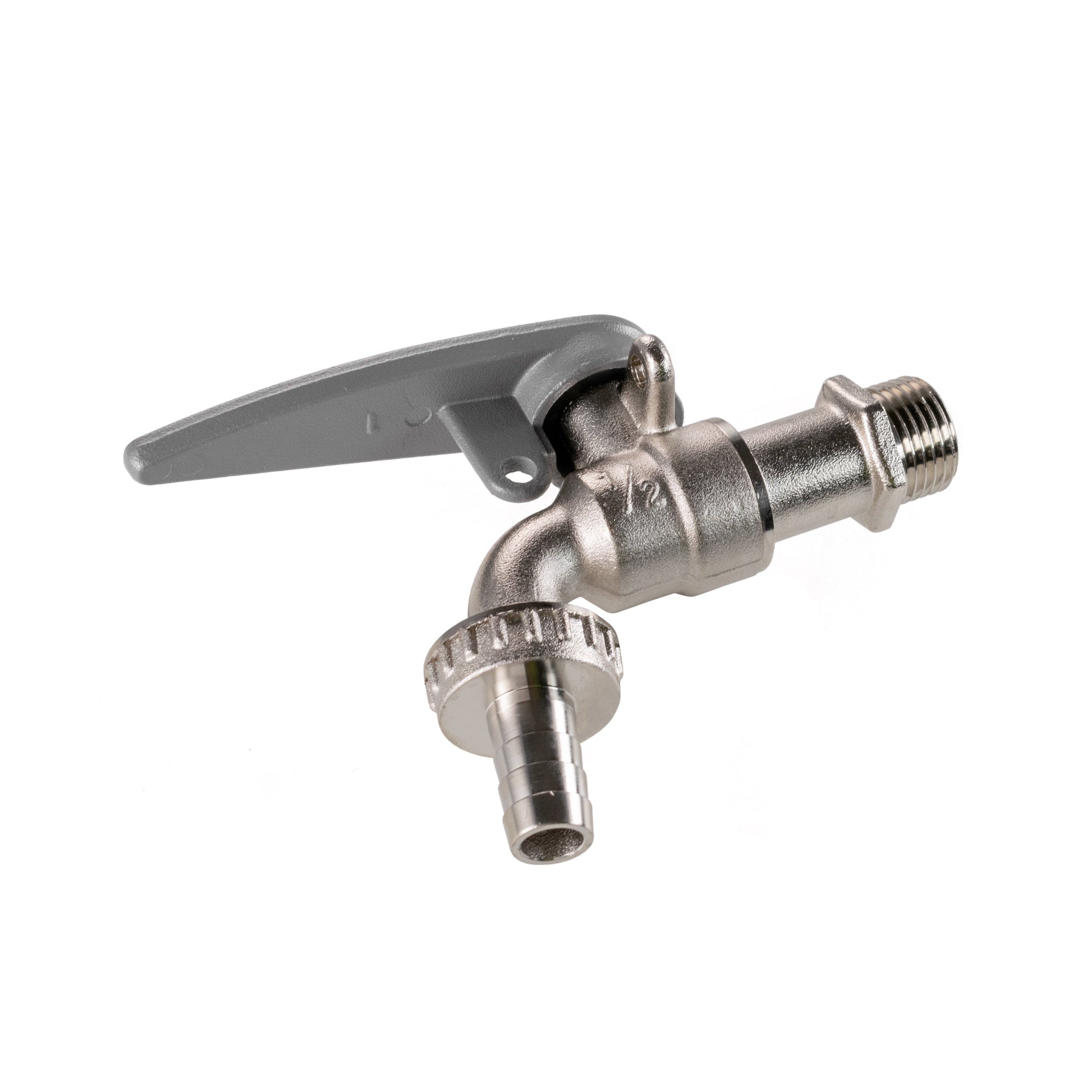

A garden lever tap you can lock

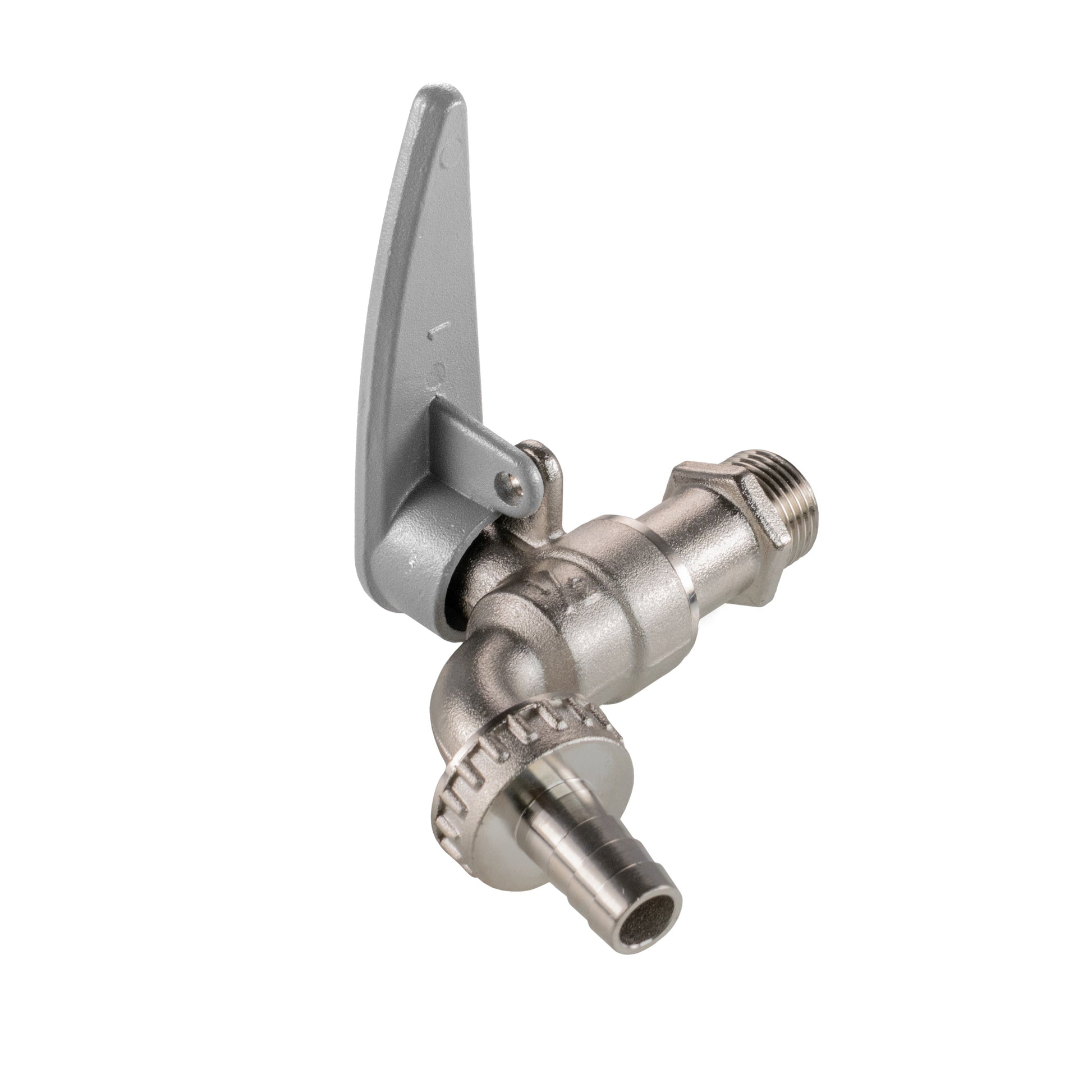

Control the water with the grey lever, then use the locking tabs with a suitable separate padlock when the tap is closed.
A nickel-plated brass body connects a ½-inch BSP supply to a 13mm hose tail.
One tap supplied. Padlock, hose and installation fittings are not included.
Check the lock fit before relying on it

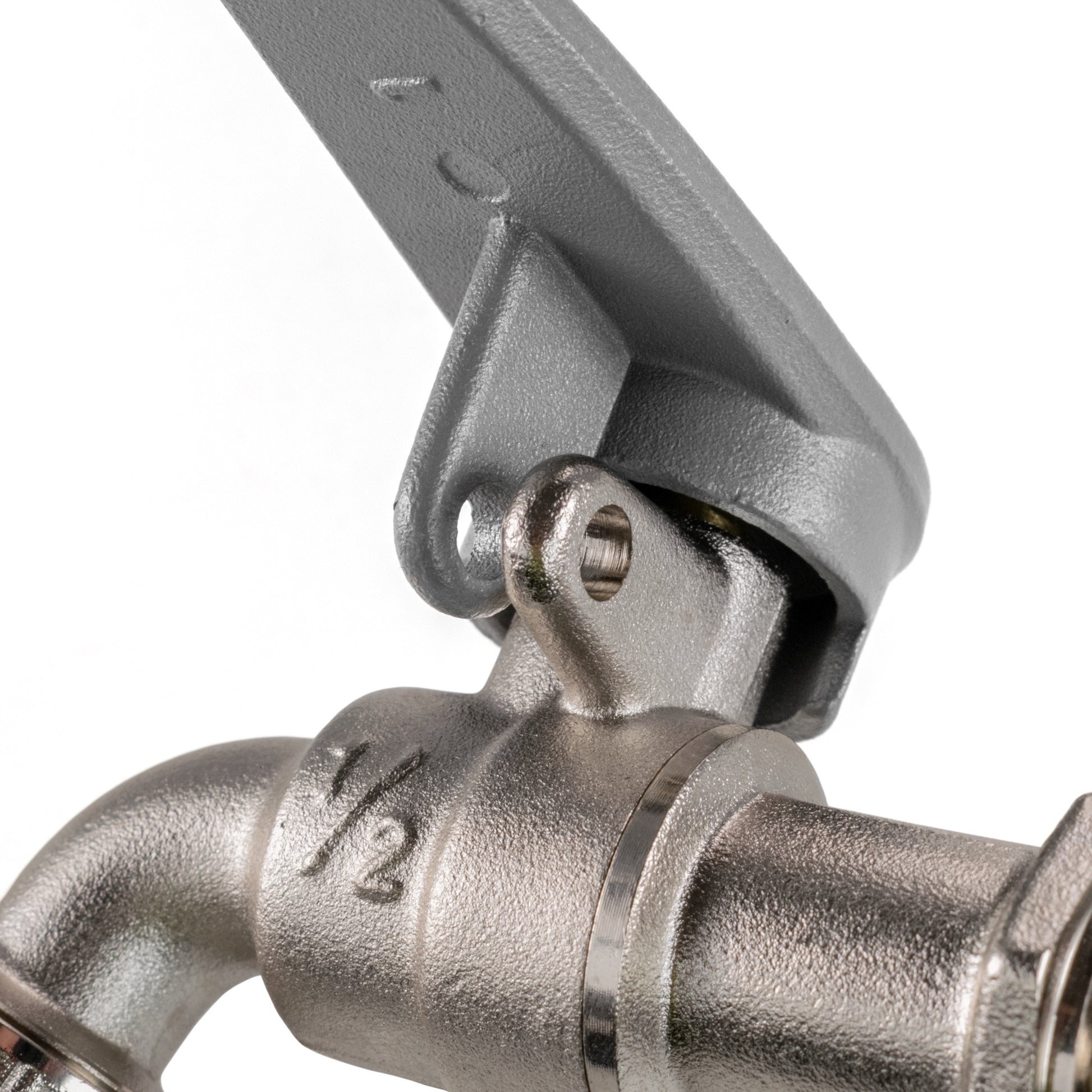

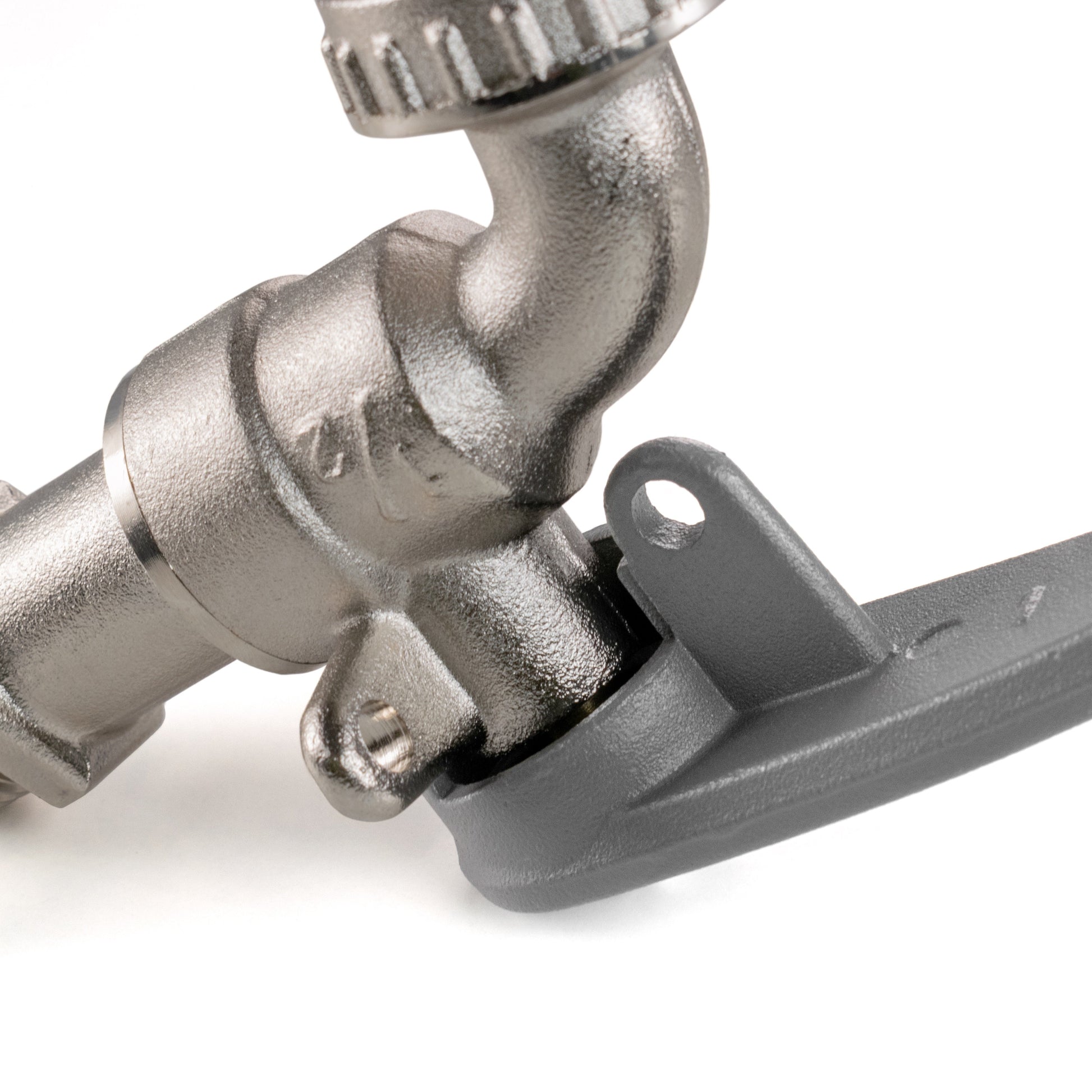

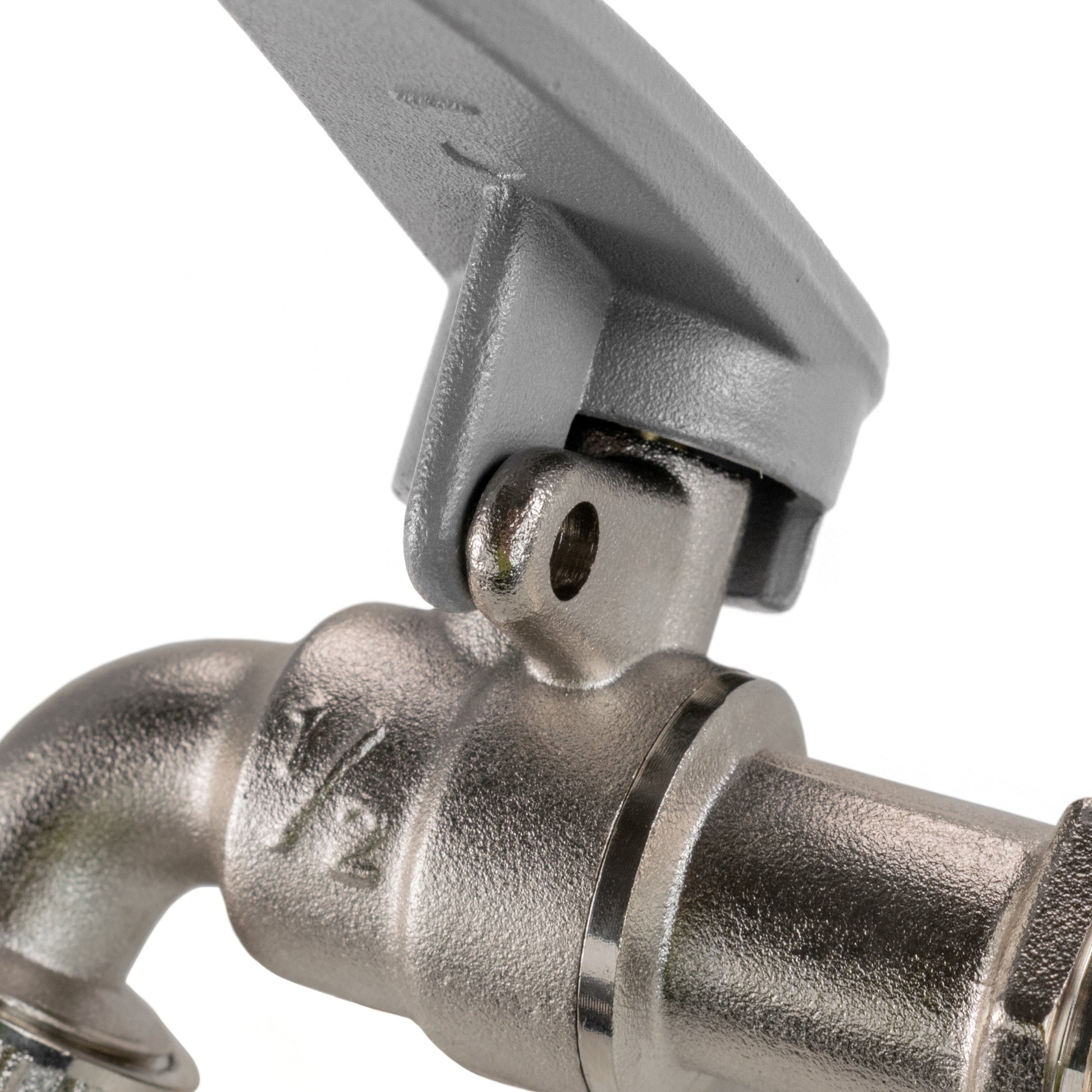

The handle has a downward tab with a hole, and the tap body has a matching fixed eye. These provide a place for a suitable padlock to restrict the lever's movement.
Close the tap, align the locking tabs and check that your padlock shackle passes through both holes. A lock through only one hole will not secure the two parts together.

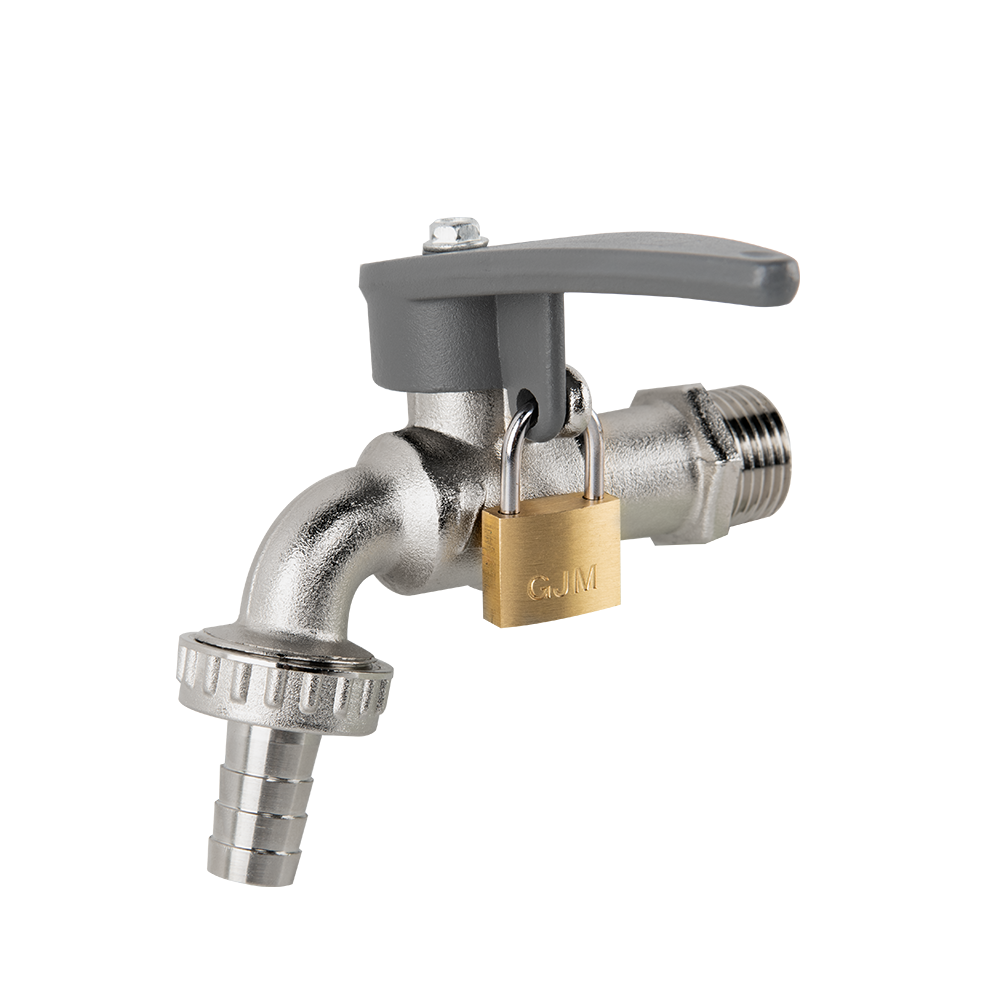

The padlock is separate. Some gallery images show the locking arrangement with a padlock fitted; the supplied item is the tap with its hose tail. Locking the handle does not replace isolating and draining the water supply for maintenance or freezing weather.
Threaded at the supply. Barbed at the hose.

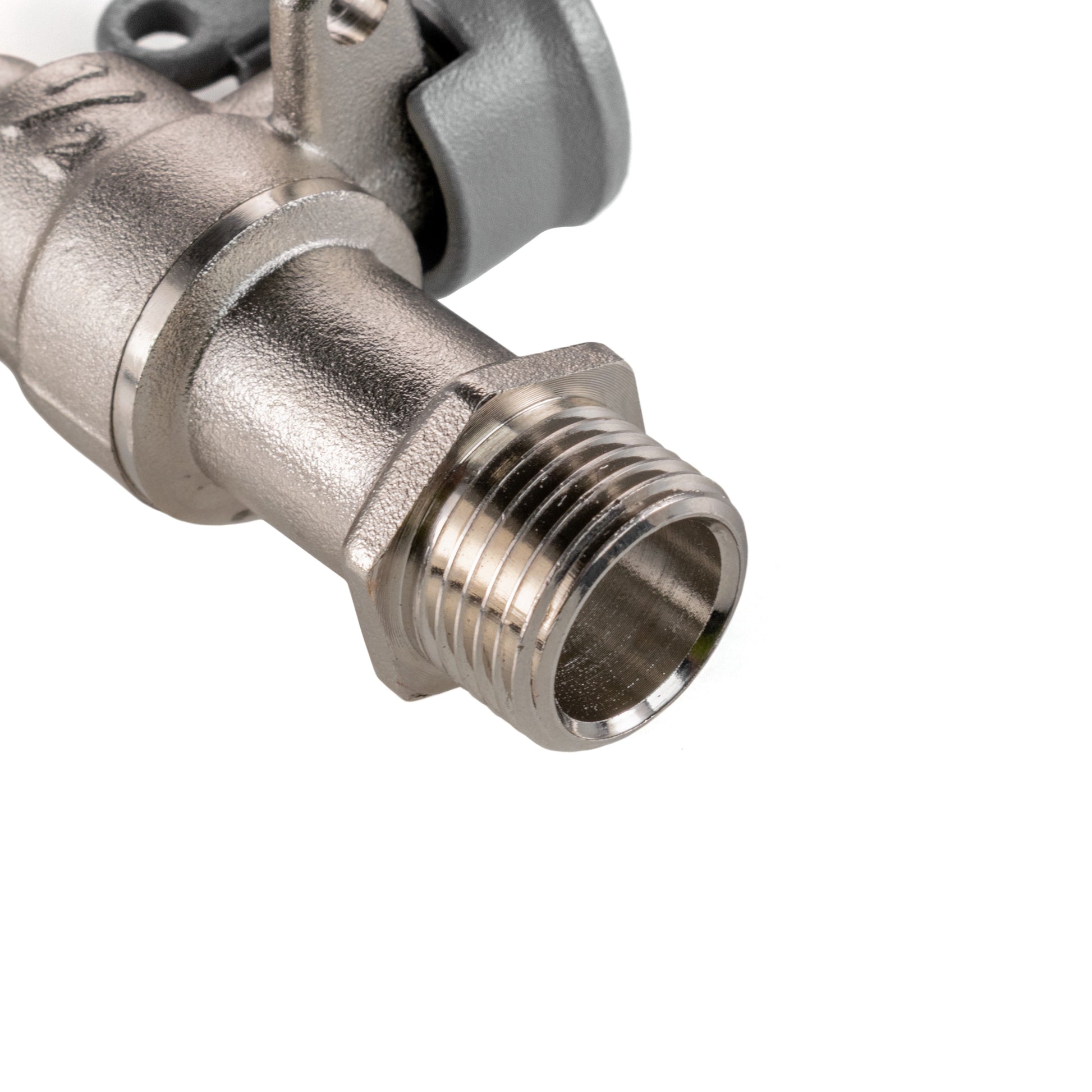

The inlet is ½-inch BSP male. It screws into a matching female BSP fitting; use a suitable adapter if your supply connection differs.

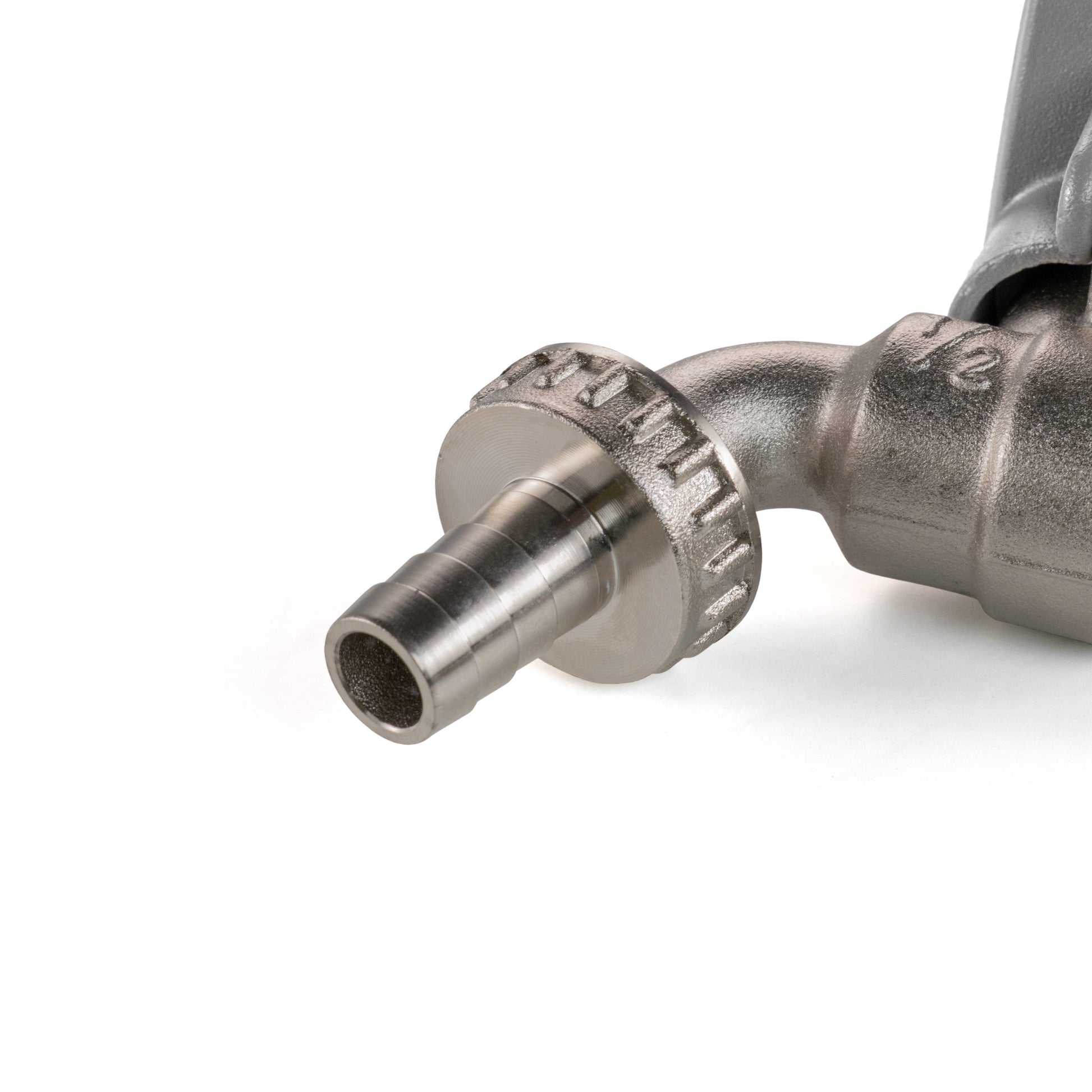

The outlet takes suitable 13mm / ½-inch-bore hose. Fit the hose over the ribs and secure it with an appropriate clip. Choose by the hose's internal diameter, rather than its outside measurement.
This is a direct hose-tail connection. It does not accept a female garden click-fit connector in the way a male quick-connect spigot does.
Allow room to operate and secure the lever
Check the supply fitting, hose and padlock together before installation.
Fit to a matching supply
Isolate the water before replacing the tap. Match the BSP threads, use the mating fitting's appropriate sealing method and support the supply connection while fitting.
Keep the lever accessible
Leave room for the handle to travel and for a padlock to be fitted or removed. Avoid mounting the locking eye against a wall or obstruction.
Support and check the hose
Use a suitable securing clip and leave slack so hose movement cannot twist the tap. Restore the water gradually and check both joints before use.
Questions about this lockable tap
Is a padlock included?
No. One tap with its barbed hose tail is supplied. Choose a separate padlock with a shackle that fits both locking holes and check the closed position before using it.
Is the silver body brass or stainless steel?
The body is brass with nickel plating, which gives it the silver finish. This is not a stainless-steel tap.
What hose fits the outlet?
Use suitable 13mm / ½-inch-bore hose with an appropriate clip. The hose fits directly over the barbed tail; a female garden click-fit connector needs a different outlet style.
Does the tap include a tank connector or mounting adapter?

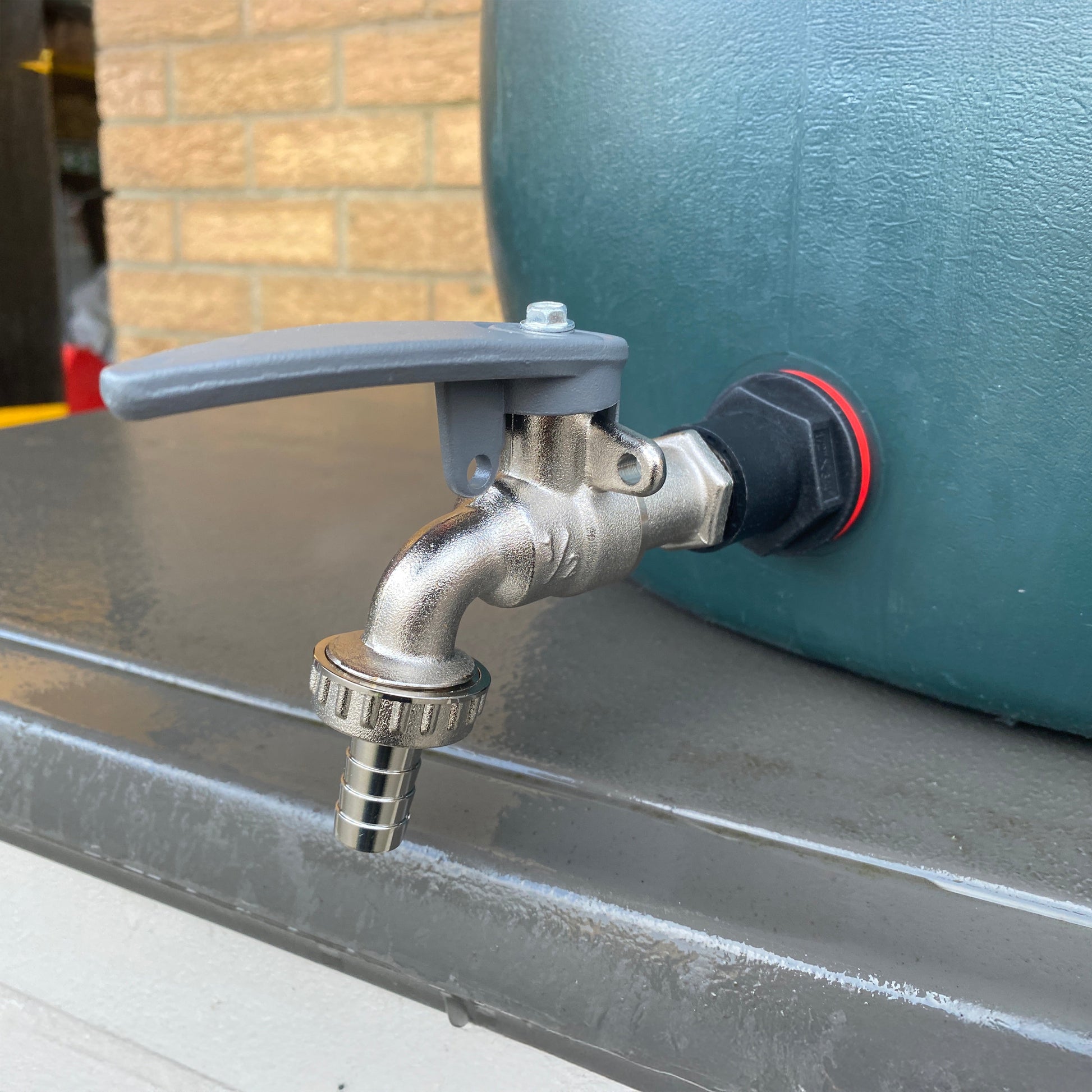

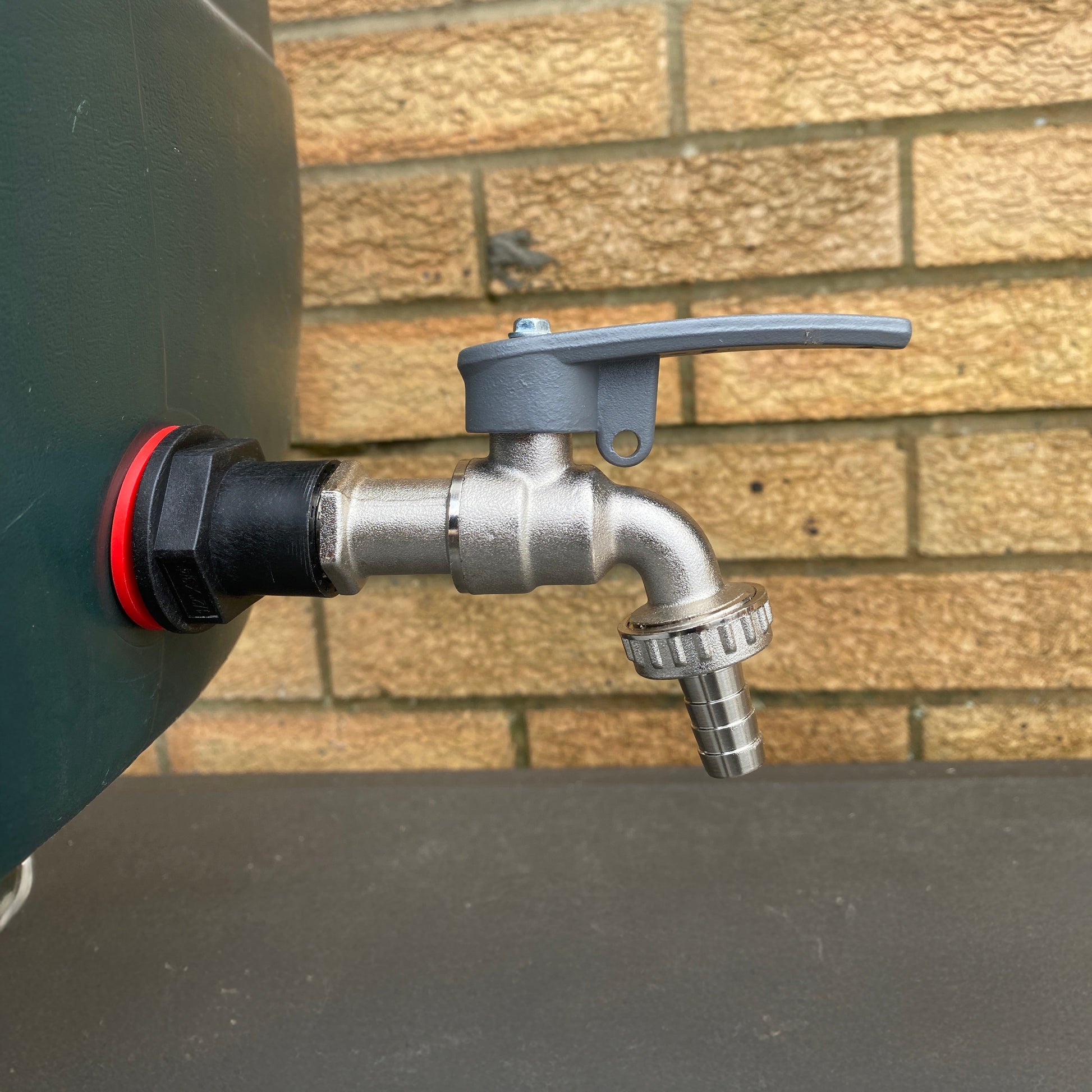

No. Tank connectors and other supply adapters shown in some installation photos are separate. This tap has a ½-inch BSP male inlet for a matching female fitting.
Product information & technical details
| SKU | GTLEVER-SIDELOCK12B001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Body material | Brass |
| Finish | Nickel plated |
|---|---|
| Inlet connection | ½-inch BSP male |
| Hose connection | 13mm / ½-inch bore hose |
| Control | Grey lever handle |
| Locking provision | Handle and body tabs for a suitable separate padlock |
| Supplied quantity | One tap with barbed hose tail |
| Padlock | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
