Description
Brass control at your garden water point

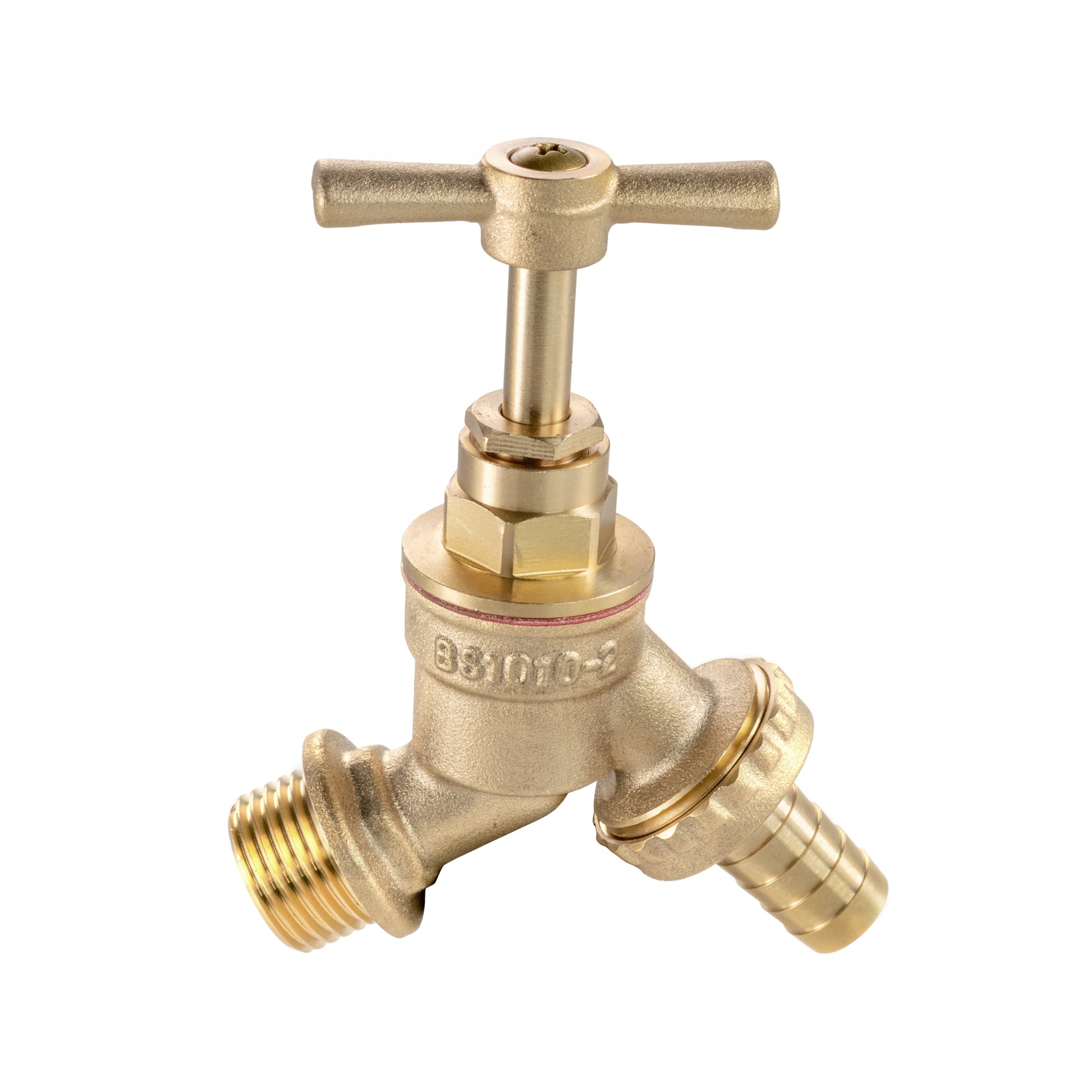

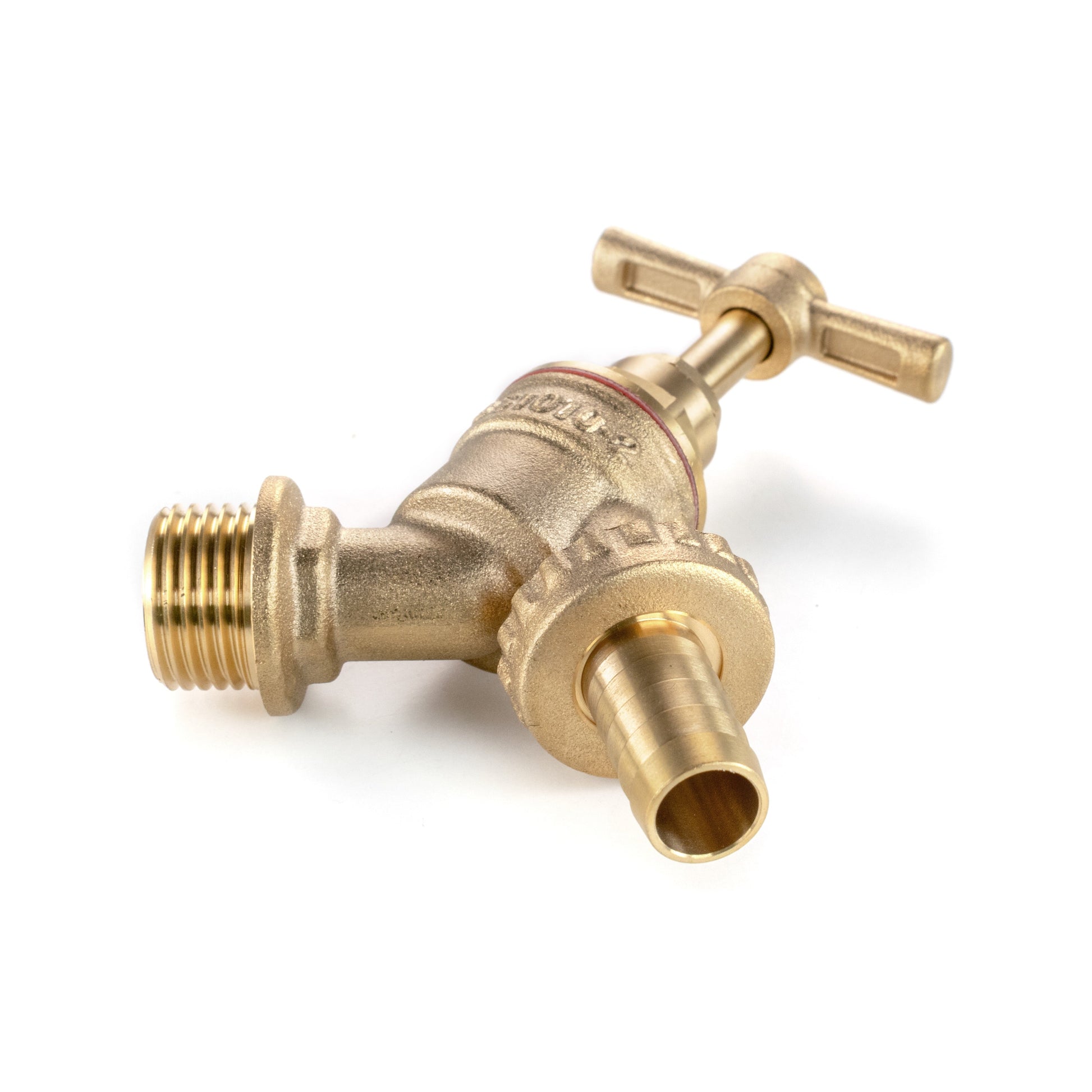

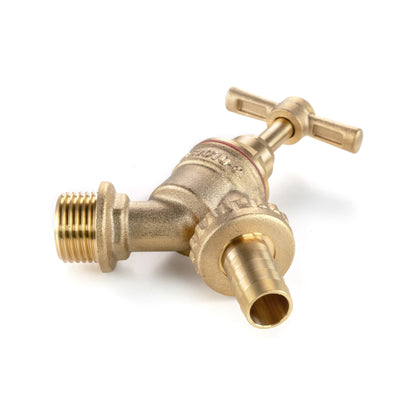

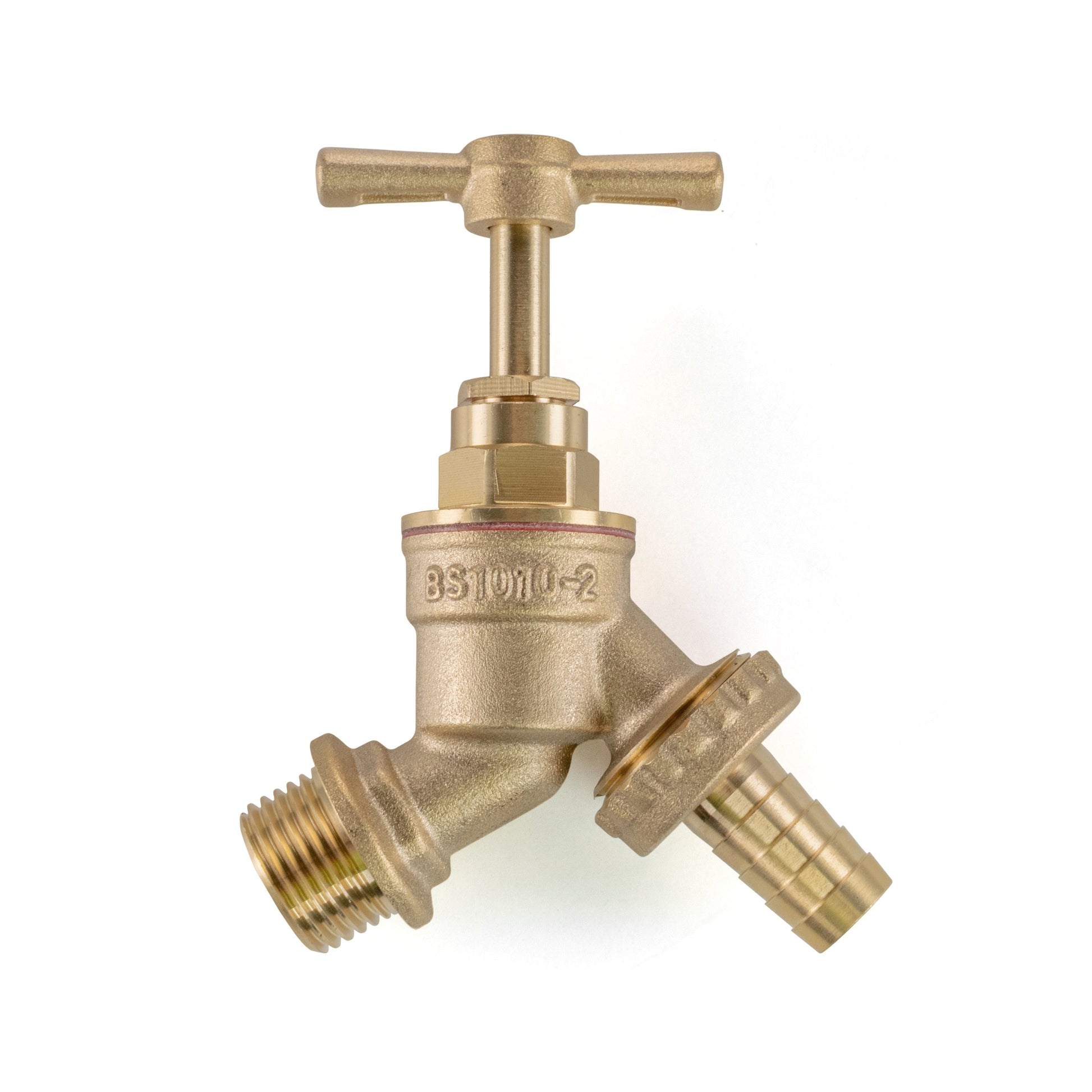

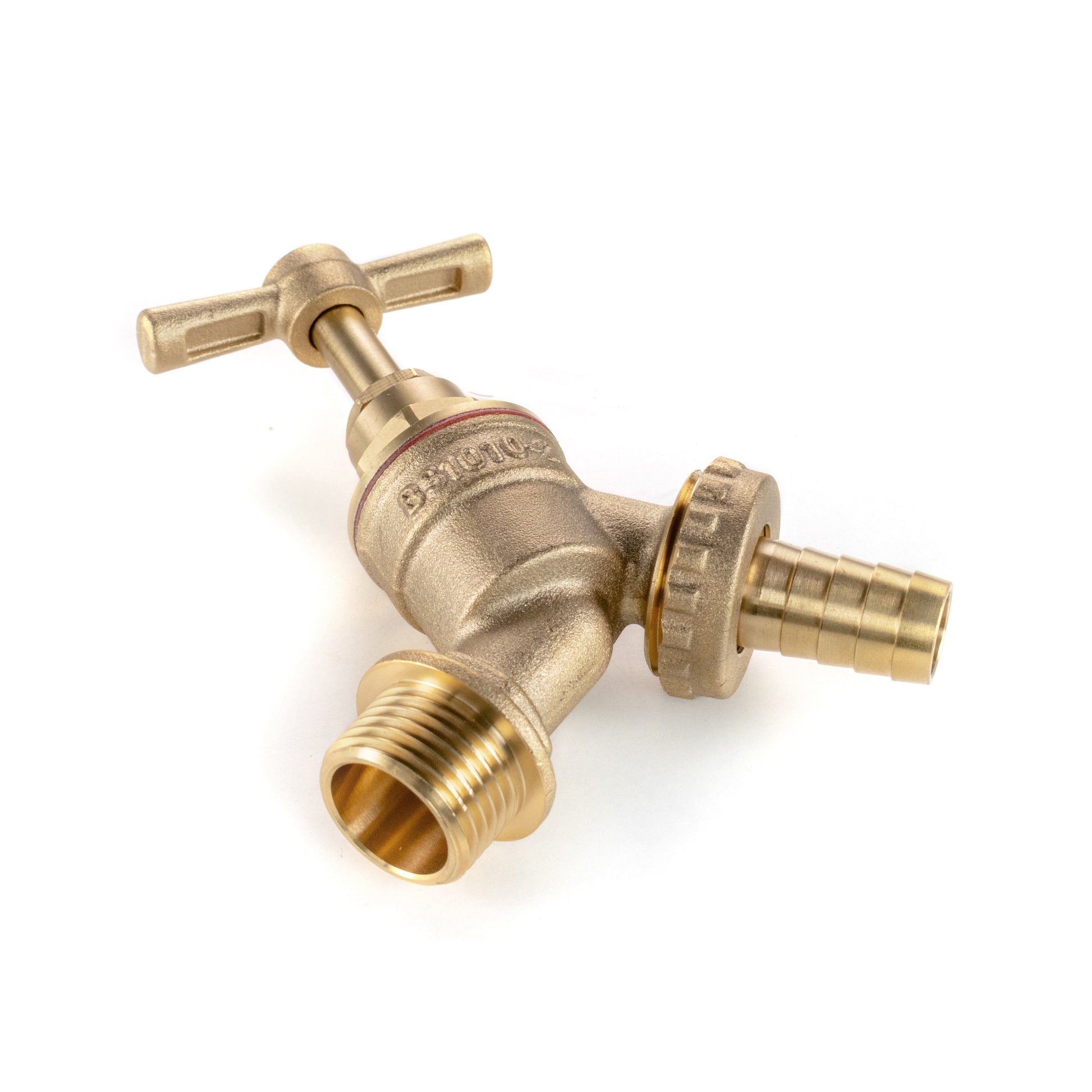

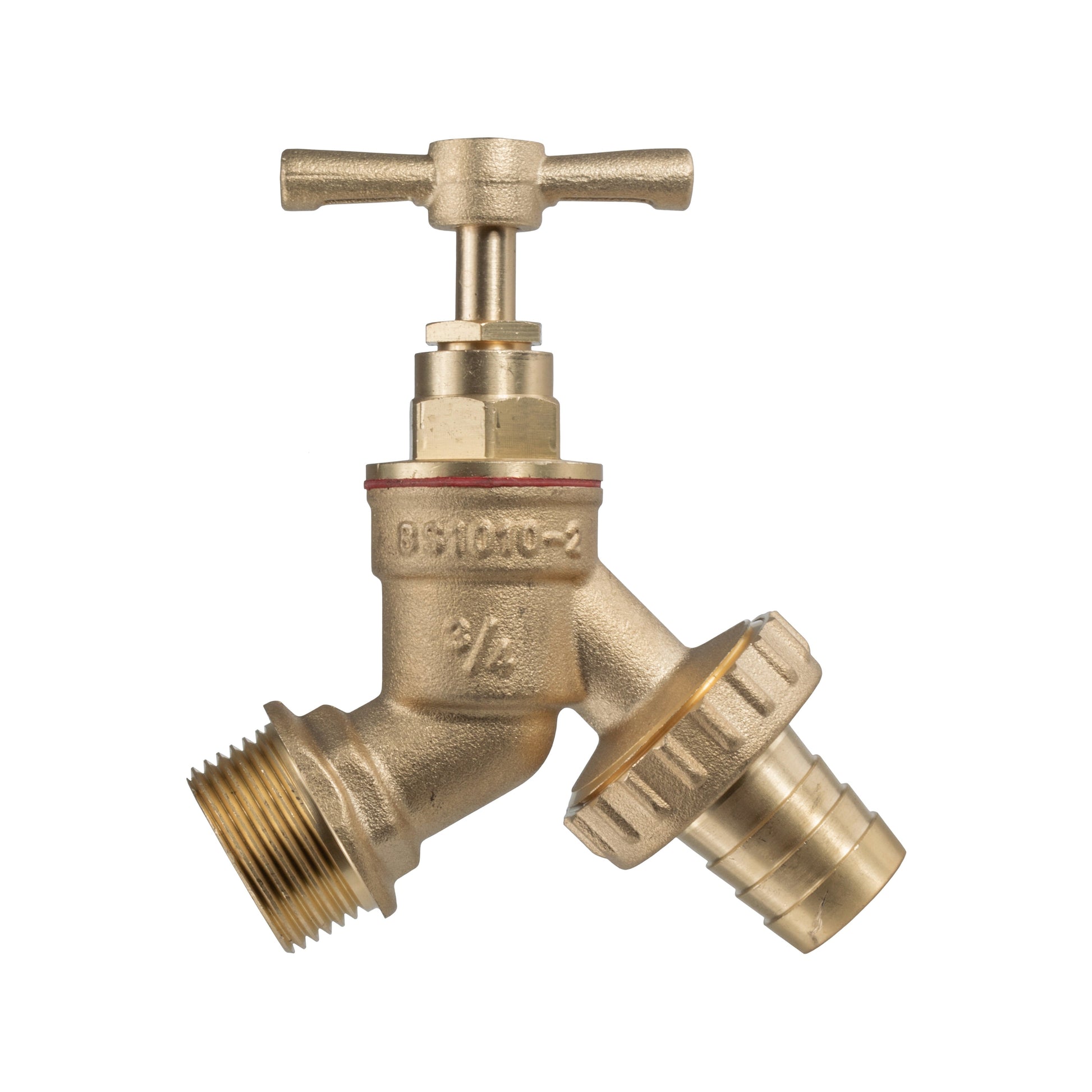

A traditional T-bar tap with a ¾-inch BSP male inlet and a ribbed outlet for ¾-inch-bore hose.
Connect a suitable hose for watering, or use the downward outlet to fill a can at the tap.
One tap with hose tail supplied. Hose and installation fittings are separate.
Two connections. Two different measurements.

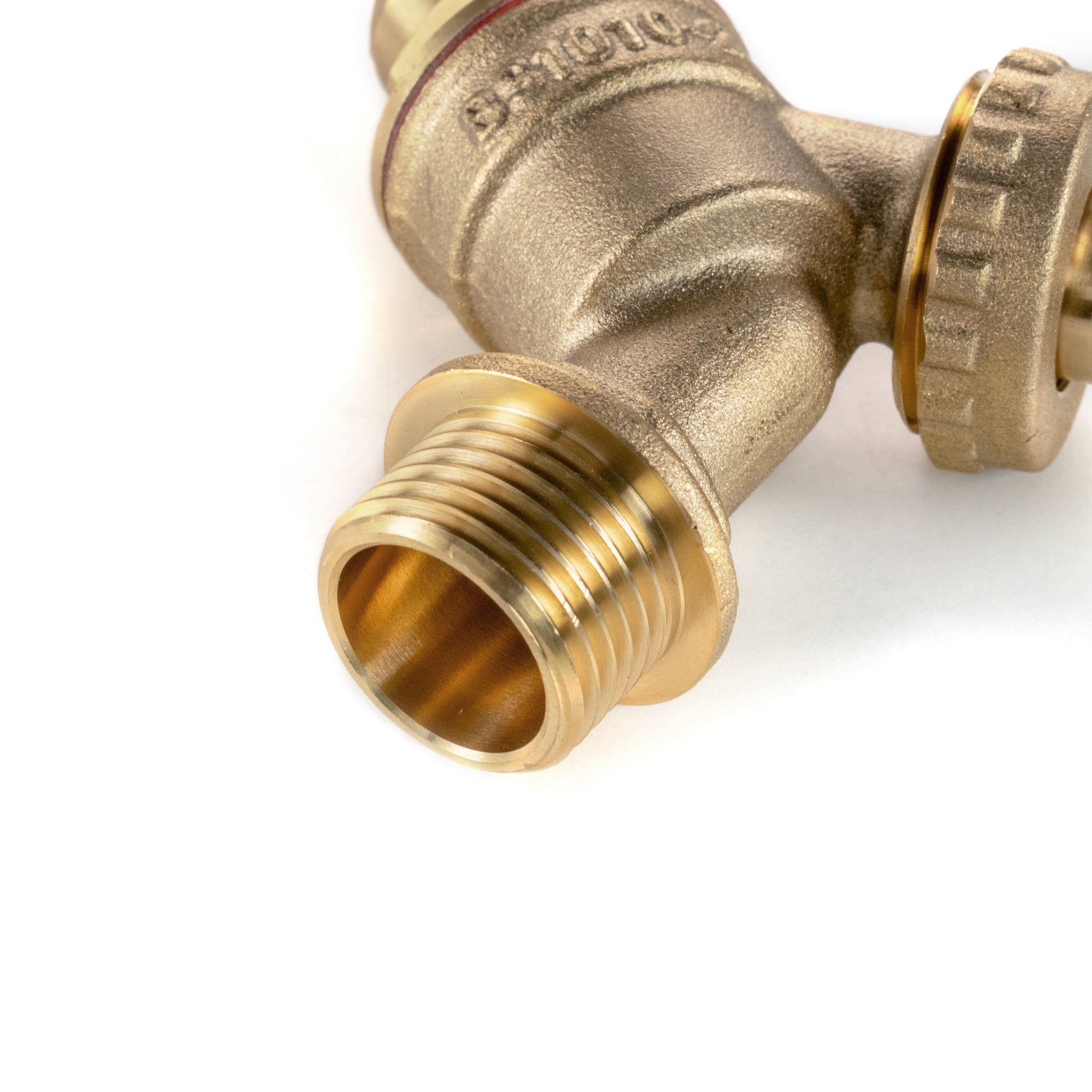

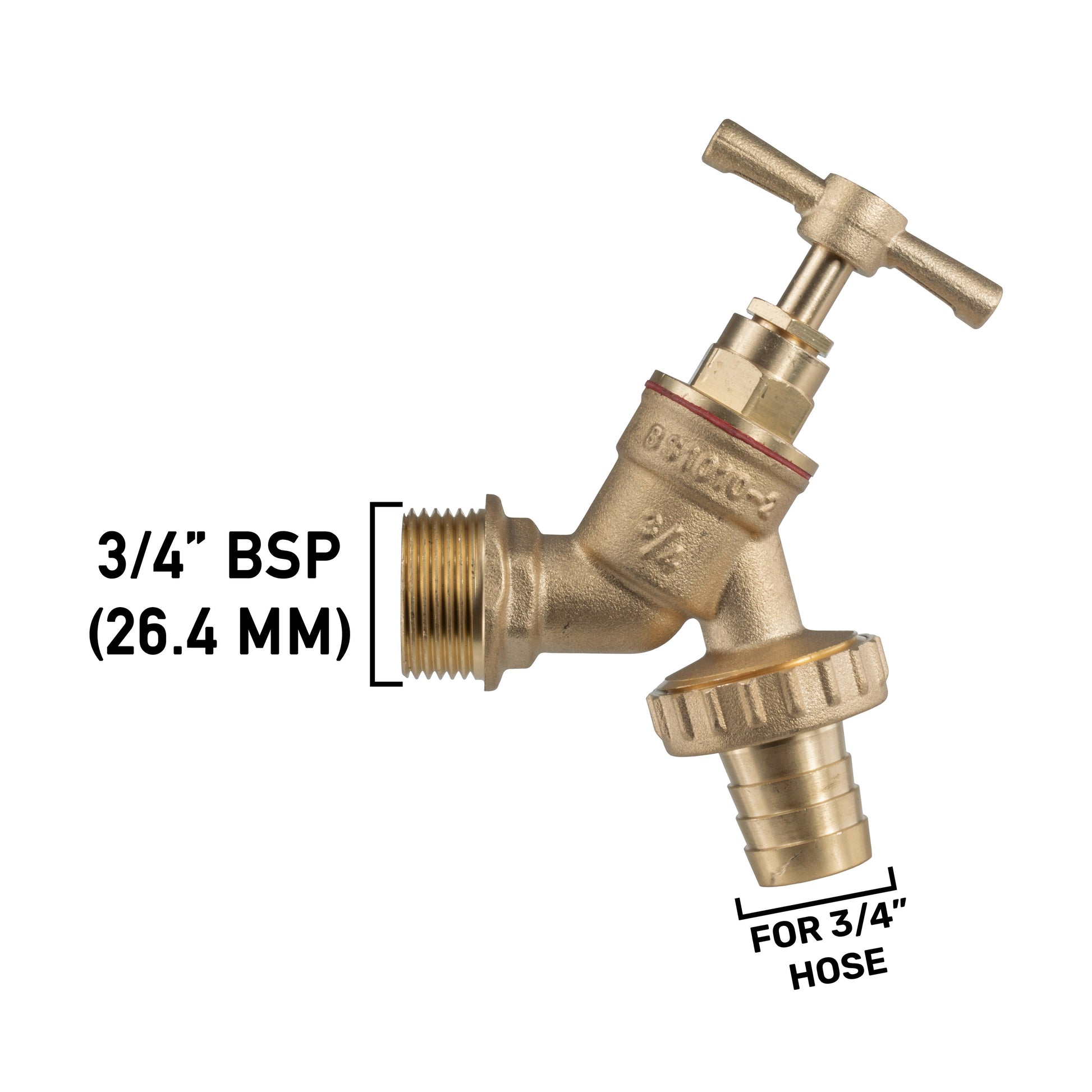

At the supply: the inlet is ¾-inch BSP male. It needs a matching female BSP fitting; a different thread requires the appropriate adapter. The guide shows about 26.4mm across this nominal ¾-inch male thread.

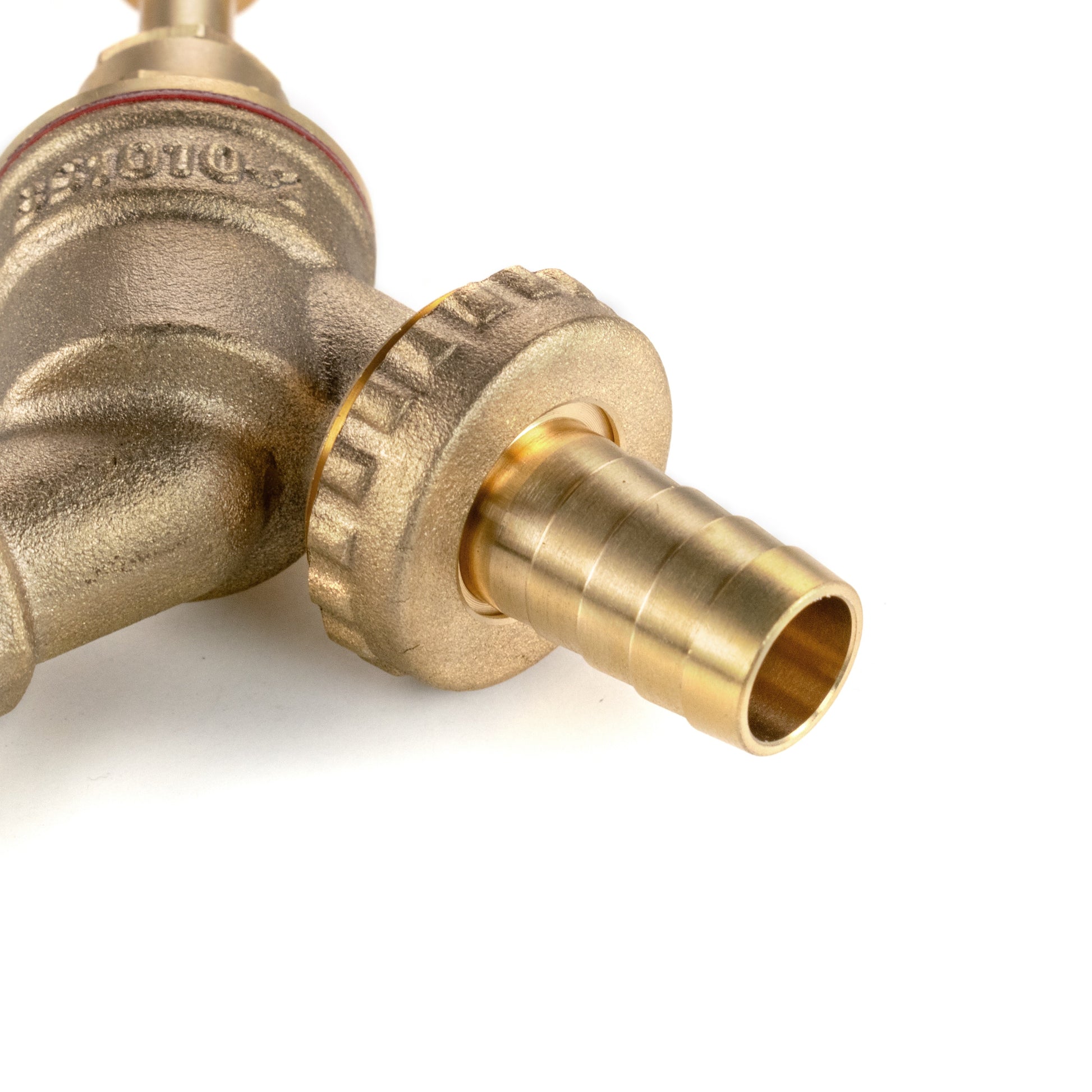

At the hose: the tail takes ¾-inch-bore hose, approximately 19mm internally. The hose fits over the ribs and should be held with a suitable clip.
The same inch label does not mean these two connections measure the same across. Check the supply's thread designation and the hose's internal diameter separately.
Plan the connection before fitting
Match the supply
Check that the supply fitting is ¾-inch BSP female, or choose a suitable adapter. Use the sealing method required by that fitting and support it while installing the tap.
Secure the hose
Fit suitable ¾-inch-bore hose over the tail with an appropriate clip. Leave enough slack so moving the hose does not pull against the threaded joint.
Leave the handle clear
Allow the T-bar to turn freely and test the assembled joints with water running. Isolate and drain exposed outdoor fittings before freezing weather.
Before you choose this tap
Is the hose connection a quick connector?
No. The supplied outlet is a barbed hose tail for hose fitted directly over the ribs. A female garden click-fit connector needs a matching male spigot instead.
Does a ¾-inch hose fit a ¾-inch BSP thread?
These are different connection types. The tap's ¾-inch BSP inlet screws into a matching female BSP fitting. The separate barbed outlet takes ¾-inch-bore hose, approximately 19mm internally.
Can I replace a ½-inch inlet tap with this one?
Not directly if the supply is ½-inch BSP female. This model has a ¾-inch BSP male inlet, so you would need an appropriate adapter or a tap with the matching inlet size.
What is included with the tap?
One brass bib tap with a T-bar handle and barbed hose outlet. Hose, clips, mounting fittings and thread-sealing materials are not included.
Product information & technical details
| SKU | GTBIB34BRASS001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Brass |
| Material | Brass |
| Inlet connection | ¾-inch BSP male |
| Hose connection | ¾-inch bore hose (approximately 19mm internal diameter) |
|---|---|
| Body material | Brass |
| Finish | Natural brass |
| Outlet style | Angled downward hose tail |
| Operation | T-bar turn handle |
| Supplied quantity | One tap with barbed outlet |
| Use | Garden watering and water dispensing |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
