Description

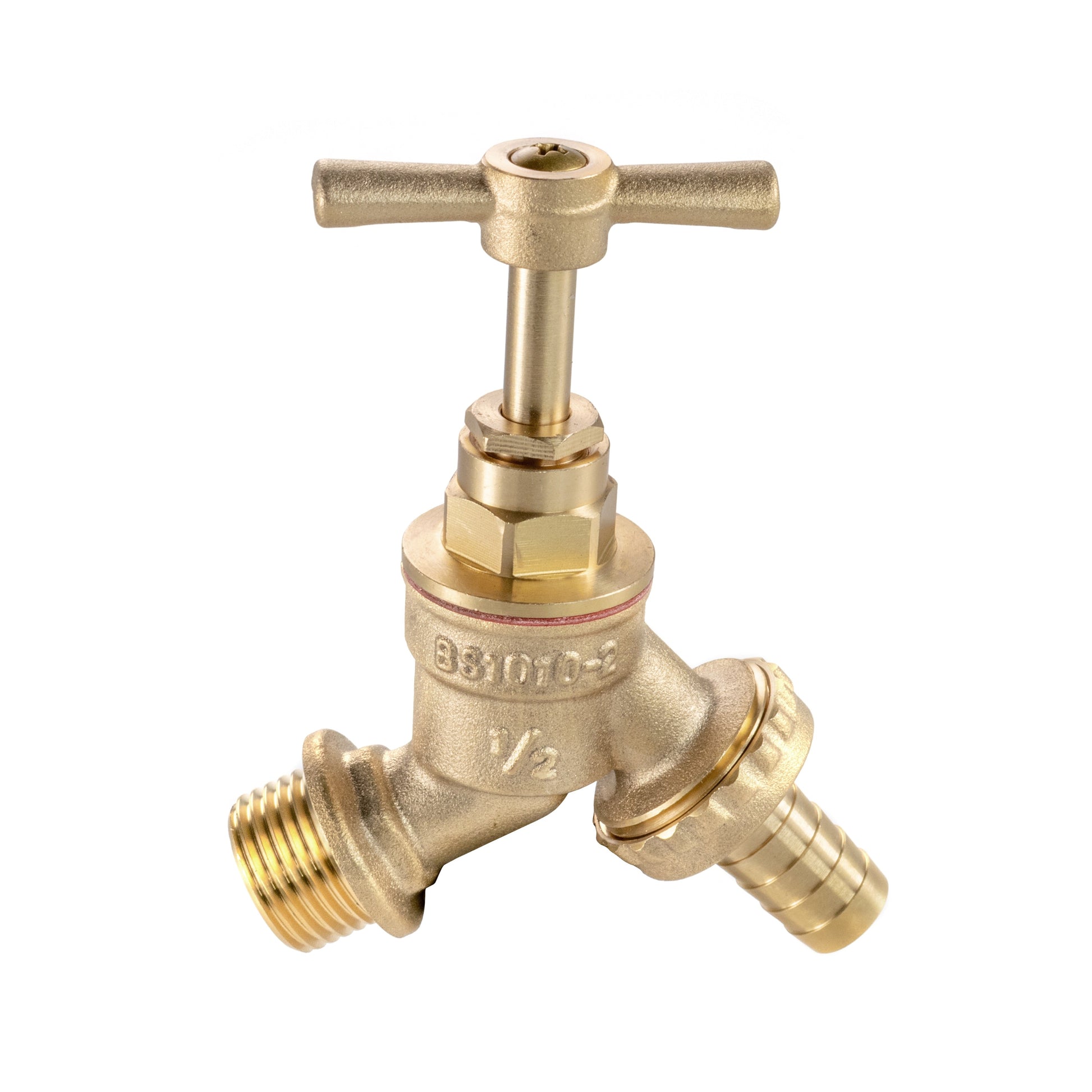

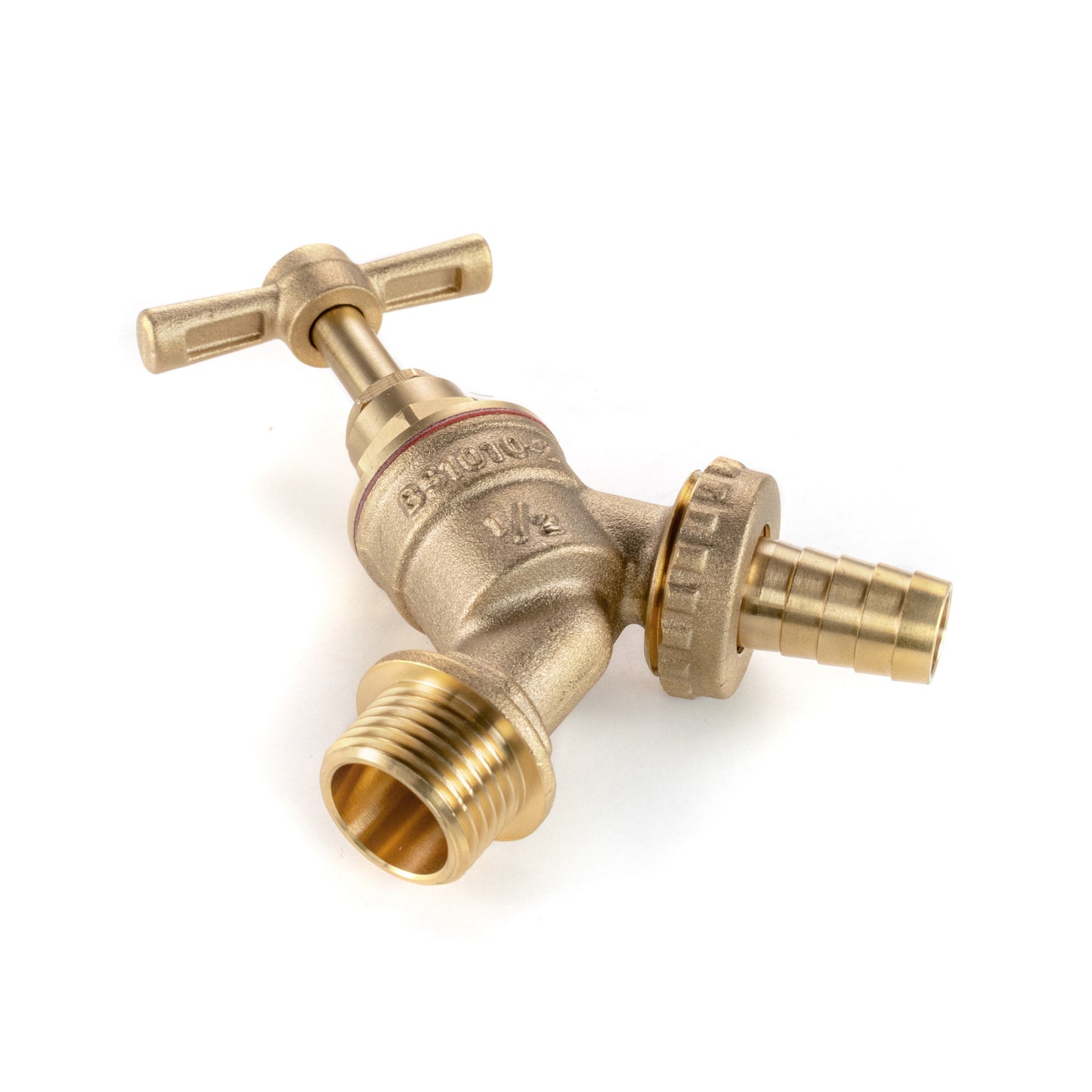

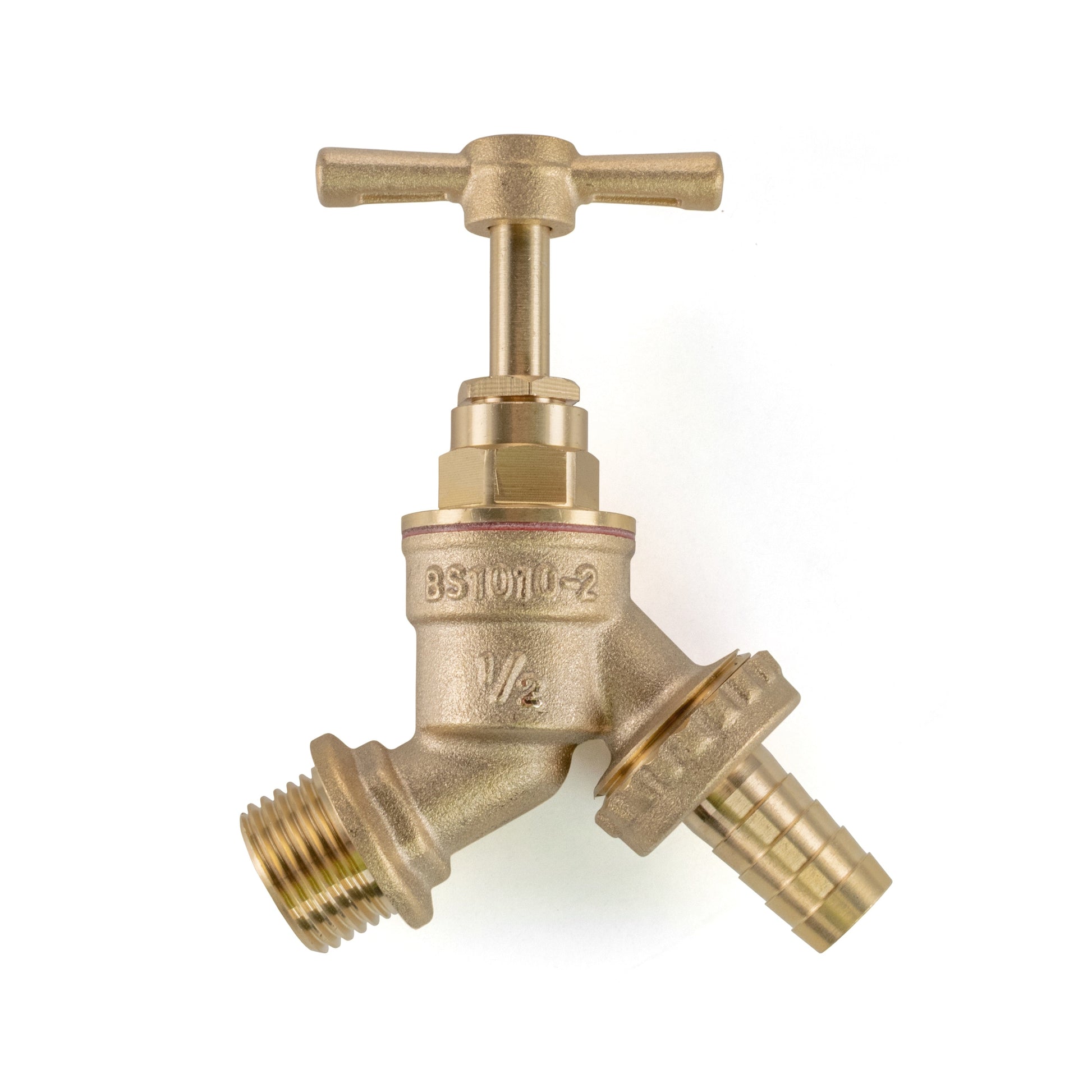

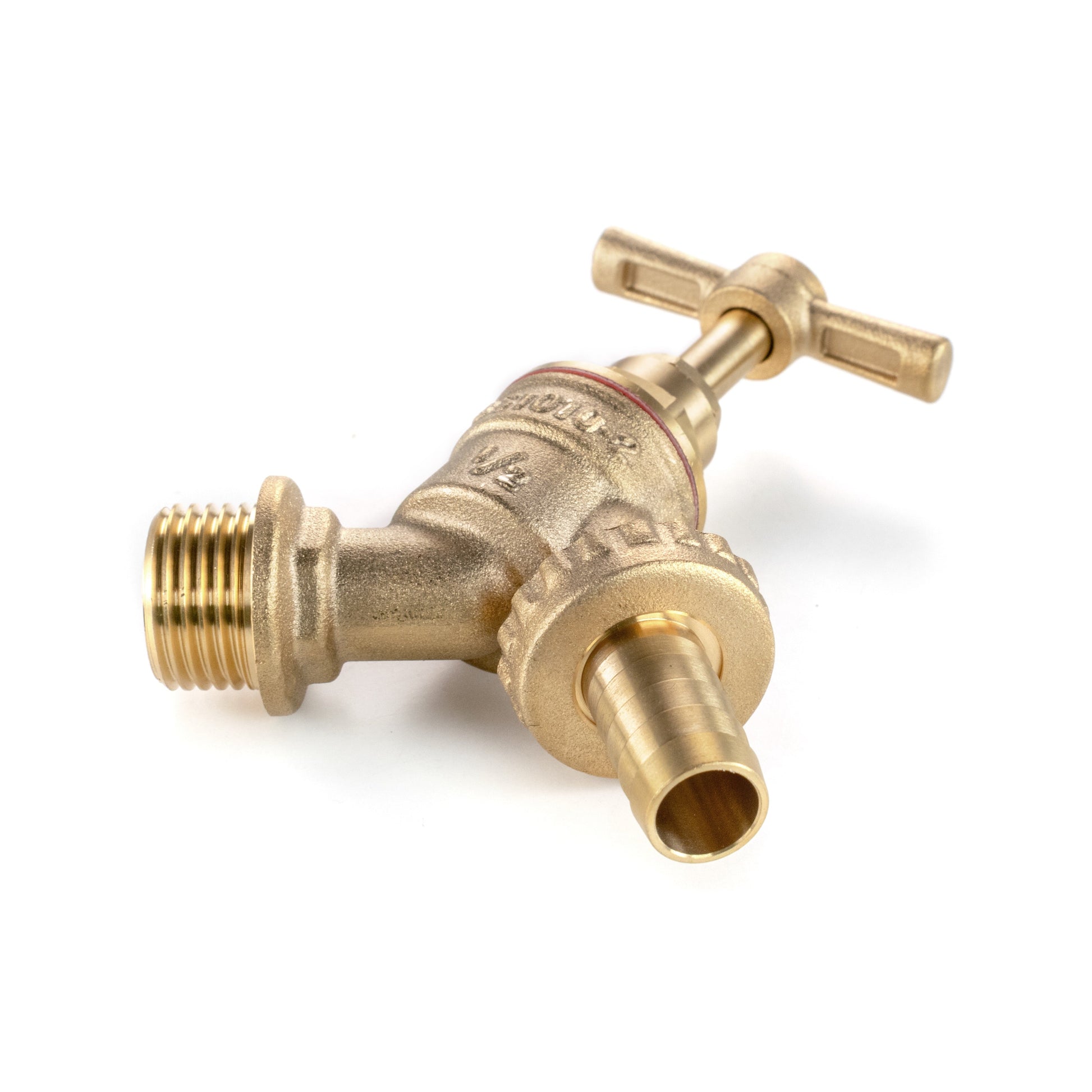

A traditional brass tap for garden watering
Fill a watering can or connect a ½-inch-bore hose to the ribbed outlet. A familiar T-bar handle controls the water at the tap.
½-inch BSP male inlet · brass body · barbed hose tail
One tap supplied. Hose, clips and mounting fittings are separate.
A direct connection for the hose

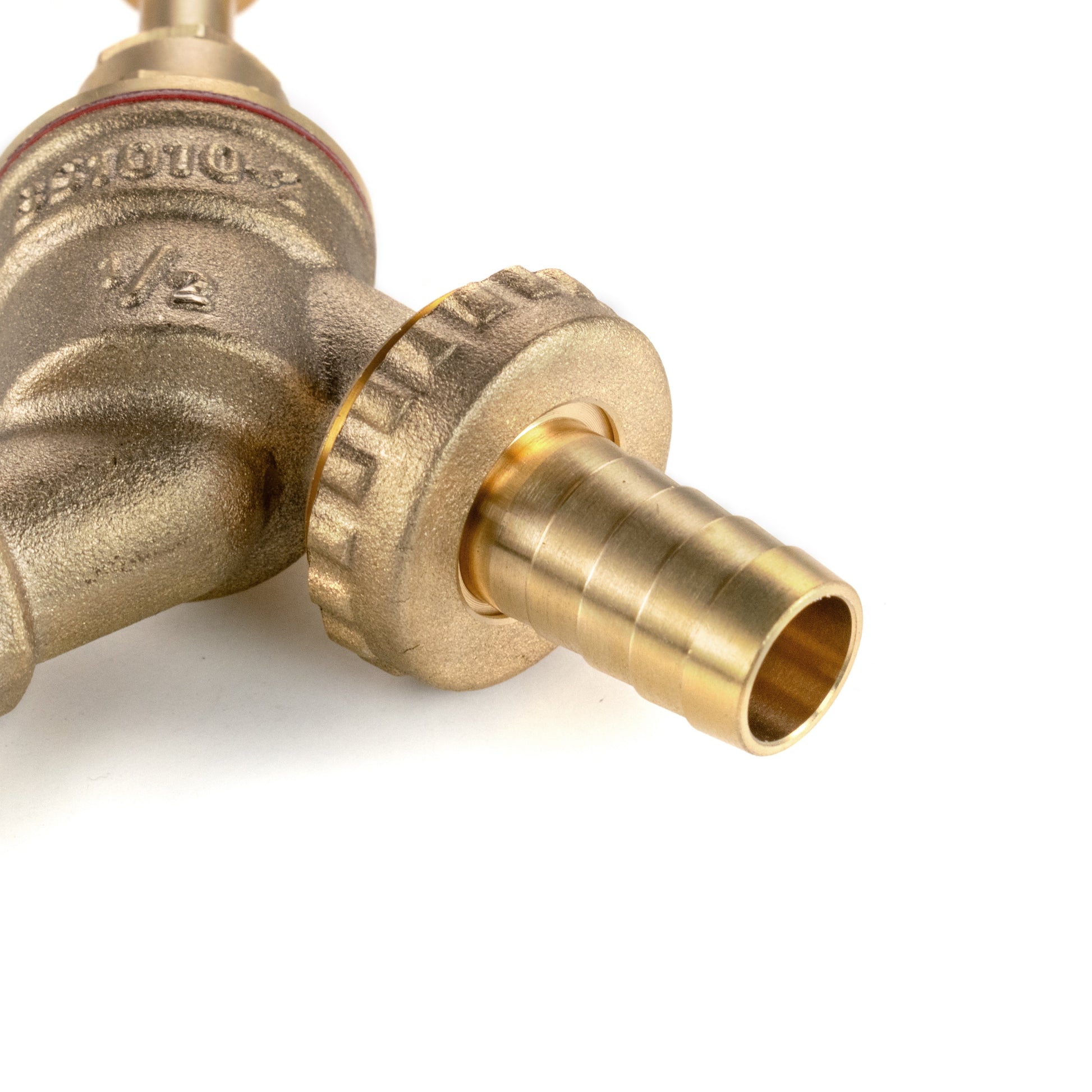

The supplied tail takes ½-inch-bore hose, approximately 13mm internally. Slide suitable hose over the ribs and secure it with an appropriate hose clip before use.
Choose the hose by its inside diameter. Its outside measurement also includes the wall thickness, so two hoses with the same bore can look different in size.
This version has a barbed hose tail. A female garden quick connector does not click onto it; choose a click-fit tap or suitable conversion fitting if that is how you want to connect your hose.
Match the inlet to your water supply

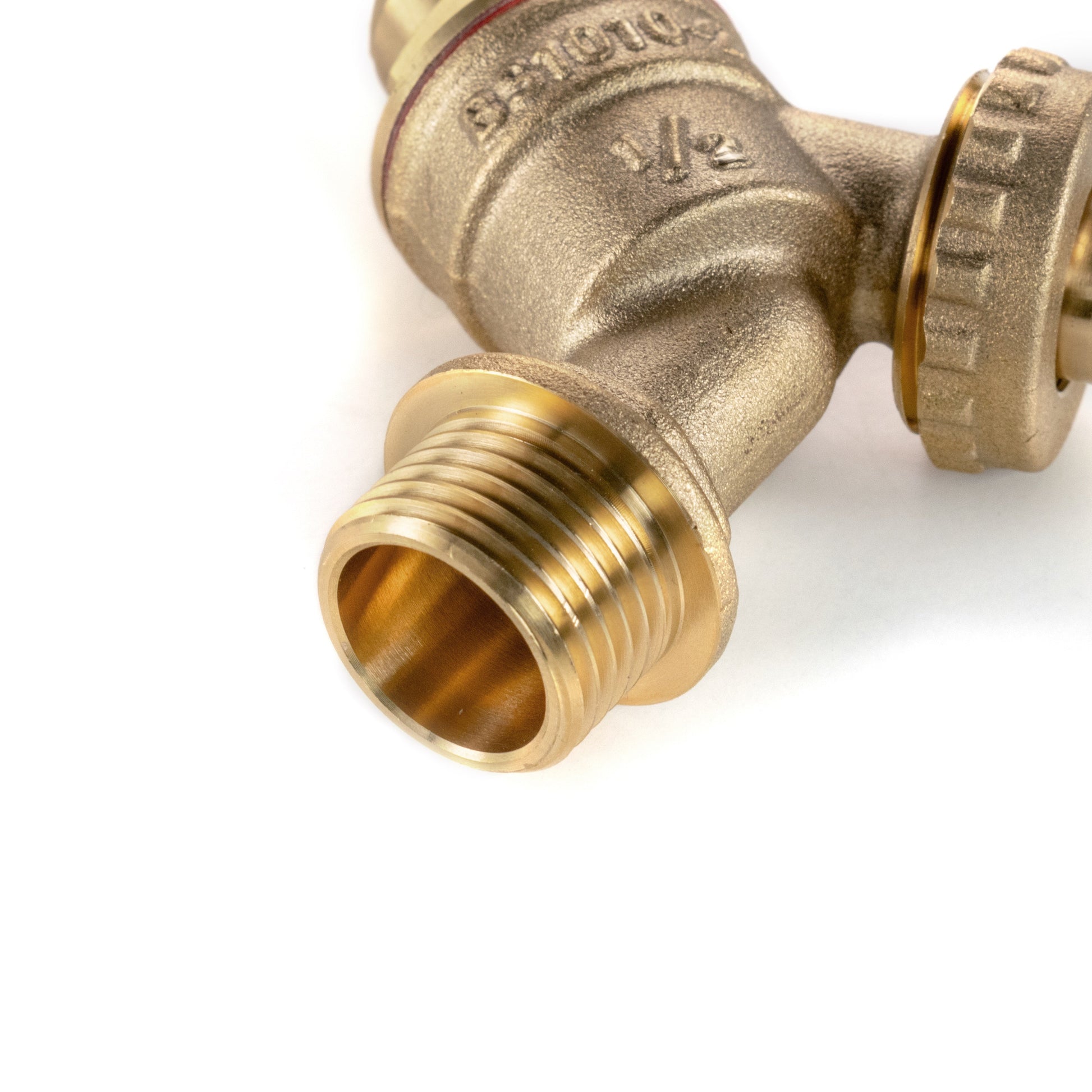

The inlet is ½-inch BSP male and needs a matching female BSP fitting. A different-size supply requires a suitable adapter; the tap alone does not convert a larger or differently threaded connection.
BSP sizes are nominal names. Do not expect a ruler placed across the outside of a ½-inch BSP male thread to read ½ inch, or confuse the inlet thread with the hose's bore.
Use the sealing method appropriate to the mating fitting and support that fitting while installing. Check the joint with water running before leaving the setup in use.
Fit it with room to use it
- Check both ends. Confirm the supply thread and the hose's inside diameter before assembling the connection.
- Leave the handle clear. Position the tap so the T-bar can turn without meeting the wall, tank or nearby pipework.
- Protect the installation. Avoid hose pulls loading the inlet joint. Isolate and drain exposed outdoor fittings when freezing conditions are expected.
Questions about this brass bib tap
Does this tap have a quick-connect outlet?
No. This version is supplied with a barbed hose tail for hose fitted directly over the ribs. A female garden click-fit connector needs a matching male quick-connect spigot instead.
What size hose does the barbed tail take?
Use suitable ½-inch-bore hose, approximately 13mm internally, and an appropriate securing clip. Check the hose's internal size rather than its outside diameter.
Will it screw into any garden water supply?
It needs a matching ½-inch BSP female connection. Check the existing fitting's thread type and size; an appropriate adapter is required if it differs.
Are hose clips, mounting fittings or sealing tape included?
No. One brass bib tap with its barbed outlet is supplied. Hose, clips, mounting adapters and thread-sealing materials are separate.
Product information & technical details
| SKU | GTBIB12BRASS001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Brass |
| Material | Brass |
| Body material | Brass |
| Finish | Natural brass |
|---|---|
| Inlet connection | ½-inch BSP male |
| Hose connection | ½-inch bore hose (approximately 13mm internal diameter) |
| Outlet style | Downward barbed hose tail |
| Control | T-bar turn handle |
| Supplied quantity | One bib tap with barbed outlet |
| Application | Garden watering and water dispensing |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
