Description
A pond liner and underlay, ready to plan together

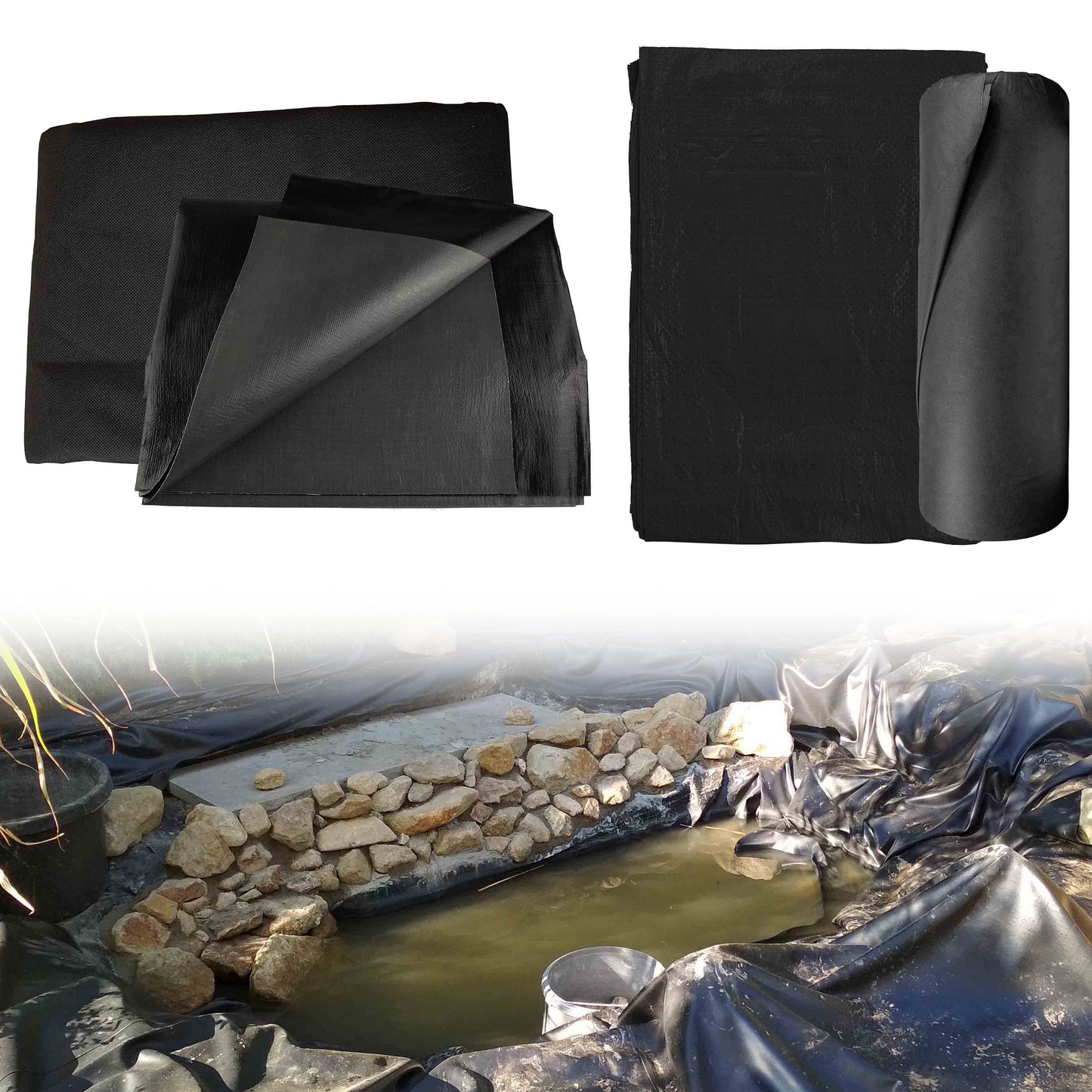

This 5m × 6m pond liner bundle pairs a black 200gsm polyethylene sheet with lightweight 50gsm fabric underlay. The PE liner forms the water-holding layer, while the fabric is laid beneath it on prepared ground. It is a practical starting point for a garden pond when the sheet dimensions suit your excavation and edging plan.
Will a 5m × 6m liner fit your pond?
The flat liner has a nominal area of 30m², but this does not mean it will line a pond with a 5m × 6m water surface. The sheet must reach down the sides, across the base and over the edges, with enough material to follow any shelves or changes in level.
Measure the longest and widest routes through the excavation, following its contours. Include the allowance needed for your chosen edging, and account for the ±5% cut-size tolerance before ordering. Do not plan an installation that depends on every nominal centimetre being available.
Two layers, each with a purpose
Lay the fabric beneath the PE liner. Good ground preparation still matters, even with underlay included.
Start with smooth ground
Remove sharp stones, roots and debris from the base, sides and shelves. Lightweight fabric cannot make sharp or uneven ground safe for a liner.
Position the underlay
Arrange the fabric across the prepared surface beneath the liner. Check the coverage as you work, including around corners and changes in level.
Allow the liner to settle
Unfold and position the PE sheet without stretching it tight across the excavation. Keep enough material for the contours and your planned edge finish.
What is included?
A black 200gsm polyethylene pond liner with a grey reverse, in a nominal 5m × 6m cut size, supplied with 50gsm fabric underlay. This is a PE liner bundle, rather than an EPDM rubber liner. Pond edging, stones, plants and installation accessories are not included.
Questions before fitting
Does 200gsm tell me the thickness?
No. GSM means grams per square metre: it describes the liner's material weight per unit area. The 50gsm figure belongs to the separate fabric underlay. Neither figure is a millimetre thickness measurement.
Does the included underlay replace ground preparation?
No. It provides a lightweight fabric layer beneath the liner, but sharp objects and rough ground still need attention before installation. Choose any additional protection to suit the actual ground conditions.
Can I use the water surface dimensions to choose a liner?
Not on their own. Measure the full routes through the pond, including depth, shelves and edges. A 5m × 6m flat sheet becomes a smaller usable pond once those allowances are taken up.
Product information & technical details
| SKU | PLB5X6-001+ |
|---|---|
| Product type | |
| Size | 5m x 6m |
| Length | 6m |
| Width | 5m |
| GSM | 200gsm |
| Colour | Black, Grey |
|---|---|
| Material | Polyethylene (PE) |
| Nominal flat liner area | 30m² |
| Included underlay | 2 × 3m × 5m sheets of 50gsm fabric; separate pieces, allow for overlaps. |
| Cut-size tolerance | ±5% |
