Description
Plan the turn for your 50mm hose

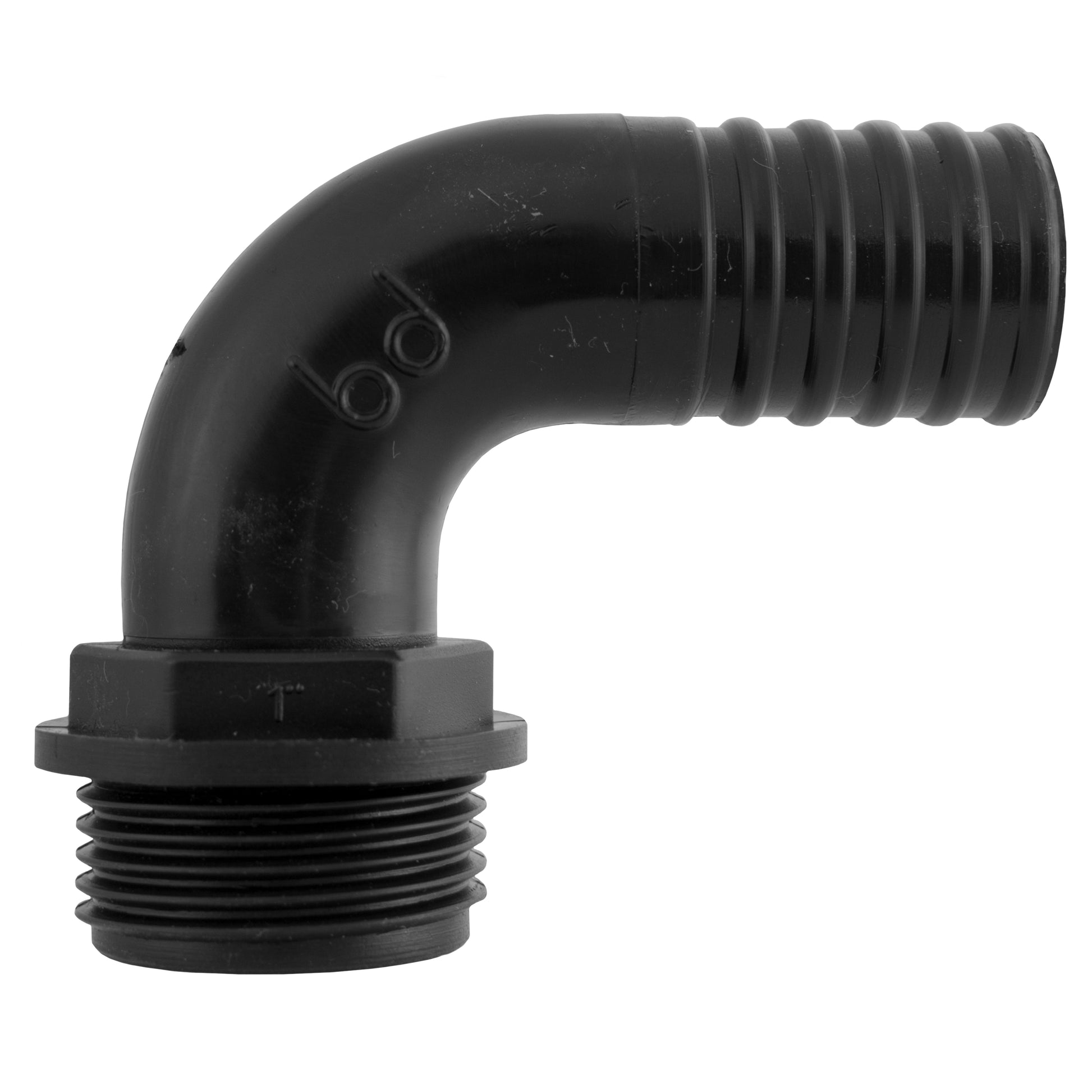

Connect suitable 50mm-bore hose to a matching threaded port with this black plastic elbow.
A 2-inch BSP male thread and a ribbed 50mm hosetail meet at a fixed 90° bend. Check both connections before planning the route around your pond equipment.
One connector supplied. Hose, clips, pump and filter are separate.
Check the joint. Support the run.
Give the hose space to bend without loading the port.
Confirm the female thread
Use a compatible 2-inch BSP female port. Read the equipment’s thread and sealing specification. Hose bore and nominal BSP size are different measurements even when both are described as 2-inch.
Match the hose profile
The hosetail is sized for suitable 50mm-bore hose. Check the wall construction and the required securing method, then allow room to seat the hose and access the connection.
Keep a gradual curve
Arrange the hose beyond the elbow with a broad bend and adequate support. Avoid pulling it tight or using the fitting as a support for an unsupported hose run. This is a fixed elbow, not a swivel.
One elbow for the connection you have checked
The package contains the elbow only. Choose any hose, clips and sealing parts separately to suit your installation. Follow the equipment’s tightening instructions for plastic fittings and check the assembled joints with water before concealing them.
When replacing an existing connector, compare the hose bore and thread specification as well as the angle. A similar-looking elbow or an inch label on its own is not enough to confirm the fit.
Questions about the 50mm elbow
Are 2-inch hose and 2-inch BSP the same connection?
No. A 50mm hose bore is commonly called 2-inch, whereas 2-inch BSP is a nominal thread specification. The hose slides over the barbed end; the male thread screws into a compatible female BSP port. Match both ends to the equipment, rather than assuming the same inch wording means the hose and threaded port have identical dimensions.
Will this increase my pump’s flow rate?
This elbow provides a 50mm hose connection and a 90° change of direction; it does not establish a flow rate. Pump performance, the other fittings, hose length, bends and elevation all affect a system. Use the bore and connection arrangement specified for your equipment rather than selecting it from an assumed capacity or litres-per-minute figure.
How much room should I leave around the elbow?
Allow enough access to fit the threaded end, seat the hose and install any required securing parts. Beyond the barb, the hose should follow a broad supported curve rather than a tight fold. Check the actual equipment and hose before assembly, keep the hose’s weight off the port and leave the joints accessible for inspection.
What is included with the connector?
One black plastic elbow is supplied. Hose, hose clips, pump and filter are not included. The description image is a neutral illustration of the connector style, not a measured drawing. Use the written 50mm hosetail and 2-inch BSP male specifications, follow the equipment’s sealing and securing instructions, and inspect both joints with water after assembly.
Product information & technical details
| SKU | POND50B2BSPMELB001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Male |
| Barb size | 50mm (2") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Connection layout | Fixed 90° elbow: 50mm hosetail to 2-inch BSP male thread |
| Thread size convention | 2-inch BSP is a nominal pipe-thread size, separate from the 50mm hose bore |
| Contents | One elbow connector; hose, clips, pump and filter not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
