Description
Connect 50mm hose to a male BSP outlet

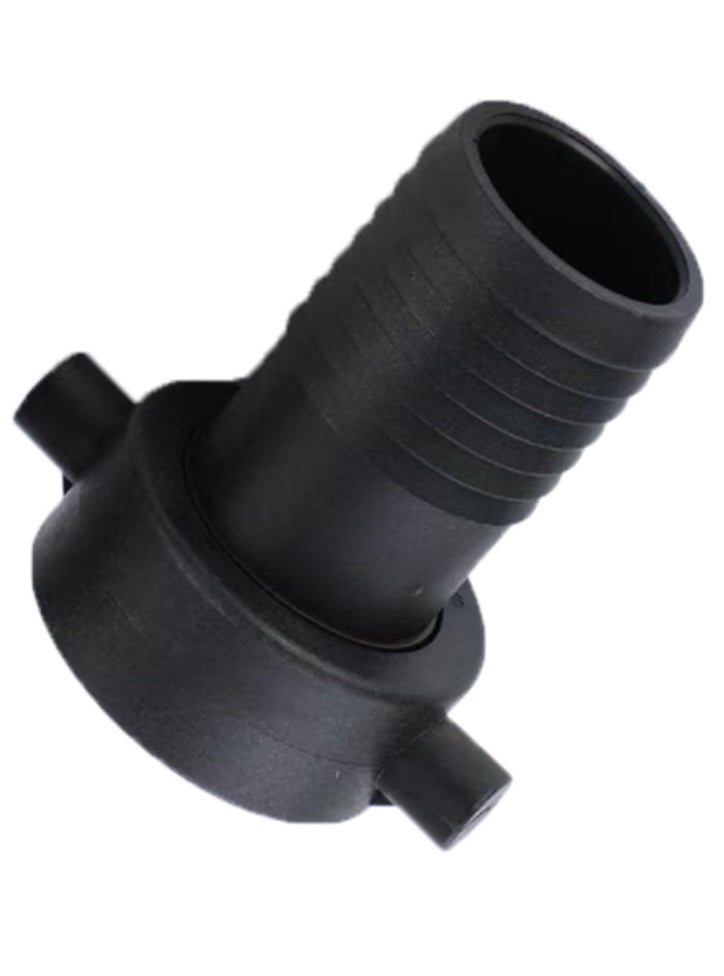

Use this straight black plastic adapter where suitable 50mm pond hose meets a 2-inch BSP male fitting.
The female swivel collar turns at the threaded connection, while the ribbed hosetail provides the hose connection.
One adapter supplied. Hose, clips and sealing accessories are sold separately.
See the connection inside the collar
The outer female thread accepts a matching 2-inch BSP male fitting. The smaller opening inside is labelled 40mm in the reference photograph.
That passage is separate from the 50mm hose size. Check the whole connection when planning your pond plumbing; the hose bore alone does not describe the opening through every fitting.
Assemble the collar and hose connections
Leave both joints accessible for fitting and inspection.
Match the male outlet
Confirm the equipment has a 2-inch BSP male fitting. Follow its sealing and tightening instructions for plastic connections. The collar helps with assembly; it does not change the required thread size or gender.
Seat suitable 50mm hose
Check the hose bore and wall profile against the ribbed hosetail. Choose the securing clip separately from the outside diameter of the fitted hose. Check the attached hose can be supported without pulling on the equipment outlet.
Support the finished run
Allow a broad hose bend beyond the barb without pulling or twisting the equipment connection. Keep the hose supported and inspect the assembled joints with water before covering the route or making it difficult to reach.
Questions about the female adapter
Does this connect to a male or female equipment fitting?
The adapter has an internal female BSP thread, so it needs a matching 2-inch BSP male fitting. The ribbed end is for suitable 50mm-bore hose. Check both specifications on the equipment and hose before assembly; a female port will need a different connection. Follow the equipment’s specified sealing and tightening method for the completed joint.
Is the opening through the fitting 50mm all the way?
No. The 50mm size refers to the intended hose bore. The reference photograph shows an internal passage of approximately 40mm inside the adapter, separate from the larger threaded collar. Consider the complete hose and fitting arrangement when matching your equipment. The nominal hose size alone does not establish an unrestricted passage or a particular flow rate.
Can the swivel collar be used as a moving joint?
The collar helps with assembly and positioning at the threaded connection. It is not a ball joint or a reason to leave the hose unsupported. Follow the equipment’s fitting instructions, secure the hose appropriately and arrange a gradual bend without sideways strain. Keep access to the collar and hose clip so the finished joints can be inspected.
Does 2-inch BSP mean the thread measures 50mm?
No. BSP is a nominal pipe-thread size, while the 50mm hose size refers to the intended internal bore of the hose. The female collar needs a matching 2-inch BSP male fitting. Check the equipment specification rather than choosing by an approximate ruler measurement across its outlet. Hose clips are sized separately around the outside of the fitted hose.
Product information & technical details
| SKU | POND50B-2BSPFSTR001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Female |
| Barb size | 50mm (2") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight 50mm hosetail to 2-inch BSP female thread |
| Collar design | Swivel collar with two grip lugs |
| Internal passage | Approximately 40mm, as shown in the reference photo |
| Contents | One adapter; hose, clips and equipment not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
