Description
Four lines to hand

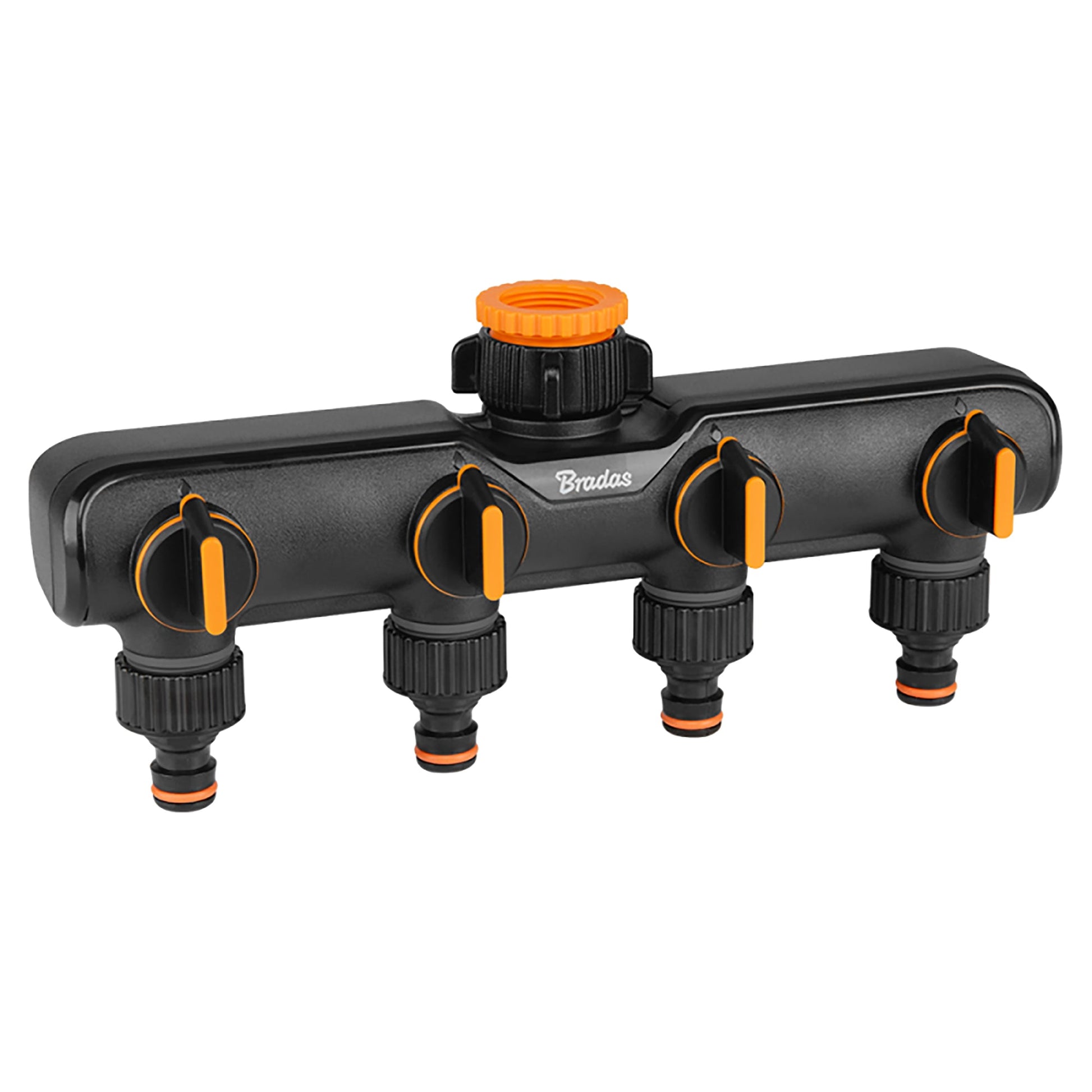

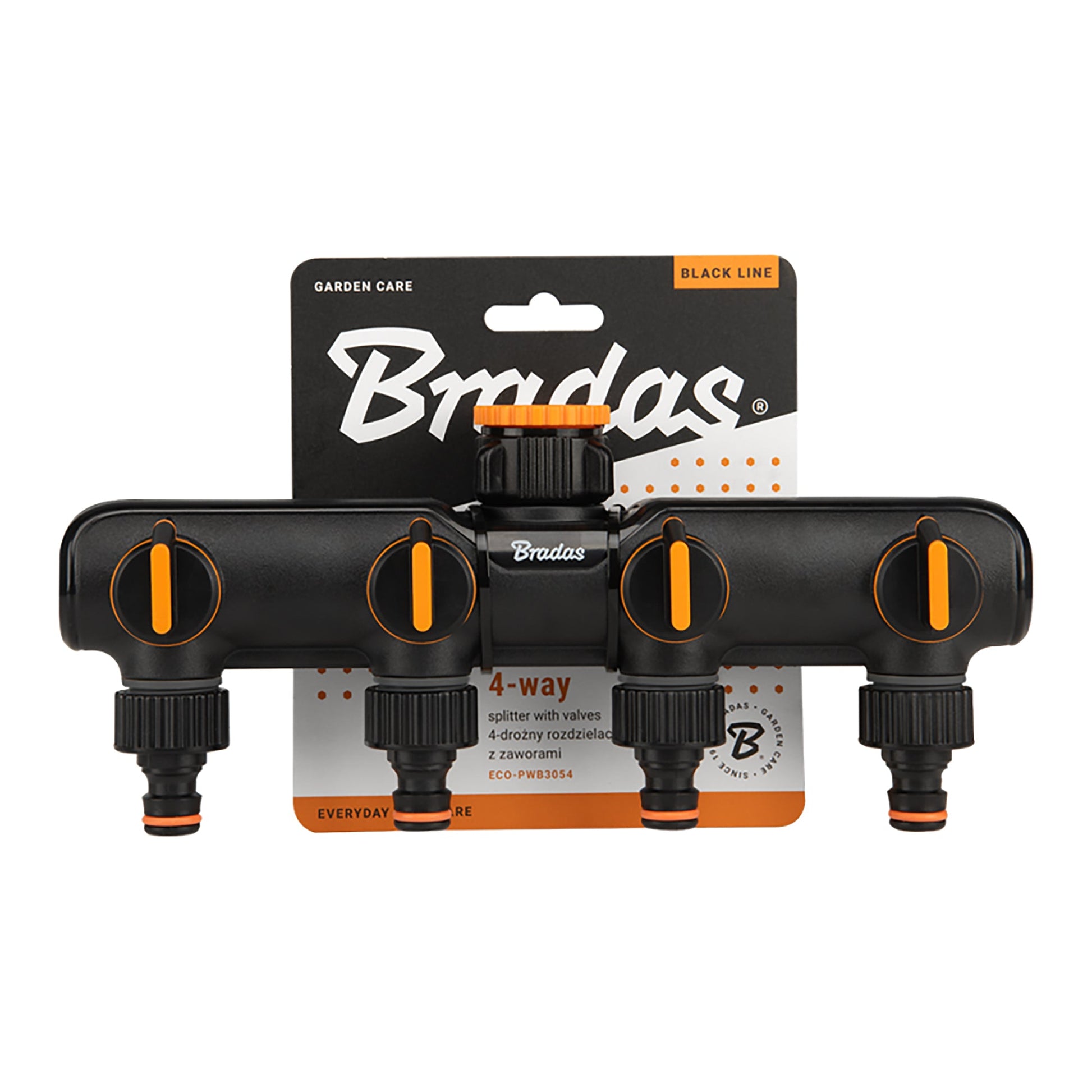

Keep the connections for different parts of your garden together. This Bradas four-way tap splitter provides four hose outlets with a separate manual valve at each branch.
Leave your watering lines attached and turn on the ones needed for the task. The long black body, orange levers and four fitted garden quick-connect plugs keep the controls and connections in one place.
One splitter supplied. Hoses, female hose-end sockets, tap and watering tools are sold separately.
Make each line selectable
In this illustration, four separate female hose sockets cover the splitter’s male plugs. Each socket grips its own hose. These are additional parts, not the ribbed outlet fittings supplied on the manifold.
Match each female socket to the hose’s internal diameter. The optional black connector above is for ½-inch garden hose and is sold singly; choose enough for the lines you plan to connect. Bare hose cannot attach directly to the garden plugs.
The benefit is convenient selection, not four times the water. A sprinkler and a filling hose may compete for flow when both are open. Test your tools together and close other branches if the performance falls short.
Arrange your watering point
Check the tap thread
Turn off the water and match the female inlet to a 1-inch or ¾-inch BSP male tap connection. Check the seal and start the thread squarely by hand. BSP inlet size and hose bore are separate measurements.
Connect the branches
Fit suitable female quick-connect sockets to your hose ends, then engage them on the outlet plugs. Arrange hoses with slack and support where needed so their weight does not pull on the manifold.
Select and test
Close unused branches, open the tap gradually and check every joint. Try each line before running several together. Turn off the main tap after use, release pressure before disconnecting and drain exposed fittings before freezing weather.
Planning four connections
Can I connect fewer than four hoses?
Yes. Connect the lines you need and close unused outlets with their individual valves. The extra plugs remain available for future hoses.
Does every outlet need a threaded tap adapter?
No. This model already has four male garden quick-connect plugs fitted. Use compatible female hose sockets to attach the hoses; those sockets are separate.
Will all four tools run at full flow?
That depends on the supply and the tools. Every open branch shares water from the same tap. Use fewer lines together if a sprinkler, nozzle or other tool needs more flow.
Is it an automatic watering controller?
No. Each orange lever is operated by hand. This splitter does not provide timing, pumping or pressure regulation.
Product information & technical details
| SKU | ECO-PWB3054-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Orange |
| Material | Plastic |
|---|---|
| Tap connection | Female BSP inlet for matching 1-inch or ¾-inch BSP male tap threads |
| Outlet connections | Four fitted male garden quick-connect plugs |
| Branch controls | Four individually operated orange manual valve levers |
| In the pack | One plastic splitter with four valves and fitted plugs; hoses, sockets and tap separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
