Description
A place for every line

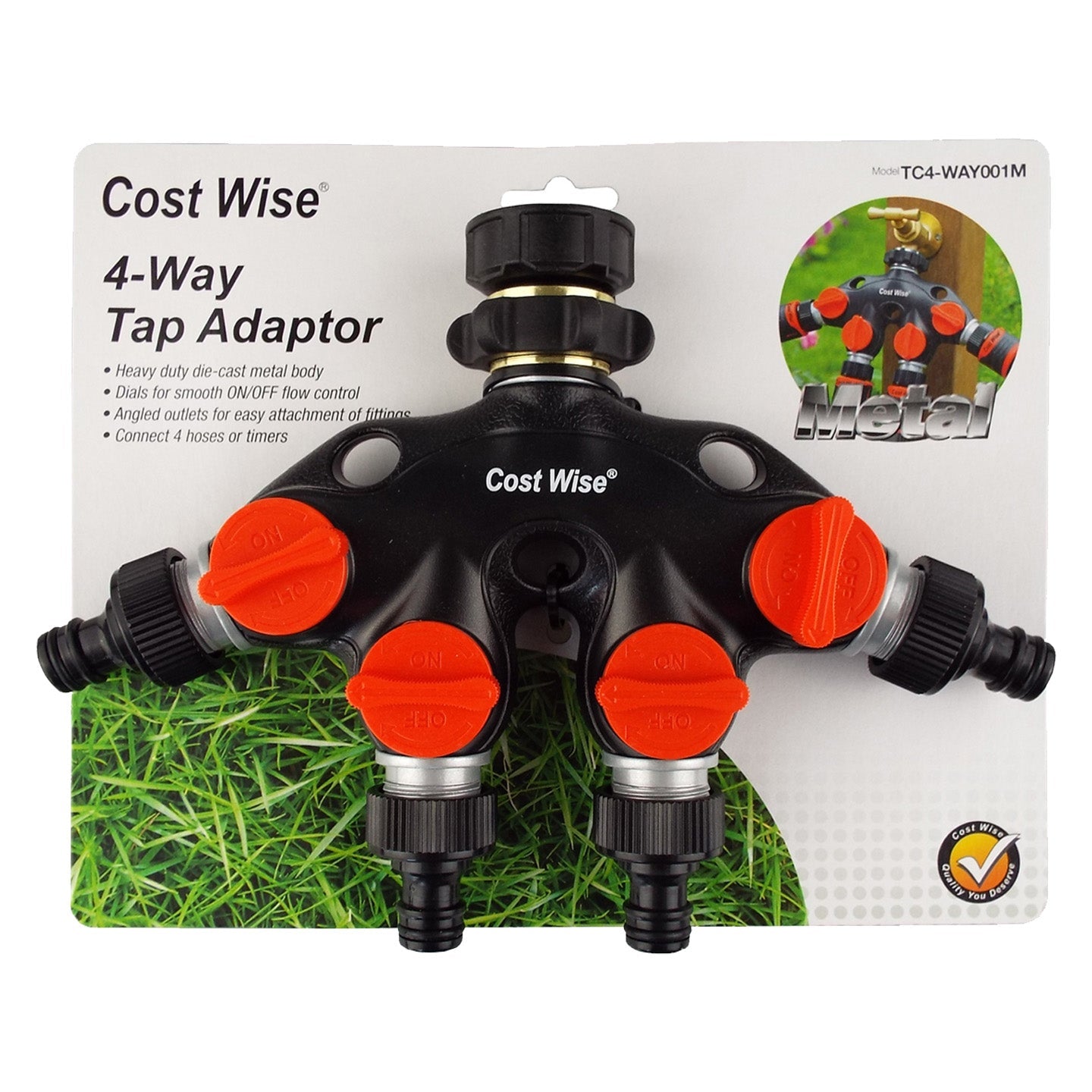

Keep a watering hose, a cleaning line and other garden connections ready at one tap. The Cost Wise four-way metal tap splitter provides four branches with individual orange controls, reducing the need to disconnect hoses whenever the job changes.

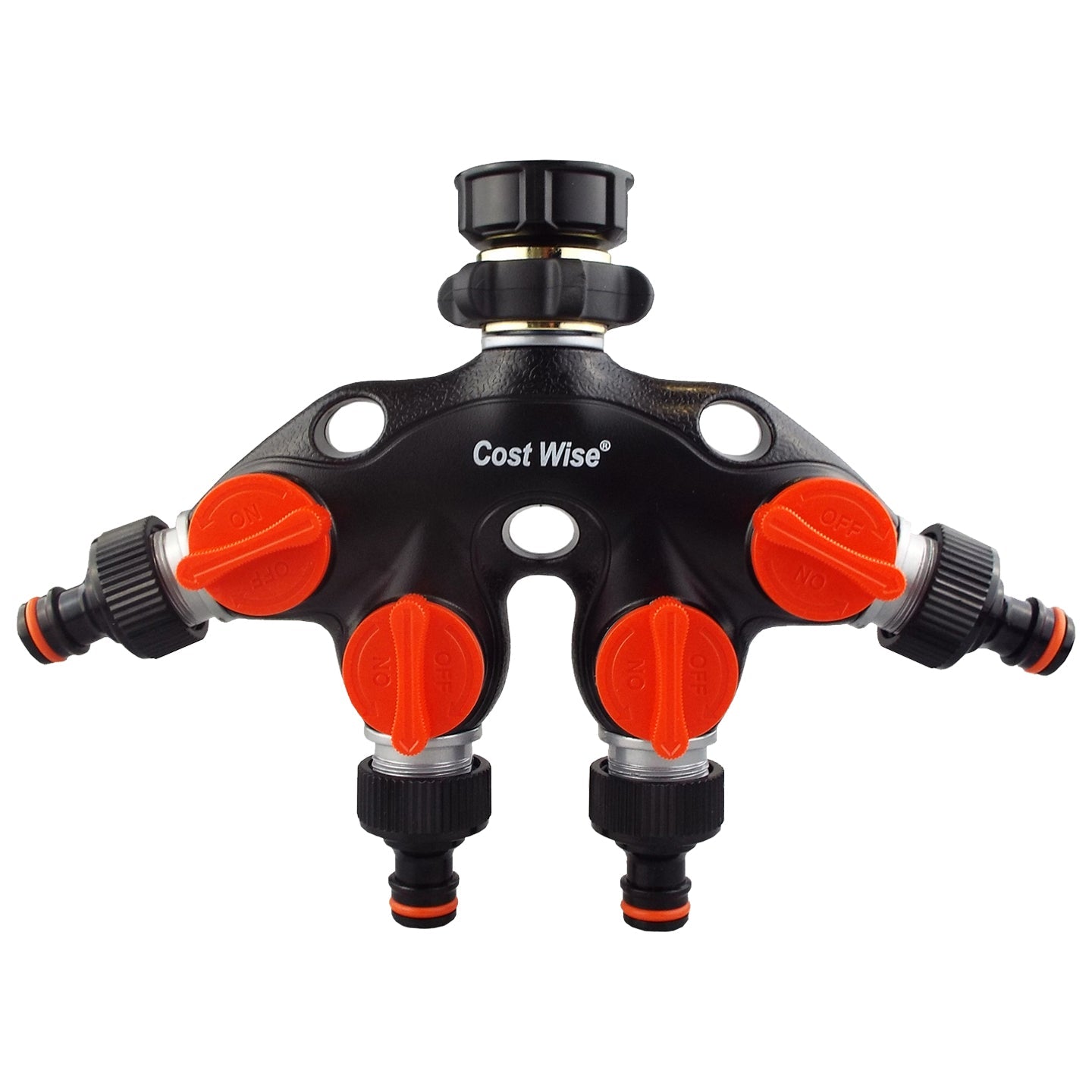

Two centre outlets point down and two side outlets angle outwards. Each is fitted with a male garden quick-connect plug for a compatible female socket on your hose.
One splitter supplied with inlet fittings and four male garden plugs. Tap, hoses and female hose sockets are separate.
Build your watering point
The two centre lines in the illustration use separate female garden hose sockets. These cover the male plugs and grip the hoses through their lower compression nuts. The side plugs remain exposed so you can see the connection supplied.
Choose each socket for the internal diameter of its hose. The optional black connector above fits ½-inch garden hose and is sold singly. You need one suitable socket per connected hose; bare hose does not attach directly to these male plugs.
The fitted plugs can be unscrewed from the outlet threads when a suitable alternative connection is required. Check the replacement fitting's thread and sealing arrangement before changing the connection.
Four branches still share one tap supply. Try the intended tools together; if flow falls short, close unused branches and run fewer lines. These dials provide manual selection and adjustment, not independent pressure regulation.
Connect, select and check
Match the inlet
Turn off the water and select the inlet configuration matching your 1-inch or ¾-inch BSP male tap thread. Check the seal and start the thread squarely by hand.
Add the hose lines
Fit suitable female sockets to the hoses and engage them fully on the plugs. Leave slack so the hoses do not pull on the splitter; keep unused outlets closed.
Test your combination
Open the tap gradually, inspect the joints and check each control and connected tool. Turn off the main tap after use, release pressure before disconnecting and drain exposed fittings before freezing weather.
Plan the four connections
What is included with this model?
One TC4-WAY001M metal-bodied splitter with inlet fittings, four valves and four male garden plugs. The female hose sockets, hoses and tap shown in the installation are separate.
Do I need to connect all four outlets?
No. Each branch has its own manual control, so you can leave unused outlets closed and add lines as needed. Turn off the main tap after watering.
Will all four tools get full tap flow?
They share the available water. The result depends on your supply and each tool's requirements; test the combination and use fewer tools together if flow is insufficient.
Does the tap thread size set the hose size?
No. The female inlet matches the tap's BSP thread. Hose sockets are selected separately to fit the hose bore and mate with the male garden plugs.
Product information & technical details
| SKU | TC4-WAY001M |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Orange |
| Material | Metal |
|---|---|
| Tap inlet | One female inlet with 1-inch and ¾-inch BSP connection configurations |
| Outlet arrangement | Four removable male garden quick-connect plugs: two downward centre outlets and two angled side outlets |
| Branch controls | Four separate orange manual rotary dials |
| Supplied contents | One die-cast metal-bodied splitter, inlet fittings, four valves and four male garden plugs; tap, hoses and female sockets separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
