Description
Four lines, one tap

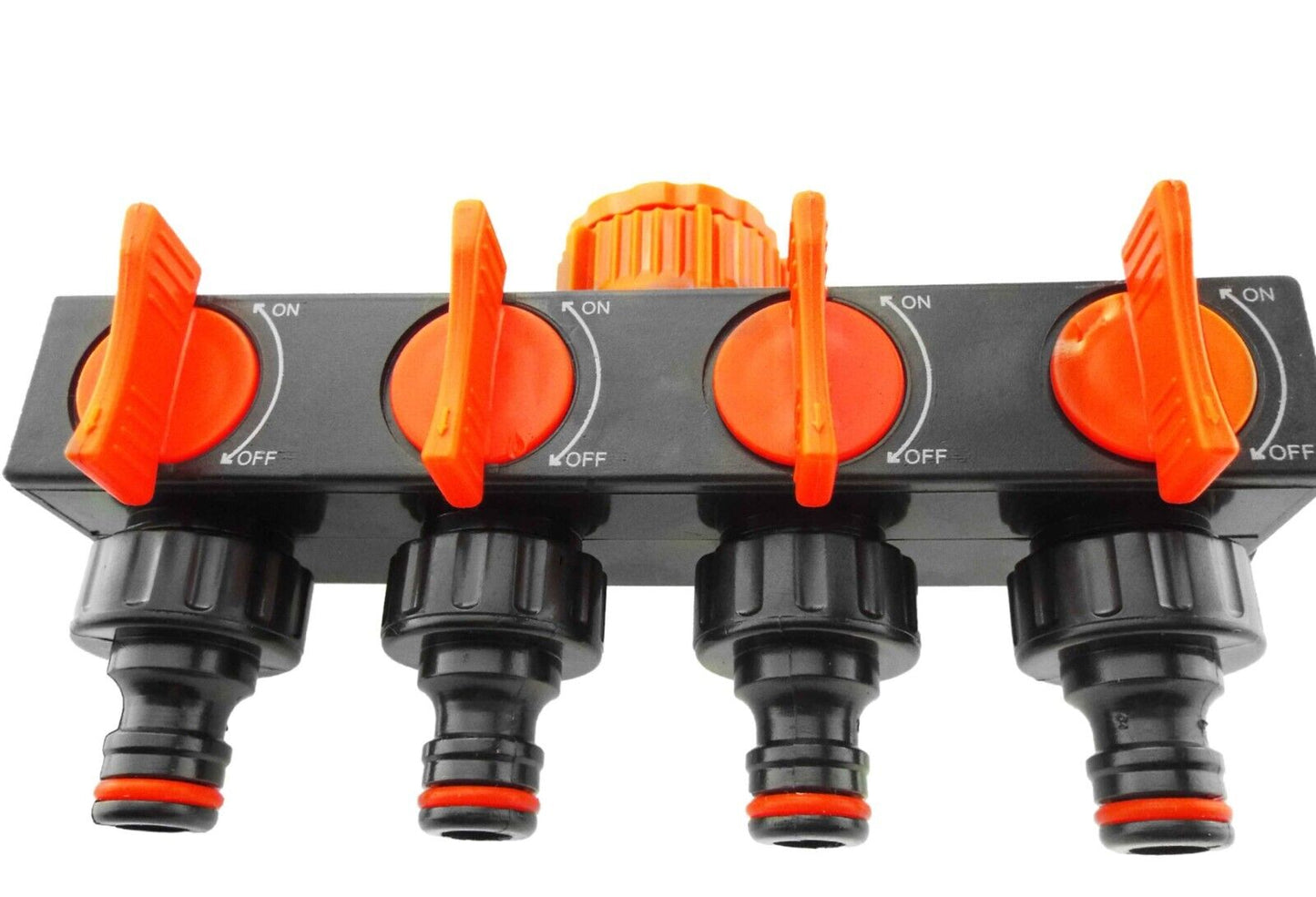

Keep your watering connections ready with this four-way garden tap splitter. Four male quick-connect plugs sit beneath individual orange valve controls, so you can leave different hoses connected and choose which lines to use.
Keep a hand-watering hose available alongside a sprinkler or a separate garden line. Adjust or close each outlet at the splitter instead of disconnecting one hose every time you change tasks.
One black and orange plastic splitter supplied. Tap, hoses and female hose-end sockets are separate.
Clip in the hoses you need
Each outlet already has a male garden quick-connect plug. A compatible female socket on the hose clips onto that plug; you do not need to add a threaded tap adapter to each outlet first.
The hose-end socket must also suit the hose bore. The optional black connector above is for ½-inch hose and is sold singly. Choose the number of sockets needed for your hoses, or use suitable connectors you already own.
The four valves control the branches separately, but they share one water supply. Try your intended combination of equipment together: using several outlets can reduce the flow available to each line. The splitter does not increase pressure or run a watering schedule automatically.
Connect, check and water
Match the tap inlet
Turn off the tap, check its thread size and select the matching inlet configuration. Check the seal and start the connection squarely by hand without forcing the thread.
Attach your hoses
Fit compatible female sockets to the hoses, then clip them onto the outlet plugs. Support the hoses so their weight or a pull does not strain the splitter or tap.
Set each branch
Open the main tap gradually and inspect the connections. Adjust each orange control to suit the task. Turn off the tap and relieve pressure before disconnecting; drain exposed fittings before freezing weather.
Before you order
Are hose-end sockets included?
No. The splitter includes four fitted male quick-connect outlet plugs. The female sockets that fit onto your hoses, the hoses themselves and the tap are separate.
Which tap threads does the inlet fit?
The inlet supports 1-inch and ¾-inch BSP male threaded tap connections. Match the inlet configuration to your tap; it is not a clamp-on connector for a smooth spout.
Can I use fewer than four hoses?
Yes. Each outlet has its own valve, so you can close unused branches and use only the hoses you need. Turn off the main tap when the system is not in use.
Does this work as a watering timer?
No. The orange controls are operated manually. The splitter distributes the tap supply between its branches; it does not provide timed watering or extra pressure.
Product information & technical details
| SKU | 4-WAYTAPCON001B |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Orange |
| Material | Plastic |
|---|---|
| Tap inlet | Female BSP tap connection for 1-inch and ¾-inch male threaded taps |
| Hose outlets | Four male garden quick-connect plugs; compatible female hose sockets required |
| Controls | Four individually operated orange valve controls |
| Supplied quantity | One splitter with four outlet plugs; tap, hoses and hose-end sockets sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
