Description
A 38mm hose connection for a 1¼-inch BSP port
Bring suitable 38mm pond hose to equipment with a matching 1¼-inch BSP female connection.

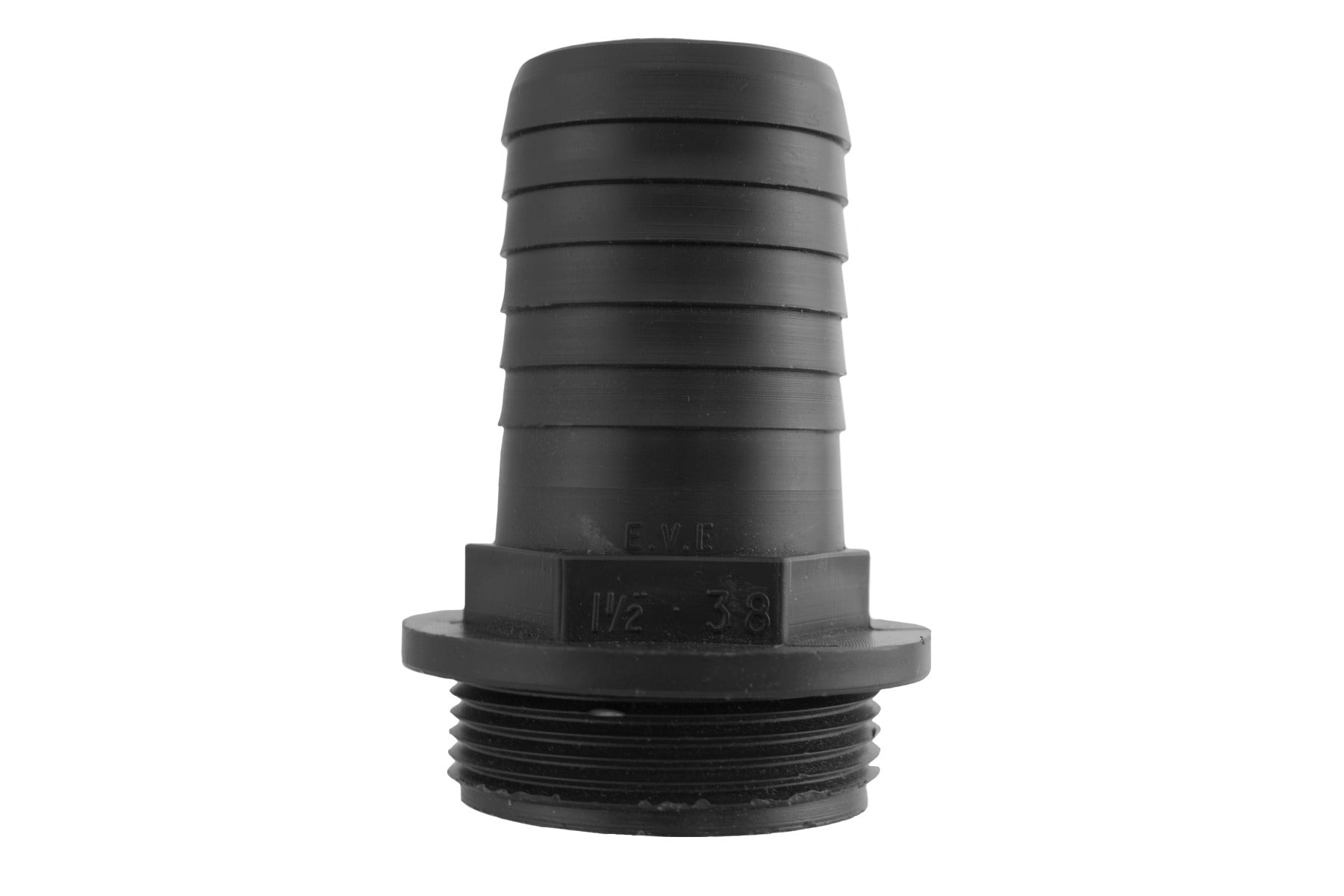

This straight black plastic adapter has a ribbed hosetail at one end and an external male thread at the other. Check both sizes independently before choosing your fitting.
One adapter supplied. Hose, clips and sealing accessories are separate.
Two connection sizes, one straight fitting
The 38mm hosetail and 1¼-inch BSP male thread are separate specifications. The thread’s external diameter is shown at approximately 41.91mm; BSP is a nominal thread size.
The adapter is 80mm long overall, with a 50mm hosetail section. Use these dimensions to plan the fitting position, then leave room for the hose and clip. The photograph shows two views of one adapter.
Match the port, fit the hose, support the run
Hose and securing accessories are chosen separately for your installation.
Confirm the female port
Check for a 1¼-inch BSP female connection. Follow the equipment’s sealing and tightening guidance for plastic fittings. The hex shoulder is part of the body, not an independently turning swivel.
Choose suitable 38mm hose
Match the internal bore and wall profile to the ribbed hosetail. A hose labelled 40mm is a different nominal bore, even if it also uses a 1½-inch trade label. Select the clip from the fitted outside diameter.
Leave access to both joints
Support the hose beyond the fitting and form a gentle bend without sideways pull on the equipment port. Secure the hose appropriately and inspect the assembled joints with water before covering the route.
Questions about the 38mm threaded adapter
Why is the hose size 1½-inch but the thread 1¼-inch?
The two ends use different sizing conventions and do different jobs. The hosetail is intended for suitable 38mm internal-bore hose, often called 1½-inch. The external male thread is nominal 1¼-inch BSP and needs a matching female port. Choose the adapter by both specifications; the inch label on your hose does not determine the equipment thread.
Will this fit a 1½-inch BSP female pump outlet?
No. This adapter has a 1¼-inch BSP male thread. Its 38mm hose connection does not make the threaded end 1½-inch BSP. Check the pump or filter’s stated port size and gender, as well as the hose bore. A different thread-size adapter is needed if the equipment port is specified as 1½-inch BSP female.
What do the 80mm and 50mm measurements refer to?
The dimension photo shows an 80mm overall adapter length and a 50mm hosetail section. These are fitting dimensions rather than the clearance required for the finished hose run. Leave room for the hose to seat on the barb, the securing clip and a gentle bend. Thread engagement changes the installed position; check the complete arrangement beside your equipment.
What else is needed to complete the joint?
This listing supplies one bare plastic adapter. You need suitable 38mm-bore hose, an appropriate securing clip and any sealing accessories specified for the female port. Select the clip from the fitted hose outside diameter and wall profile. Follow the equipment’s instructions for tightening plastic threads, support the hose and inspect both joints with water.
Product information & technical details
| SKU | POND38B125BSPMSTR001 |
|---|---|
| Product type | |
| BSP thread size | 1.25" |
| Thread gender | Male |
| Barb size | 38mm (1.5") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight 38mm hosetail to 1¼-inch BSP male thread |
| Overall length | 80mm |
| Hosetail section length | 50mm |
| External thread diameter | Approximately 41.91mm; nominal 1¼-inch BSP |
| Contents | One adapter; hose, clips and equipment not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
