Description
From a threaded outlet to your pond hose

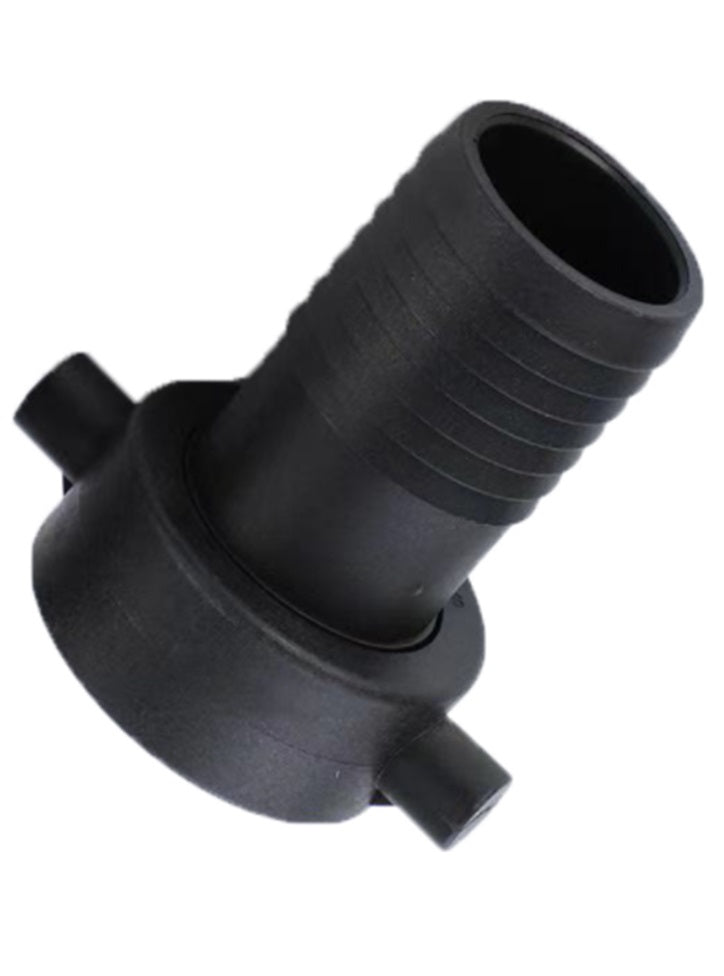

Connect suitable 32mm-bore hose to a matching 1¼-inch BSP male fitting with this straight black plastic adapter.
The female swivel collar engages the equipment thread while the ribbed hosetail carries the hose. Check both ends and the sealing arrangement before assembly.
One adapter supplied. Hose and clips are separate.
Two connections. Two size checks.
Identify the equipment thread before choosing the hose.
Match the male thread
The female collar needs a compatible 1¼-inch BSP male connection. Check the equipment instructions for the required sealing parts and tightening method; matching a nominal size is only part of the fitting check.
Fit the 32mm hose
Use suitable 32mm internal-bore hose. Check that its wall profile can seat properly on the barb, then select any securing clip from the fitted outside diameter and the hose’s requirements.
Support the run
Allow access around the collar and room to secure the hose. Keep a gentle hose curve beyond the barb and support the run so its weight does not pull against the equipment connection.
What the swivel collar does
The collar turns to engage the male thread during fitting. Plan the final hose position before securing the assembly, and follow the equipment’s instructions for plastic connections.
This assembly feature is not a promise of a continuously rotating connection in use. Keep the hose supported and inspect both joints with water before concealing them. Hose, clips and the pump or filter are not part of this listing.
Choosing and fitting this adapter
What does the female collar connect to?
The collar screws onto a compatible 1¼-inch BSP male thread. It does not screw into a female port. Check the equipment’s thread specification and sealing arrangement before ordering: a similar-looking fitting or an inch measurement on its own is not enough to establish that the thread and sealing faces are compatible.
Is the 1¼-inch thread the same measurement as 32mm hose?
No. The 32mm figure describes the nominal internal bore of the hose that fits over the barb. BSP inch sizes describe a nominal pipe-thread system, not a direct measurement of hose bore or the collar opening. Check the hose and threaded equipment end independently, even though 32mm hose is also commonly described as 1¼-inch.
Is this a swivel joint for a moving hose?
The product has a swivel collar to help assemble the threaded connection. That should not be taken as a rating for continuous rotation or a moving hose joint in service. Position and support the hose so it does not twist or pull against the adapter, and leave access to inspect both the threaded connection and the hose end.
Which hose and clip should I use?
Choose suitable hose with a nominal 32mm internal bore and a wall profile that can seat correctly on the hosetail. Any clip must suit the fitted hose’s outside diameter and construction, rather than the bore measurement alone. Hose and clips are sold separately; follow the equipment’s requirements and check the completed assembly with water.
Product information & technical details
| SKU | POND32B-125BSPFSTR001 |
|---|---|
| Product type | |
| BSP thread size | 1.25" |
| Thread gender | Female |
| Barb size | 32mm (1.25") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight 32mm hosetail to 1¼-inch BSP female thread |
| Collar | Swivel threaded collar for assembly |
| Thread convention | 1¼-inch BSP is a nominal thread size, separate from the 32mm hose bore |
| Contents | One adapter; hose, clips and pond equipment not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
