Description
Get the connection and coverage right
The Bradas LIMELINE LE-6203 is a three-arm rotary lawn sprinkler with a grey plastic base and adjustable lime nozzles. Water flowing through the head makes it rotate, spreading the spray around its position.
Before ordering, check two things: how your hose will connect and whether your water supply can deliver the reach you need. The maximum stated area is 109m²; the actual footprint in your garden can be smaller.
One sprinkler supplied. The hose and hose-side connector shown are separate.
Will it fit your hose?
The sprinkler inlet is a male garden quick connector. A compatible female hose-end connector clips onto it. That female connector grips your hose under its retaining nut; the sprinkler inlet itself is not a bare-hose hosetail.
Check the fitting already on your hose. It must use the matching garden push-click connection. A BSP threaded fitting, a claw coupling or a bare pipe will need suitable separate fittings.
If you need a new hose-end connector, select it for your hose bore. The optional connector in Frequently bought together is for ½-inch hose. It is sold separately and is not a connector for every hose size.

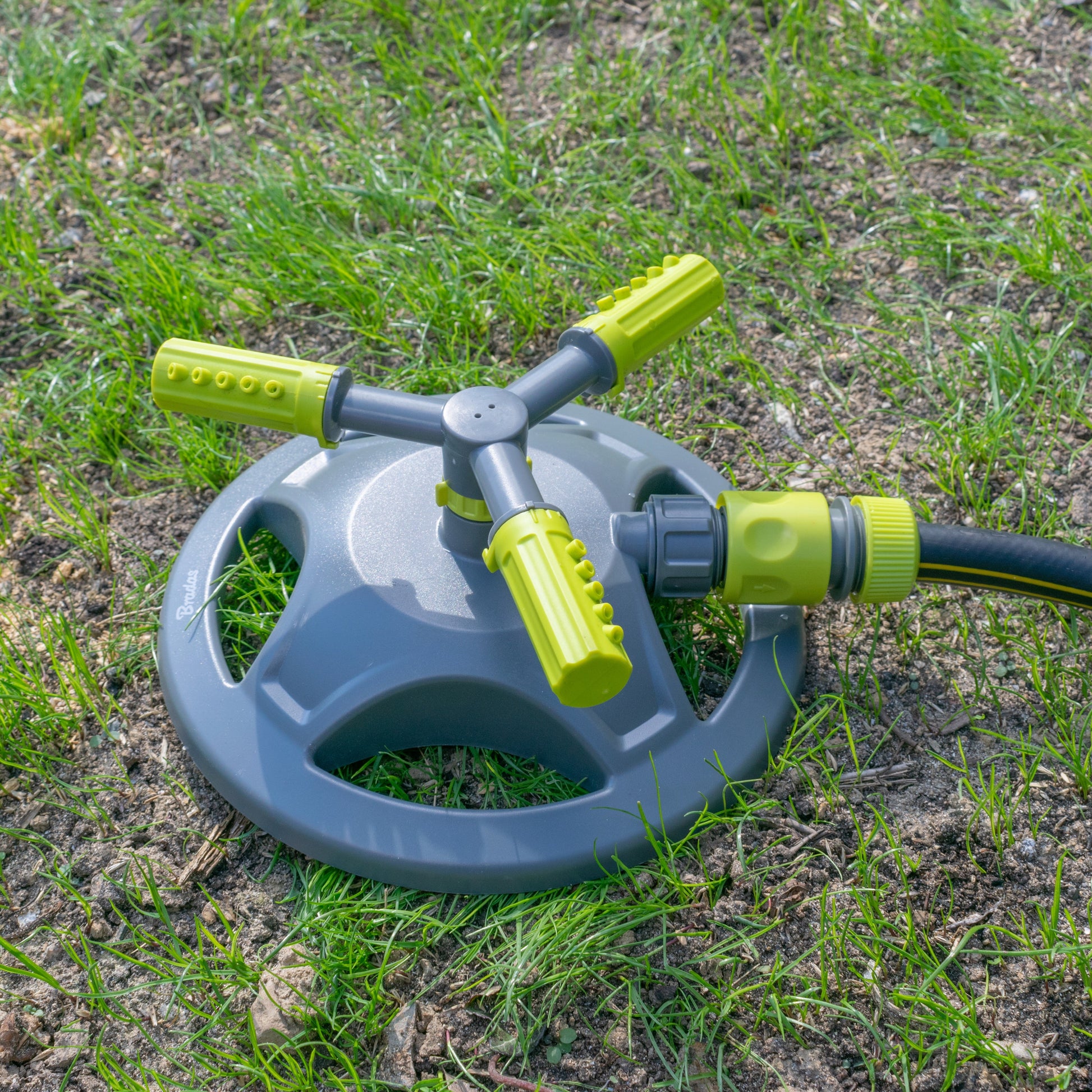

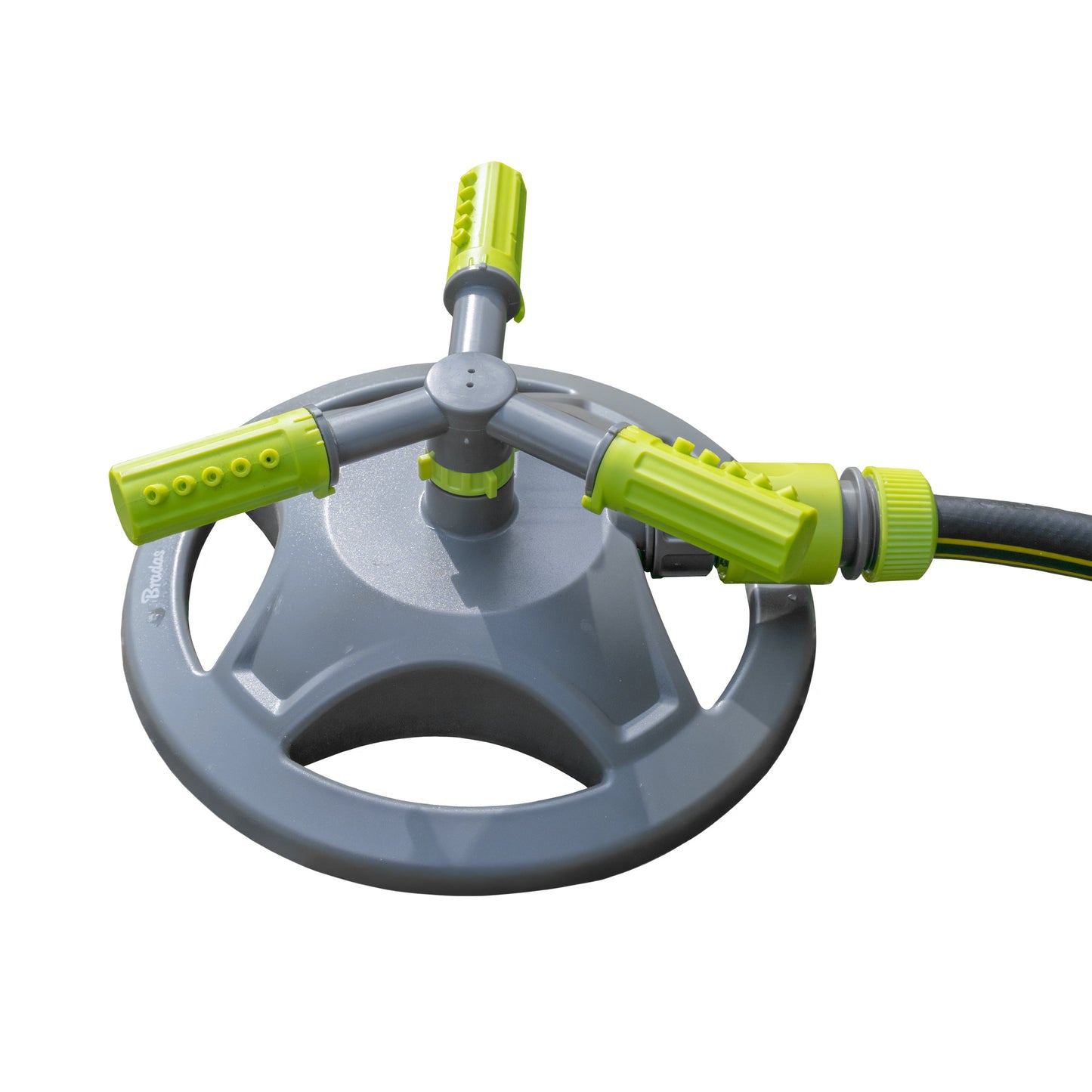

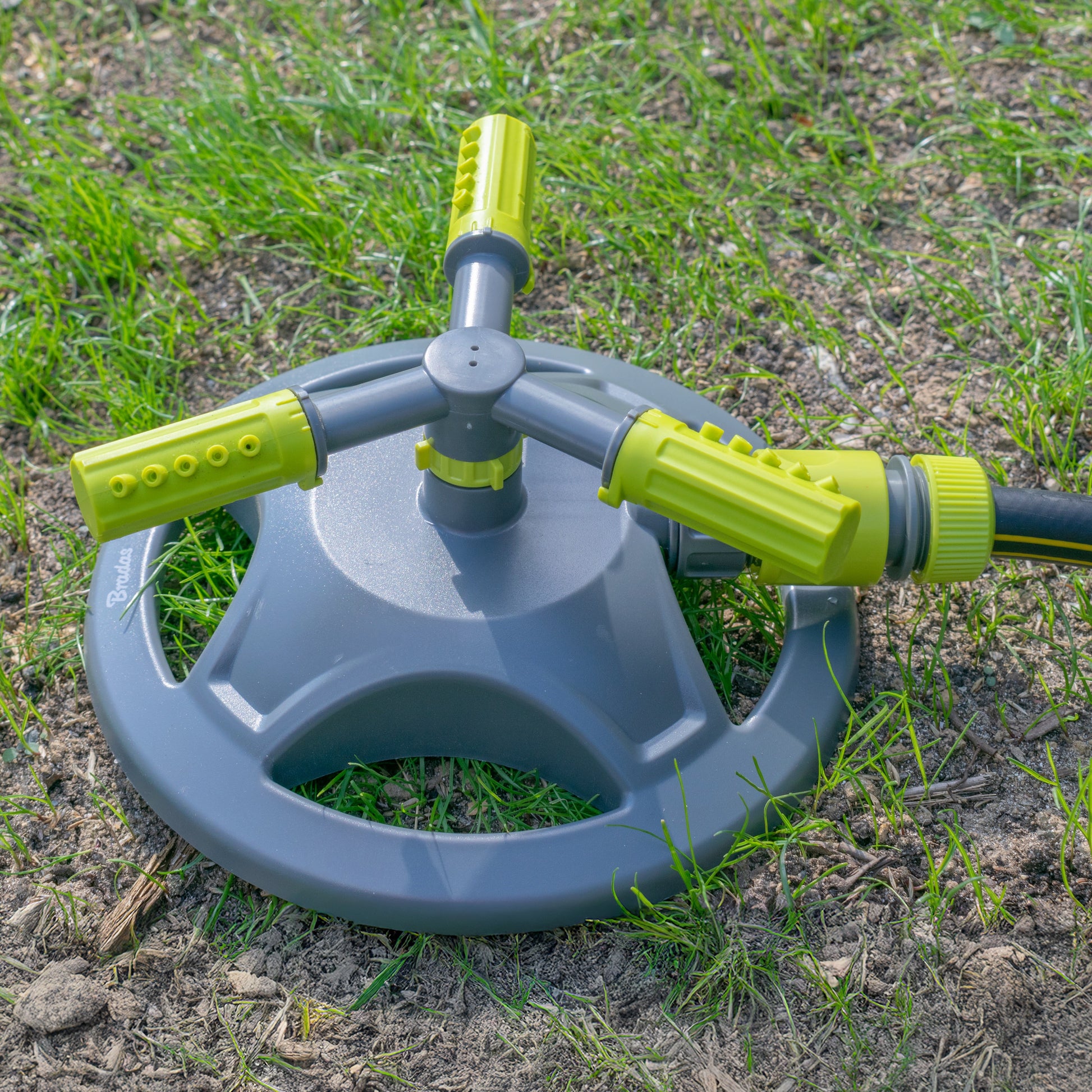

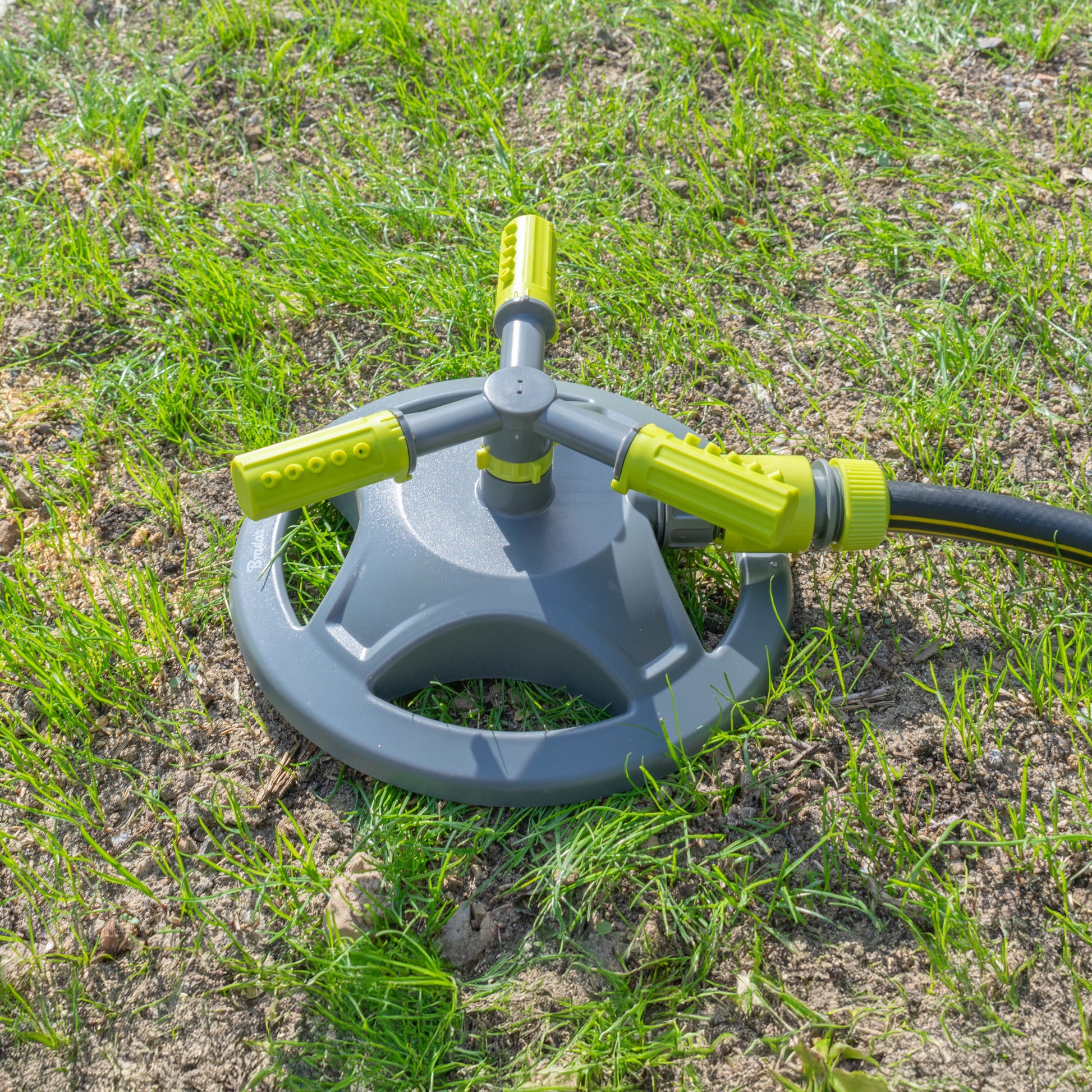

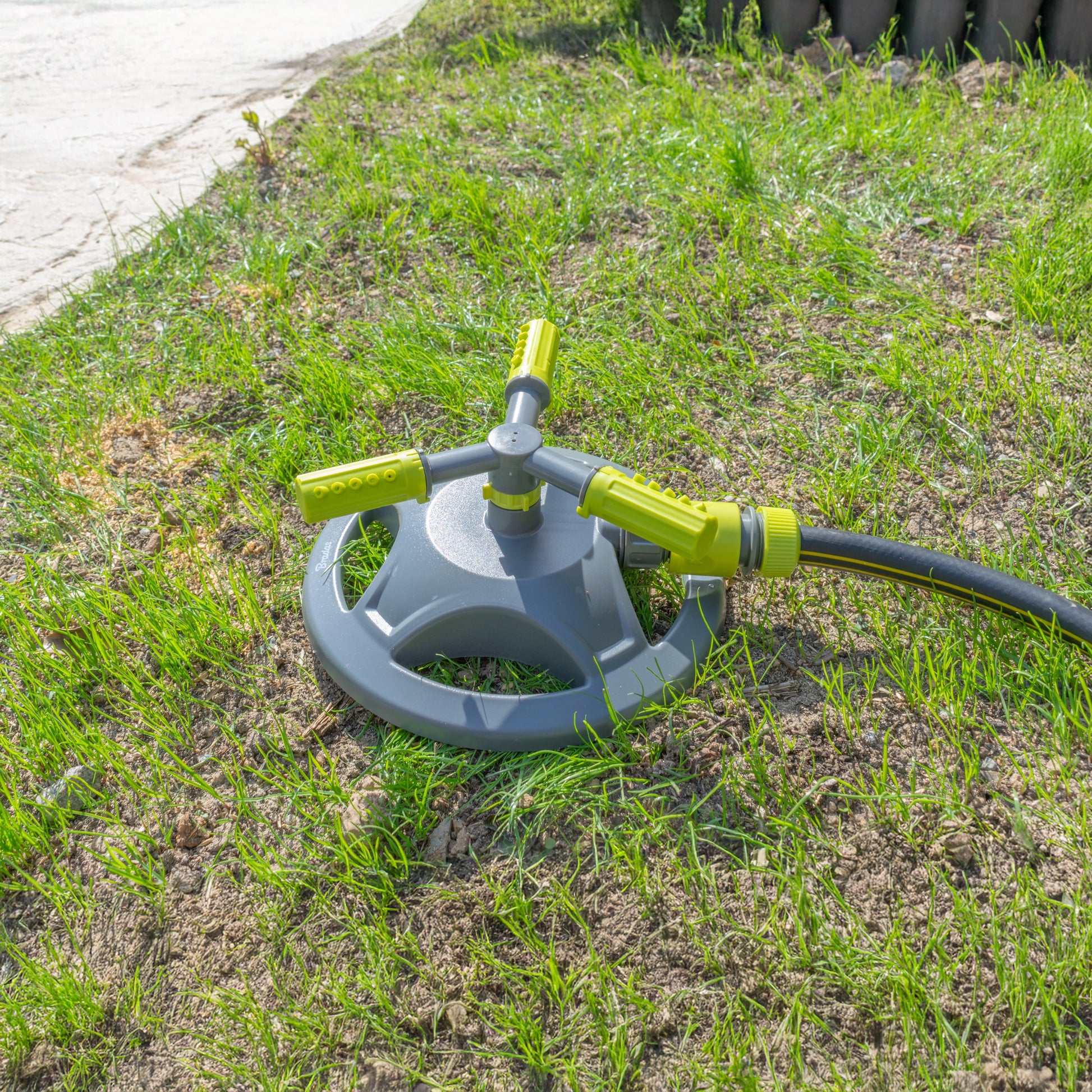

These are actual top and side views of the sprinkler. The garden illustration above shows a hose-side connector attached to demonstrate the setup.
Understand the 109m² maximum
Coverage is a maximum specification, not a promise that every hose supply will water that area. Check the spray in your own garden before deciding where to leave the sprinkler.
Start with the supply
The head needs water flow to rotate and throw the spray. A long or narrow hose, kinks and restrictive fittings can reduce the water reaching it. Check the route from tap to sprinkler if the reach is short.
Set the arm angles
Shut off the water before adjusting the lime nozzles. Restart the supply gradually and watch the spray. Keep fingers away from the arms while the head is rotating.
Match it to the lawn
Place the base on level ground and keep the hose relaxed beside it. Wind can move the spray away from the intended area. Reposition the sprinkler where needed, rather than assuming one position will cover the whole lawn.
What you receive and how to store it
You receive one Bradas LIMELINE three-arm sprinkler. Hose, tap fittings and the female hose-side connector are not included. Its base and arms are plastic; this is the lime-and-grey LE-6203 design.
After watering, turn off the tap and release pressure before disconnecting. Drain the sprinkler and hose, check for visible debris at the outlets and store away from frost. If the head stops turning, shut off the water before inspecting it.
Common setup questions
Can I push a bare garden hose straight onto this sprinkler?
No. The inlet is a male garden quick connector. Fit a compatible female connector to your hose first, choosing that connector for the hose bore, then clip it onto the sprinkler. The hose-side connector is not included.
Will it definitely water 109m²?
No. That is the maximum stated area. Actual coverage depends on pressure and flow at the sprinkler, hose length and bore, restrictions, nozzle settings and wind. We cannot promise a particular footprint for an unknown hose supply.
What should I check if the spray is short or the head will not rotate?
Turn off the water before inspecting the sprinkler. Check the hose for kinks, confirm that the connector is properly engaged and look for visible debris at the outlets. Adjust the arm angles with the water off, then restart gradually and observe the result. Do not force the head while water is running.
Product information & technical details
| SKU | SPR-LE-6203-001 |
|---|---|
| Product type | |
| Colour | Grey, Green |
| Material | Plastic |
| Brand | Bradas |
| Range | LIMELINE |
| Model | LE-6203 |
| Sprinkler head | 3 rotating arms |
|---|---|
| Adjustment | Adjustable arm angles |
| Inlet connection | Male garden quick-connect |
| Maximum stated coverage | 109m²; actual area depends on water supply, hose, settings and wind |
| Supplied quantity | 1 sprinkler |
| Hose and female hose connector included | No |
