Description
Take the watering line into another row
Keep a supply run going and add a side branch where the planting layout needs it. This equal tee makes a fixed T junction between three matching pipe lengths.
The Antelco 47605 has three 19mm double-barbed tails for suitable LDPE irrigation tube. Two connections form the straight run; the third branches off at a right angle.
One tee supplied. Pipe, retaining clips and plants shown in the installation are not included.
Three equal tube connections
All three tails fit nominal 19mm internal-diameter LDPE tube. LDPE means low-density polyethylene. Match the tube bore and material specification; an outside-diameter pipe label is a different measurement.

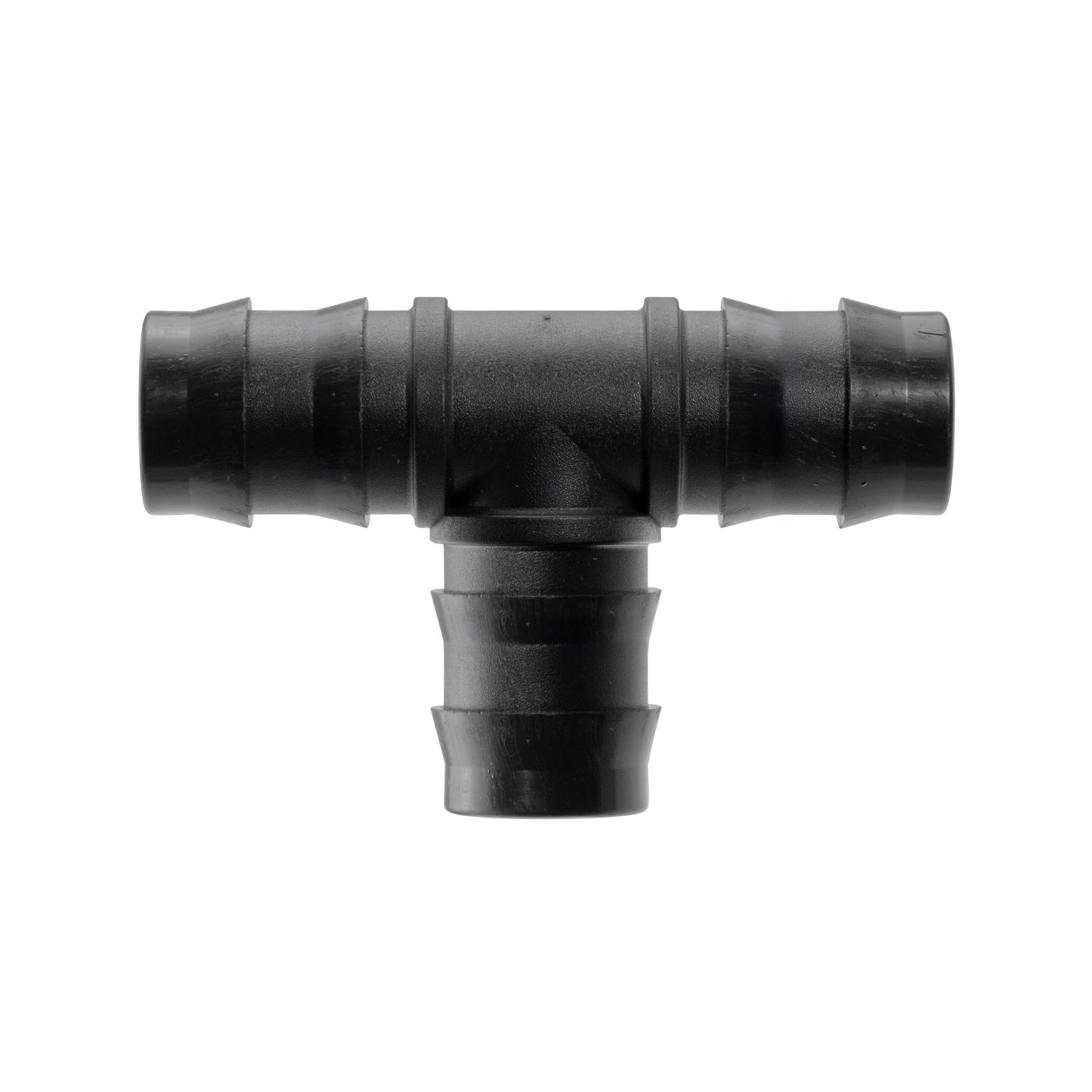

The actual product photo shows the two retaining barbs on each tail and the shoulders near the central body. In the finished joint, the pipe covers the barbs. Any added clamp must suit the tube and assembled joint.
The tee uses UV-stabilised acetal plastic and has an operating limit of 300kPa (3bar). It connects the branches but does not balance their flow or regulate pressure. Pipe lengths, outlets and any control valves remain part of the wider irrigation design.
Give each connection a supported route
Lay out the T junction
Isolate the supply and release pressure. Arrange the straight run and side branch so the pipes reach the fitting without pulling it sideways or forcing a tight bend.
Seat all three pipes
Prepare clean, sound tube ends following the tubing system’s instructions. Push each end over both barbs towards its stop shoulder, and add compatible retention where required.
Check the whole watering run
Support the branches before restoring water gradually within the system’s limits. Inspect all three joints and check delivery at the outlets. Use suitable separate controls if a branch needs balancing or isolation.
Planning your irrigation branch
Is this a Y connector or a tee?
It is a T-shaped tee: two tails are in a straight line and the third branches at a fixed right angle. All three tails are the same nominal 19mm size. It is not a Y splitter or a reducing tee.
Will both branches get the same amount of water?
Not automatically. Flow depends on the supply, pipe lengths, outlet demand and other parts of the system. This tee connects the pipes; it does not balance flow or provide an individual shut-off for either branch.
Do the double barbs mean clamps are never needed?
No. The range is designed for high retention in correctly matched quality low-pressure LDPE tube. Confirm compatibility with the tubing manufacturer or test the intended assembly, and follow its retention requirements. Extra clips are sold separately.
Does the pack include pipe or three clips?
No. One Antelco 47605 tee is supplied. The three pipe lengths and clips in the installation illustrate how it can be fitted; they are separate items. Choose tube by its nominal 19mm bore and match clips to the actual fitted outside diameter and system requirements.
Product information & technical details
| SKU | A47605-TEE19DB001 |
|---|---|
| Product type | |
| Barb size | 19mm (3/4") |
| Colour | Black |
| Material | Plastic |
| Manufacturer / model | Antelco 47605 |
| Connection design | Equal T junction; two barbs on each of three tails |
|---|---|
| Tube type | Suitable 19mm internal-diameter LDPE irrigation tube |
| Material grade | UV-stabilised acetal plastic |
| Maximum operating pressure | 300kPa (3bar); observe the complete system’s limits |
| Supplied quantity | One tee; pipe and retaining clips sold separately |
