Description
Keep the watering line going
Extend a run or reconnect two sound tube ends without changing the pipe size. A straight joiner keeps the route simple when another length is needed.
The Antelco 46985 double-barb joiner connects two suitable 19mm-bore LDPE irrigation pipes. Each pipe covers one insertion tail and meets the central stop flange.
One joiner supplied. Pipe, retaining clips and plants shown in the installation are separate items.
More grip inside each tube end

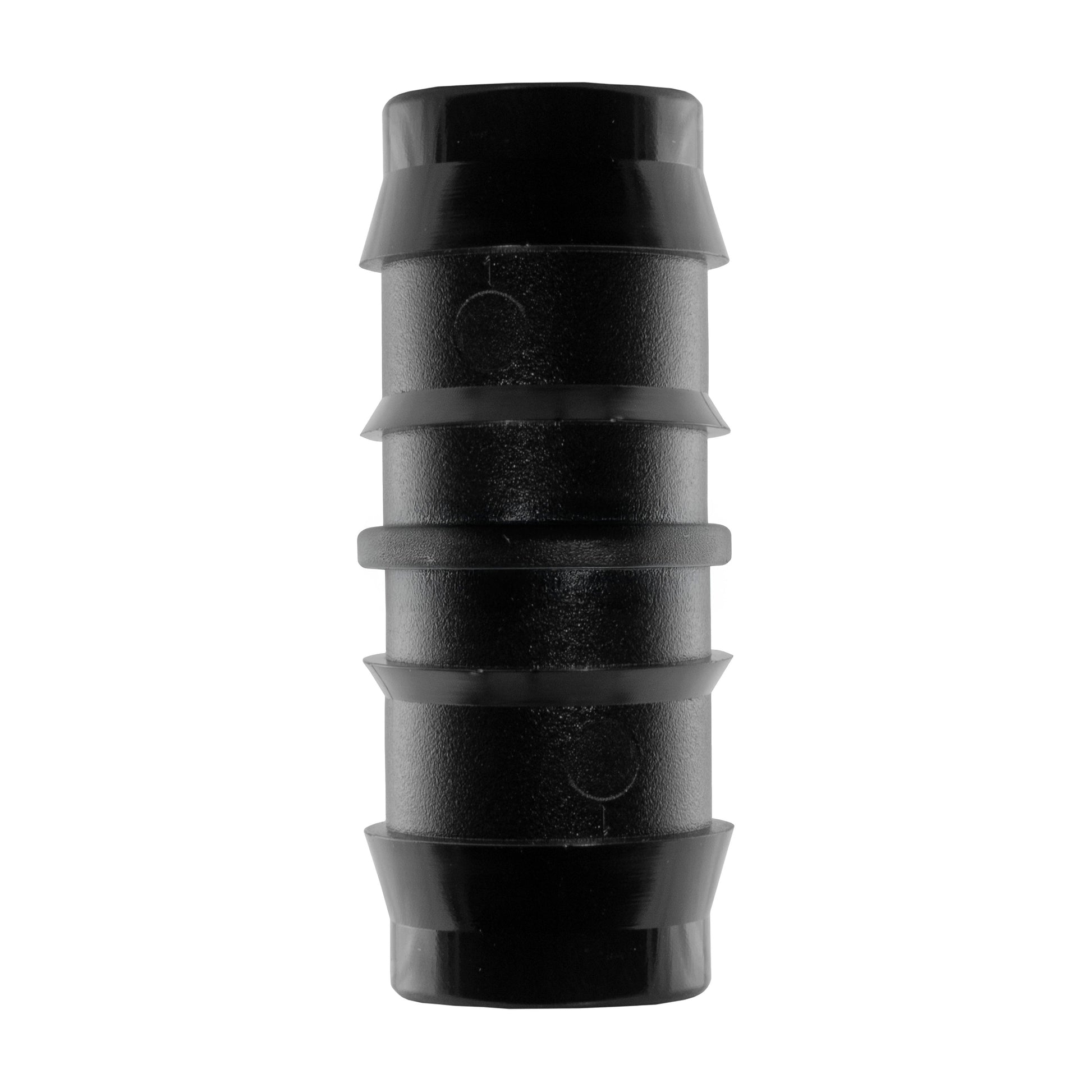

The actual product photo shows the two barbs on each tail. Once fitted, those sections sit inside the pipe; only the central stop remains between the two tube ends. The gap between the barbs provides space for extra retention where the tubing system requires it.
Match the fitting to nominal 19mm internal-diameter LDPE tube. LDPE means low-density polyethylene. Check both the bore and tubing specification: a pipe labelled by its outside diameter is not automatically the same fit.
UV-stabilised acetal plastic suits outdoor irrigation use. The joiner’s operating limit is 300kPa (3bar); pipe and other components must also be suitable. The connection maintains the route but does not control or reduce the supply pressure.
Make the joint without straining the pipe
Start with sound tube
Turn off the water and release pressure. If repairing a damaged run, remove the affected section and prepare clean ends as directed by the tube manufacturer. Allow enough pipe length to meet without pulling.
Push both ends to the stop
Fit each pipe over both barbs towards the central flange. Confirm the tubing is compatible and follow its retention guidance. Any added clip must suit the type and outside diameter of the assembled joint.
Support and check the connection
Support the run so movement or hanging weight does not load the joint. Restore water gradually within the complete system’s limits, then inspect both connections before leaving the line in service.
Before joining the pipe
Is 19mm the pipe’s inside or outside diameter?
It is the nominal internal diameter of the matching LDPE tube. Check the tube’s bore and fitting specification; 19mm outside-diameter pipe and ¾-inch BSP threads describe different connections.
Can I use it without clamps?
The double-barb range is designed for high retention in correctly matched quality low-pressure LDPE tube. Confirm suitability with the tubing manufacturer or test the assembled connection under the intended conditions. Follow any retention requirements; extra clamps are separate items.
Can it join two different pipe sizes?
No. Both ends of this joiner fit the same nominal 19mm tube bore. Choose a correctly sized reducing joiner if you need to connect different bores, rather than forcing a smaller pipe or relying on a clamp to hold an oversized one.
Is it a quick-release fitting or a kit?
Neither. One fixed barbed Antelco 46985 joiner is supplied. The pipe fits over the insertion tails; there are no release collars. Pipe and retaining clips shown in the installation image are not included. Isolate and depressurise the line before working on a connection.
Product information & technical details
| SKU | A46985-STR19DB001 |
|---|---|
| Product type | |
| Barb size | 19mm (3/4") |
| Colour | Black |
| Material | Plastic |
| Manufacturer / model | Antelco 46985 |
| Tube type | Suitable 19mm internal-diameter LDPE irrigation tube |
|---|---|
| Connection design | Straight, equal-bore, two barbs per end |
| Material grade | UV-stabilised acetal plastic |
| Maximum operating pressure | 300kPa (3bar); observe the complete system’s limits |
| Supplied quantity | One joiner; pipe and retaining clips sold separately |
