Description
Give your watering line a proper corner
When a pipe route needs to turn sharply, use a right-angle fitting instead of forcing a tight bend into the tube.
The Antelco 47265 double-barb elbow joins two suitable 19mm-bore LDPE pipes at a fixed 90°. Both ends are the same size, keeping the connection choice straightforward.
One elbow supplied. Pipe and clips shown in the installation are separate items.
The grip sits inside the pipe

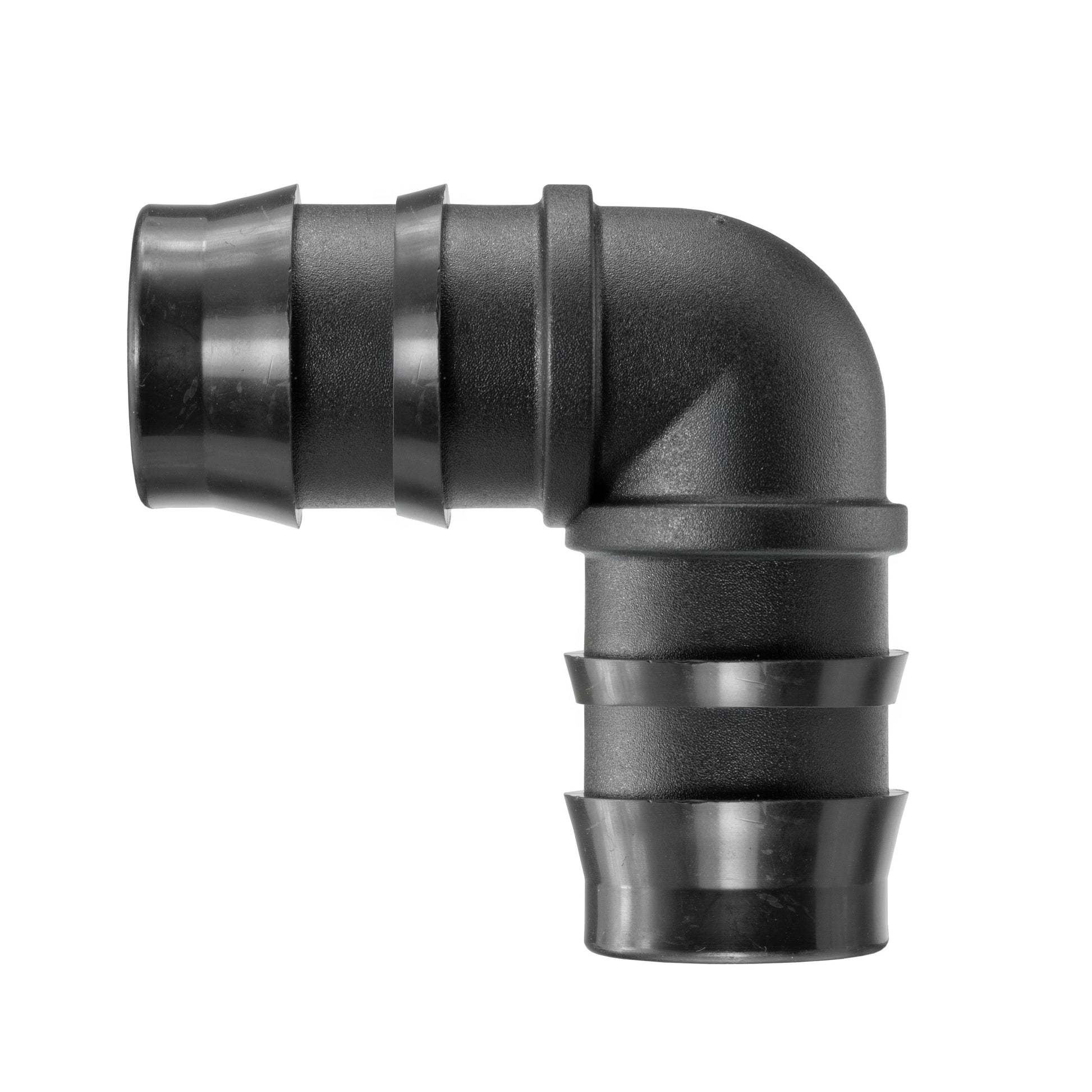

Each end has two raised barbs followed by a stop shoulder near the central bend. In the finished joint, the pipe covers the insertion tail; the actual product photo shows the surfaces that hold it.
The fitting is made for nominal 19mm internal-diameter LDPE irrigation tube. LDPE means low-density polyethylene. Check the tube’s specification and wall material, rather than choosing by its outside diameter alone.
The body is UV-stabilised acetal plastic for outdoor irrigation use. Its operating limit is 300kPa (3bar); the pipe, clamps and other components must also suit the conditions. The elbow provides a turn, not pressure regulation or an adjustable joint.
Set the corner before securing the run
Lay out both pipe lengths
Isolate the water and release pressure. Leave enough sound, matching tube on each side to reach the elbow without stretching it or pulling the fitting sideways.
Seat both ends completely
Follow the tubing system’s preparation instructions and push each pipe over both barbs towards its stop shoulder. Confirm the tube and fitting are compatible, and add suitable retention where the installation requires it.
Support the change of direction
Keep the pipe runs supported so movement does not load the corner. Restore water gradually within the system’s limits and inspect both joints. Turn off and depressurise the line before making adjustments.
Before you fit the elbow
Does 19mm refer to the pipe’s outside diameter?
No. This elbow is specified for nominal 19mm internal-diameter LDPE tube. Check the bore, wall and tube compatibility; a pipe sold as 19mm outside diameter is not automatically the correct fit.
Do I need retaining clips?
The double barbs are designed to grip correctly matched low-pressure LDPE tube. Follow your tube system’s installation instructions and confirm the assembled joint is suitable. Add compatible clamps where required; the space between the barbs allows extra retention. Clips are sold separately.
Can the angle be adjusted?
No. The moulded body makes a fixed 90° turn. It is not a swivel, a variable-angle bend or a valve. Plan the pipe route so both connections sit without strain.
Is this a pair or a kit?
One black Antelco 47265 elbow is supplied. Pipe, clamps and other watering components are not included. Both tails on this single elbow are for the same nominal 19mm tube bore.
Product information & technical details
| SKU | A47265-ELB19DB001 |
|---|---|
| Product type | |
| Barb size | 19mm (3/4") |
| Colour | Black |
| Material | Plastic |
| Manufacturer / model | Antelco 47265 |
| Connection angle | Fixed 90° |
|---|---|
| Material grade | UV-stabilised acetal plastic |
| Tube type | Suitable 19mm internal-diameter LDPE irrigation tube |
| Maximum operating pressure | 300kPa (3bar); observe the complete system’s limits |
| Supplied quantity | One elbow; tube and retaining clips sold separately |
