Description
Make the transition into LDPE pipe
A valve or threaded fitting needs the right connection before the irrigation line can continue.

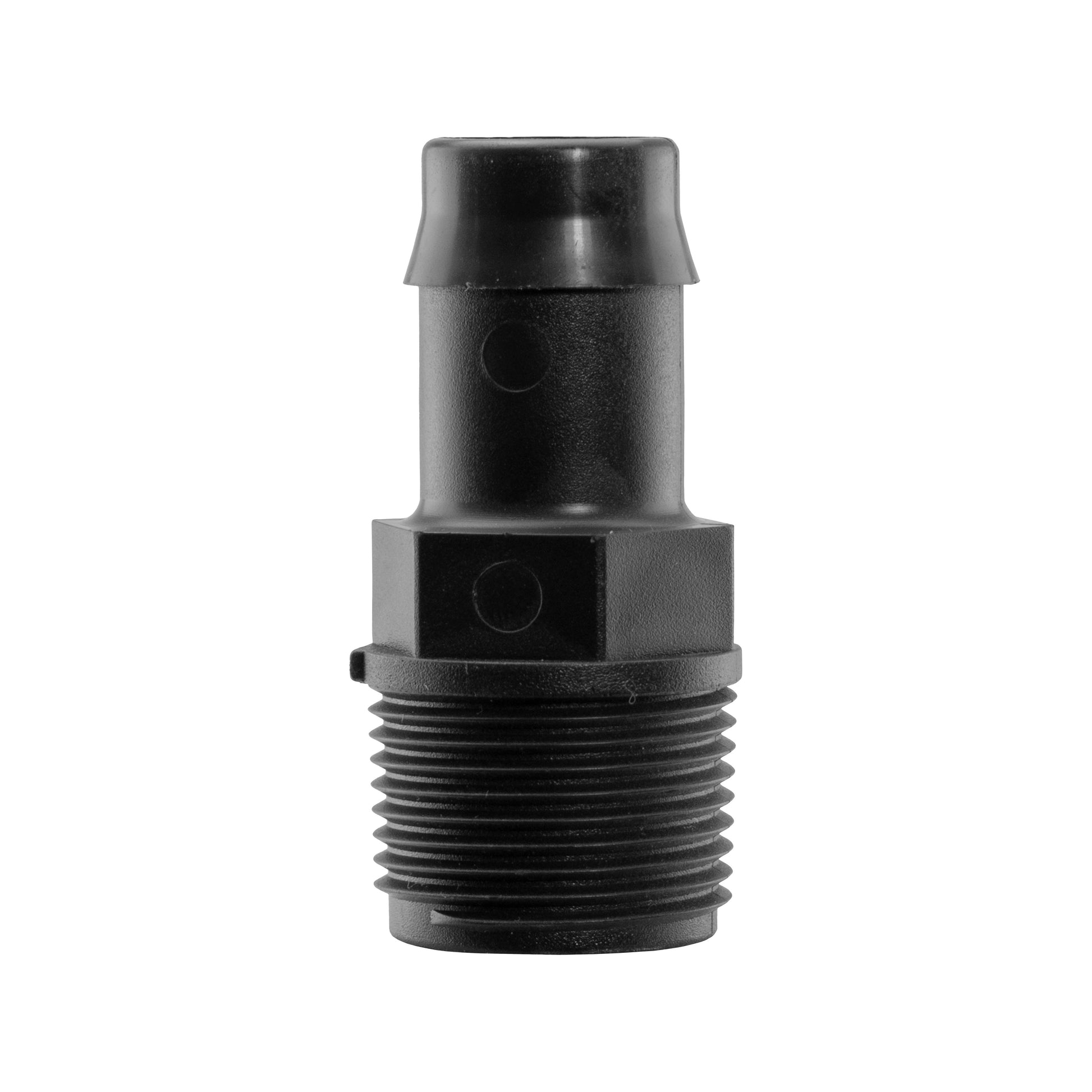

The Antelco 45295 straight director joins a ¾″ BSP female socket to suitable 19mm-bore LDPE tube. Its male thread enters the socket, while the hose tail sits inside the tube.
One adapter supplied. The illustrated valve, pipe and clip are separate installation items.
A direct connection, with no extra turn
The straight body lets the pipe leave the threaded socket in line. The central hex is the dividing point between two different interfaces: a male BSP thread on one side and a 19mm tube tail on the other.
Use this director with suitable low-density polyethylene irrigation tube. The tube must fit the insertion tail correctly; an outside-diameter measurement alone is not enough to select it. The ¾″ BSP designation identifies the thread and does not describe its measured outside diameter.
The plastic is UV stabilised for outdoor irrigation use. The operating limit is 300kPa (3bar), but the system must also respect the ratings of its pipe, valve, seals and other fittings. The director connects components; it does not regulate the incoming supply.
Fit the director before routing the line
Match the female socket
Isolate and depressurise the water supply. Check that the mating part has a compatible ¾″ BSP female thread. Use the sealing arrangement required by that component and start the thread squarely; avoid cross-threading or overtightening the plastic.
Seat the LDPE tube
Follow the tubing system’s preparation instructions, then push sound tube over the complete tail up to the central shoulder. Use suitable retention where required. Any separate clip must match the fitted tube’s outside diameter and material.
Leave a supported route
Allow a relaxed pipe route without a sharp bend or sideways load on the threaded socket. Restore water gradually within the system’s pressure limits and inspect both joints before putting the watering line into service.
Choosing your irrigation director
What is a director fitting?
It is an adapter between irrigation tube and a threaded component. This version has a 19mm tube tail and a ¾″ BSP male thread. It connects the pipe to a matching female socket; it is not a valve or a garden hose click connector.
Does it fit a ¾″ BSP male outlet?
No. The director itself has an external male thread, so it needs a matching female socket. Choose a female-thread adapter when the part you are connecting to already has a male outlet.
Does the 3bar rating control my water pressure?
No. It is an operating limit, not a pressure-setting function. Keep the supply within the lowest permitted limit of the complete irrigation assembly and use suitable pressure control where your system requires it.
Are the valve, pipe and clip included?
No. This listing supplies one black Antelco 45295 director. The other components in the installation illustration show how it connects into a system and must be selected separately for your layout.
Product information & technical details
| SKU | A45295-STR19B-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 19mm (3/4") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Manufacturer | Antelco |
| Model | 45295 |
| Tube type | Suitable 19mm internal-diameter LDPE irrigation tube |
| Maximum operating pressure | 300kPa (3bar); observe the limits of the complete system |
| Supplied quantity | One straight director; tube, valve and clips sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
